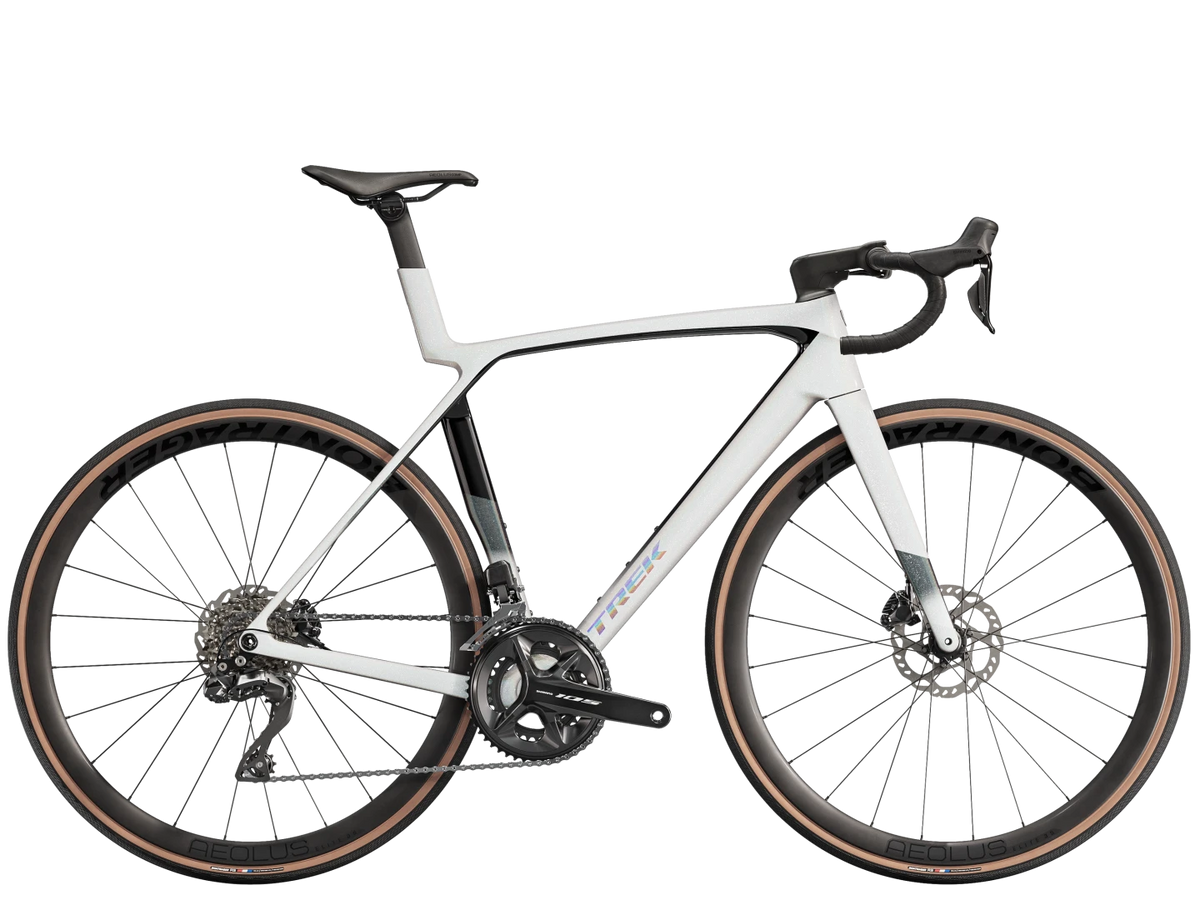

Trek Madone SL 6 Gen 8 White Prismatic / XS

Trek Madone SL 6 Gen 8 Crimson / XS - foto 3

Trek Madone SL 6 Gen 8 Road Bike

SKU: 5319970 EAN: 601842991558

In stock

€3.799,00 incl. VAT

RRP: €5.129,00

Colour

Matte Dark Web White Prismatic Crimson

Size

XS S M M/L L XL

How your bike arrives

Every bike goes through our workshop before it ships. Choose how you want to receive it.

Standard Included

Checked in our workshop
Almost fully assembled
In the manufacturer's box

Checked in our workshop and almost fully assembled, in the manufacturer's box.

Ready to ride +€60

Assembled and tuned by our mechanics
Bigger box at no extra cost
A video of your bike before it ships

Trek Madone SL 6 Gen 8 is designed to keep the pace high when the gradient changes. Full System Foil aerodynamic profiles reduce air resistance, while the carbon construction and race geometry give the Madone Gen 8 a character suited to accelerations, climbs and fast group rides.

Comfort at speed: The IsoFlow seat tube allows the saddle area to flex and absorb impacts from the road surface. This helps when you want to hold your position and keep pushing on uneven tarmac.
Shimano 105 Di2: The Shimano 105 Di2 12-speed electronic shifting system handles 50/34 chainrings and a 11-34 cassette, letting you change gear with a touch even as the pace increases.
Aeolus Elite 50 Wheels: The 50mm OCLV carbon rims add an aerodynamic profile to the build. The wheels and 28mm Bontrager R3 tyres are Tubeless Ready.

Aerodynamics, pedalling response and comfort work together: a Madone for the whole route, from the first climb to the fast ride home.

Technical specifications

Differences between sizes are listed in the individual entries.

Frame and fork

Frame	500 Series OCLV Carbon, Full System Foil tube profiles, IsoFlow seat tube, RCS headset, cable routing for electronic or mechanical shifting, removable aero chain keeper, T47 bottom bracket, flat mount disc brakes, UDH, 142x12mm thru axle
Fork	Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Weight and load limits

Weight	ML - 8.16 kg / 17.99 lbs (with TLR sealant, without inner tubes)
Weight limit	This model has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125kg.

Accessories and other details

Charger	Charging cable included

Drivetrain

Shifter	Shimano 105 R7170, 12-speed
Front derailleur	Shimano 105 R7150 Di2, braze-on, low clamp
Rear derailleur	Shimano 105 R7150 Di2, max 36T sprocket
*Crankset	Size: XS, S Shimano 105 R7100, 50/34, 165mm length
	Size: M Shimano 105 R7100, 50/34, 170mm length
	Size: ML, L Shimano 105 R7100, 50/34, 172.5mm length
	Size: XL Shimano 105 R7100, 50/34, 175mm length
Bottom bracket	Praxis, threaded T47, internal bearing
Cassette	Shimano 105 7101, 11-34, 12-speed
Chain	Shimano SLX M7100, 12-speed
Maximum chainring size	1x: 54T, 2x: 56/43

Wheels and tyres

Front wheel	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Rear wheel	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, Shimano 11/12-speed freehub, 142x12mm thru axle
Front hub	Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, 100x12mm thru axle
Front skewer	Bontrager Switch chamfered thru axle, removable lever
Rear hub	Bontrager Affinity Comp, Shimano 11/12 speed freehub, 142x12mm thru axle
Rear skewer	Bontrager Switch chamfered thru axle, removable lever
Rim	Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35mm rim depth, 100x12mm thru axle
Tyre	Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170tpi, 700x28mm
Tyre component	Bontrager TLR sealant, 6oz
Rim tape	Bontrager TLR
Maximum tyre size	32mm (measured, see manual for details)

Components

*Saddle	Size: XS, S Bontrager Aeolus Comp, steel rails, width 155mm
*Saddle	Size: M, ML, L, XL Bontrager Aeolus Comp, steel rails, width 145mm
*Seatpost	Size: XS, S, M Madone aero carbon seatpost, 0mm offset, short
*Seatpost	Size: ML, L, XL Madone aero carbon seatpost, 0mm offset, long
*Handlebar	Size: XS Bontrager Comp, alloy, 31.8mm, reach 80mm, drop 121mm, width at controls 36cm, width at drops 40cm
	Size: S, M Bontrager Comp, alloy, 31.8mm, reach 80mm, drop 121mm, width at controls 38cm, width at drops 42cm
	Size: ML, L Bontrager Comp, alloy, 31.8mm, reach 80mm, drop 121mm, width at controls 40cm, width at drops 44cm
	Size: XL Bontrager Comp, alloy, 31.8mm, reach 80mm, drop 121mm, width at controls 42cm, width at drops 46cm
*Stem	Size: XS Trek RCS Pro, -7 degrees, length 80mm
	Size: S, M Trek RCS Pro, -7 degrees, length 90mm
	Size: ML, L Trek RCS Pro, -7 degrees, length 100mm
	Size: XL Trek RCS Pro, -7 degrees, length 110mm
Brake rotor	Shimano RT70, Centerlock, 160mm
Disc size	Maximum brake rotor size: 180mm front, 160mm rear

Sizes

size-table
Size	Rider height	Inside leg
XS	143 - 158 cm 4'8" - 5'2"	67 - 74 cm 26" - 29"
S	158 - 162 cm 5'2" - 5'4"	74 - 76 cm 29" - 30"
M	162 - 173 cm 5'4" - 5'8"	76 - 81 cm 30" - 32"
ML	173 - 179 cm 5'8" - 5'10"	81 - 84 cm 32" - 33"
L	179 - 188 cm 5'10" - 6'2"	84 - 88 cm 33" - 35"
XL	188 - 213 cm 6'2" - 7'0"	88 - 100 cm 35" - 39"

Accessories and other details

Sizing table
Frame size letter	Wheel size	A - Seat tube	B - Seat tube angle	C - Head tube length	D - Head tube angle	E - Effective top tube	G - Bottom bracket drop	H - Chainstay length	I - Offset	J - Trail	K - Wheelbase	L - Standover	M - Frame reach	N - Frame headset	Minimum saddle rail height (with short mast)	Maximum saddle rail height (with short mast)	Minimum saddle rail height (with long mast)	Maximum saddle rail height (with long mast)
XS	700c	40.4	73.8°	10.0	71.6°	51.7	7.2	41.0	5.0	6.1	97.1	70.9	37.0	50.7	54.9	61.2	59.2	65.4
S	700c	44.0	73.8°	12.1	72.2°	53.2	7.2	41.0	4.5	6.2	97.6	74.0	37.8	53.0	58.5	64.8	62.8	69.0
M	700c	47.6	73.6°	13.6	72.9°	54.5	7.0	41.0	4.5	5.8	98.1	76.8	38.4	54.6	62.1	68.4	66.4	72.6
ML	700c	51.2	73.4°	15.0	73.5°	55.7	7.0	41.0	4.0	5.9	98.0	79.4	38.9	56.2	65.7	72.0	70.0	76.2
L	700c	54.8	73.4°	17.2	73.8°	56.8	6.8	41.1	4.0	5.7	99.0	82.5	39.4	58.2	69.3	75.6	73.6	79.8
XL	700c	60.9	73.4°	20.1	73.9°	58.4	6.8	41.2	4.0	5.7	100.7	86.9	40.2	61.0	75.4	81.7	79.7	85.9
