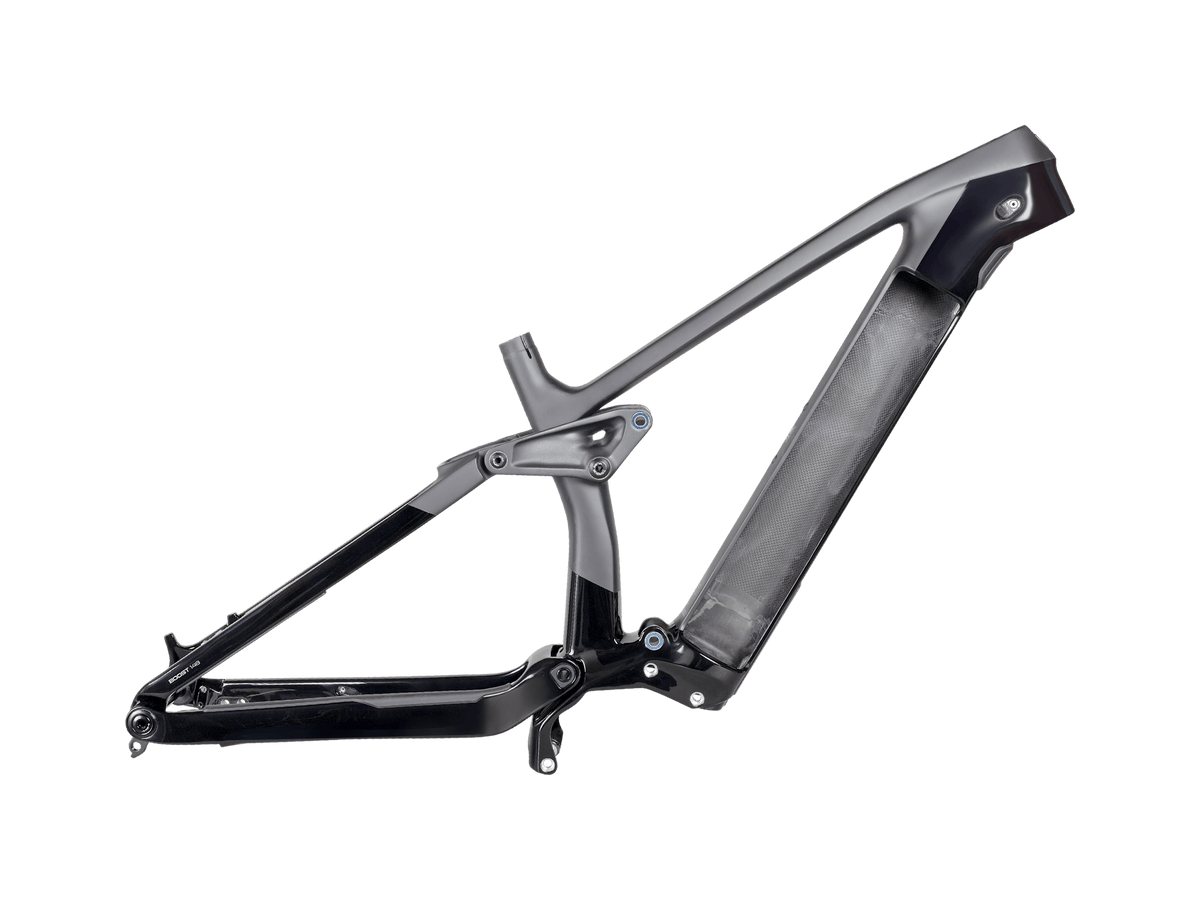

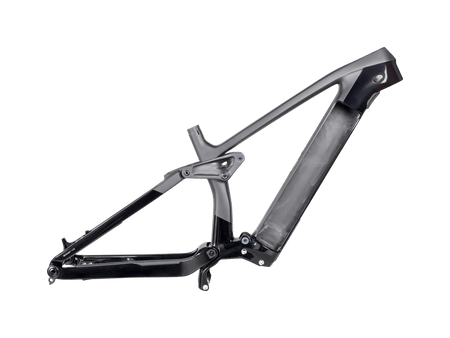

Trek Rail C Gen 1 Frameset

The Rail C frameset is an aggressive carbon e-MTB frame ready to tackle any terrain. It is made from OCLV Mountain Carbon and designed for a 160mm fork and a 150mm shock of your choice.

• OCLV Mountain Carbon frame, 150mm

Highlights

• Removable integrated battery: RIB is a battery with an integrated casing and a handle that makes it easy to remove and reinstall in the frame without tools. It is the simplest way to remove the battery for transport, security or more convenient charging.
• Active Braking Pivot: Active Braking Pivot technology has allowed our engineers to optimise how the suspension responds independently to acceleration and braking forces. This means more confident control when you need it most.

Technical specifications

• Frame: OCLV Mountain Carbon main frame, alloy stays, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armor, Mino Link, ABP, Boost148, 12mm thru axle, 150mm travel
• Headset: Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.5" bottom
• Weight limit: This model has a maximum total weight limit (combined weight of bike, rider and cargo) of 136kg.
• Maximum fork travel: 170mm (580mm axle to crown)
• Rotor size: Maximum brake rotor size - Frame: 200mm
• Maximum tyre size: Frame: 29x2.60", Fork: Consult the manufacturer's specifications

Trek was founded in 1976 in Waterloo, Wisconsin, by Dick Burke and Bevil Hogg and is still based in the same city today. It makes road, mountain, gravel, city and electric bikes to support different ways of riding. Its story began in a barn, with 904 steel touring frames produced in its first year.
