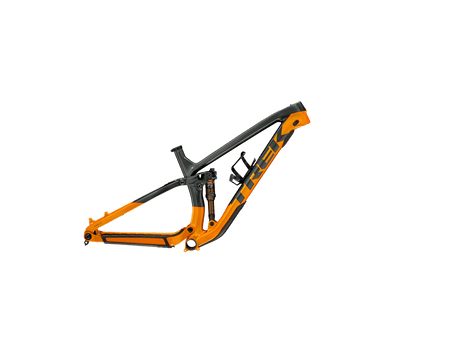

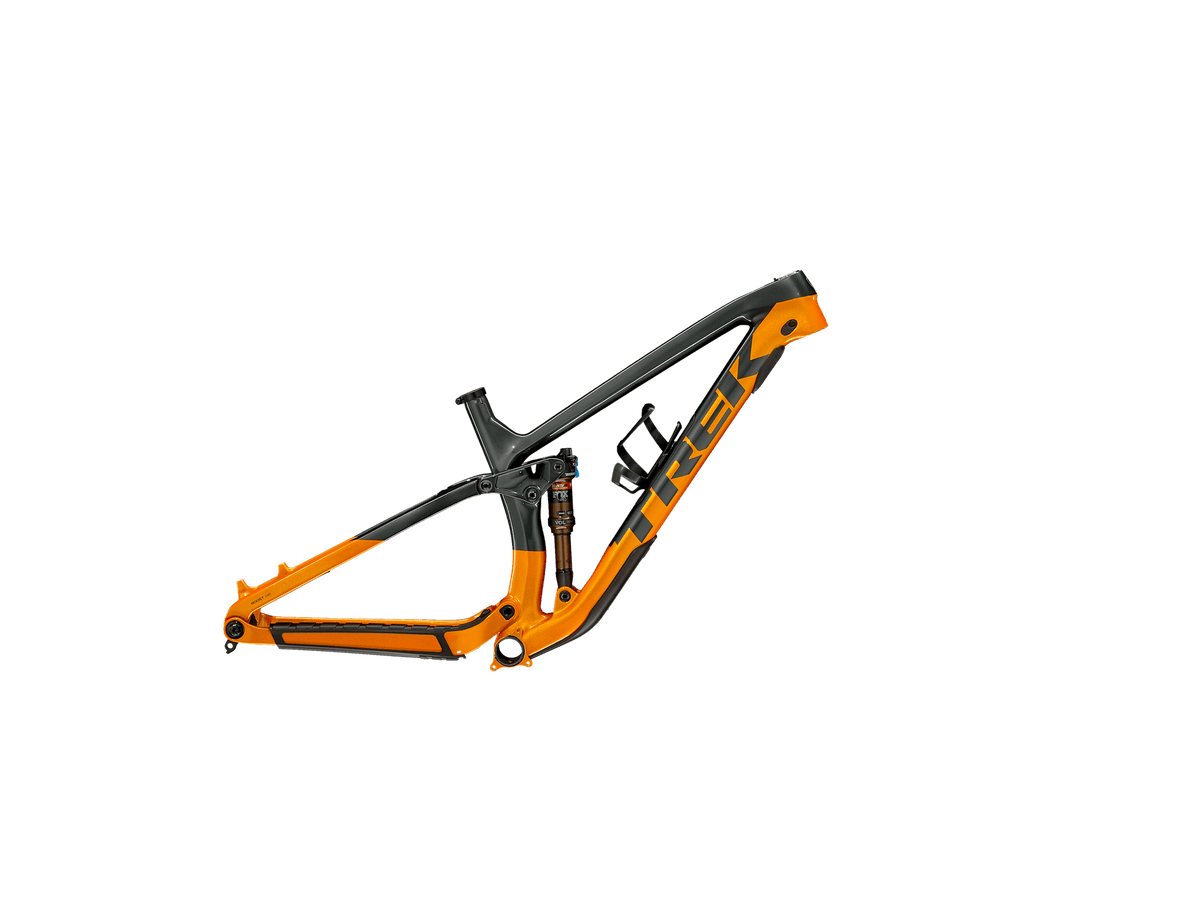

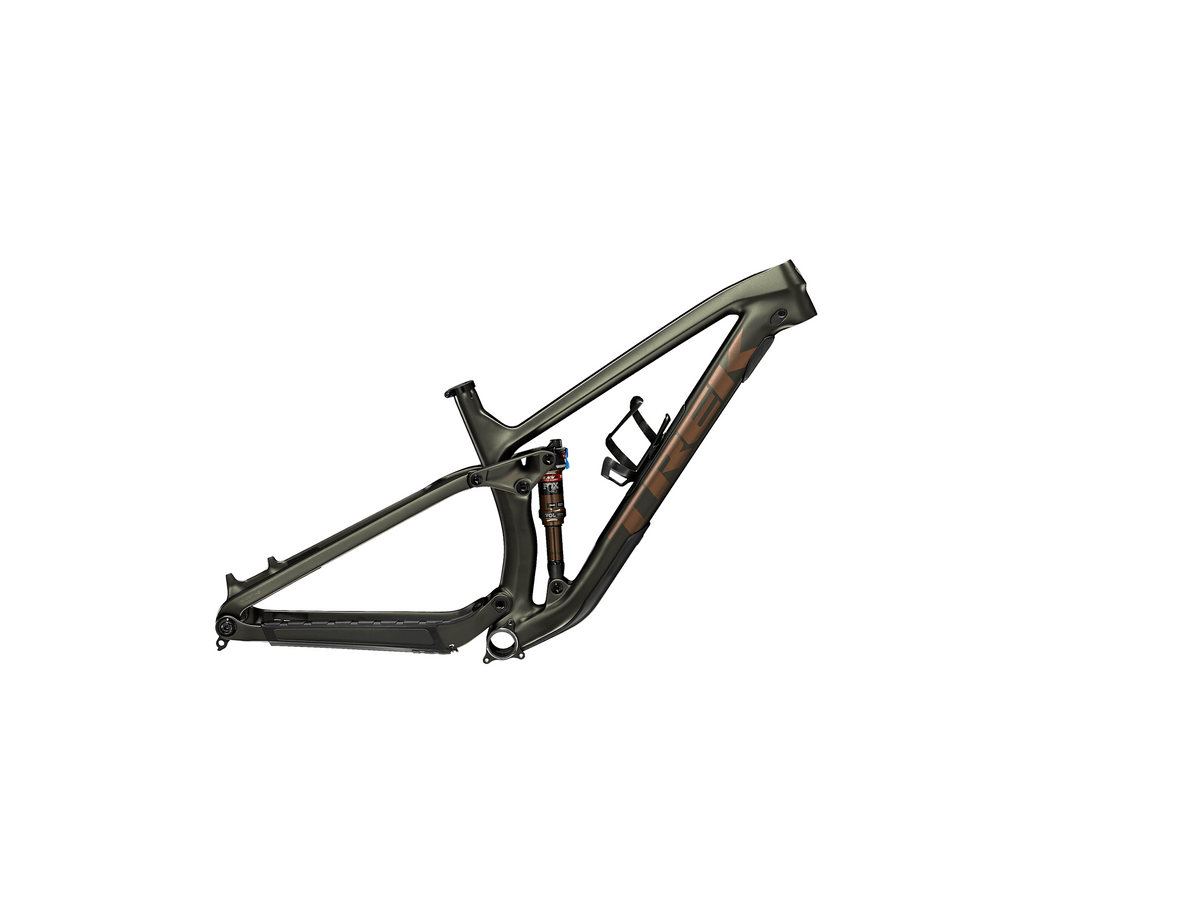

Trek Fuel EX C Gen 5 Frameset

Fuel EX C is the ideal starting point for a dream trail bike: its full OCLV Mountain Carbon frame provides 130mm of rear travel thanks to a Fox Factory RE:aktiv Thru Shaft shock. Build it light and fast or beef it up to handle anything.

• Claimed weight M - 3.15kg

Highlights

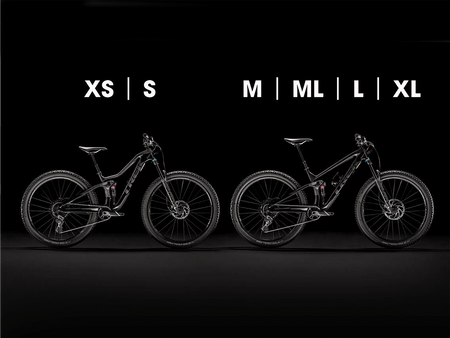

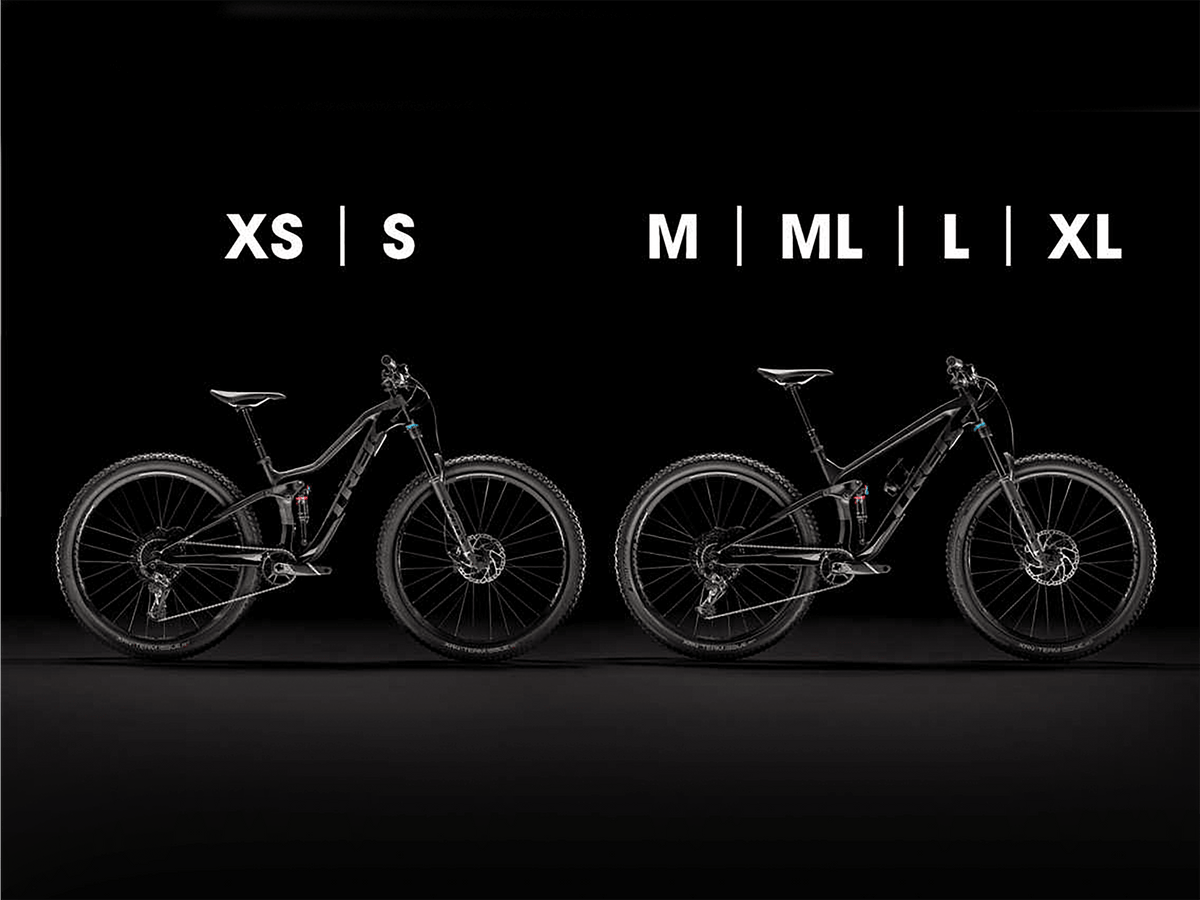

• Will my bike have a curved top tube?: Smaller frames (XS and S) have a top tube that curves as it approaches the seat tube. This design provides a lower standover height, ideal for shorter riders as it makes getting on the bike easier.
• Internal storage: Storage inside the frame lets you carry all your ride essentials without a saddle bag.
• Active Braking Pivot: Active Braking Pivot technology has allowed our engineers to optimise how the suspension responds independently to acceleration and braking forces. This means more confident control when you need it most.
• RE:aktiv with Thru Shaft: RE:aktiv with Thru Shaft offers unrivalled traction and control thanks to a shock that responds to the terrain faster than any other product on the market.

Technical specifications

• Frame: OCLV Mountain Carbon main frame & stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armor, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130mm travel
• Stem: Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree
• Headset: Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
• Weight: M - 3.15kg/6.95lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bike, rider and cargo) of 136 kg.
• Maximum fork travel: 150mm
• Maximum tyre size: 29x2.60"
