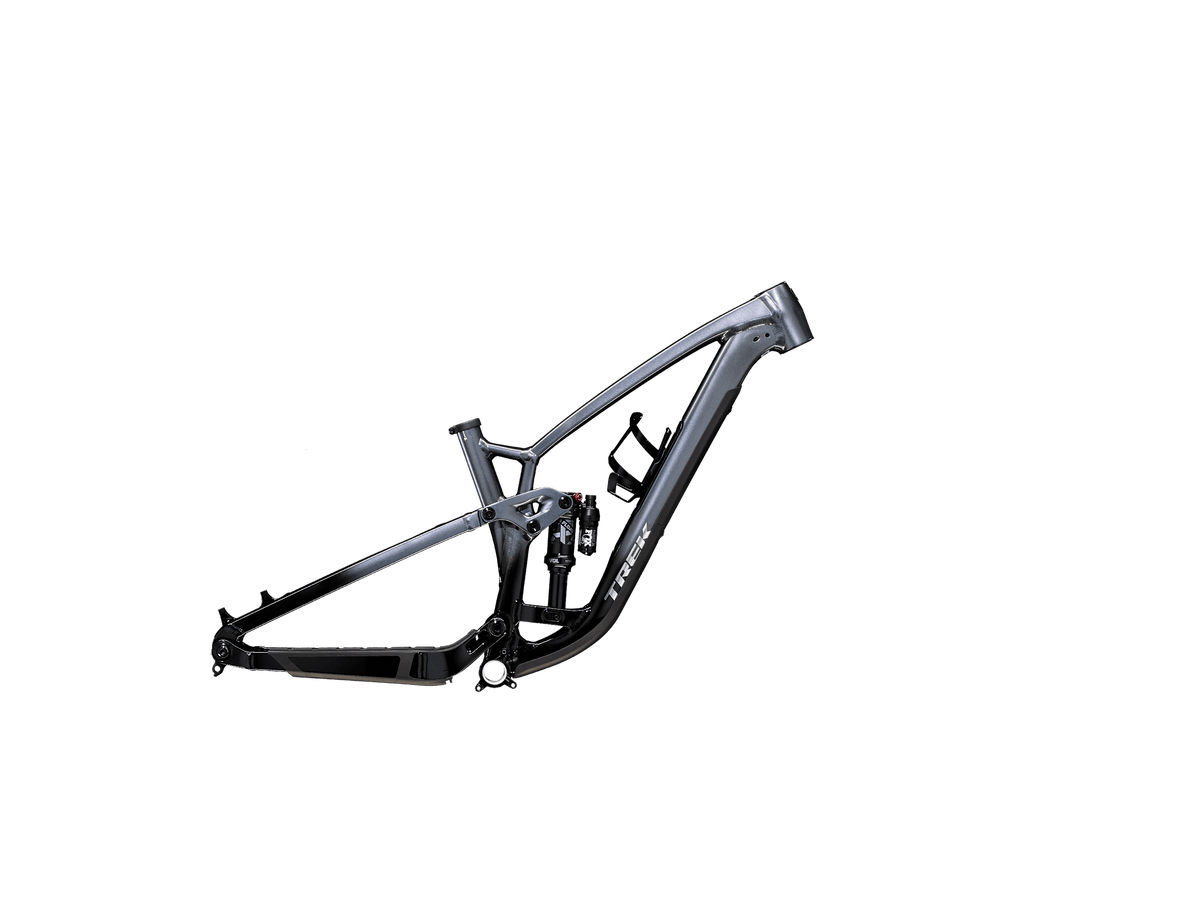

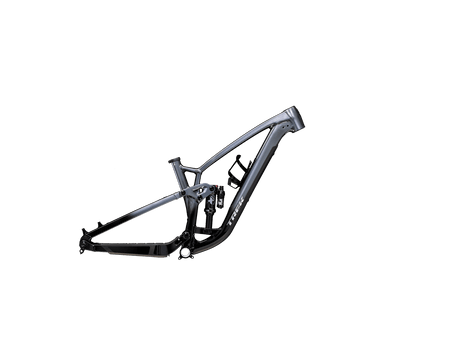

Trek Fuel EX AL Gen 6 Frameset

The Fuel EX AL aluminium trail frameset is limited only by your imagination. It features progressive trail geometry with a long front end for greater confidence on descents and a planted rear end for tackling the steepest climbs.

• Alpha Platinum Aluminum frame, 140mm
• Claimed weight M - 4.6kg

Highlights

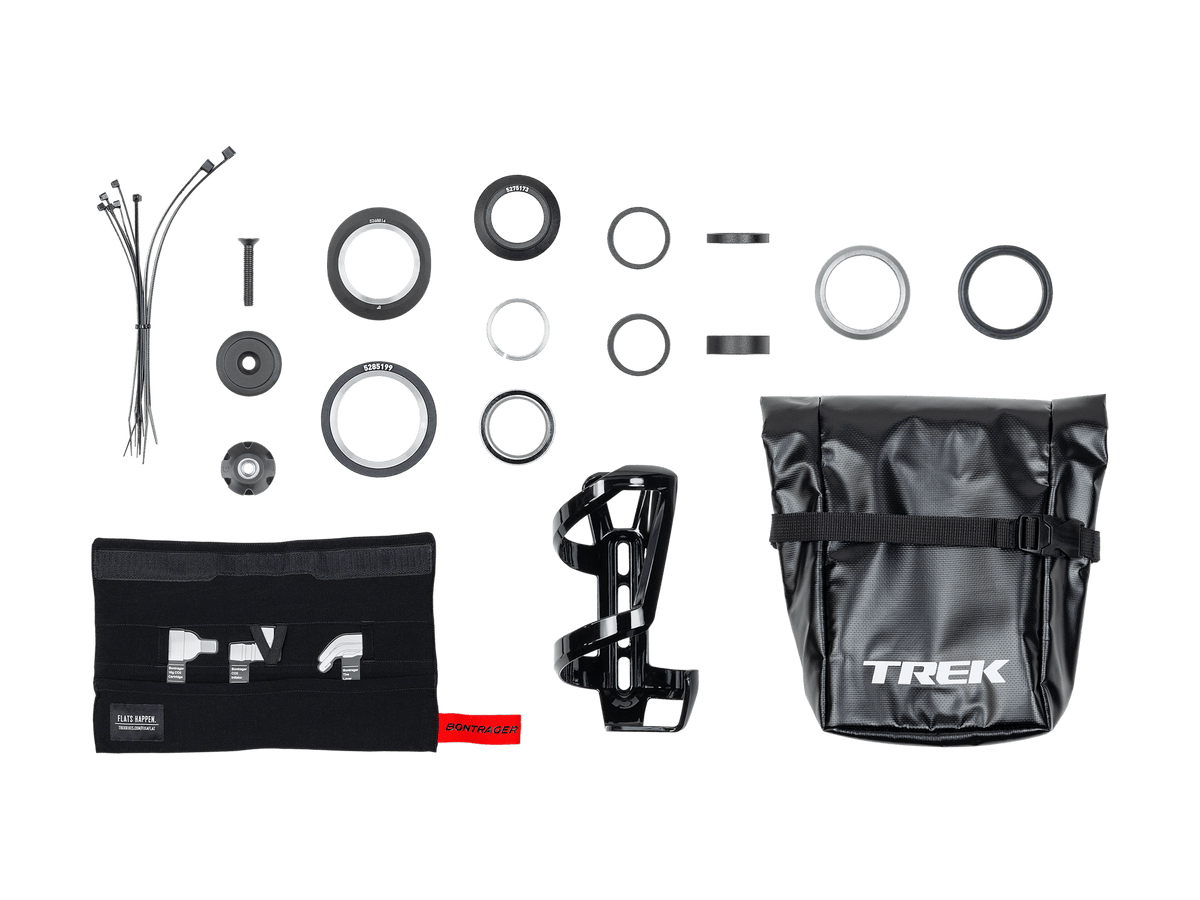

• Internal storage: Internal frame storage lets you leave the saddle bag behind and carry all your ride essentials.
• Active Braking Pivot: Active Braking Pivot technology has allowed our engineers to optimise how the suspension responds independently to acceleration and braking forces. This means more confident control when you need it most.
• Slack or steep geometry: you decide: Fit the angle-adjust headset cups (sold separately) to adjust the 64,5-degree head tube angle by one degree in either direction, without affecting bottom bracket height.
• Tune your suspension for maximum performance: Adjust the leverage rate by simply moving an adaptor. The less progressive setting provides a softer ride feel, perfect for rough trails with square-edged bumps.

Technical specifications

• Weight: M - 4.6kg/10.15lbs
• Weight limit: This bike has a maximum total weight limit (combined weight of bike, rider and cargo) of 136 kg (300 lbs).
• Maximum fork travel: 160mm
• Rotor size: Maximum brake rotor size - Frame: 203mm, Fork: see fork manufacturer
• Maximum tyre size: Frame: 29x2.5" (XS & S: 27.5x2.5") Fork: Consult the manufacturer's specifications

Trek was founded in 1976 in Waterloo, Wisconsin, by Dick Burke and Bevil Hogg and is still based in the same city today. It makes road, mountain, gravel, city and electric bikes to support different ways of riding. Its story began in a barn, with 904 steel touring frames produced in its first year.
