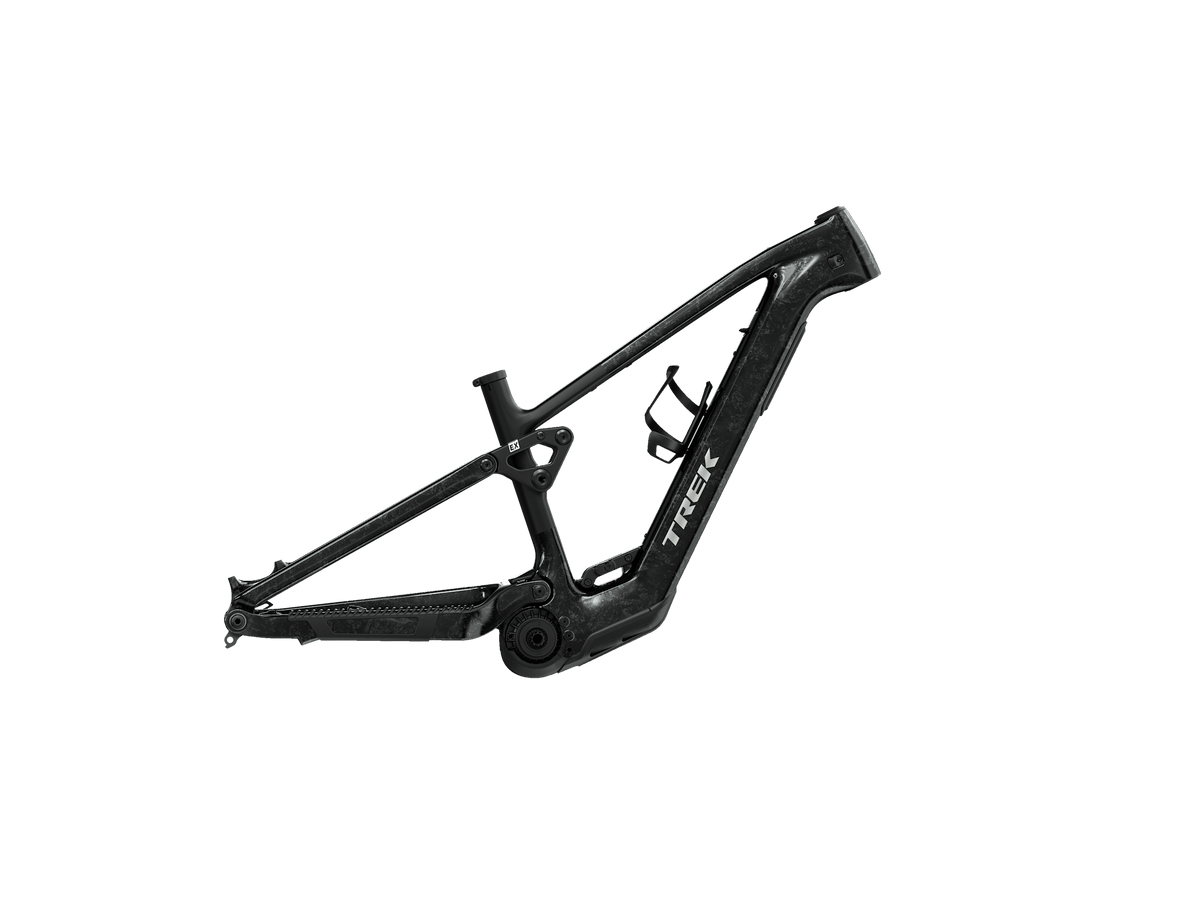

Trek Fuel+ Carbon Gen 2 Frameset

The Fuel+ Carbon Frameset lets you create your dream custom e-MTB. Its adaptable trail geometry lets you customise the build: choose a classic setup with 145/150mm suspension and 29" wheels for true EX versatility, opt for 150/160mm with MX wheels for a more aggressive approach, or push further with a LX build with 160/170mm and 29" wheels for maximum descending performance.

• OCLV Mountain Carbon frame
• Claimed weight M - 8.51 kg

Highlights

• Adapt, push, repeat: Only you can decide on your perfect trail bike setup, which is why Fuel is available in three configurations with plenty of adjustment options. Get the versatility of EX geometry, unleash your energy with the MX configuration or tackle any challenge with the LX version.
• Adjustable leverage ratio: Want to increase bottom-out resistance without sacrificing small-bump sensitivity? Flip the chip in the lower shock mount for a more progressive leverage ratio.
• Zero Stack integrated headset: The standard ZS headset offers plenty of aftermarket upgrade options, including angle adjustment and anodised colours.
• TQ HPR60: Fuel+'s new HPR60 motor delivers more power and torque than before and engages at a lower cadence, so you feel the boost sooner. The 580Wh battery also provides all the energy needed for even the longest rides.

Technical specifications

• Weight: M - 8.51kg/18.77lbs
• Weight limit: This model has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136kg.
• Maximum fork travel: 170mm
• Rotor size: Maximum brake rotor size - Frame: 203mm, min. 180mm, Fork: consult the fork manufacturer
• Maximum tyre size: Frame: 29x2.50", Fork: consult the manufacturer's specifications
