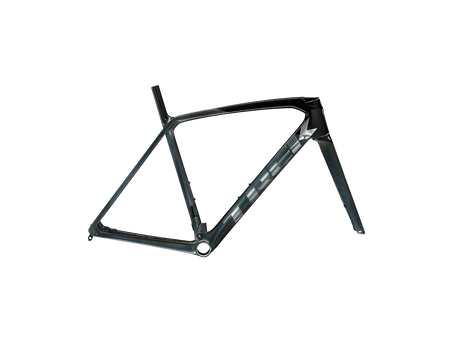

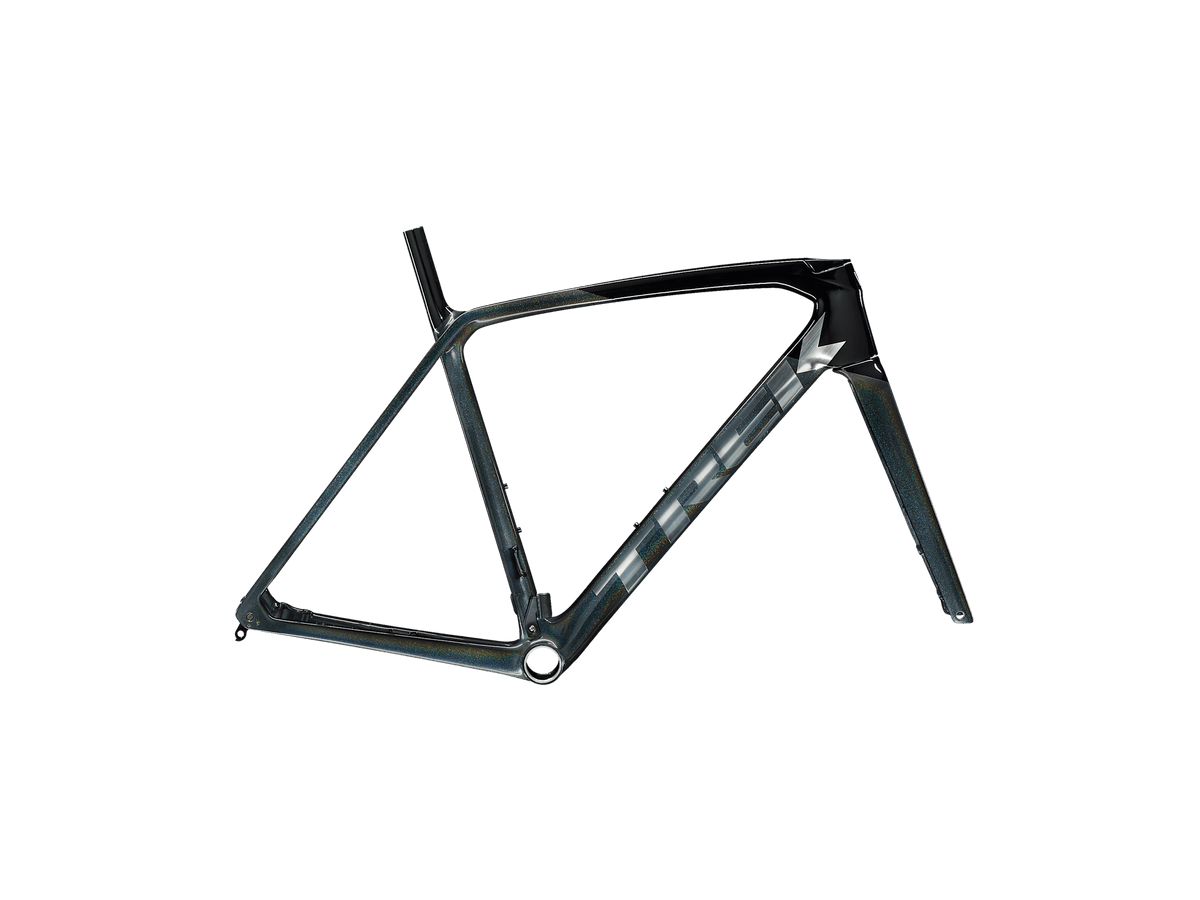

Trek Émonda SLR Disc Frameset

Made from carbon, the Émonda SLR road frameset is ultralight and aerodynamic, designed and built to tackle climbs at maximum speed. Our most advanced 800 Series OCLV Carbon lay-up delivers outstanding ride quality and lightweight aerodynamic performance for extra speed on any gradient.

• Claimed weight 760g - 56cm (frame only, painted), 381g (fork only, painted)

Highlights

• Ultralight carbon: Creating light, fast shapes requires more material. But we refused to compromise on weight.
• Extraordinary bikes for everyone: Every rider, regardless of gender, body type, riding style or ability, deserves an exceptional bike. The all-new Émonda features components specific to the bike's size.

Technical specifications

• Frame: Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
• Fork: Émonda SLR full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
• Front derailleur: Mechanical front derailleurs must have an integrated cable housing stop (for example: Shimano toggle front derailleurs)
• Weight: 760g - 56cm (frame only, painted), 381g (fork only, painted)
• Weight limit: This model has a maximum total weight limit (combined weight of bike, rider and cargo) of 125kg.
• Rotor size: Maximum brake rotor size: 160mm front & rear
• Maximum tyre size: 28mm

Trek was founded in 1976 in Waterloo, Wisconsin, by Dick Burke and Bevil Hogg and is still based in the same city today. It makes road, mountain, gravel, city and electric bikes to support different ways of riding. Its story began in a barn, with 904 steel touring frames produced in its first year.
