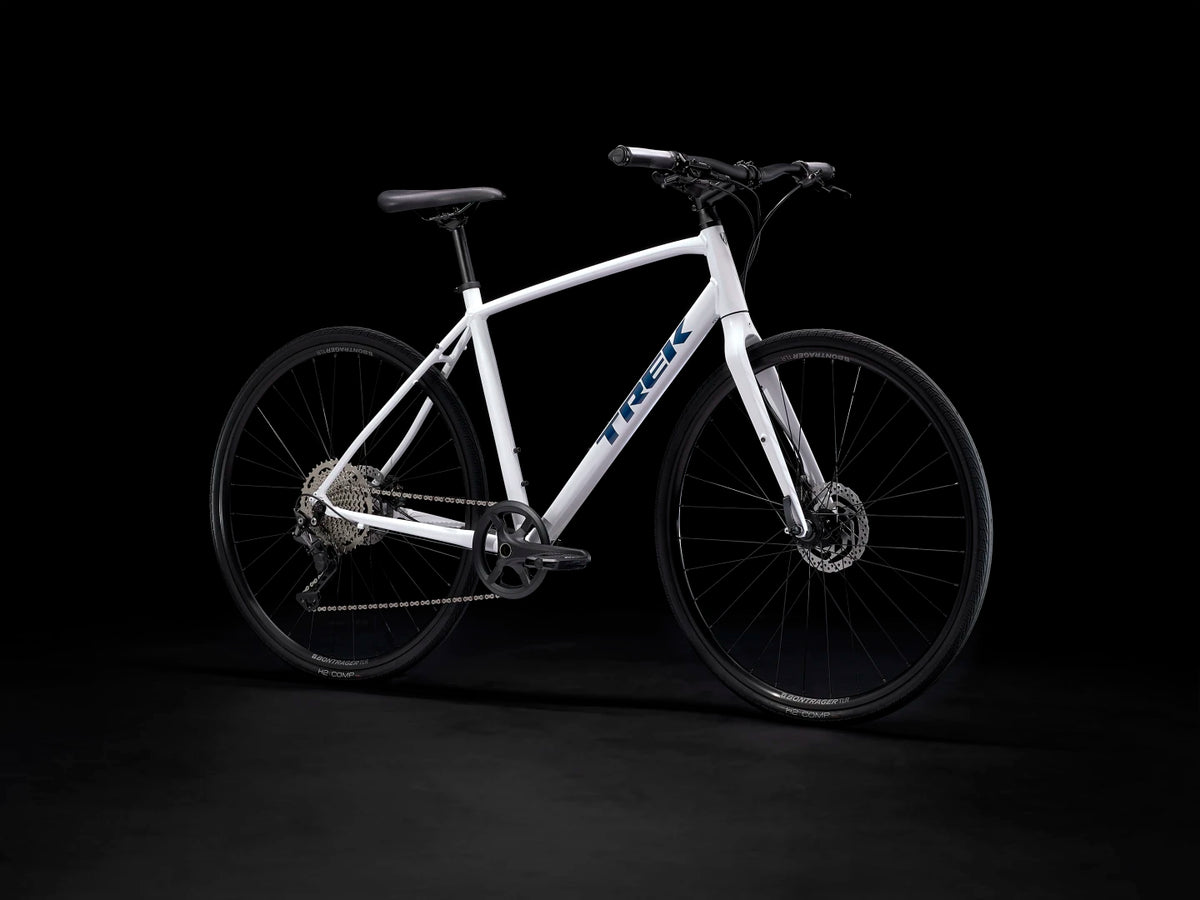

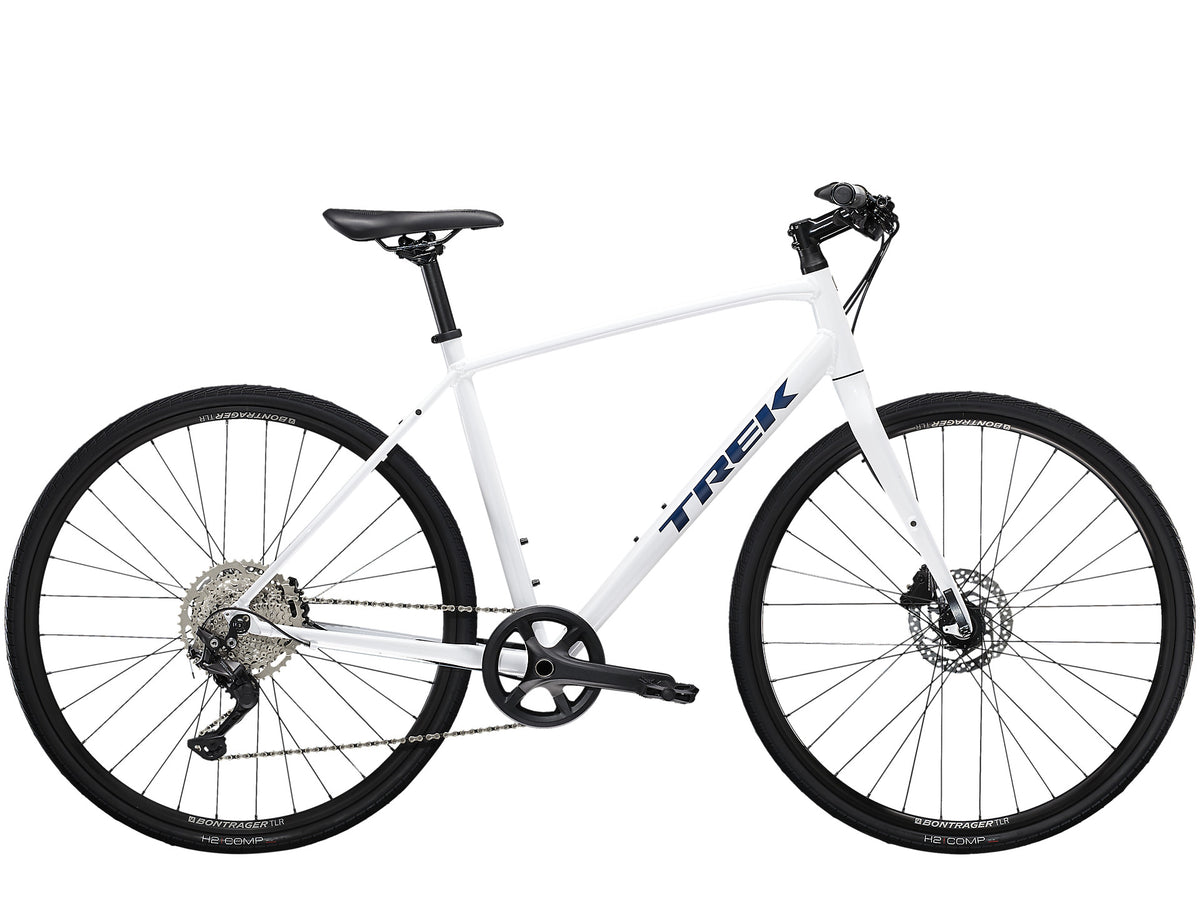

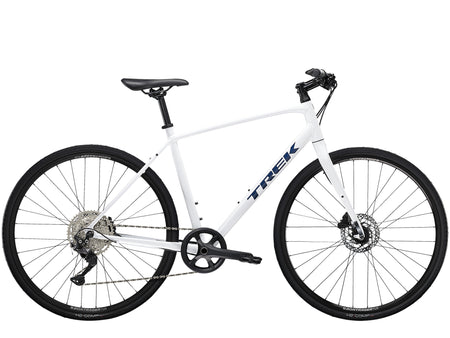

Trek FX 3 Disc, taglie XS S M Crystal White / XS

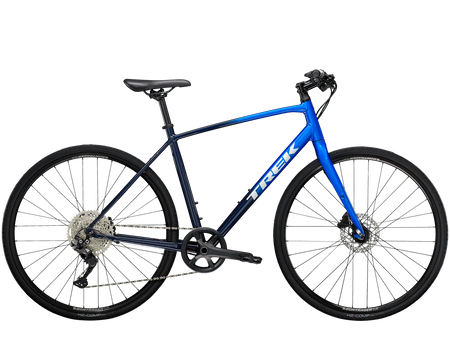

Trek FX 3 Disc City Bike

SKU: 5258693 EAN: 601842574966

Only 1 left

€649,00 incl. VAT

RRP: €1.129,00

Colour

Alpine Blue to Deep Dark Blue Fade Crystal White

Size

XS S M

How your bike arrives

Every bike goes through our workshop before it ships. Choose how you want to receive it.

Standard Included

Checked in our workshop
Almost fully assembled
In the manufacturer's box

Checked in our workshop and almost fully assembled, in the manufacturer's box.

Ready to ride +€60

Assembled and tuned by our mechanics
Bigger box at no extra cost
A video of your bike before it ships

Trek FX 3 Disc brings sporty riding to everyday journeys. The flat handlebar offers an intuitive grip in traffic and on cycle paths, while the smooth-rolling wheels encourage you to extend your route and turn the ride home into a workout.

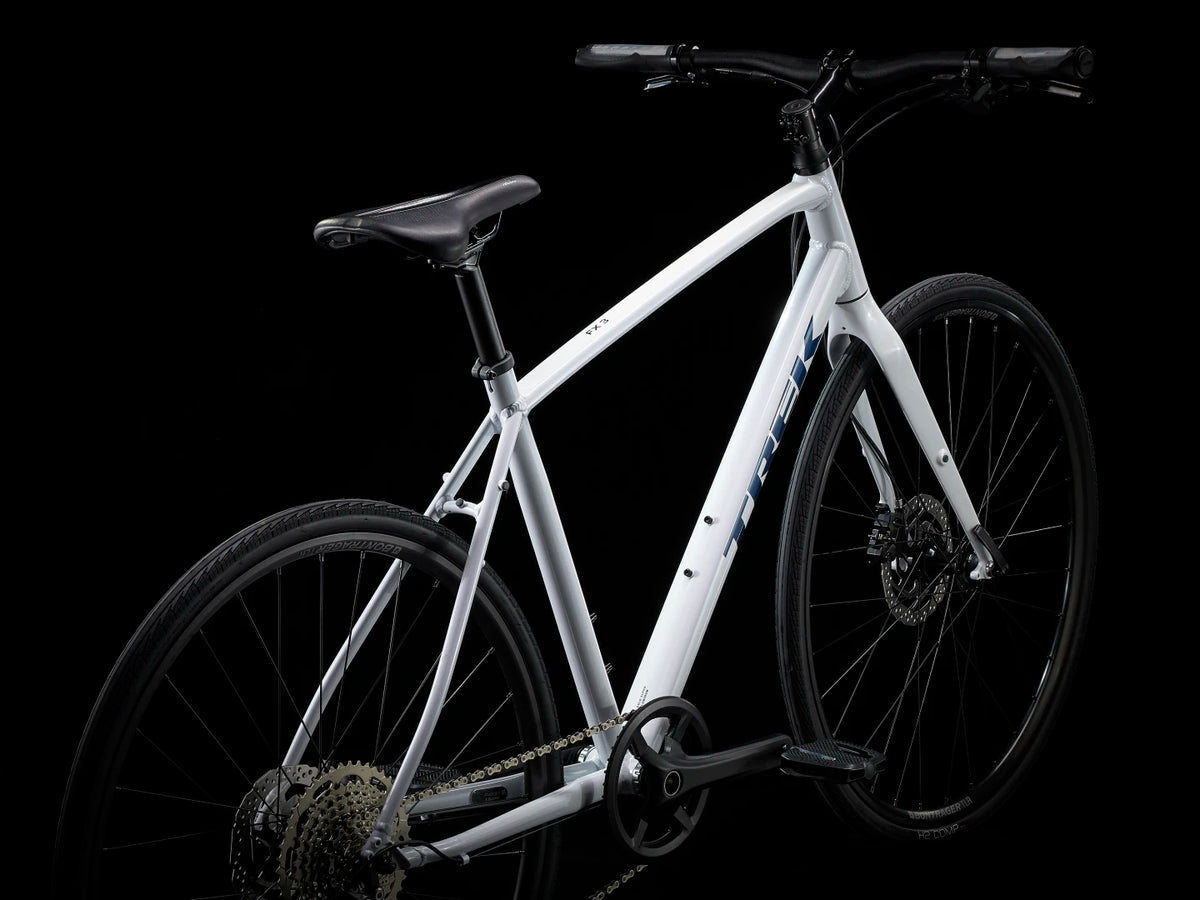

Sporty and practical: The aluminium frame combines an accessible riding position with rack mounts, so you can carry your bags on the bike and keep your back free.

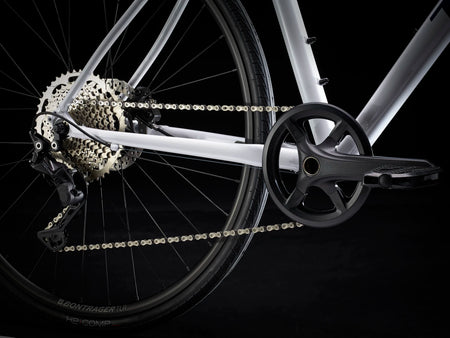

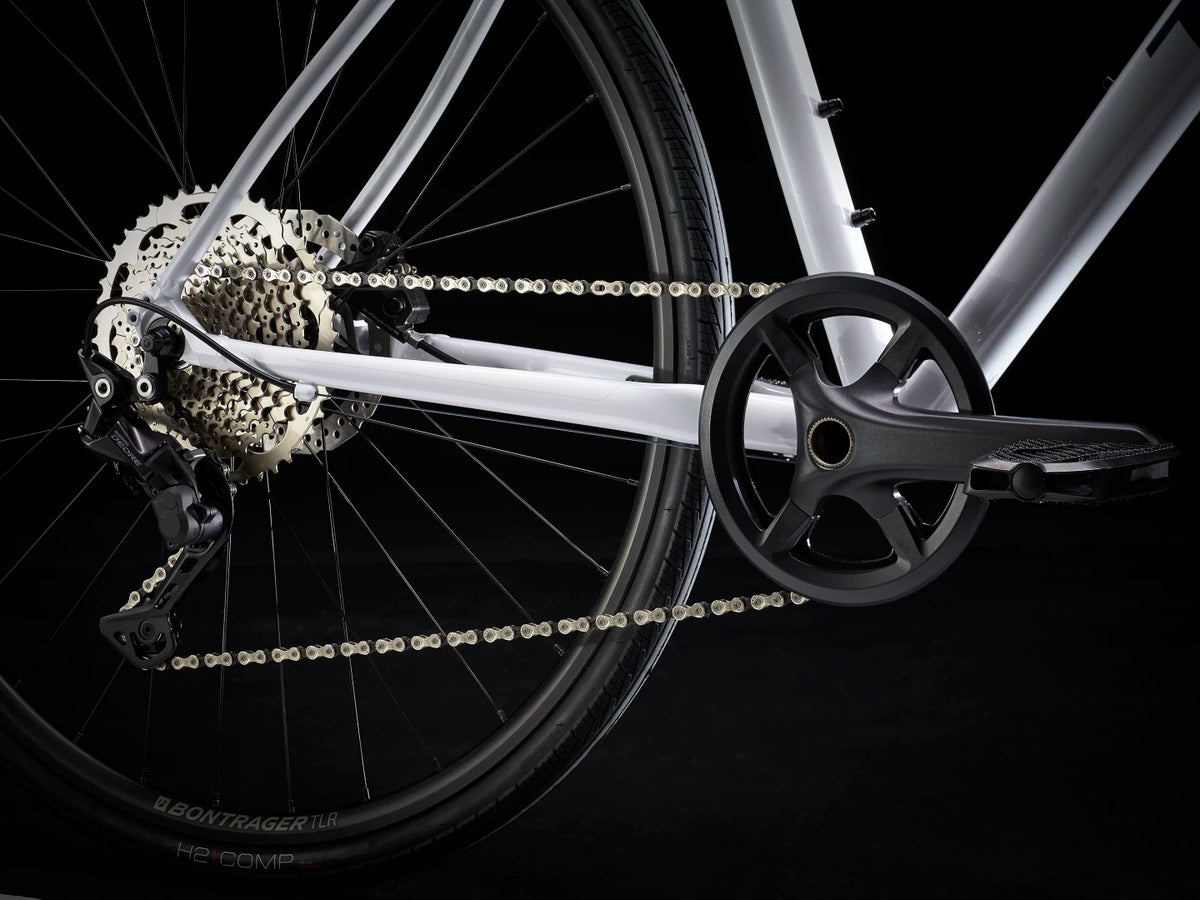

One shifter for all your gears: The Shimano Deore 10-speed drivetrain pairs a 40-tooth chainring with the 11-46 cassette for straightforward shifting, with low gears for climbs.

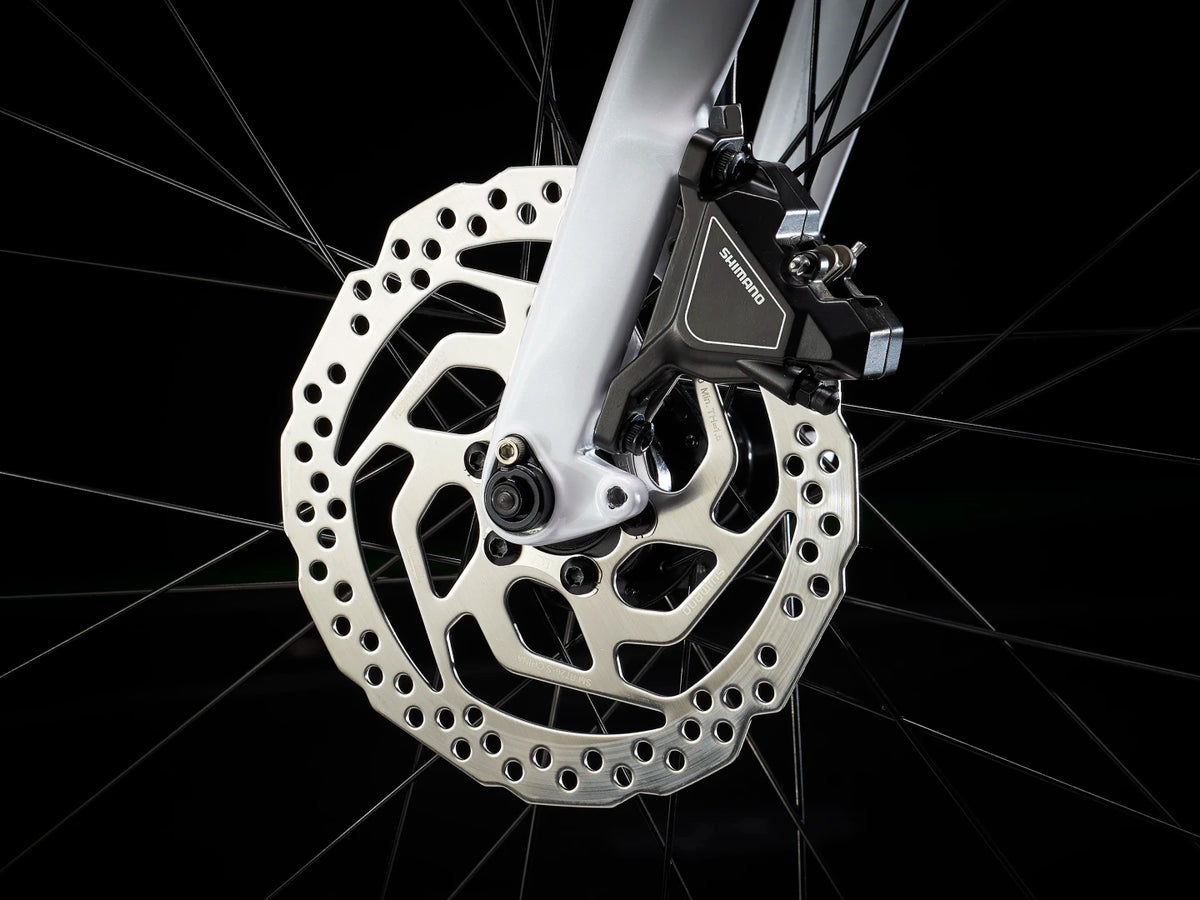

Carbon fork: The FX Carbon fork reduces weight at the front; the Shimano hydraulic disc brakes allow precise braking control.

For commuting, staying active and weekend rides, FX puts the same bike at the heart of many different days.

Technical specifications

Differences between sizes are listed in the individual entries.

Frame and fork

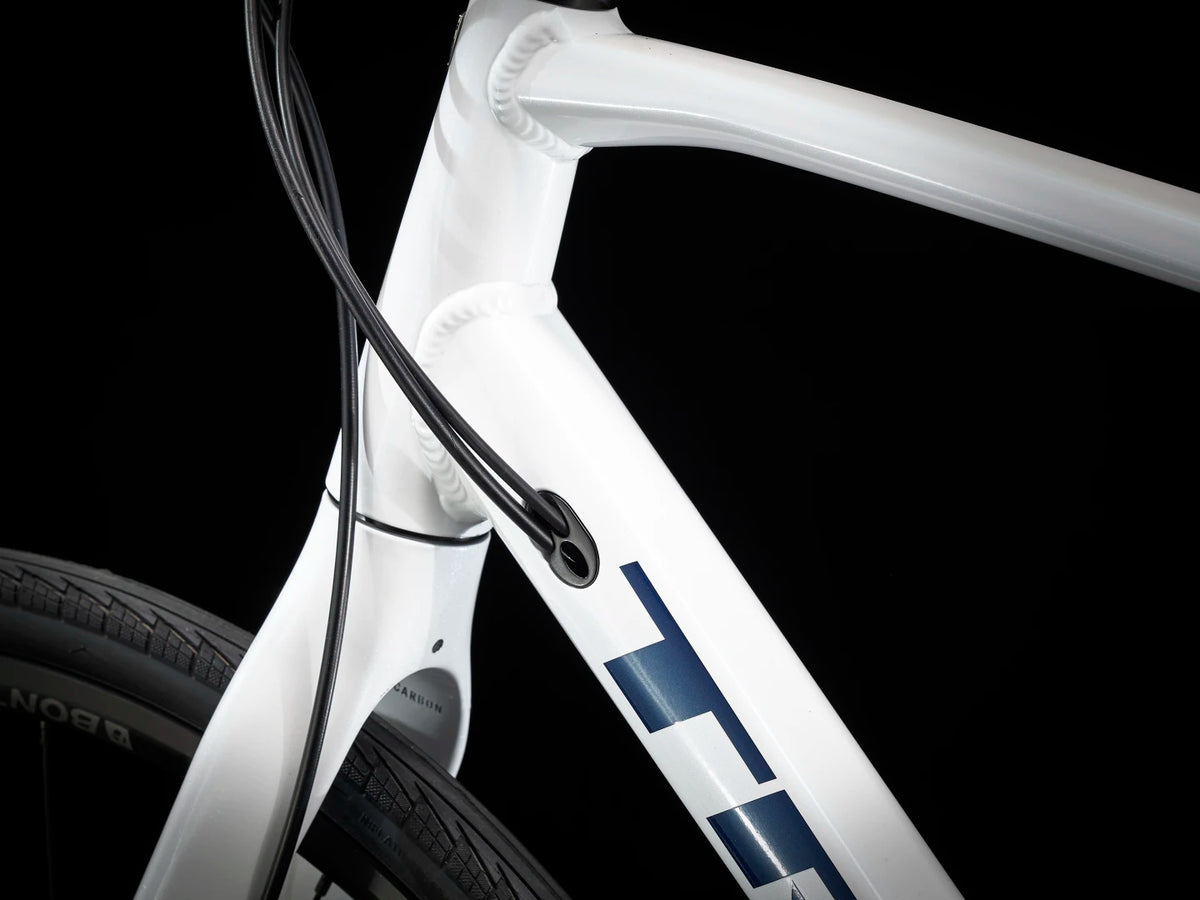

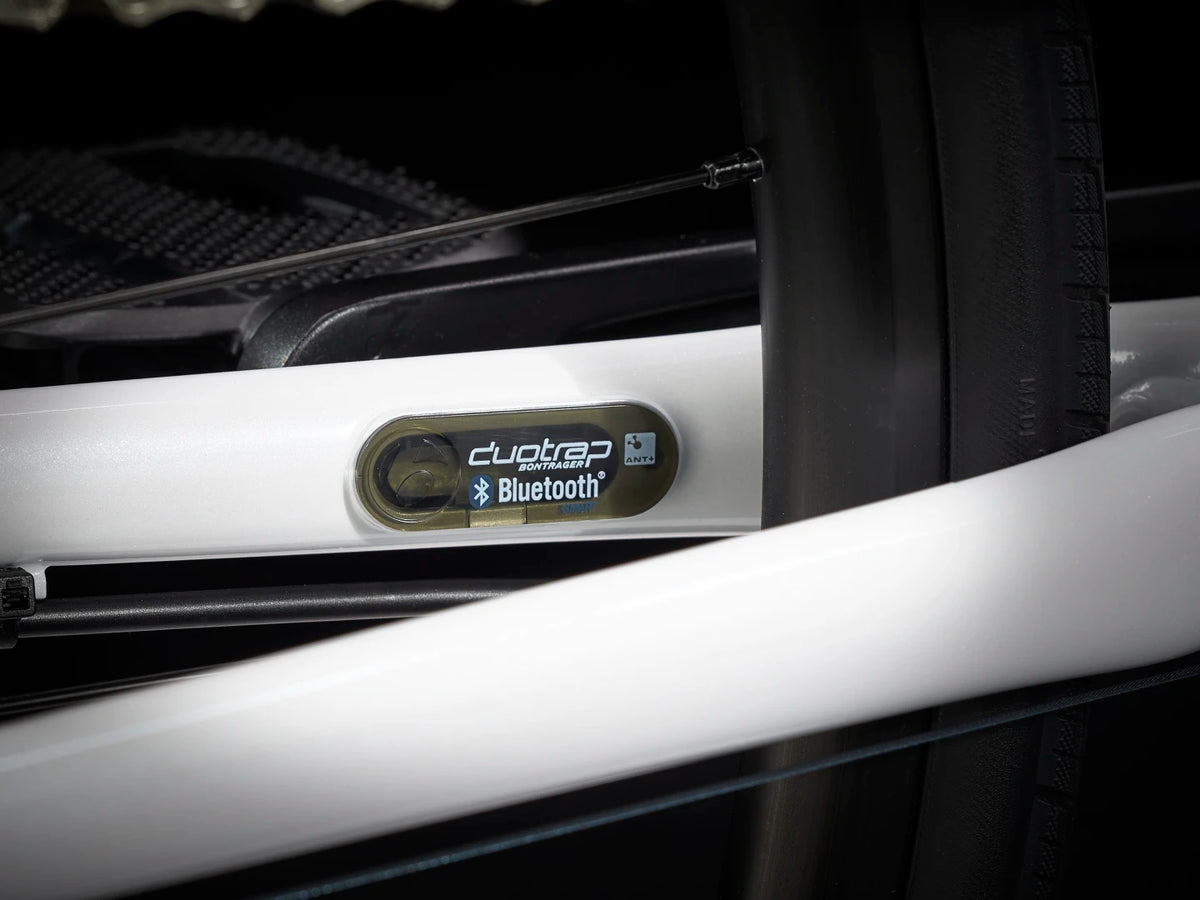

Frame	Alpha Gold aluminium, DuoTrap S compatibility, internal cable routing, flat mount disc, rack & mudguard mounts, 135x5mm QR
Fork	FX Carbon, rack and mudguard mounts, flat mount disc, axle-to-crown 405mm. ThruSkew 5mm QR

Wheels and tyres

Front hub	Formula DC-20, alloy, 6-bolt, 5x100mm QR
Rear hub	Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm QR

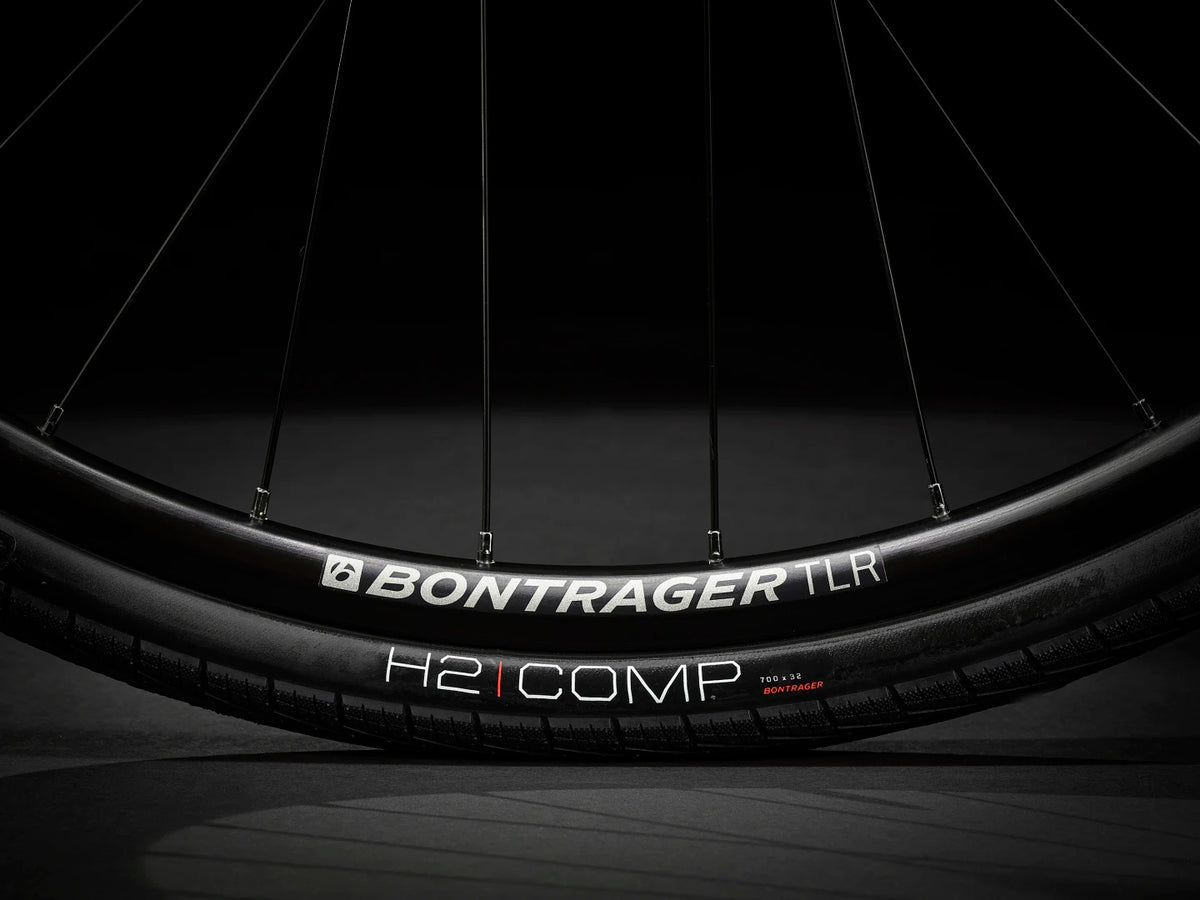

Rim	Bontrager Tubeless Ready Disc, 32 holes, Presta valve
Tyre	Bontrager H2 Comp, wire bead, 30tpi, 700x32c"
Maximum tyre size	38c without mudguards, 35c with mudguards

Drivetrain

Shifter	Shimano Deore M4100, 10-speed
Rear Derailleur	Shimano Deore M5120, long cage
*Crankset	Size: XS, S, M Prowheel alloy, 40T narrow-wide chainring, length 170mm
*Crankset	Size: L, XL, XXL Prowheel alloy, 40T narrow-wide chainring, length 175mm
Cassette	Shimano Deore M4100, 11-46, 10-speed
Chain	KMC X10, 10-speed
Pedal	Bontrager City pedals
Maximum chainring size	1x: 42T, 2x/3x: 48T

Components

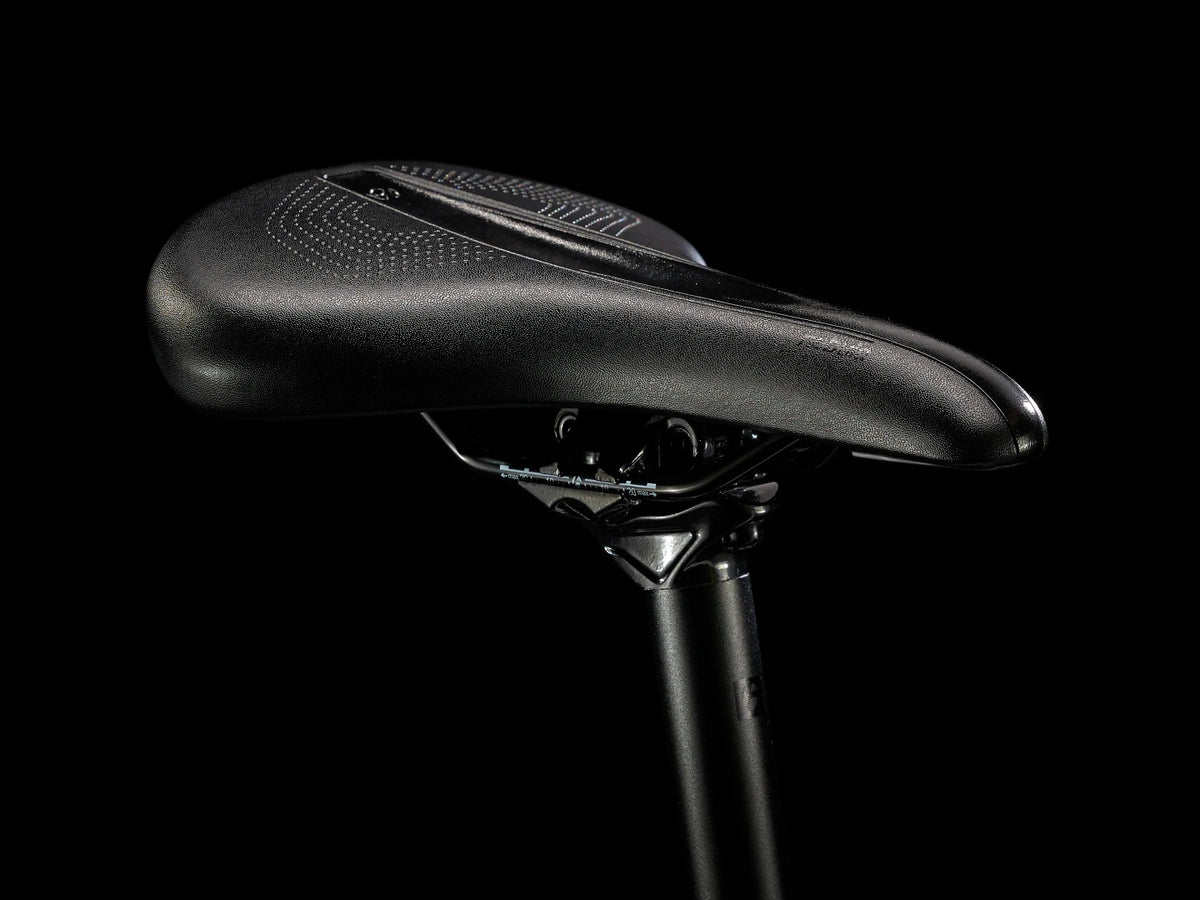

Saddle	Bontrager H1
Seatpost	Bontrager alloy, 27.2mm, offset 12mm, length 330mm

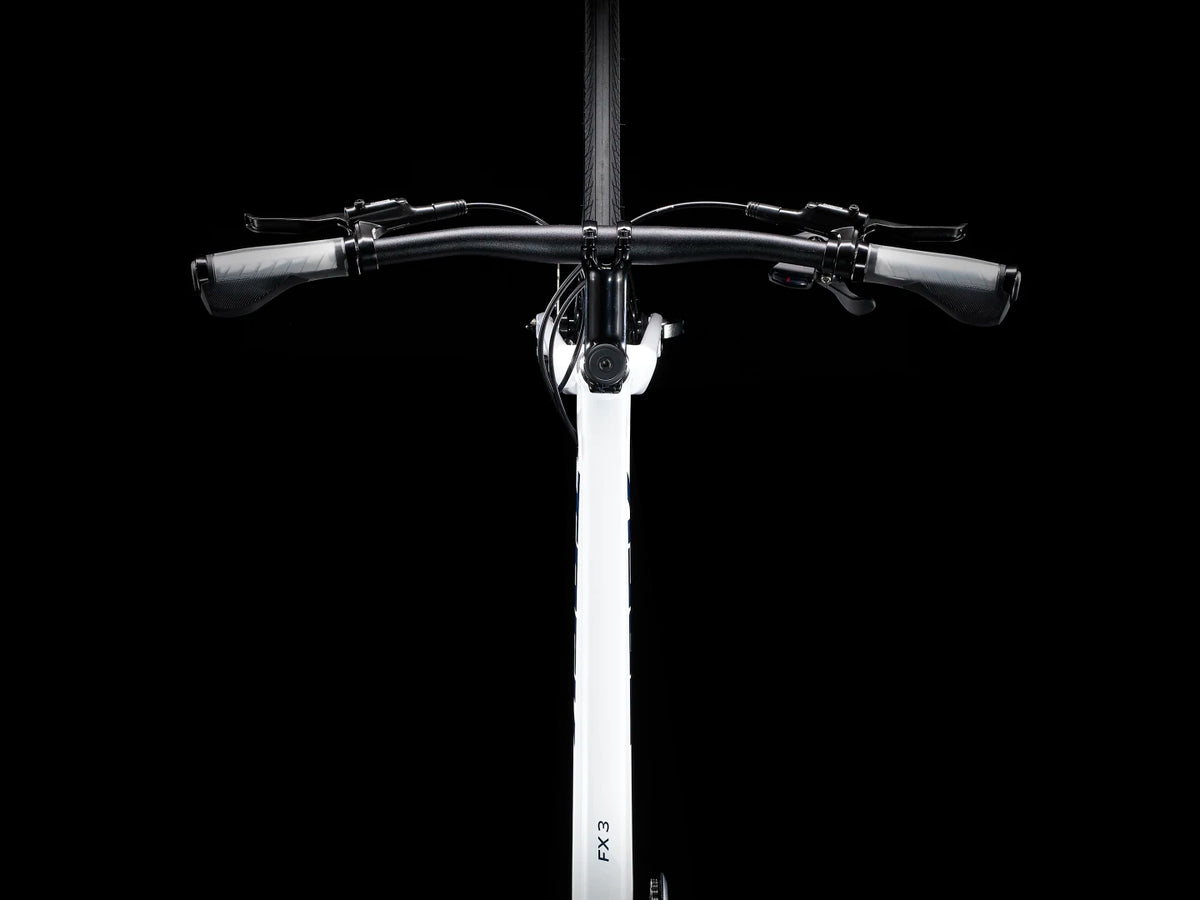

*Handlebar	Size: XS, S, M Bontrager Satellite Plus IsoZone, alloy, 31.8mm, rise 15mm, width 600mm
*Handlebar	Size: L, XL, XXL Bontrager Satellite Plus IsoZone, alloy, 31.8mm, rise 15mm, width 660mm

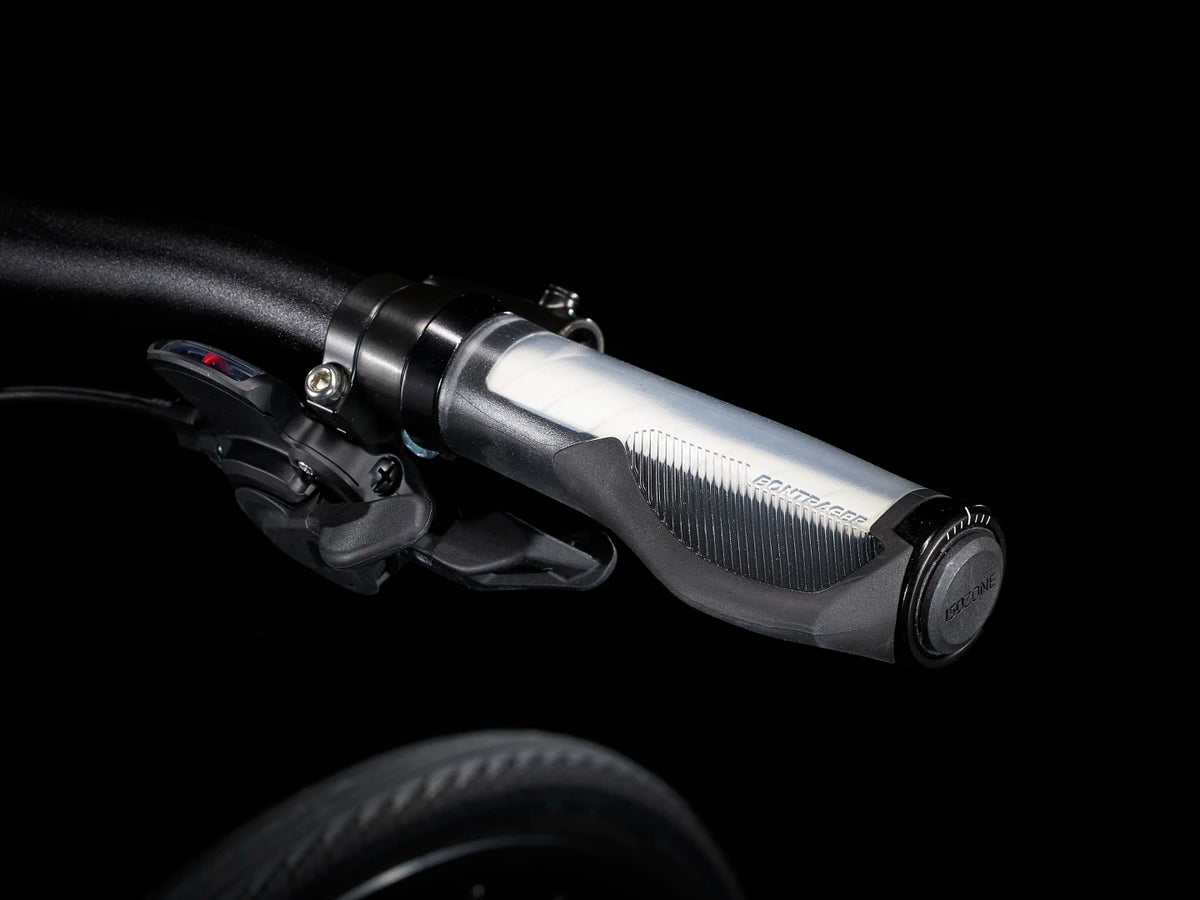

Grips	Bontrager Satellite IsoZone Plus, lock-on, ergonomic
*Stem	Size: XS, S Bontrager Comp, 31.8mm, Blendr compatibility, 7 degrees, length 90mm
*Stem	Size: M, L, XL, XXL Bontrager Comp, 31.8mm, Blendr compatibility, 7 degrees, length 100mm
Headset	1 1/8" threadless steel
*Brake	Size: XS, S, M, L, XL, XXL Shimano hydraulic disc, MT201 lever, UR300 calliper
*Brake	Size: XS, S, M, L, XL, XXL Shimano MT201 hydraulic disc, flat mount, 160mm rotor
Brake rotor	Shimano RT26, 6-bolt,160mm
Disc size	Maximum brake rotor size: 160mm

Weight and load limits

Weight	M - 11.38 kg / 25.09 lbs
Weight limit	This bike has a maximum total weight limit (combined weight of bike, rider and load) of 136 kg.

Sizing

size-table
Size	Rider height	Inside leg
XS	147 - 155 cm 4'10" - 5'1"	69 - 73 cm 27" - 29"
S	155 - 165 cm 5'1" - 5'5"	72 - 78 cm 28" - 31"
M	165 - 175 cm 5'5" - 5'9"	77 - 83 cm 30" - 33"
L	175 - 186 cm 5'9" - 6'1"	82 - 88 cm 32" - 35"
XL	186 - 197 cm 6'1" - 6'6"	87 - 93 cm 34" - 37"
2XL	197 - 203 cm 6'6" - 6'8"	92 - 95 cm 36" - 37"
