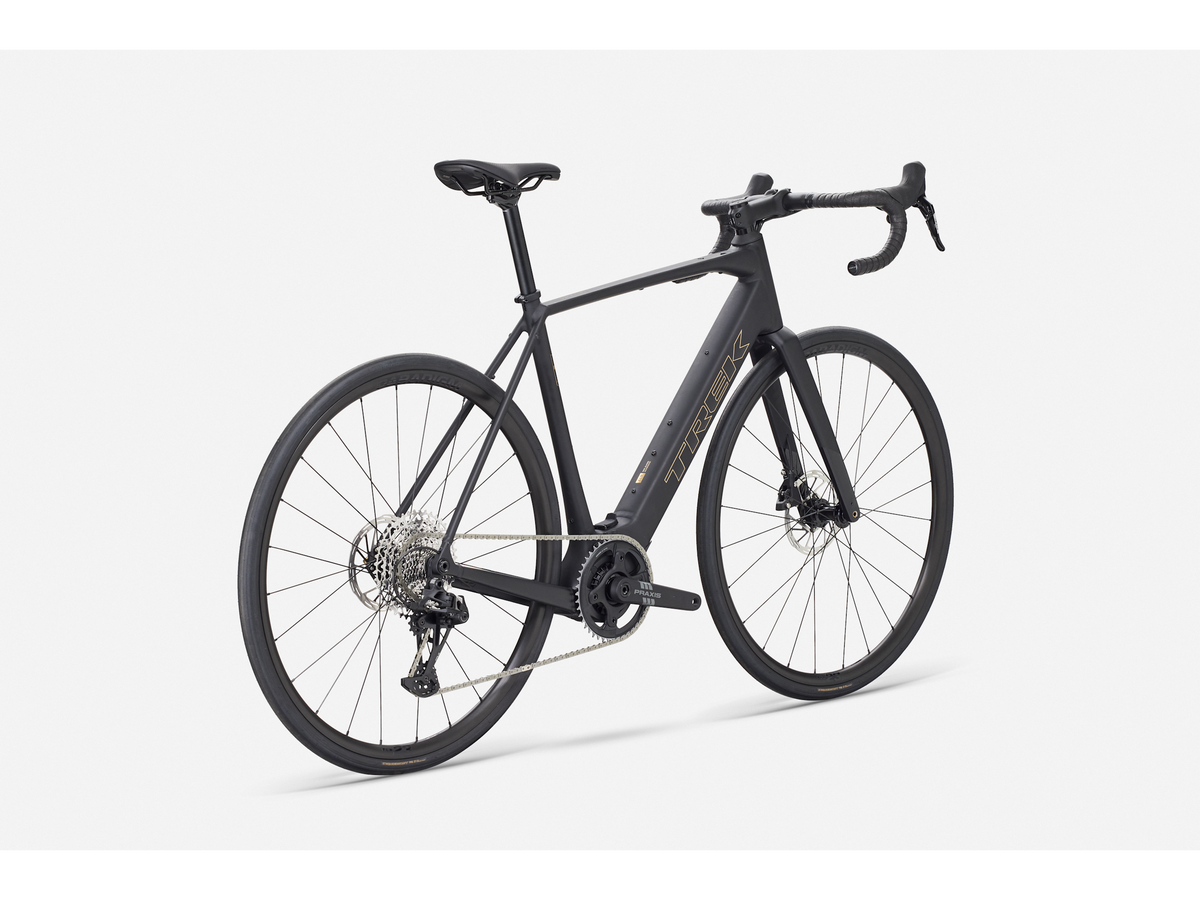

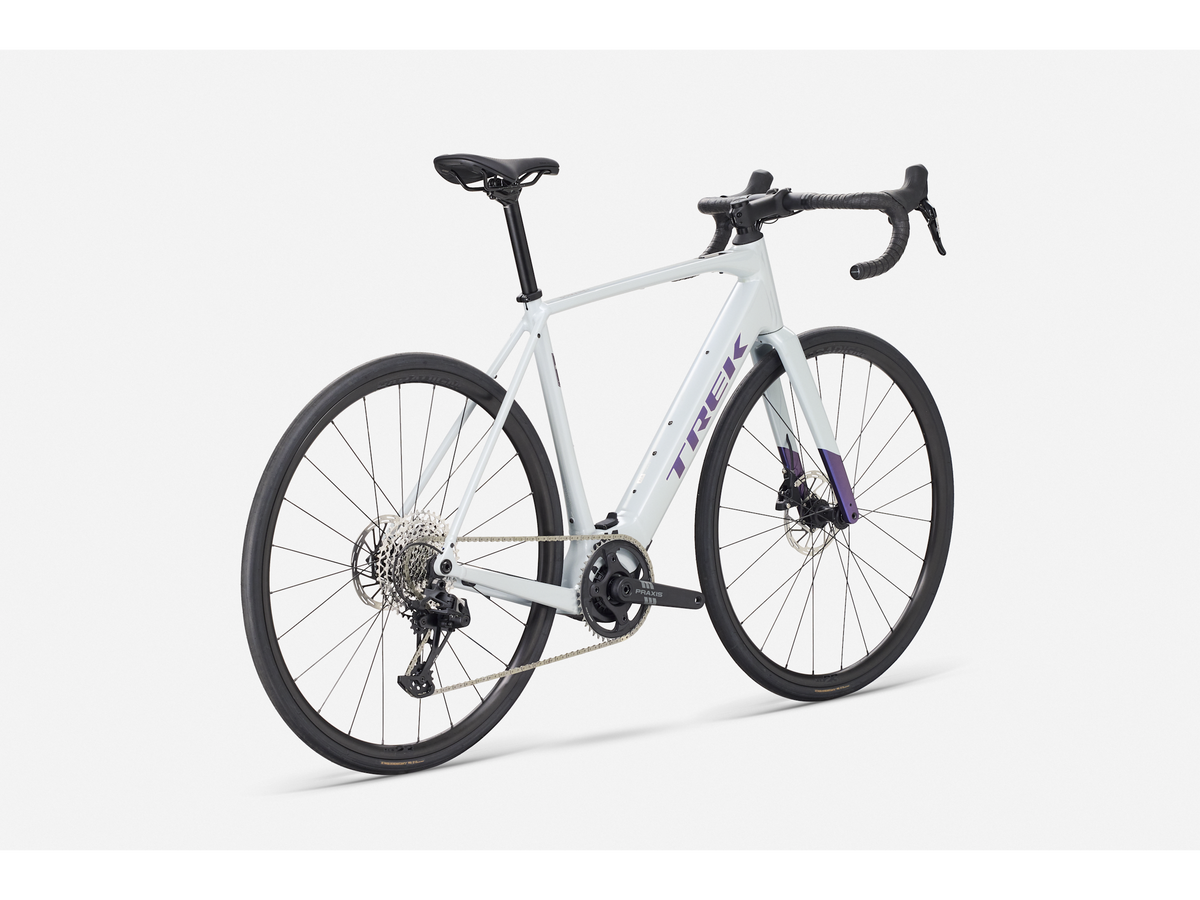

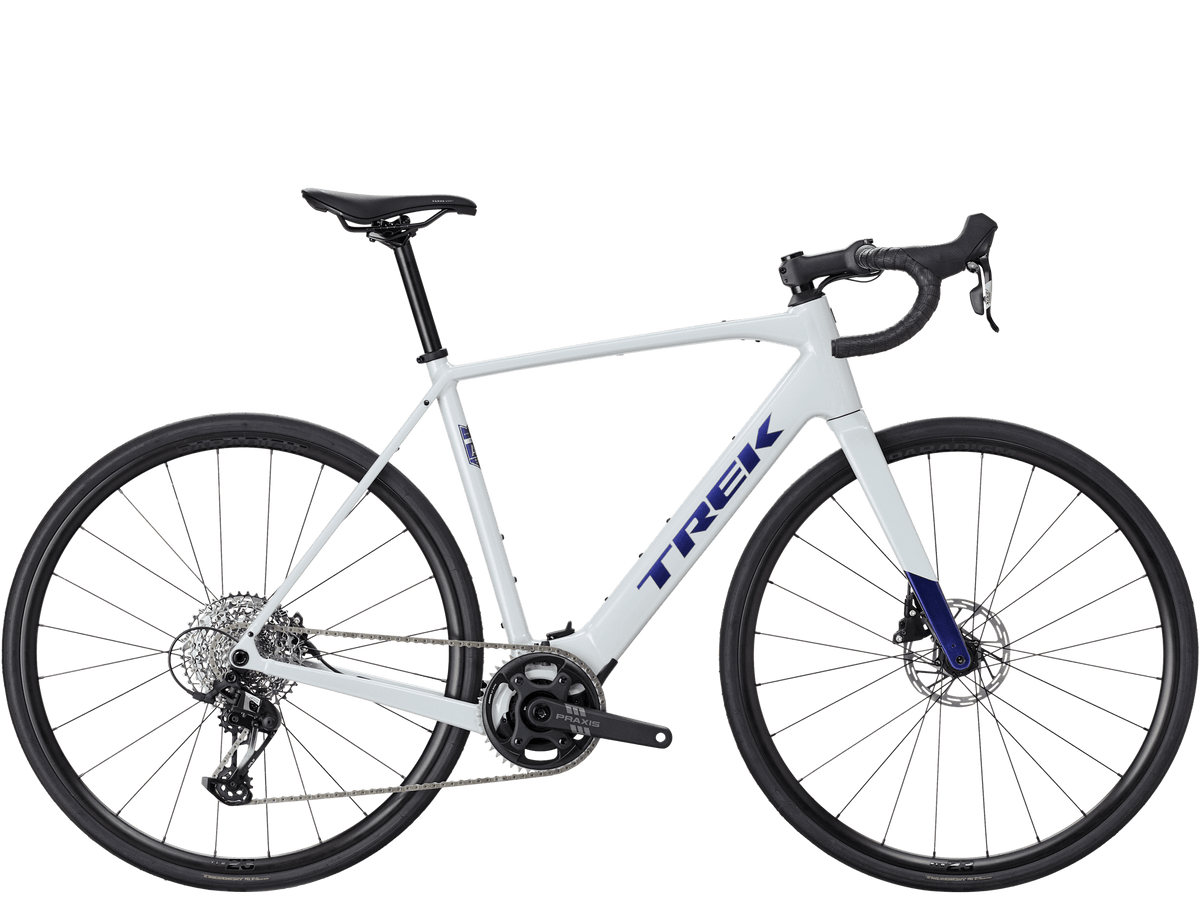

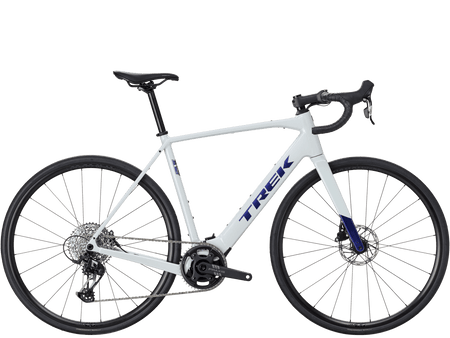

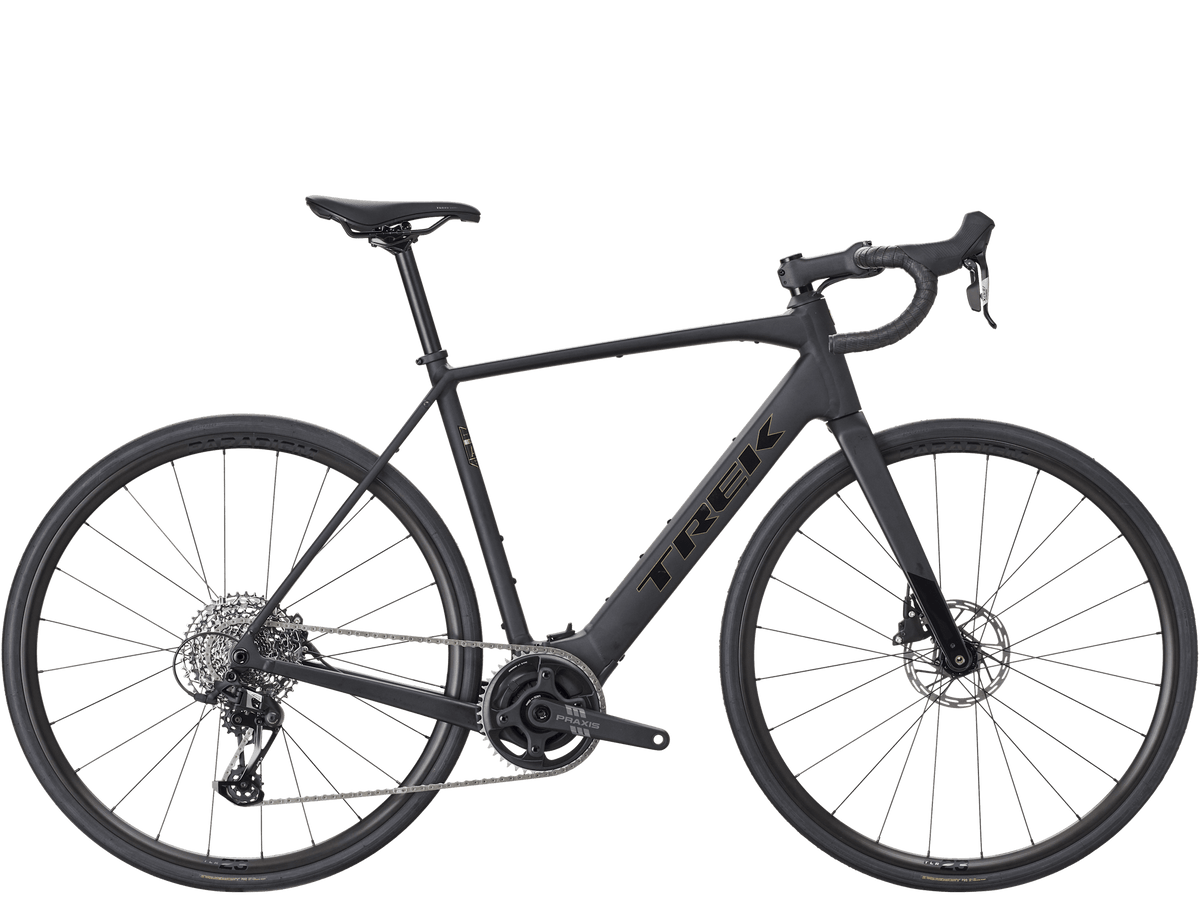

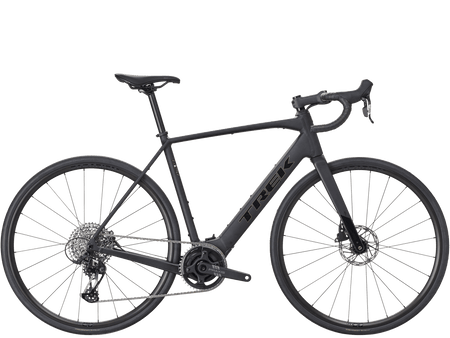

Trek Domane+ ALR 5 Electric Road Bike

Domane+ ALR 5 is an aluminium electric road bike designed to tackle the toughest climbs and spend long days in the saddle. Its smooth, quiet TQ HPR60 motor delivers a natural boost, while the SRAM Apex 12-speed drivetrain ensures precise, reliable shifting in every situation, from fast group rides to solo weekend escapes.

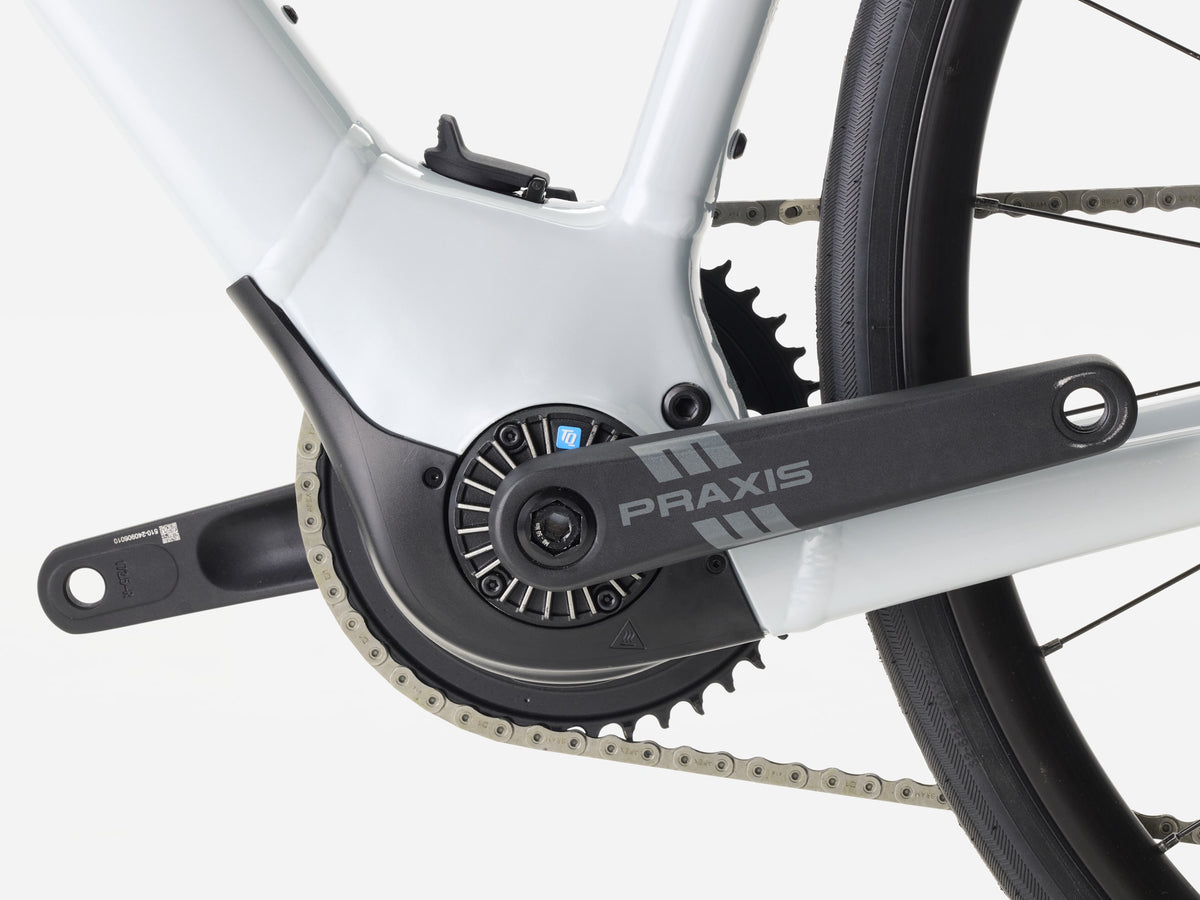

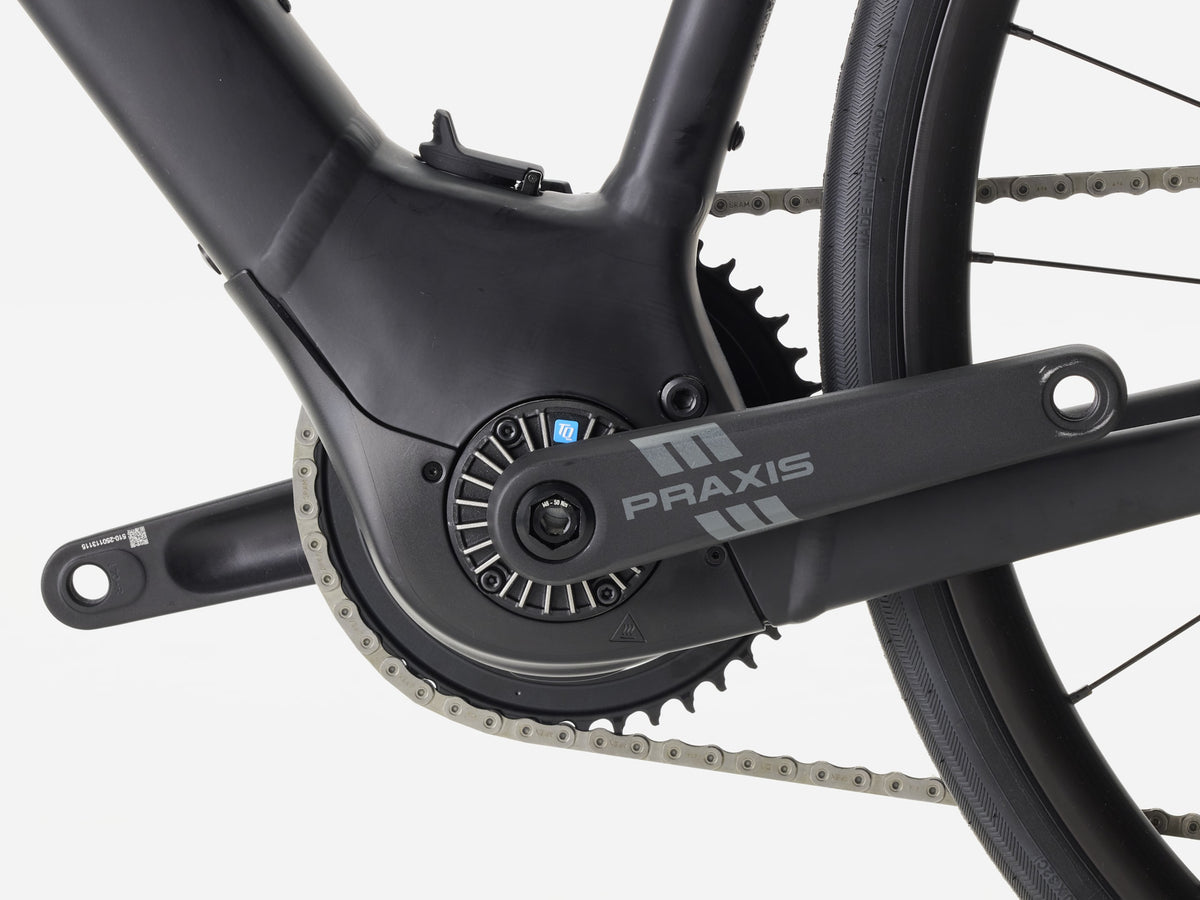

• TQ HPR60 motor with 60Nm of torque, assistance up to 25 km/h
• 360Wh battery

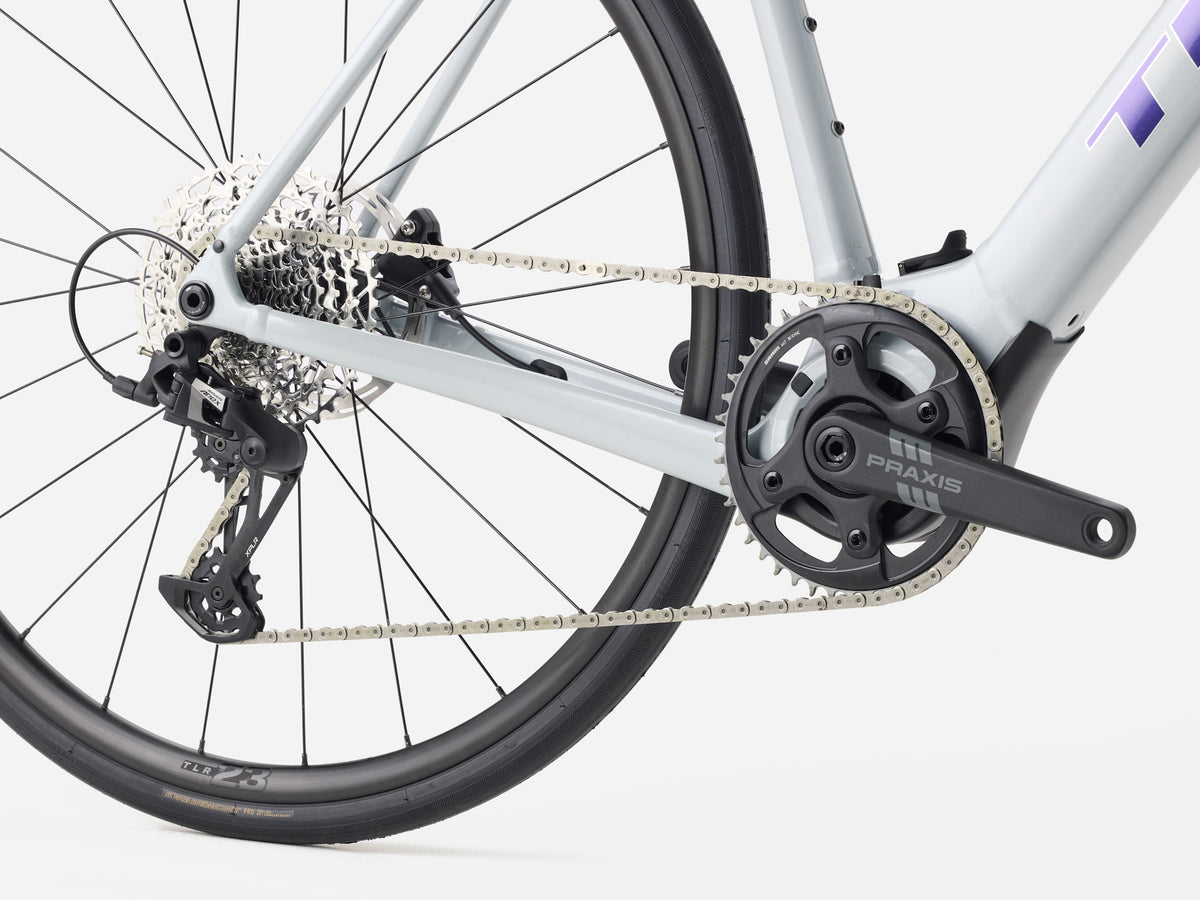

• SRAM Apex XPLR drivetrain, 1x12
• Domane ALR Carbon fork
• Alpha 300 Series Aluminium frame

Highlights

• TQ HPR40 electric system: lightweight, quiet and with natural assistance: Domane+ features a lightweight, compact and quiet TQ HPR40 motor that delivers a smooth, natural ride.
• Our lightest e-bike ever: The lightweight, compliant OCLV 500 Series Carbon frame delivers the premium ride feel of the Domane platform, with builds starting at an incredibly low weight of approximately 11kg.
• New riser handlebar with a clean design: A new riser handlebar adds 20mm of rise for a more upright, comfortable riding position without adding weight to the front end.
• Carbon seatpost that absorbs road bumps: Domane's new seatpost is designed to flex vertically and absorb road vibrations, allowing you to ride longer, harder and more comfortably.

Technical specifications

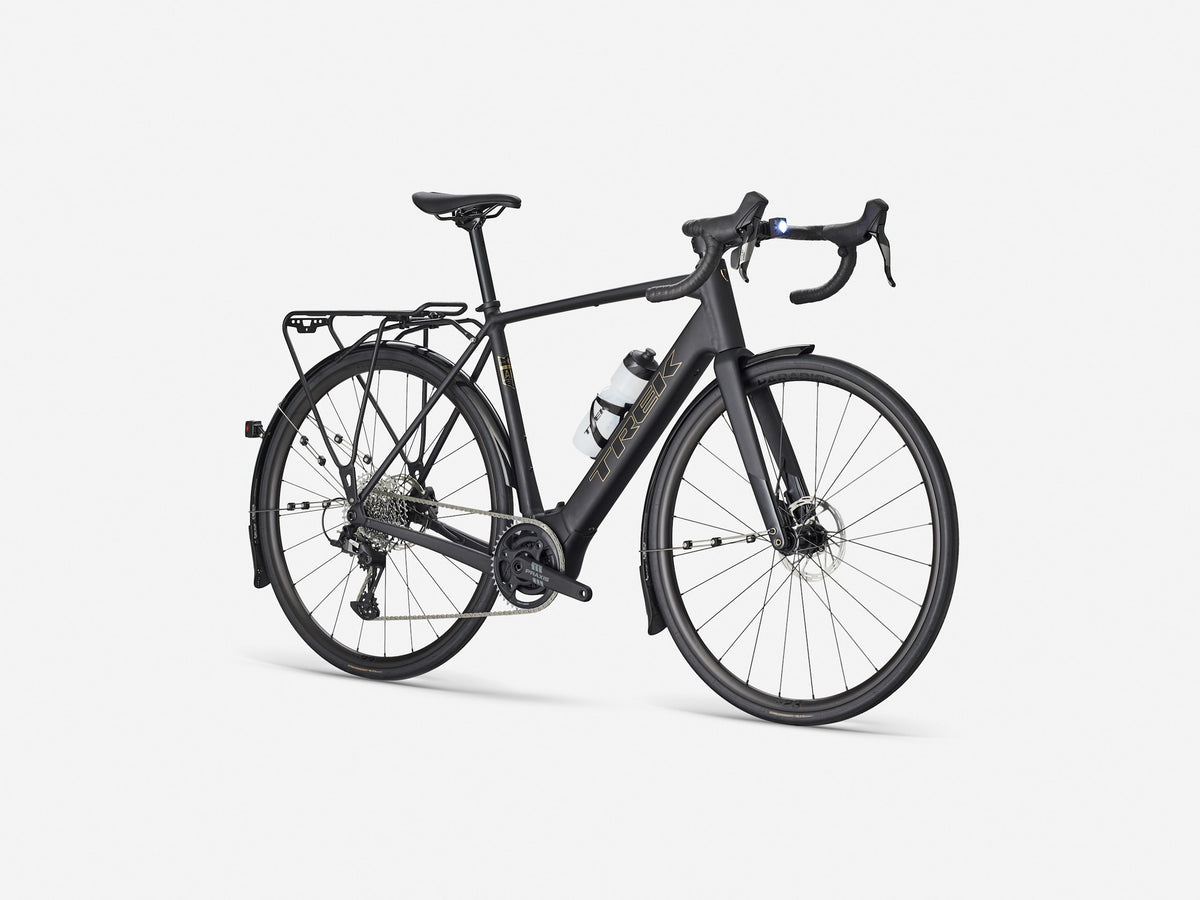

• Frame: 300 Series Alpha Aluminium, TQ drive system, hidden mudguard mounts, rack mounts, integrated frame bag mounts, internal cable routing, flat mount disc, integrated chainkeeper, UDH, 142x12mm chamfered thru axle
• Fork: Domane+ carbon, tapered carbon steerer, mudguard mounts, flat mount disc, 12x100mm thru axle
• Battery: TQ 360Wh
• Display: TQ LED display with Bluetooth & ANT+ connectivity
• Maximum assisted speed: 25 km/h

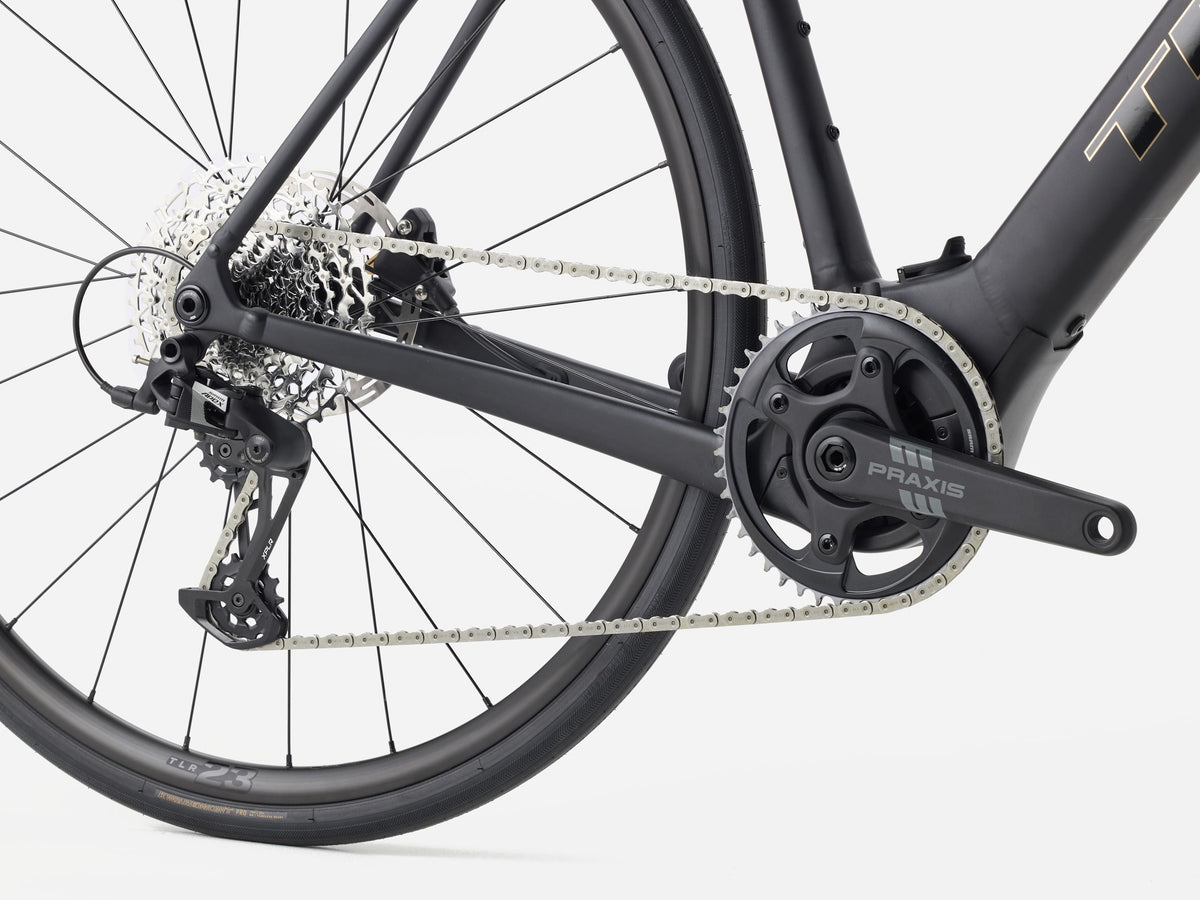

• Shifters: SRAM Apex, 12-speed
• Rear derailleur: SRAM Apex XPLR, 44T max cog
• Crankset: Praxis Alloy
• Cassette: SRAM XPLR PG-1231, 11-44, 12-speed
• Chain: SRAM Apex, 12-speed
• Rims: Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve
• Front hub: Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
• Rear hub: Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
• Tyres: Bontrager Kwaremont Pro GR, tubeless ready, folding bead, dual compound, 120 tpi, 700x32mm

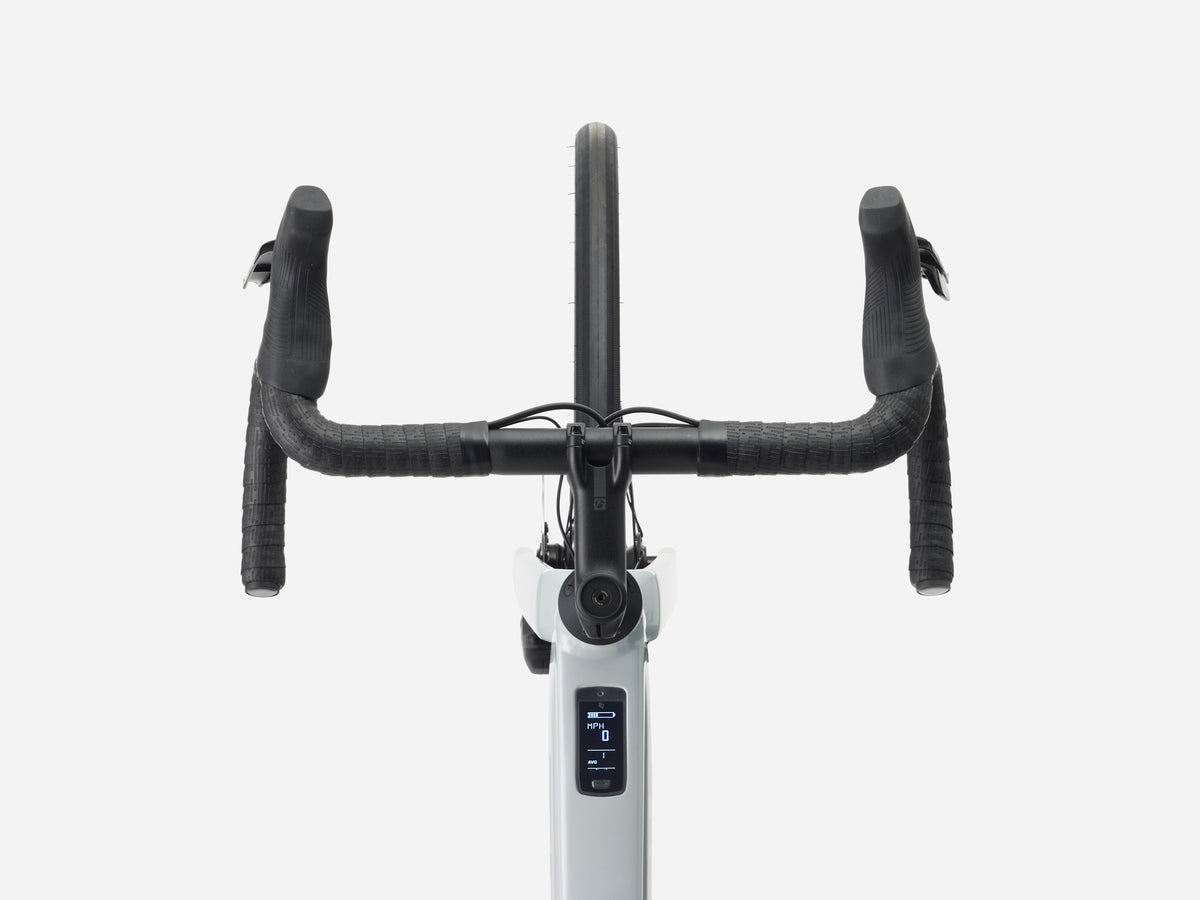

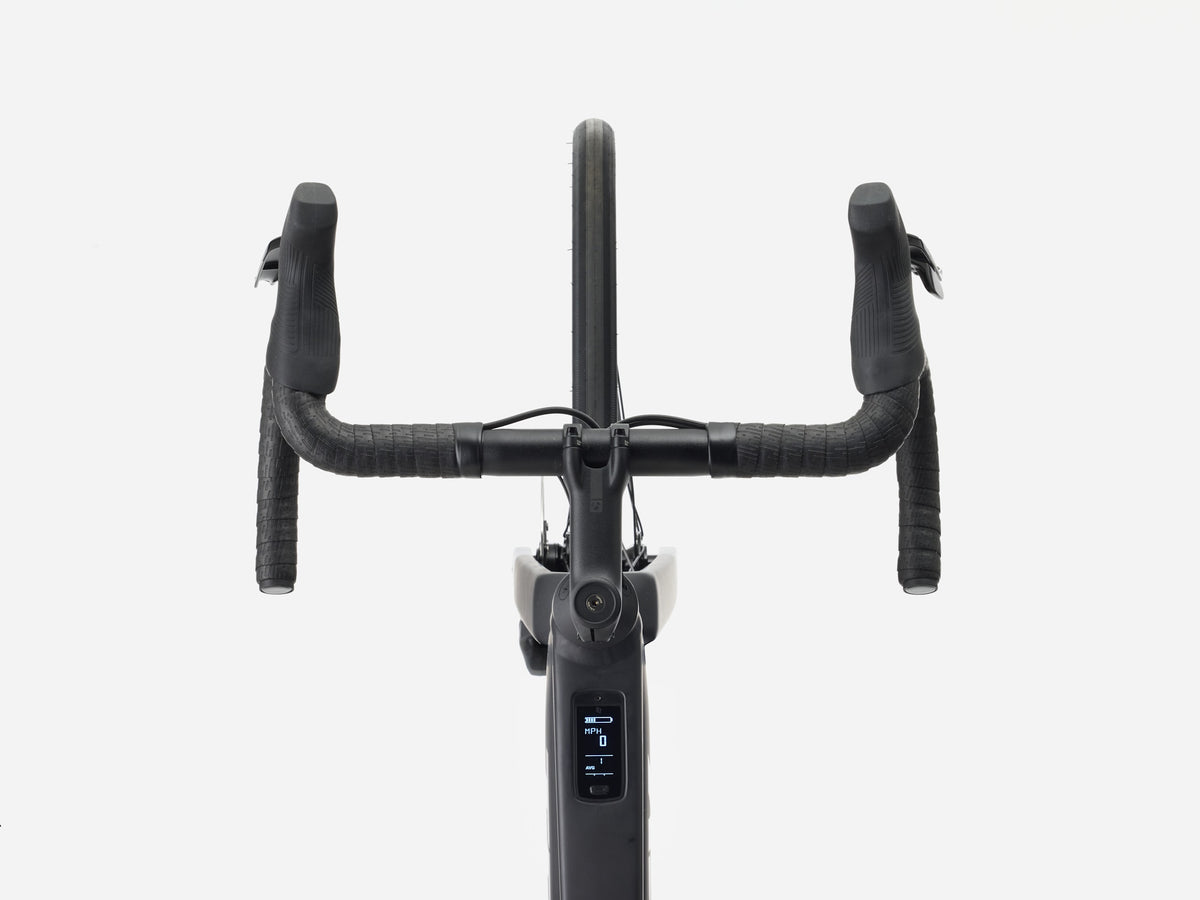

• Handlebar: Bontrager Comp, alloy, 31.8mm
• Stem: Bontrager Elite, Blendr compatible
• Grips: Trek EcoTack
• Headset: Bontrager Headset Expander Plug and Top Cap
• Saddle: Verse Short Comp, steel rails
• Seatpost: Bontrager alloy, 27.2mm
• Weight: ML - 14.39kg/31.73lbs (with TLR sealant, without inner tubes)
• Weight limit: This model has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125kg.
• Rotor size: Maximum brake rotor size: 160mm front and rear
• Maximum tyre size: 40mm without mudguards, 35mm with mudguards
