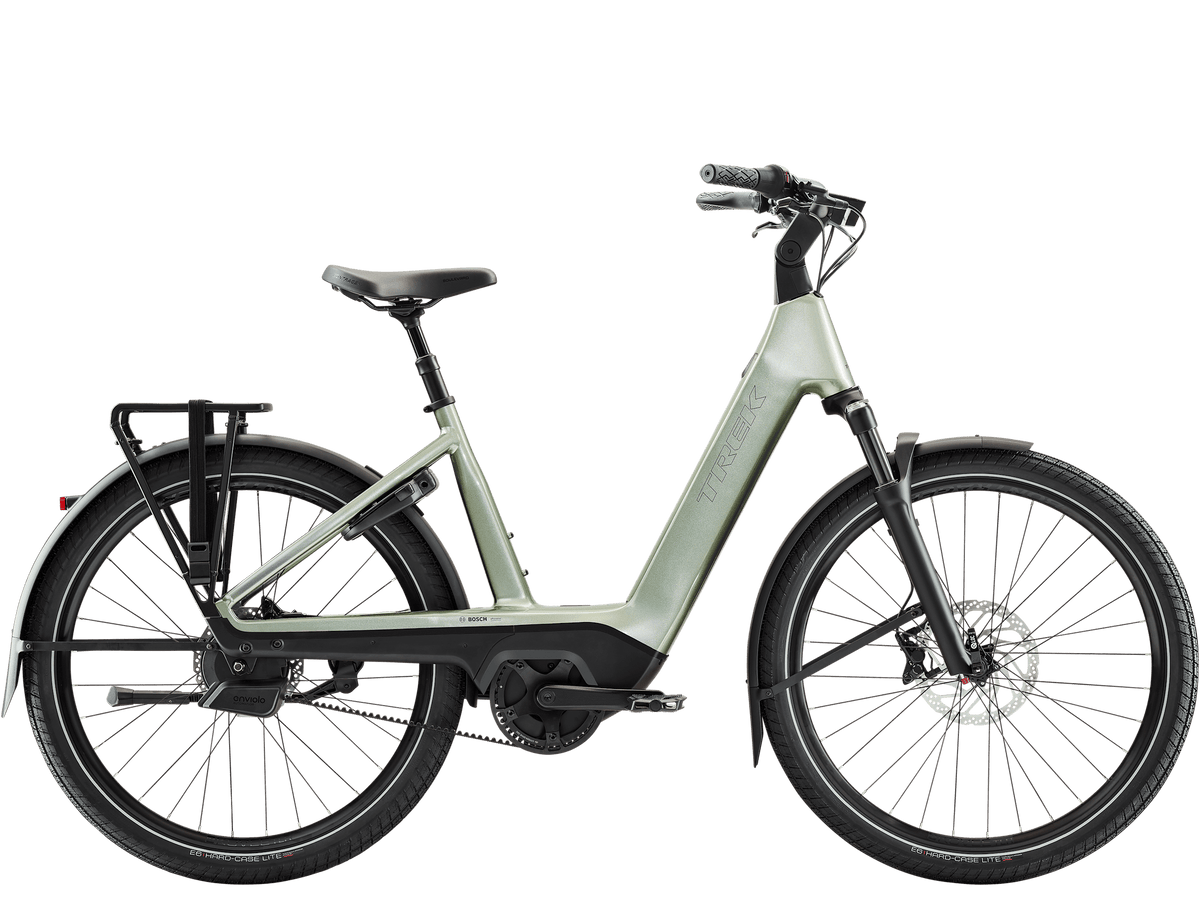

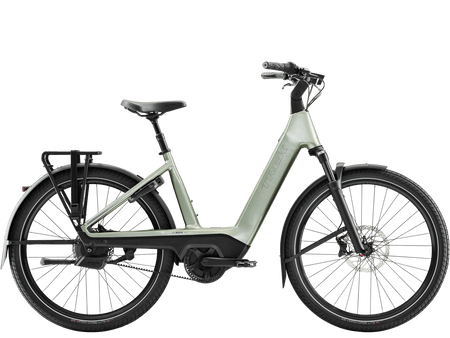

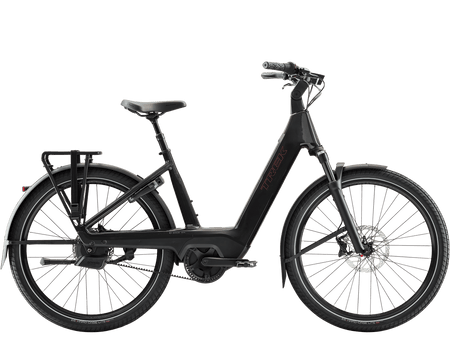

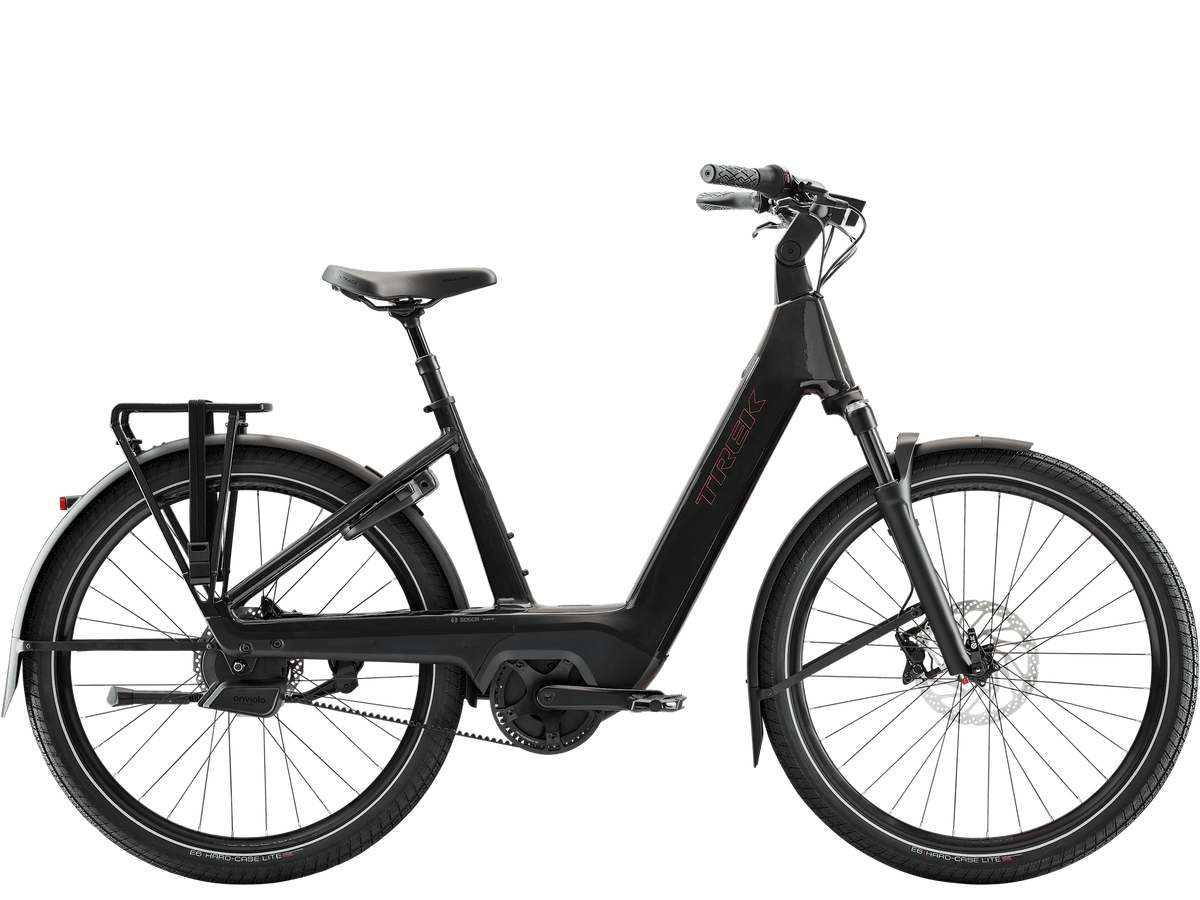

Trek Charter+ 5 Auto 800Wh Lowstep Electric City Bike

Charter+ 5 Auto 800Wh Low-step is an intuitive, versatile city e-bike, perfect for commuting and weekend outings. The adjustable handlebar lets you customise your position, moving from upright and comfortable to more active, while the 80mm air-sprung fork ensures a smooth ride.

• Bosch Performance Line PX motor, 250W with 90Nm of torque, assistance up to 25 km/h
• 800Wh battery: range up to 160km
• Drivetrain Enviolo belt drivetrain, automatic shifting
• Hydraulic disc brakes for confident braking in all conditions
• 80 mm suspension fork

Highlights

• Suspension for greater comfort: The front suspension and suspension seatpost work together to absorb bumps in the road. The front suspension with 50mm of travel makes the ride more responsive, while the seatpost dampens vibrations, giving you confidence and control.

Technical specifications

• Frame: Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
• Fork: SR Suntour Mobie 34, tapered steerer tube, air spring, adjustable rebound and compression, lockout, 100mm QR, 80mm travel
• Motor: Bosch Smart System PX, 90Nm, 250W, 28 mph / 45 km/h (25 km/h max assist in EU and APAC)
• Battery: Bosch PowerTube 800Wh, smart system
• Display: Bosch Kiox 500, smart system
• Maximum assisted speed: 25 km/h
• Crankset: ProWheel alloy
• Cassette: Gates CDX, 22T, steel
• Chain: Gates CDX
• Brakes: Shimano MT401 / MT420 hydraulic disc
• Rims: Bontrager Kovee, double-wall, Tubeless Ready
• Front hub: Shimano TC500, centerlock, 110x15mm thru axle
• Rear hub: Enviolo Trekking, 32-hole, 6-bolt disc brake, 40T
• Tyres: Bontrager E6 Hard-Case Lite, reflective, wire bead, 60tpi, 27.5x2.4"
• Handlebar: Alloy, 31.8mm clamp, 25mm rise, 630mm width
• Stem: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible
• Grips: Trek ergonomic PRO, lock-on
• Saddle: Bontrager Boulevard
• Seatpost: Aluminium with suspension
• Pedals: Bontrager City pedals
• Kickstand: Pletscher Comp Flex 40
• Weight: M - 31.50 kg / 69.45 lbs
• Weight limit: This model has a maximum total weight limit (combined weight of bike, rider and cargo) of 160kg.
• Maximum fork travel: 80mm
• Rotor size: Maximum brake rotor size - Frame: 203mm, Fork: see fork manufacturer
• Maximum tyre size: Frame: 27.5x2.40", Fork: consult the manufacturer's specifications

Trek was founded in 1976 in Waterloo, Wisconsin, by Dick Burke and Bevil Hogg and is still based in the same city today. It makes road, mountain, gravel, city and electric bikes to support different ways of riding. Its story began in a barn, with 904 steel touring frames produced in its first year.
