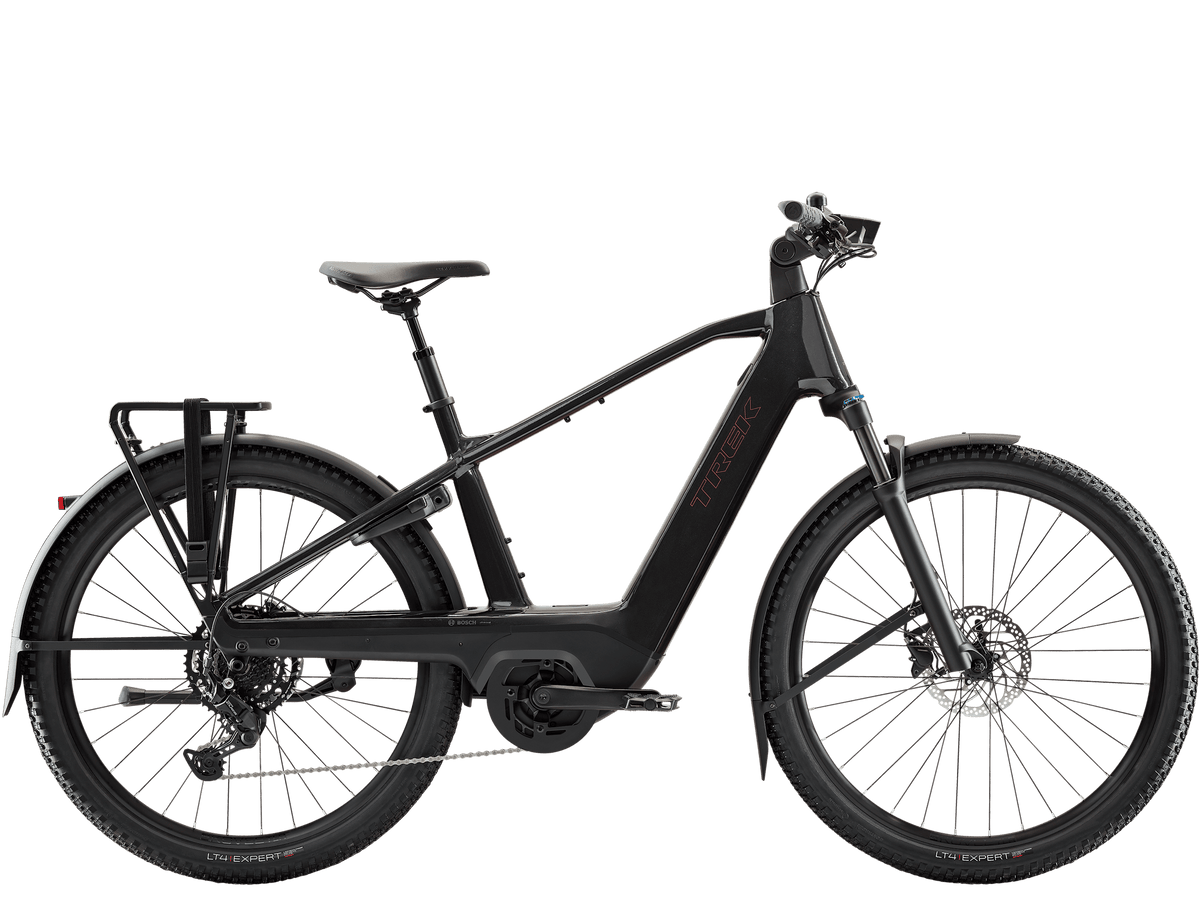

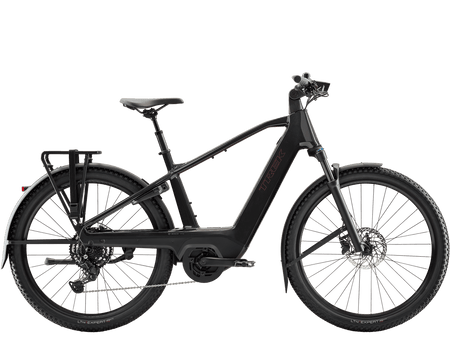

Trek Charter+ 4 Trail 540Wh Electric City Bike

Charter+ Trail 540Wh is an adventure-ready city e-bike designed to give you an extra boost wherever you are heading. Ready to tackle even the roughest trails, it comes equipped with a 9-speed Shimano CUES drivetrain, a 80mm coil-sprung fork, wheels and tyres suited to off-road riding and a flat handlebar with 5mm of rise for maximum control over potholes and obstacles.

• Bosch Performance Line motor, 250W with 75Nm of torque, assistance up to 25 km/h
• 540Wh battery: range up to 147km
• Shimano CUES drivetrain, 9-speed
• Hydraulic disc brakes for confident braking in all conditions
• 80 mm suspension fork

Highlights

• More traction. More adventures.: The knobbly tyres provide greater traction and superior handling on unpaved roads. They offer better control and traction, making it easy to explore trails, gravel roads and rough terrain.
• Consistently smooth, precise shifting: The Shimano CUES drivetrain delivers smooth, reliable shifting with very little maintenance, ride after ride.
• Suspension for greater comfort: The front suspension and suspension seatpost work together to absorb bumps in the road. The front suspension with 50mm of travel makes handling more responsive, while the seatpost dampens vibrations, giving you confidence and control.

Technical specifications

• Frame: Premium Alpha Platinum Aluminum frame, top-load PowerPack, integrated cockpit routing, 135x5mm QR
• Fork: SR Suntour XCR32, tapered steerer tube, coil spring, preload adjuster, lockout,100mm QR, 80mm travel
• Motor: Bosch Performance Line, 250W, 75Nm, 20mph
• Display: Bosch Purion 200
• Maximum assisted speed: 25 km/h
• Shifters: Shimano U4000, 9-speed
• Rear derailleur: Shimano CUES U4000
• Crankset: ProWheel alloy
• Cassette: Shimano LINKGLIDE LG300, 11-46, 9-speed
• Chain: Shimano LG500, 9/10/11-speed
• Brakes: Shimano MT200 hydraulic disc
• Rims: Bontrager Kovee, double-wall, Tubeless Ready, 32-hole, 23mm width, Presta valve
• Front hub: Shimano Tourney HB-QC300, centerlock
• Handlebar: Bontrager alloy, 31.8mm, 5mm rise
• Stem: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible
• Grips: Trek Ergonomic Comp, lock-on
• Saddle: Bontrager Commuter Comp
• Seatpost: Alloy, suspension, 31.6mm
• Pedals: Bontrager City pedals
• Kickstand: Pletscher Comp Flex 40
• Weight: L - 26.80kg / 59.09lbs (excluding battery)
• Weight limit: This model has a maximum total weight limit (combined weight of bike, rider and cargo) of 136kg.
• Maximum fork travel: 80mm
• Rotor size: Maximum brake rotor size - Frame: 203mm, Fork: see fork manufacturer
• Maximum tyre size: Frame: 27.5x2.40", Fork: consult the manufacturer's specifications

Trek was founded in 1976 in Waterloo, Wisconsin, by Dick Burke and Bevil Hogg and is still based in the same city today. It makes road, mountain, gravel, city and electric bikes to support different ways of riding. Its story began in a barn, with 904 steel touring frames produced in its first year.
