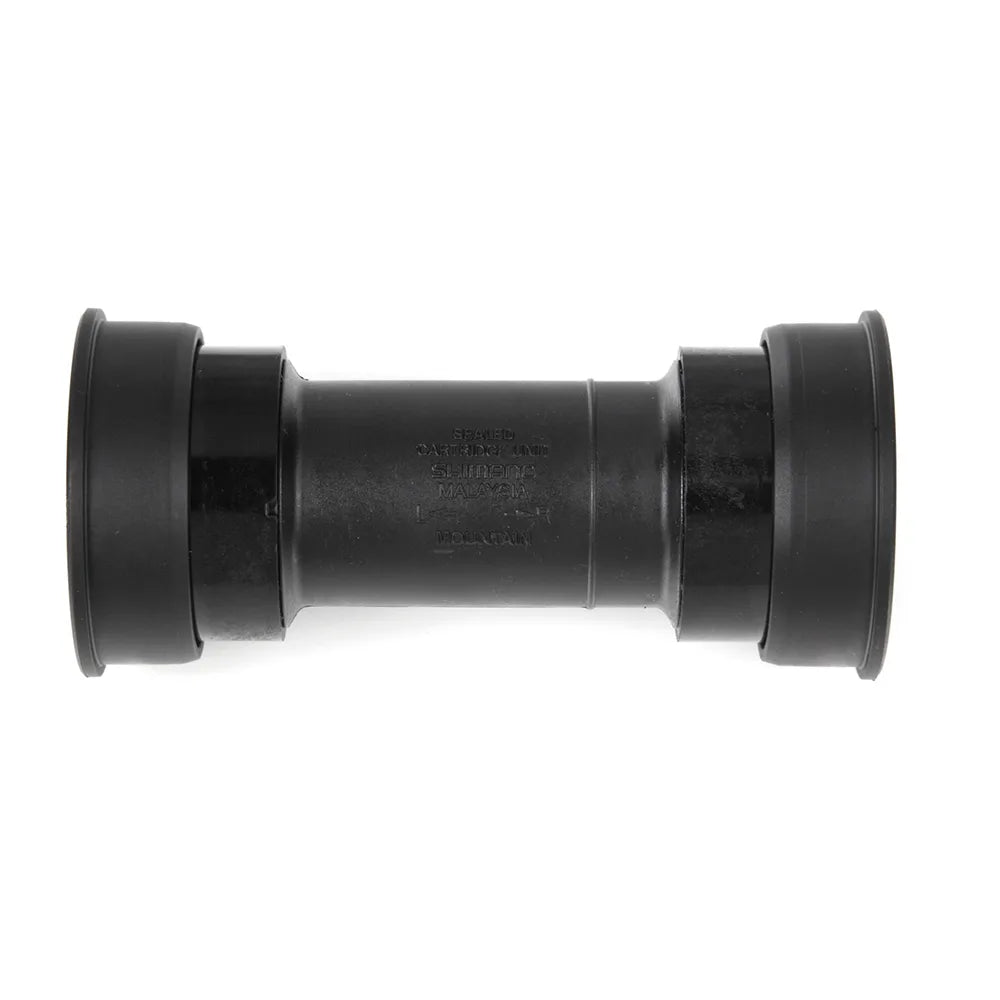

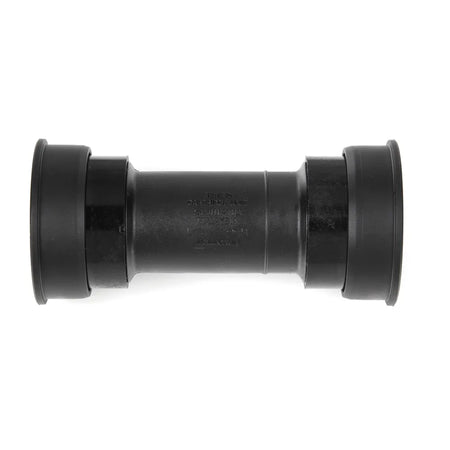

Shimano Deore MTB 89,5x92mm Press Fit Bottom Bracket

Shimano Deore bottom bracket for MTB with a Press Fit interface, for frames with an 89.5 or 92 mm shell. You need it if you want to replace the old one with an Hollowtech II bottom bracket for cranks with a 24 mm spindle.

• Fits Press Fit BB92 frames with an 89.5 mm or 92 mm shell
• Lightweight: weighs only 72 g in the BB92 version
• For cranks with a 24 mm spindle, Hollowtech II system
• The package includes two bearing cups, a central sleeve and a 2.5 mm spacer
• Before ordering, check the frame shell: 41 mm diameter and 89.5 or 92 mm width

Technical specifications

• Frame compatibility: PressFit BB92; shell width 89.5 mm / 92 mm; shell diameter 41 mm
• Crank spindle diameter: 24 mm (Hollowtech II)
• Weight: 72 g (BB92)
• Material: Cups and central sleeve: plastic; bearings: steel
• Package contents: 1 x right cup with bearings; 1 x left cup with bearings; 1 x central sleeve; 1 x 2.5 mm spacer
• Recommended cranks: Deore FC-M617, FC-M6000, FC-T6010, FC-M4100, FC-M5100, FC-M6100, FC-M6120, FC-M6130; Alivio, CUES and MT models
• Colour: Black
