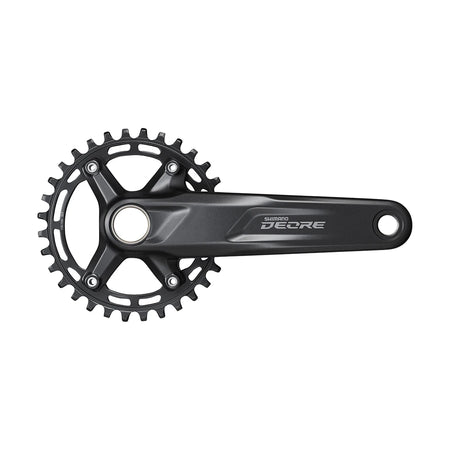

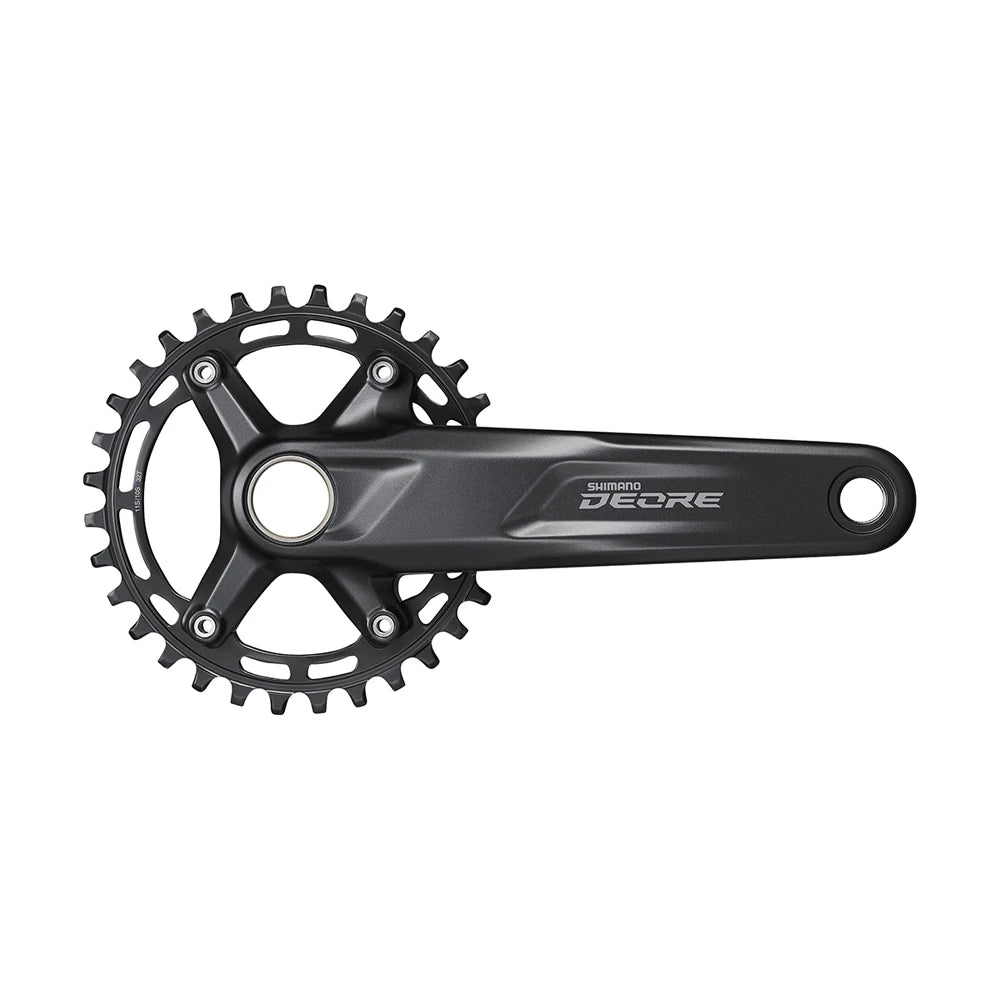

Shimano Deore FC-M5100 crankset 1x11-speed 30 teeth, 175mm

The Shimano Deore FC-M5100 crankset is a single-chainring MTB crankset with 30 teeth and 175 mm crank arms. It is suitable for those running a 1x10 or 1x11-speed drivetrain and looking for a Hollowtech II system.

• Single 30-tooth chainring: simpler shifting, fewer parts to manage
• Compatible with 1x10 and 1x11-speed drivetrains
• Hollowtech II system, with Shimano crank arm bolt included
• Boost standard, with a 52 mm chainline
• Bottom bracket not included: choose the threaded BB-MT501 or BB-MT500-PA Press Fit

Technical specifications

• Model code: EFCM51001EXA0 (58264)
• Crank arm length: 175 mm
• Chainring teeth: 30
• Compatibility: 1x10 and 1x11-speed drivetrains
• System: Hollowtech II
• Chainline: 52 mm
• Q-factor: 178.5 mm
• Bottom bracket: Not included; BB-MT501 (threaded) or BB-MT500-PA (Press Fit) recommended
• Colour: Black
• Package contents: 1 Shimano Deore FC-M5100-1 crankset (30 teeth); 1 Shimano crank arm bolt
