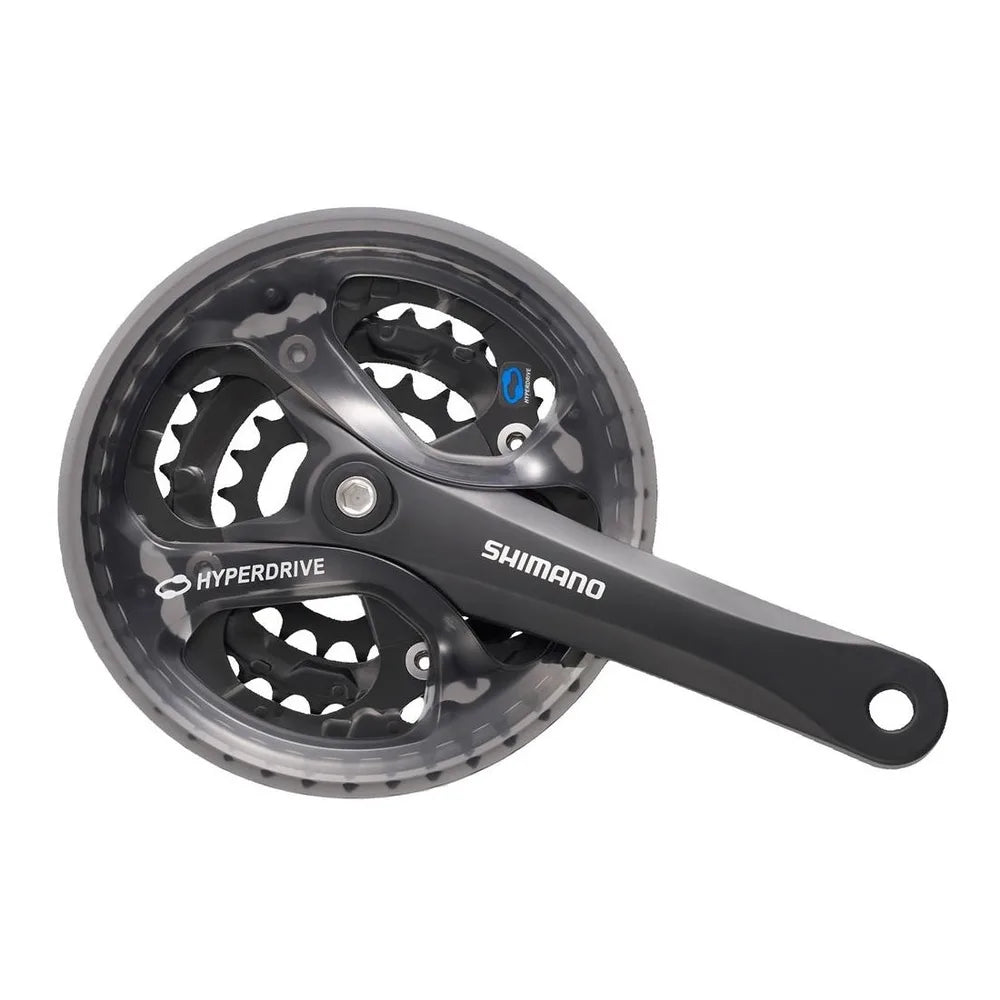

Shimano Acera FC-M361 crankset 3x8-speed 22/32/44 teeth, 170mm crank arm

The Shimano Acera FC-M361 crankset is a triple with 22-, 32- and 44-tooth chainrings, designed for those fitting or upgrading a touring MTB with an 8-speed drivetrain. 170mm crank arms.

• Three 22-, 32- and 44-tooth chainrings: gears for climbs and flat roads
• 170mm crank arms, the length indicated in the title
• Square Taper JIS interface: a compatible bottom bracket is required and is not included
• Shimano Y1KN98080 chain guard included in the package
• For 135/142mm MTB hubs and pedals with a 9/16" thread

Technical specifications

• Crank arm length: 170mm
• Chainrings: 22/32/44 teeth (three chainrings)
• Axle interface: Square Taper JIS (square)
• Spoke bolt circle diameter (BCD): 104/64mm
• Pedals: 9/16"
• Hub compatibility: 135/142mm MTB
• Package contents: Crankset with Shimano Y1KN98080 chain guard
• Bottom bracket: Not included
• Model code: EFCM361C222CL
