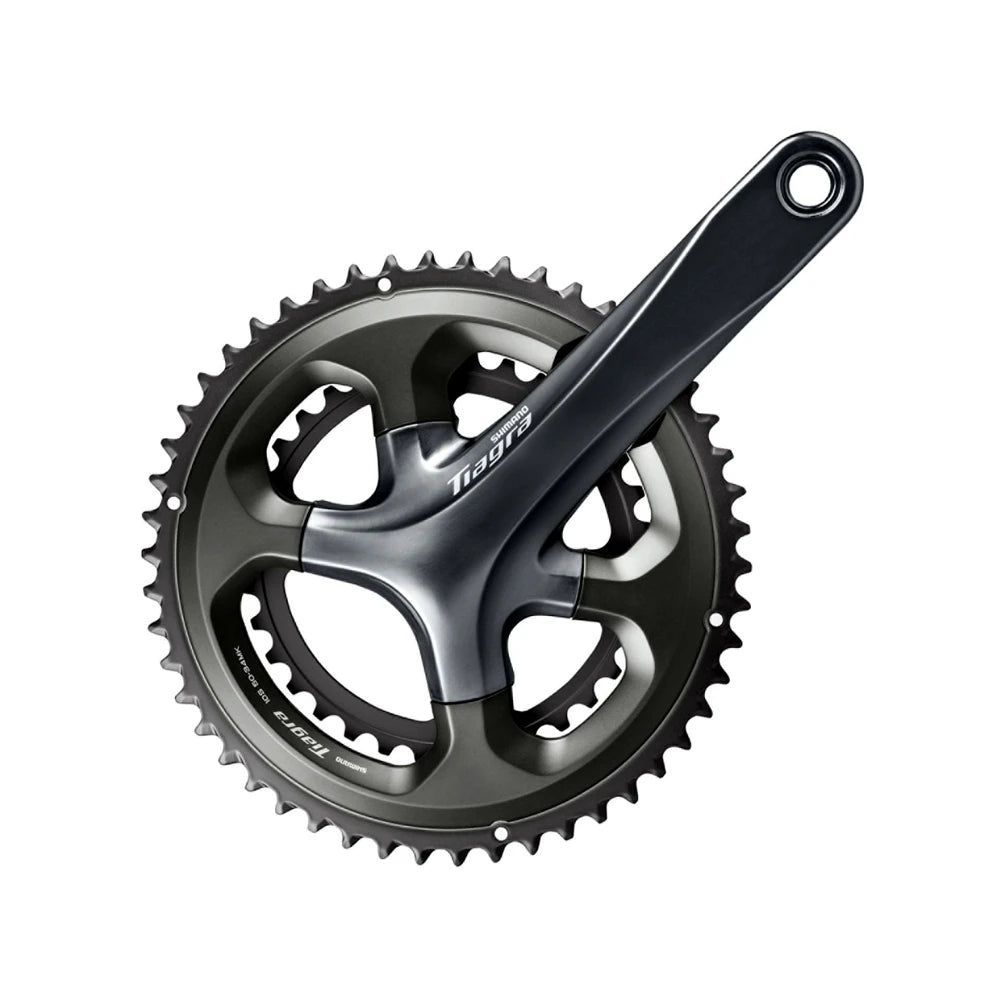

Shimano Tiagra FC-4700 crankset 2x10-speed 50/34 teeth, 172,5mm

The Shimano Tiagra FC-4700 crankset is designed for those fitting a road bike with a 10-speed drivetrain. With 50/34-tooth chainrings and 172.5mm crank arms, it handles fast rides and climbs.

• 50/34-tooth double chainring: a high gear for flat roads and an agile ratio for climbs
• 172.5mm crank arms, a very common size on road bikes
• For 10-speed drivetrains, with an HG-X 10-speed chain
• Hollowtech II interface with a 24mm steel axle, but the bottom bracket is not included
• Package includes: 1 crankset and 1 crank arm bolt

Technical specifications

• Model: Tiagra FC-4700
• Manufacturer code: EFC4700DX04
• Speeds: 10
• Chainrings: 50/34t
• Crank arm length: 172.5mm
• Bottom bracket interface: Shimano Hollowtech II (24mm steel axle)
• Bottom bracket included: No
• BCD: 110mm, 4 asymmetrical arms
• Q-factor: 150mm
• Chain compatibility: HG-X 10-speed
