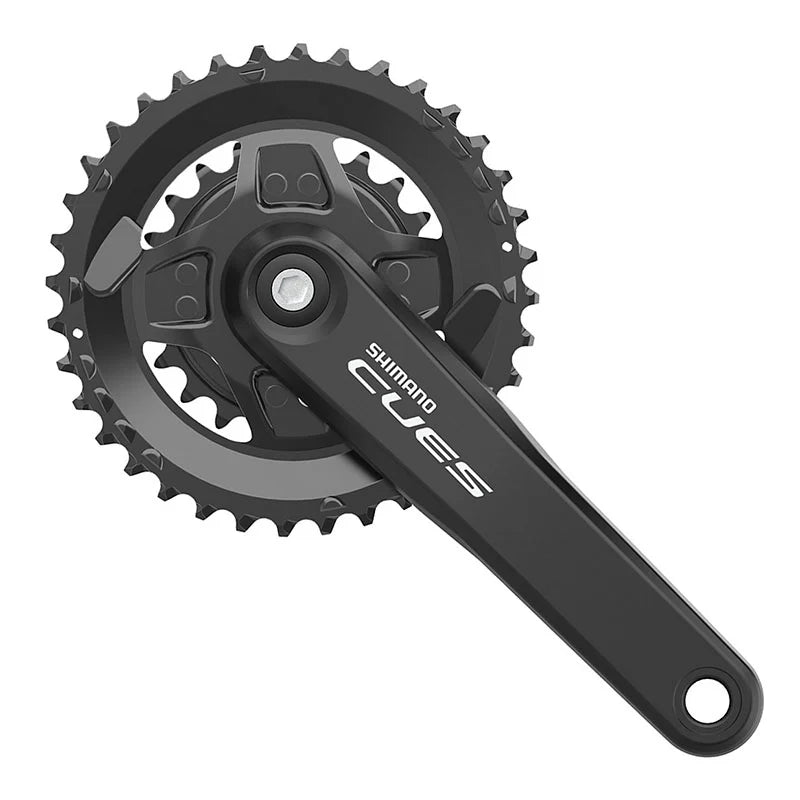

Shimano CUES 9/10/11-speed 22/36-Tooth Crankset, 175mm

The Shimano CUES crankset with 36/22-tooth chainrings and 175 mm cranks is designed for those running a 9-, 10- or 11-speed MTB drivetrain. It has aluminum arms and a Square Taper interface.

• Compatible with 9-, 10- and 11-speed drivetrains, one crankset for multiple setups
• 36/22-tooth chainrings: versatile gearing for climbs and MTB use
• 175 mm aluminum cranks, black
• Square Taper JIS interface: a suitable bottom bracket is required, such as the BB-UN101 LL123, not included
• Works with LINKGLIDE and 11-speed HG chains, for 135/142 mm MTB hubs

Technical specifications

• Crank length: 175 mm
• Chainrings (teeth): 36/22
• Compatible speeds: 9/10/11
• Chainline: 48.8 mm
• Q-factor: 178 mm
• Bottom bracket interface: Square Taper JIS (9/16")
• Bottom bracket: not included; BB-UN101 LL123 recommended, sold separately
• Material: aluminum arms
• Chain compatibility: LINKGLIDE and 11-speed HG
• Color: Black
