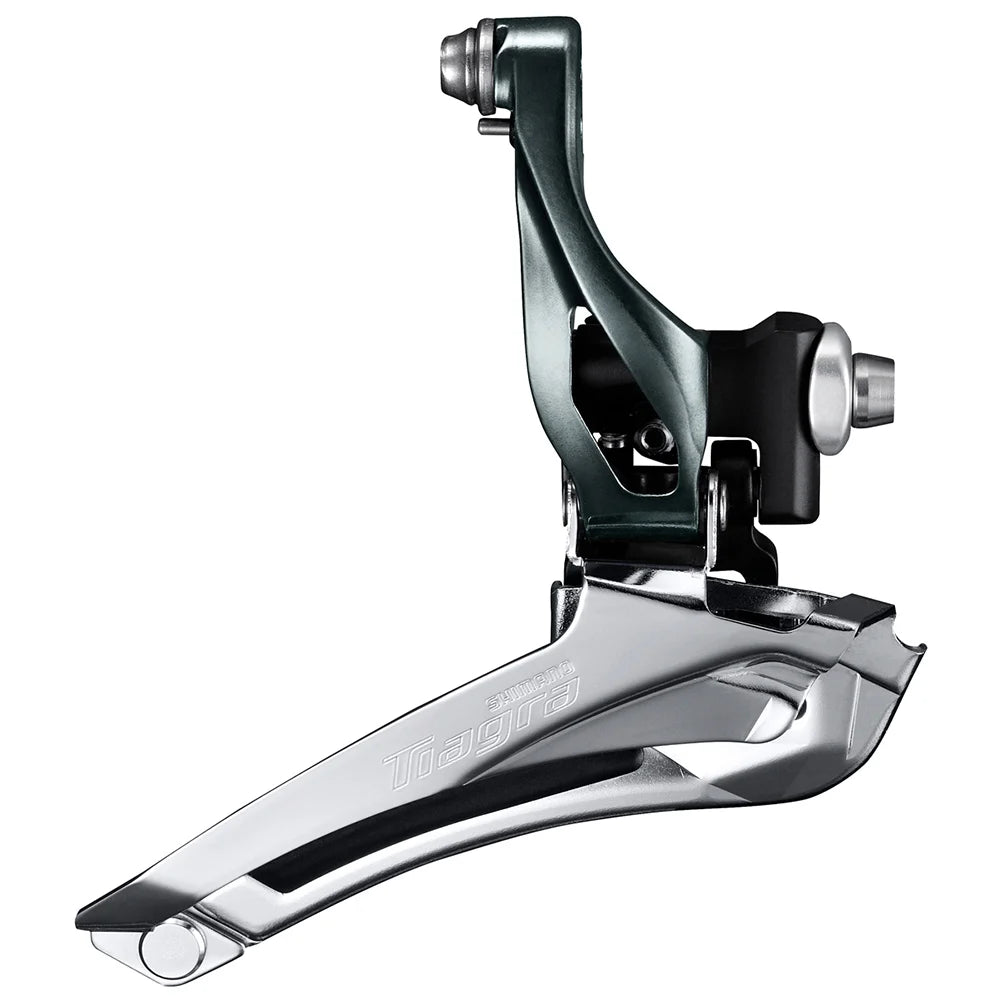

Shimano Tiagra 4700 2x10-speed front derailleur Braze-On Mount Downpull

The Shimano Tiagra FD-4700 front derailleur is designed for road bikes with a 2x10-speed drivetrain and a braze-on frame mount. It shifts between the two chainrings with bottom-pull cable routing.

• For 2x10-speed drivetrains, with a maximum chainring of 46 to 52 teeth
• Braze-on mount: attaches directly to a compatible frame
• Bottom pull, with the cable routed from below
• Compatible with ST-4700, ST-RS405, SL-4700, ST-4720, ST-4725 and ST-RX400 levers
• Chain angle from 61 to 66 degrees: check that it matches your frame

Technical specifications

• Model: FD-4700-F (manufacturer code I-FD4700F)
• Mounting type: Braze-on
• Speeds: 2x10
• Maximum chainring: 46-52 teeth
• Chain angle: 61-66°
• Pull type: Down pull
• Lever compatibility: ST-4700, ST-RS405, SL-4700, ST-4720, ST-4725, ST-RX400
• Package contents: 1 x FD-4700 front derailleur
