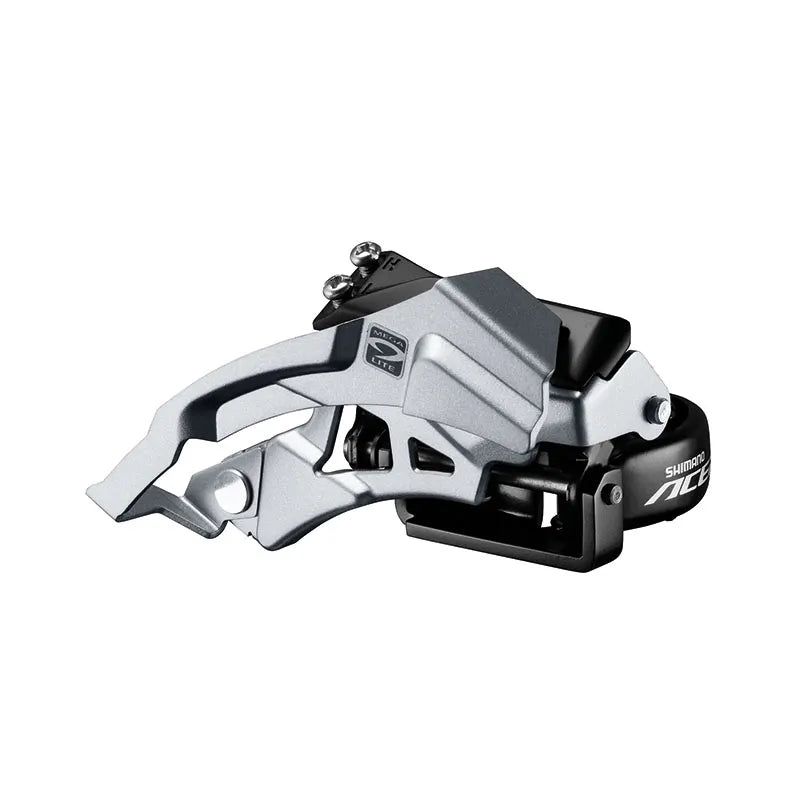

Shimano Acera M3000 Front Derailleur 3x9-speed with Clamp Mount and High Top Routing

The Shimano Acera FD-M3000 front derailleur is designed for those with a bike featuring a 3x9-speed drivetrain who want to shift the front chainring easily. It attaches to the frame with a clamp and works with a Dual-Pull cable.

• For 3x9-speed drivetrains: three front chainrings and nine rear sprockets
• Mounts with a 34.9 mm clamp, also compatible with 28.6 and 31.8 mm
• Handles chainrings with up to 40 teeth, with a total capacity of 18 teeth
• Dual-Pull cable, for a frame chainstay angle of 63 to 66°
• 50 mm chainline: check the seat tube diameter before choosing

Technical specifications

• Model: Acera FD-M3000
• Product code: 02FDM3000TSX6
• Speeds: 3 front, 9 rear (3x9)
• Cable pull: Dual-Pull
• Mounting: 34.9 mm clamp; compatible with 28.6, 31.8 and 34.9 mm clamps
• Chainline: 50 mm
• Largest chainring: 40T
• Total capacity: 18T
• Chain angle: 63 to 66°
• GTIN: 4524667338512

Product code: 305830705 · Barcode: 4524667338512
