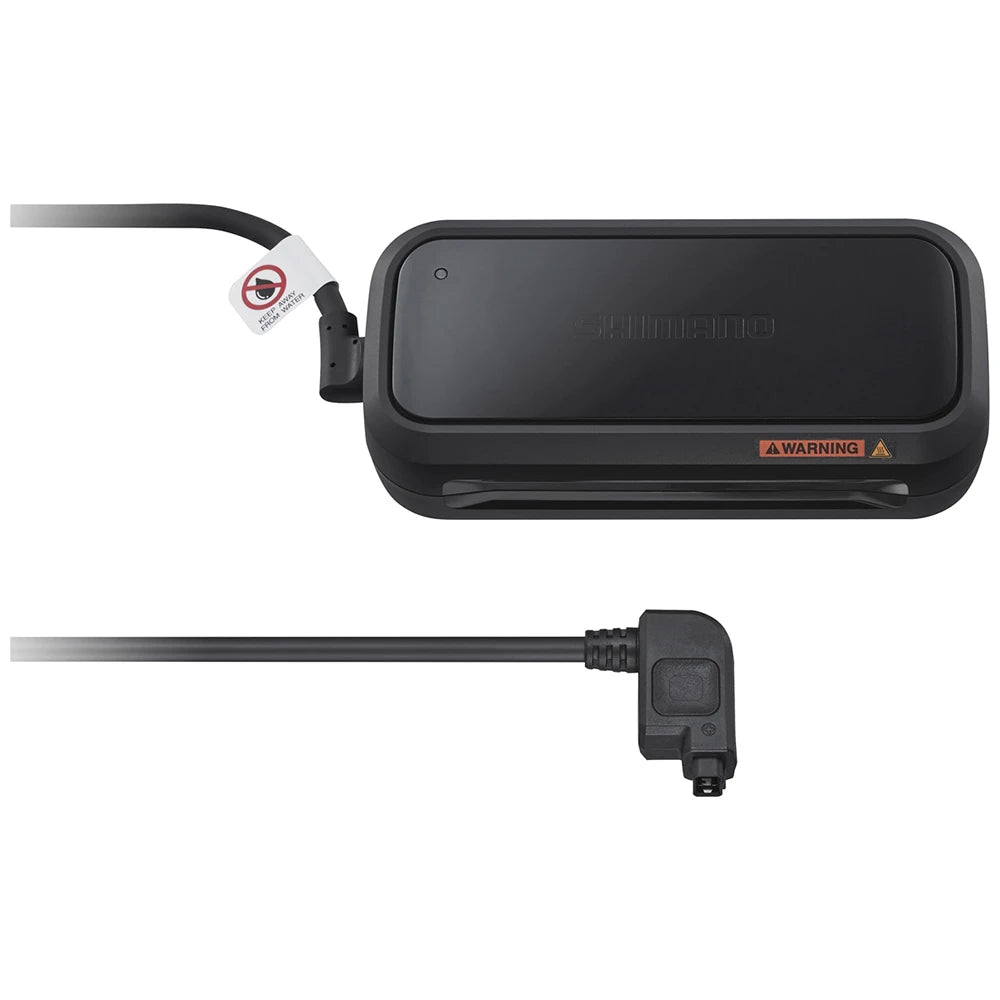

Shimano STEPS EC-E6002 compact 240V charger

The Shimano STEPS EC-E6002 battery charger is the compact solution for charging your Shimano STEPS e-bike battery at home or in the garage. It is sold without a power cable.

• Compatible with many STEPS batteries, including BT-E6000, BT-E8010 and BT-E8036
• With the 418 Wh battery, it reaches 80% charge in 3.5 hours
• Works with household power: 100 V to 240 V AC input
• Sold without a cable: the SM-BCC1 cable is required and sold separately
• Before ordering, check that your battery model is included in the compatibility list

Technical specifications

• Model: EC-E6002
• Manufacturer part number (MPN): IECE6002D
• Input voltage: 100 V - 240 V AC, 50 - 60 Hz
• Output: 42 V DC, 1.8 A
• Charging time, 418 Wh battery: 100% in 6.5 hours; 80% in 3.5 hours
• Charging time, 504 Wh battery: 100% in 7.5 hours; 80% in 4 hours
• Charging time, 630 Wh battery: 100% in 10.2 hours; 80% in 7.5 hours
• Compatible batteries: BT-E6000, BT-E6001, BT-E6010, BT-E8010, BT-E8014, BT-E8016, BT-E8020, BT-E8035, BT-E8035-L, BT-E8036
• Package contents: Battery charger without power cable
• Compatible cable (sold separately): SM-BCC1
