SRAM Eagle 90 DUB T-Type Crankset Without Bottom Bracket
Couldn't load pickup availability

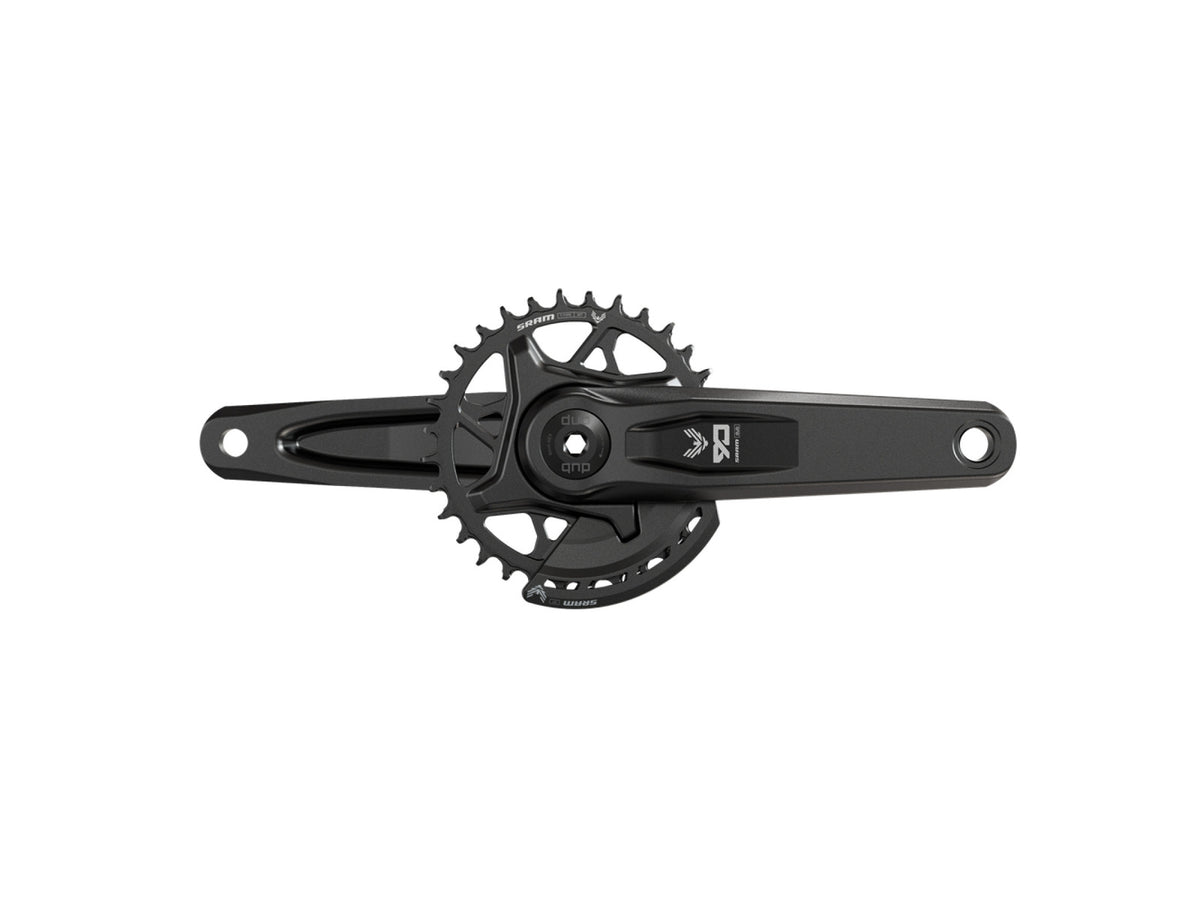

The SRAM Eagle 90 DUB T-Type crankset is a mountain bike crankset with a DUB interface, designed for riders using a DUB bottom bracket who want a durable crankset for trail riding. The forged aluminum crank arms accept 8-bolt T-Type chainrings. The stamped steel chainring is protected by two composite chain guards that can be removed independently, helping protect the chainring from impacts on the trail.
The bottom bracket is not included, so check that your frame is compatible with DUB. Choose a crank arm length of 155, 160, 165, 170, or 175 mm based on your pedaling style and bike geometry. Before buying, also check the 55 mm chainline and 174 mm Q-factor, which affect the chainring’s position relative to the frame.
| Bottom bracket | DUB (not included) |
|---|---|
| Crank arm length | 175 mm |
| Available lengths | 155, 160, 165, 170, 175 mm |
| Chainline | 55 mm |
| Q-factor | 174 mm |
| Speeds | 12 |
| Chainring teeth | 32T |
| Chainring compatibility | 8-bolt T-Type |
| Crank arm material | forged aluminum |
| Chainring material | stamped steel |
| Color | black |
Ships in 5-6 business days.
