Lighweight Meilenstein Art Silver ED OS Road Wheelset - CeramicSpeed Bearings
Couldn't load pickup availability

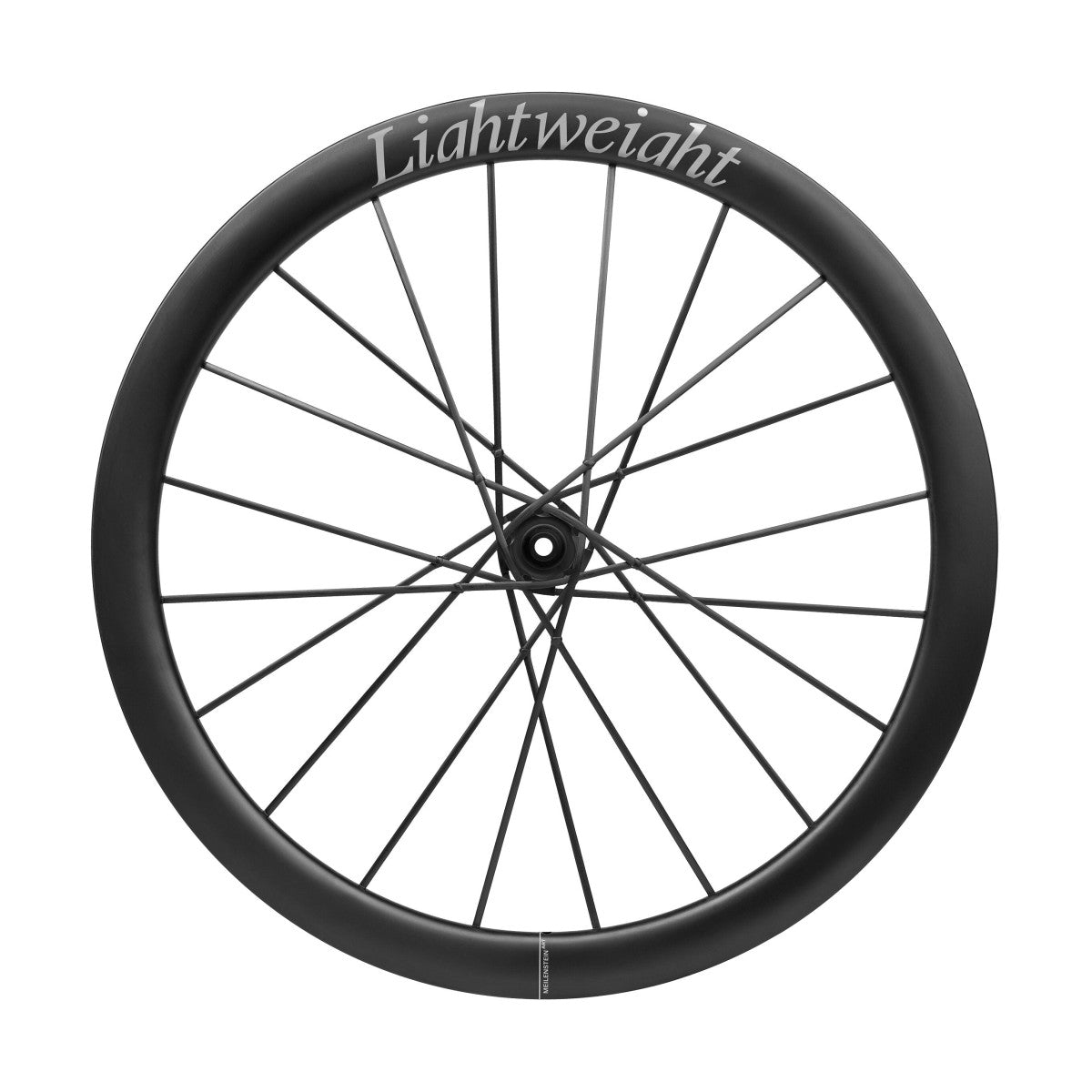

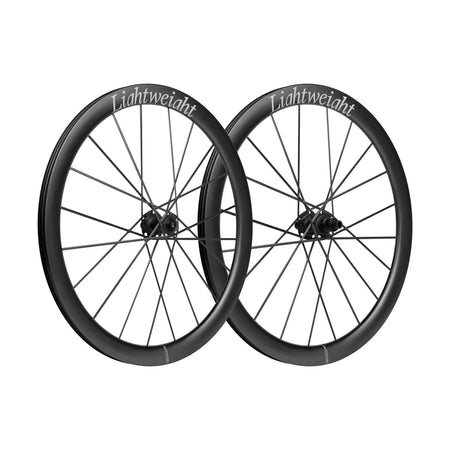

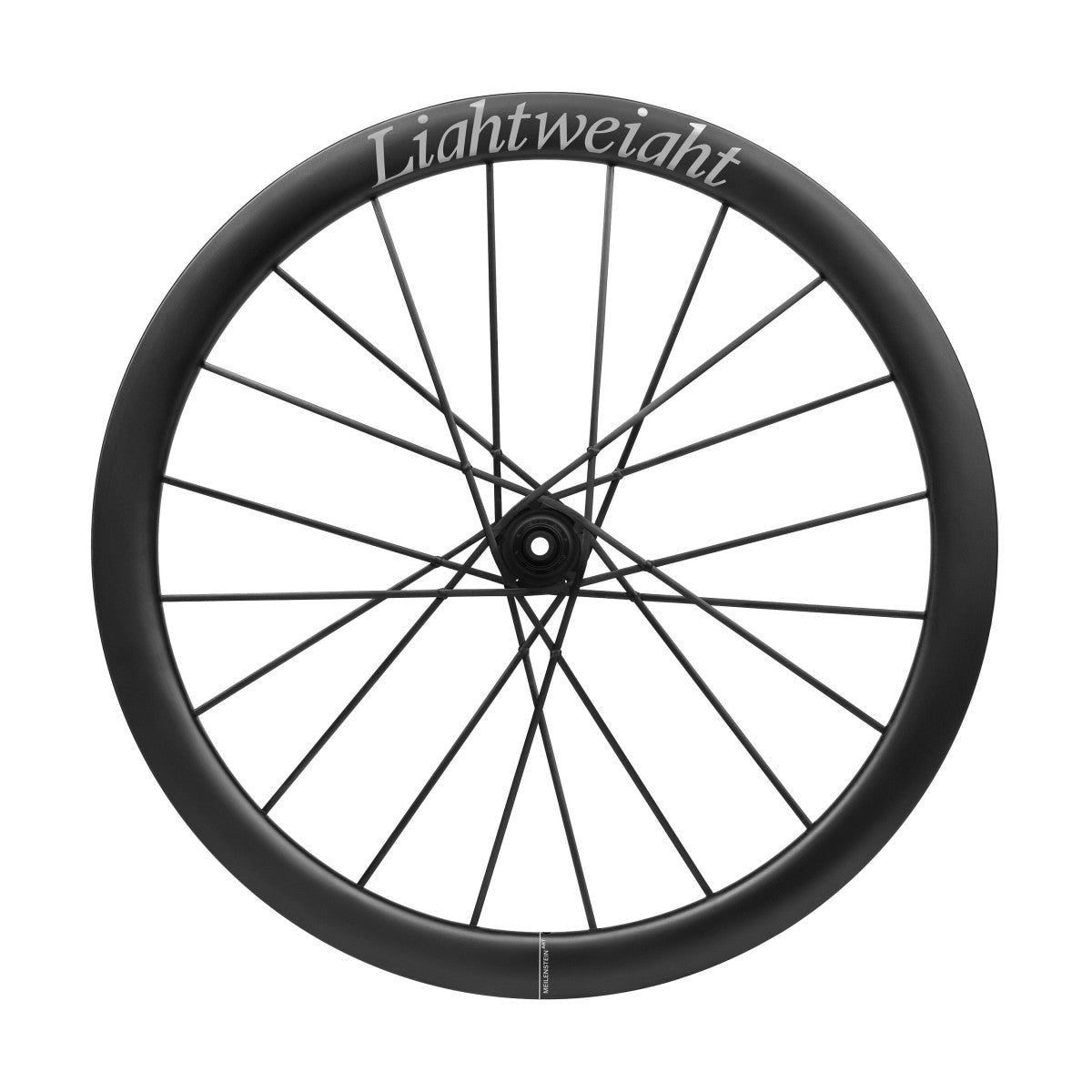

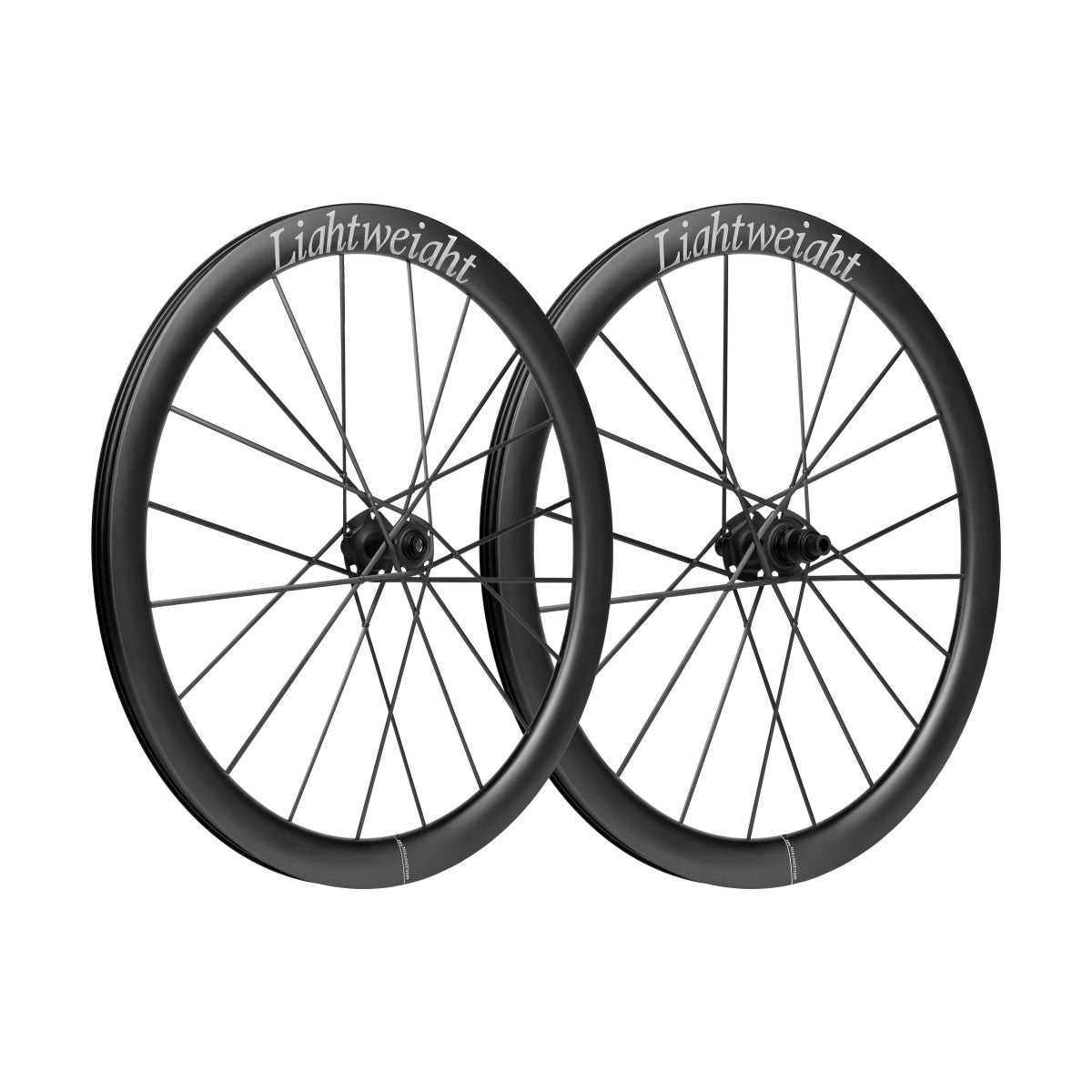

The Meilenstein ART OS Silver ED carbon wheelset consists of front and rear wheels and features a rim with patented Alpha Rib technology: an internal ribbed structure that directly integrates the carbon spokes and provides lateral stiffness where conventional double-wall rims flex. This allows the wheelset to combine a wider aerodynamic profile with high stiffness at an overall weight of 1190 g. This Silver ED version uses CeramicSpeed bearings and transfers power directly to the road through the Penta-Fly hub, based on the DT Swiss EXP 180.
Design and handling
The carbon spokes extend from rim to rim, running continuously from one side of the rim to the other through the hub without bends or mechanical connectors, thus preserving force transmission through the fibres. With an internal width of 22.9 mm, the rim is designed for 28 mm tyres and is tubeless compatible. The aerodynamic profile responds smoothly to headwinds and remains controllable in crosswinds. The key production stages are carried out by hand in Germany.
Features:
- Rim with Alpha Rib technology: internal ribs for high lateral stiffness at a low weight
- Carbon fibre spokes integrated directly into the ribbed structure for greater tensile strength and reduced material fatigue.
- Spokes run from rim to rim without bends or mechanical connectors
- Penta-Fly hub with oversized flanges and a compact hub body
- CeramicSpeed bearings for low friction and lasting smoothness.
- Aerodynamic profile with stable handling in crosswinds.
- Smooth carbon finish instead of a visible carbon weave.
Technical specifications:
- System weight: 1190 g (+/- 3%)
- Front wheel weight: 550 g
- Rear wheel weight: 640 g
- Bearings: CeramicSpeed
- Rim depth: 45 mm
- Internal rim width: 22.9 mm
- External rim width: 28.6 mm
- Rim type: 700C, hooked, closed rim bed
- Optimal tyre size: from 28 mm
- Tyre type: Tubeless Ready
- Spokes: 20, all-carbon front and rear
- Hub: Penta-Fly based on DT Swiss EXP 180
- Braking system: Centerlock disc
- Mounting width: 12x100 mm front, 12x142 mm rear
- Maximum system weight: 120 kg
- Freehub systems: Campagnolo ED, Campagnolo N3W, Shimano/SRAM HG 11/12-speed, SRAM XDR
