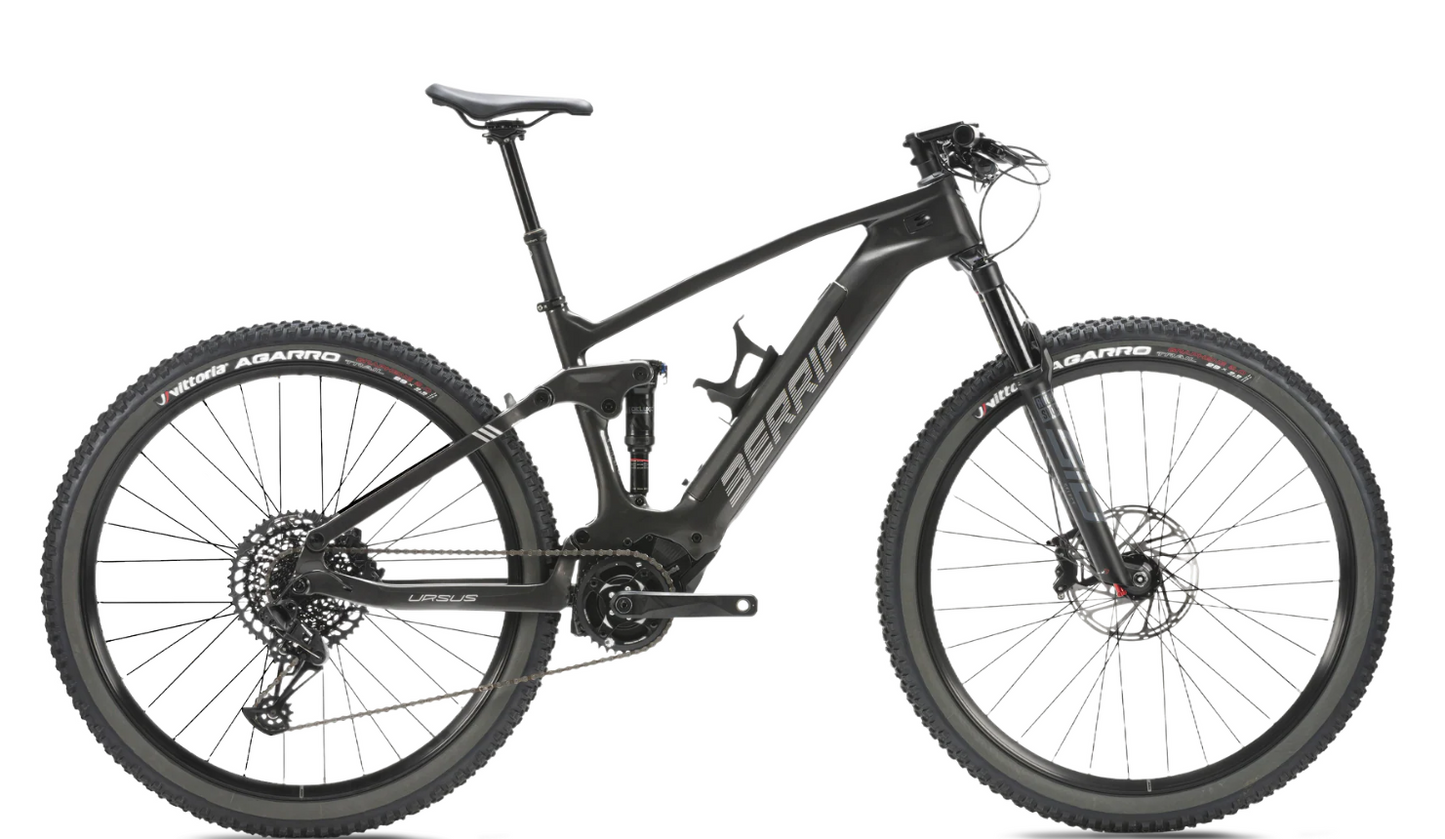

Berria Ursus Elite

Specific

• Chassis

  Ursus 120, Racing Geometry BGC, Kinematic Trail E-MTB 120mm, Full Carbon HM2X, Monocoque, Mach-R Nanotech, Full Internal Cable System ICS2, Integrated Headset Oh2S 1-1/2 "-1-1/2", post Mount 180mm, 29x2.60 "Maximum Tyre, Thru Axle Boost 12x148mm, Weight: 2600gr

• Fork

  Rockshox Sid Select RL, Damper Type Charger RL, Remote Lockout 2 Position, 15x110mm Maxle Stealth, Rake 44mm, TapaD Steerer, 35 mm Tapa Wall Aluminium, Diffusion Black, 120mm Travel, Weight: 1671gr

• Material

  Full Carbon Fiber HM2X

• Handlebar

  AVANFORCE AF3, Aluminum 6061, Ø31.8mm, Wide 740mm, Weight 330GR

• Bra

  Crank Brothers Highline 3 Dropper Post, Aluminum 7075-T6, 0 Offset, Ø30.9, 125mm Travel, Weight: 609gr

• Saddle

  Essax was, Steel Rails, Length: 250mm, Width: 145mm, Weight: 280gr

• Change Forcell

  Universal Derailleur Hanger

• Shock absorber

  Rockshox Deluxe Berria Ursus xco Custom Tuning, only Air, Trunnion 185x50, 120mm Travel

• Wheels

  Mavic E-Crossride 29 ", 15x110, Boost 12x148mm, TLR, MS12 Rear Hub, 6 Bolts, Internal Width: 30mm, Weight: 2225gr

• Tires

  Vittoria Agarro 29x2.60 ", Tubeless Ready, Graphene 2.0, 120 TPI, Weight: 970gr / Vittoria Barzo 29x2.60", Tubeless Ready, Graphene 2.0, 120 TPI, Weight: 820gr

• Change command

  SRAM GX EAGLE TRIGGER 12V, X-Actor, Weight 133g

• Change

  Sram GX Eagle Lunar, Aluminum Cage, 12 Speed

• Diverter

  Sram GX Eagle Lunar, Aluminum Cage, 12 Speed

• Pagille

  FSA CK-220/IS WIDER MTB Alley Cranks, 170mm

• Chain

  SRAM SRAM EAGLE A1, 122 Links

• Cassette

  SRAM XG 1275 EAGLE, 11-52T, Weight 452GR

• Brake

  SRAM DB8 Black 4 Piston

• Motor

  Polini Ep3+ Tuning Br Hybrid Engine Control Unit, Shft Control Unit, Nominal Power 250W - 75nm, Peak Power 500w, Q Factor 144mm, Weight 2950g

• Drums

  POLINI EVO 500WH 36V 13.8AH, 2620g

• Display

  Polini Color Display TFT 3 "High -Contrast LCD, 3 Engine Maps Touring - Dynamic - Race app, 10 Features, USB Port, Bluetooth Communication, Ant+ Communication, MTB Handlebar Support

• Charger

  Polini Ep3 Evo Charger UE 220-240V 3A

  *The manufacturer reserves the right to change the information on the website without notice, including specifications, models, colors and materials.

  *The images are for purely indicative purposes and may not correspond to the description of the product.

  Geometries



  	S	M	L
  	155-175 cm	175-185 cm	185-192 cm
  1 Saddle tube	400 mm	445 mm	490 mm
  2 Horizontal tube	583 mm	620 mm	658 mm
  3 Front corner	68,2°	68,2°	68,2°
  4 Sella tube corner	74°	73,6°	73,2°
  5 Step	1114,4 mm	1148,1 mm	1181,7 mm
  6 Pod	435 mm	435 mm	435 mm
  7 Front tube	95 mm	105 mm	115 mm
  8 Forcellino of the central movement	42 mm	42 mm	42 mm
  9 Trail	103,8 mm	103,8 mm	103,8 mm
  10 Fork advancement	44 mm	44 mm	44 mm
  11 Fork length	531 mm	531 mm	531 mm
  12 Reach	410 mm	440 mm	470 mm
  13 Stack	602 mm	611 mm	621 mm
