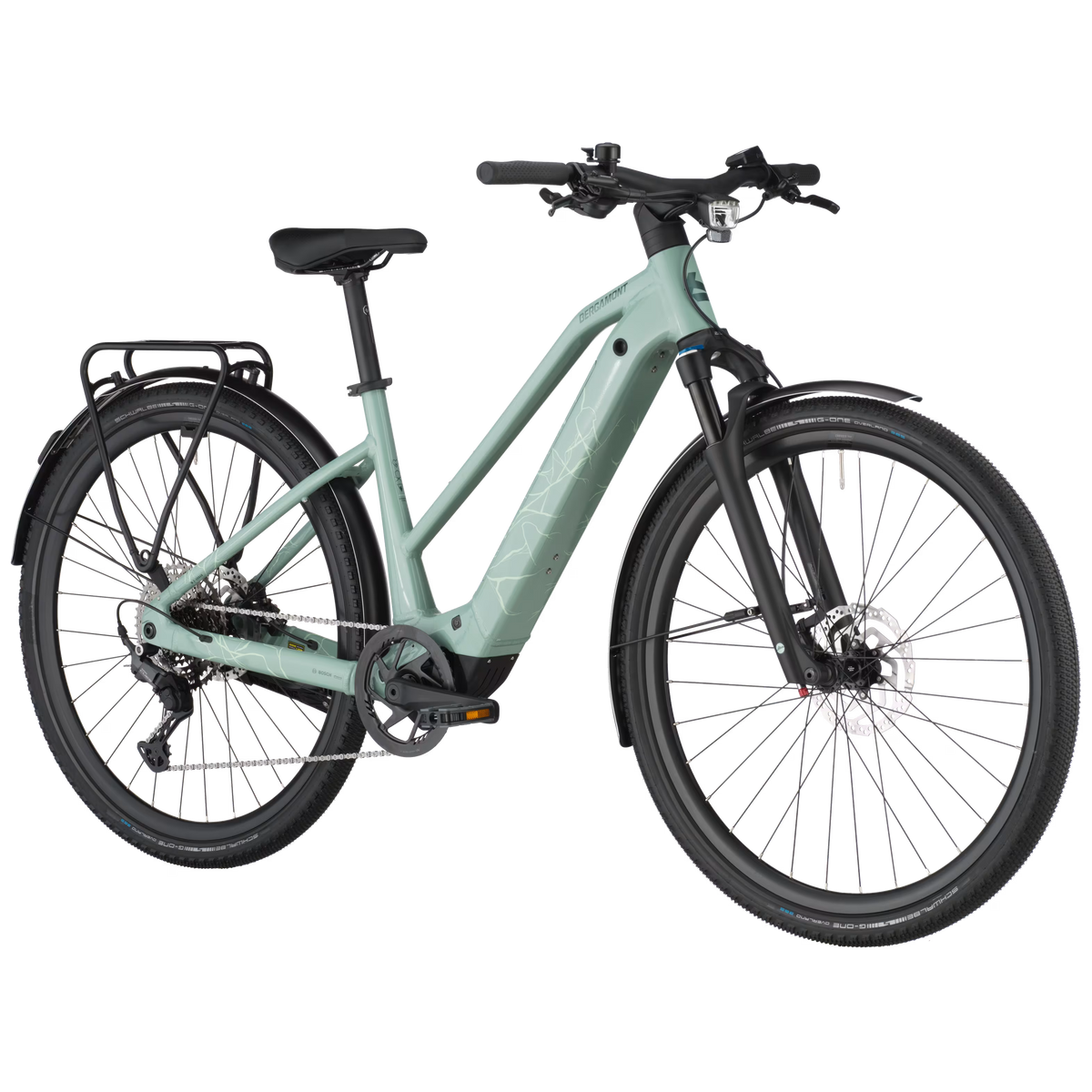

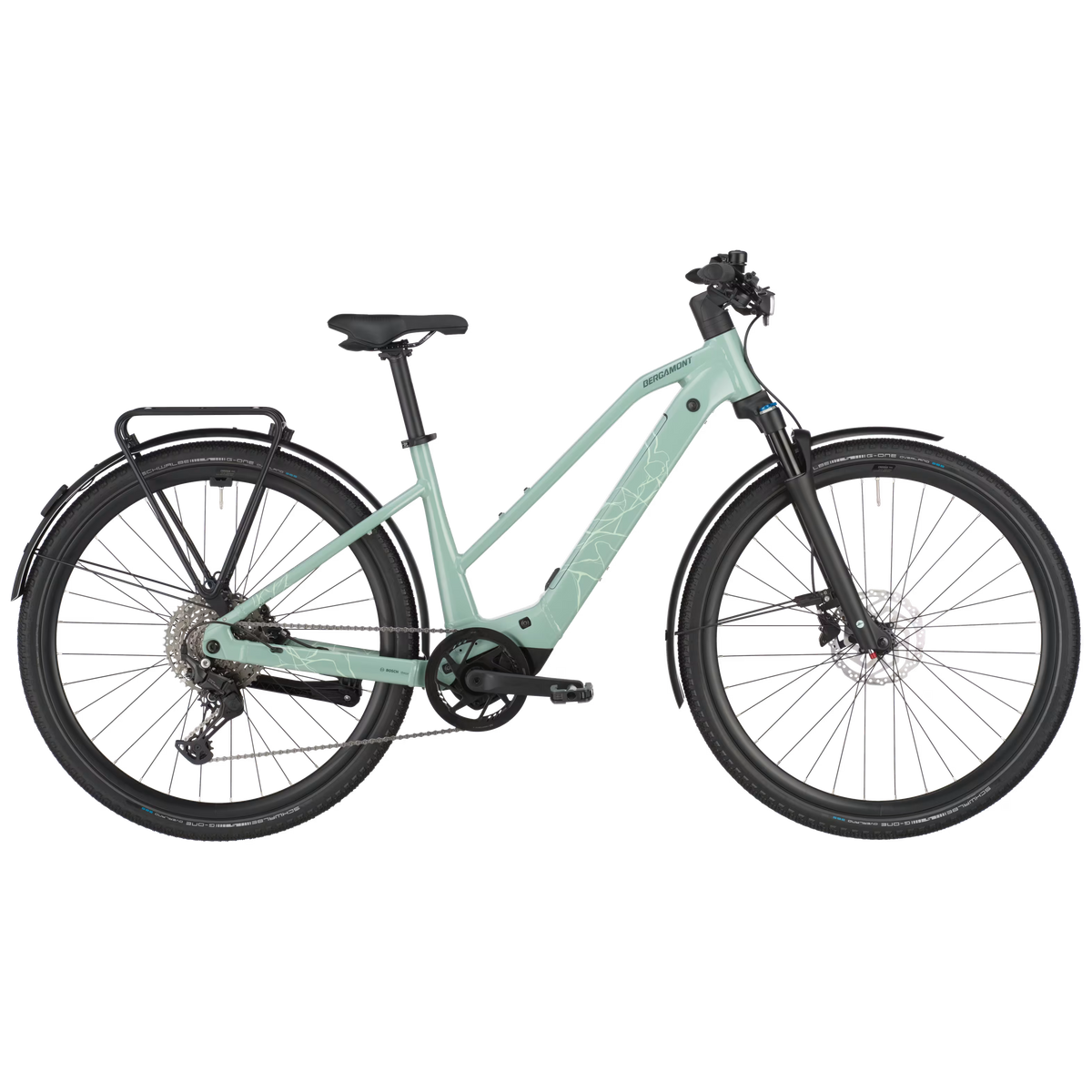

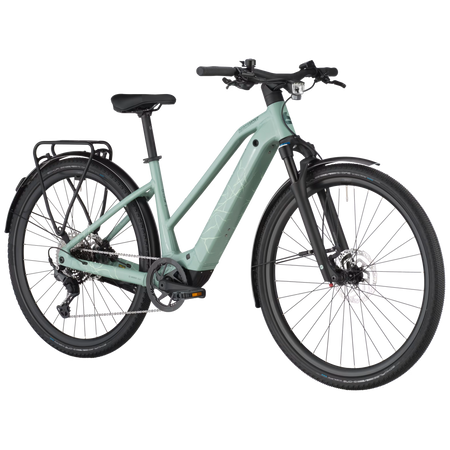

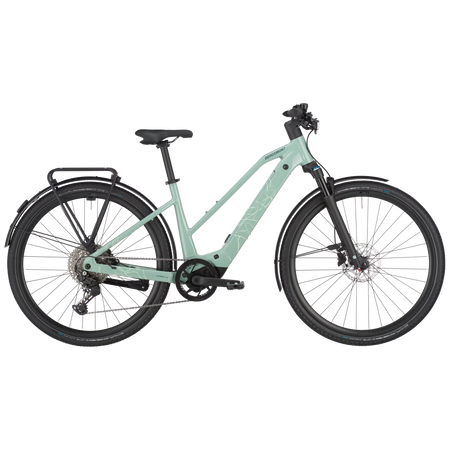

Bergamont Helix 20 Slope

The Bergamont Helix 20 Slope e-bike has an aluminum frame with a sloping top tube and a Bosch Performance Line SX motor. It’s ideal for getting around town and commuting, and comes fully equipped with lights, fenders, and a rear rack.

• 250 W Bosch Performance Line SX motor, with assistance up to 25 km/h
• 400 Wh Bosch battery integrated into the frame, removable for charging
• Air suspension fork with 75 mm of travel and Schwalbe 50-622 tires for added comfort
• Shimano hydraulic disc brakes with 180 mm rotors
• Sage green, sizes S, M, and L: choose your size based on your height

Technical specifications

• Motor: Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
• Battery: Bosch CompactTube, 36 V, Li-ion, 400 Wh
• Display: Bosch Purion 200
• Frame material: AL-6061 aluminum
• Fork: Suntour NRX32-E-Air LOR DS, air suspension, 75 mm of travel
• Gears: Shimano Cues RD-U6000, 10-speed, 11-48-tooth cassette
• Brakes: Shimano BR-MT200, hydraulic disc brakes, 180 mm rotors
• Tires: Schwalbe G-One Overland 365, 50-622
• Weight: 21.9 kg
• Maximum total weight: 130 kg, including the bike, rider, equipment, and luggage

250 W Bosch Performance Line SX motor, with assistance up to 25 km/h | 400 Wh Bosch battery integrated into the frame, removable for charging | Air suspension fork with 75 mm of travel and Schwalbe 50-622 tires for added comfort | Shimano hydraulic disc brakes with 180 mm rotors | Sage green, sizes S, M, and L: choose your size based on your height

Frame: 28", ultra-light AL-6061 tubing, CompactTube battery
Fork: Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Rear derailleur: Shimano Cues, RD-U6000, Shadow Plus
Shift levers: Shimano Cues, SL-U6000, 1x10-speed, Rapidfire Plus shifter
Brake levers: Shimano BL-MT200, hydraulic disc brake
Brakes: Shimano BR-MT200, hydraulic disc brake
Crankset: FSA CK-220, 170 mm, 42T
Bottom bracket: Bosch, ISIS
Handlebar: Syncros Urban Combo, width: 680 mm
Stem: Syncros Urban Combo, length: 70 mm
Pedals: Marwi SP-827, sandblock
Seatpost: BGM Pro
Saddle: Syncros Capilano Trekking, memory foam
Front hub: Shimano HB-TC500, Center Lock, disc, 15x100 mm axle
Rear hub: Shimano FH-TC500, Center Lock, disc, 12x142 mm axle
Chain: Shimano Linkglide, CN-LG500
Cassette: Shimano Cues, CS-LG400-10, 11-48T
Spokes: stainless steel, black
Rim: BGM Pro X15, disc, eyelets
Lights: Front: B&M Briq-S, 60 Lux, LED; rear: Supernova, LED
Accessories: kickstand: Hebie
Weight in kg (approx.): 21.9
Motor: Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
Battery: Bosch CompactTube, 36 V Li-ion, 400 Wh
Display: Bosch Purion 200
Charger: Bosch Compact charger, 2A
Brake rotor: Shimano SM-RT10, 180 mm
Grips: Syncros Urban, Ergo, double-density, lock-on
Front tire: Schwalbe G-One Overland 365, Performance, RaceGuard, reflective strip, 50-622, inner tube: Schwalbe SV19B Light
Rear tire: Schwalbe G-One Overland 365, Performance, RaceGuard, reflective strip, 50-622, inner tube: Schwalbe SV19B Light
Rear rack: Racktime / BGM Allroad rack, Snapit 2.0 System
Fenders: Curana C-Lite, with stainless steel stays
Total weight: 130.0 kg, total weight includes the bike, rider, equipment, and any additional luggage.
