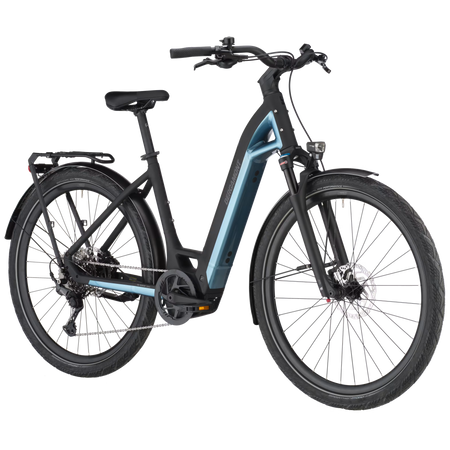

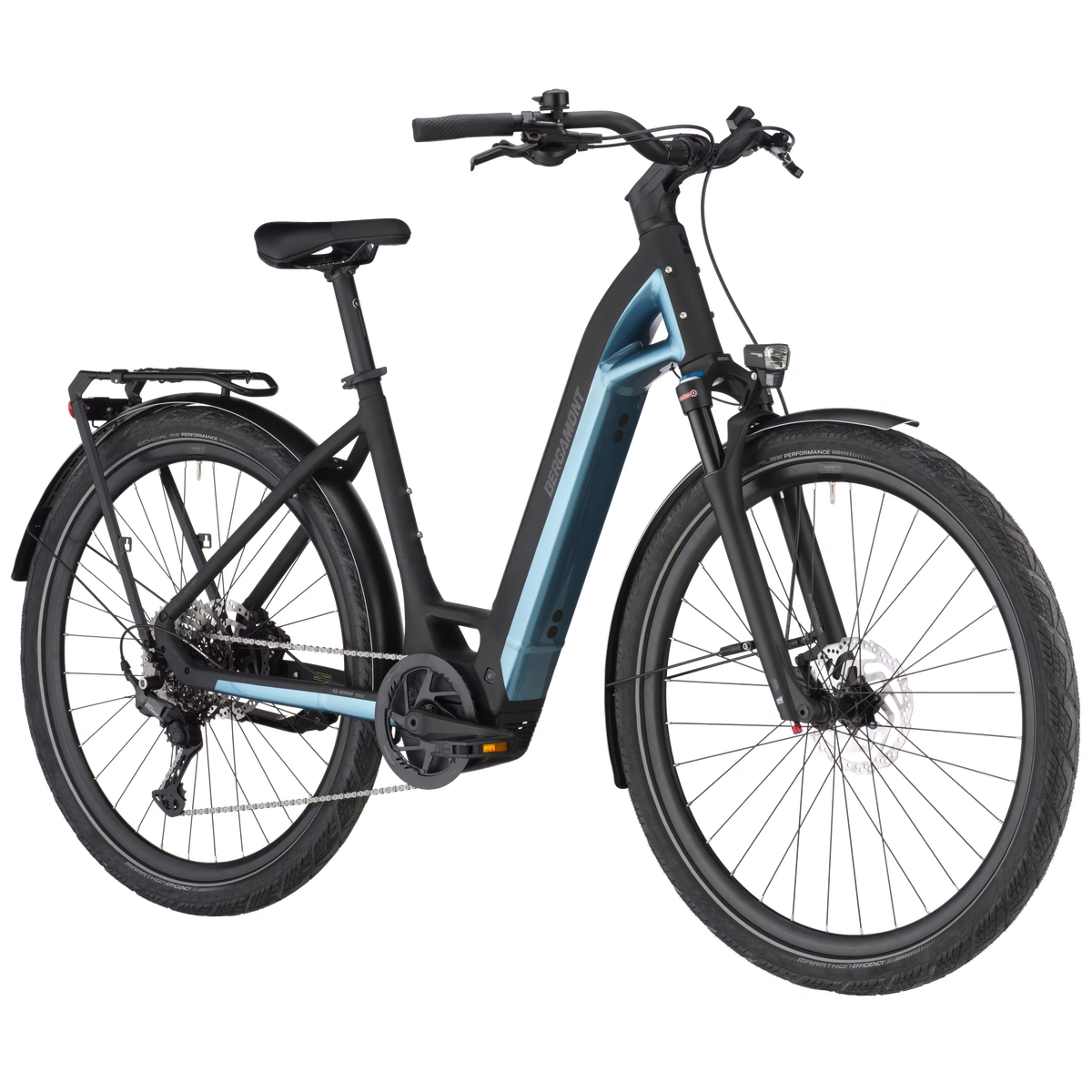

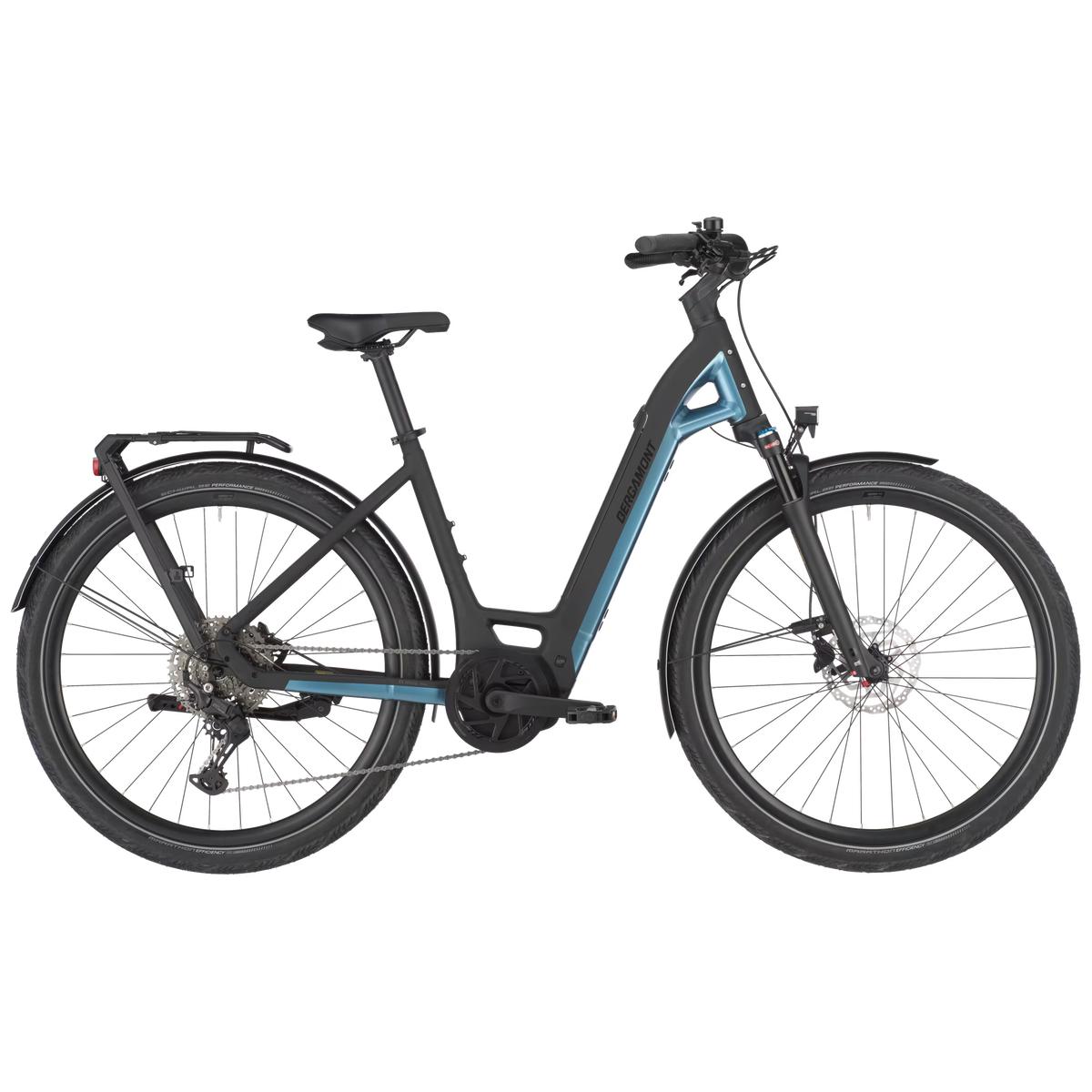

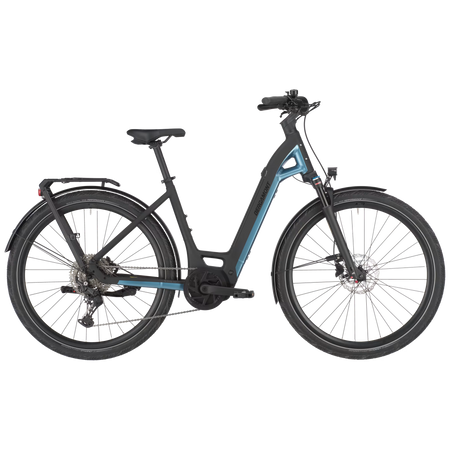

Bergamont E-Ville 30

The Bergamont E-Ville 30 is an urban electric bike with a low-step aluminum frame and Bosch Performance Line SX motor. Designed for the city and daily commuting.

• 250 W Bosch Performance Line SX motor, assistance up to 25 km/h
• 400 Wh Bosch CompactTube battery, integrated into the frame and removable for charging
• Shimano Cues 1x10 drivetrain with an 11-48T cassette, gearing for climbs and flat terrain
• Front and rear LED lights with brake light, rack and fenders included
• Sizes by rider height: S 150-166, M 164-177, L 175-187, XL 187-198 cm

Technical specifications

• Frame: Ultra Lite AL-6061 aluminum, low-step design, integrated battery
• Motor: Bosch Performance Line SX, 250 W, 36 V, assistance up to 25 km/h
• Battery: Bosch CompactTube, 400 Wh
• Display: Bosch Purion 200
• Drivetrain: Shimano Cues 1x10, 11-48T cassette, Shimano Linkglide CN-LG500 chain
• Brakes: Shimano BR-MT200 hydraulic disc brakes, 180 mm rotors
• Fork: Suntour NRX32-E-Air LOR DS, 75 mm travel, air-sprung
• Tires: Schwalbe Marathon Efficiency 55-622
• Weight: approx. 23.8 kg
• Maximum system weight: 130 kg

250 W Bosch Performance Line SX motor, assistance up to 25 km/h | 400 Wh Bosch CompactTube battery, integrated into the frame and removable for charging | Shimano Cues 1x10 drivetrain with an 11-48T cassette, gearing for climbs and flat terrain | Front and rear LED lights with brake light, rack and fenders included | Sizes by rider height: S 150-166, M 164-177, L 175-187, XL 187-198 cm

Frame: 28", lightweight lost-wax casting, ultra-light AL-6061 tubes, CompactTube battery
Fork: Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
Headset: Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Rear derailleur: Shimano Cues, RD-U6000, Shadow Plus
Shift levers: Shimano Cues, SL-U6000, 1x10-speed, Rapidfire Plus shifter
Brake levers: Shimano BL-MT200, hydraulic disc brake
Brakes: Shimano BR-MT200, hydraulic disc brake
Crankset: FSA CK-220, 170 mm, 42t
Bottom bracket: Bosch, Isis
Handlebar: BGM Pro, riser handlebar, backsweep: 40°, rise: 40 mm
Stem: Satori Rana, 20°
Pedals: Marwi SP-827, sandblock
Seatpost: BGM Pro
Saddle: Syncros Capilano City
Front hub: Shimano HB-TC500, Centerlock, disc, 15x100 mm axle
Rear hub: Shimano, FH-QC300, Centerlock, disc, quick release
Chain: Shimano Linkglide, CN-LG500
Cassette: Shimano Cues, CS-LG400-10, 11-48t
Spokes: stainless steel, black
Rim: BGM Pro X15, disc, eyelets
Lights: Front: Trelock LS830, 80 Lux, LED; Rear: Axa Juno, LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 23.8
Motor: Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
Battery: Bosch CompactTube, 36 V Li-Ion, 400 Wh
Display: Bosch Purion 200
Charger: Bosch Compact charger, 2A
Brake rotor: Shimano SM-RT10, 180 mm
Grips: Syncros Urban, Ergo, dual density, lock-on
Front tire: Schwalbe Marathon Efficiency, Performance, RaceGuard, reflective strip, 55-622, inner tube: Schwalbe SV19B Light
Rear tire: Schwalbe Marathon Efficiency, Performance, RaceGuard, reflective strip, 55-622, inner tube: Schwalbe SV19B Light
Rack: Racktime / BGM E-Ville rack, Snapit 2.0 System
Fender: Curana C-Lite, with stainless steel stays
Total weight: 130.0 kg. The total weight includes the bicycle, rider, equipment and any additional luggage.
