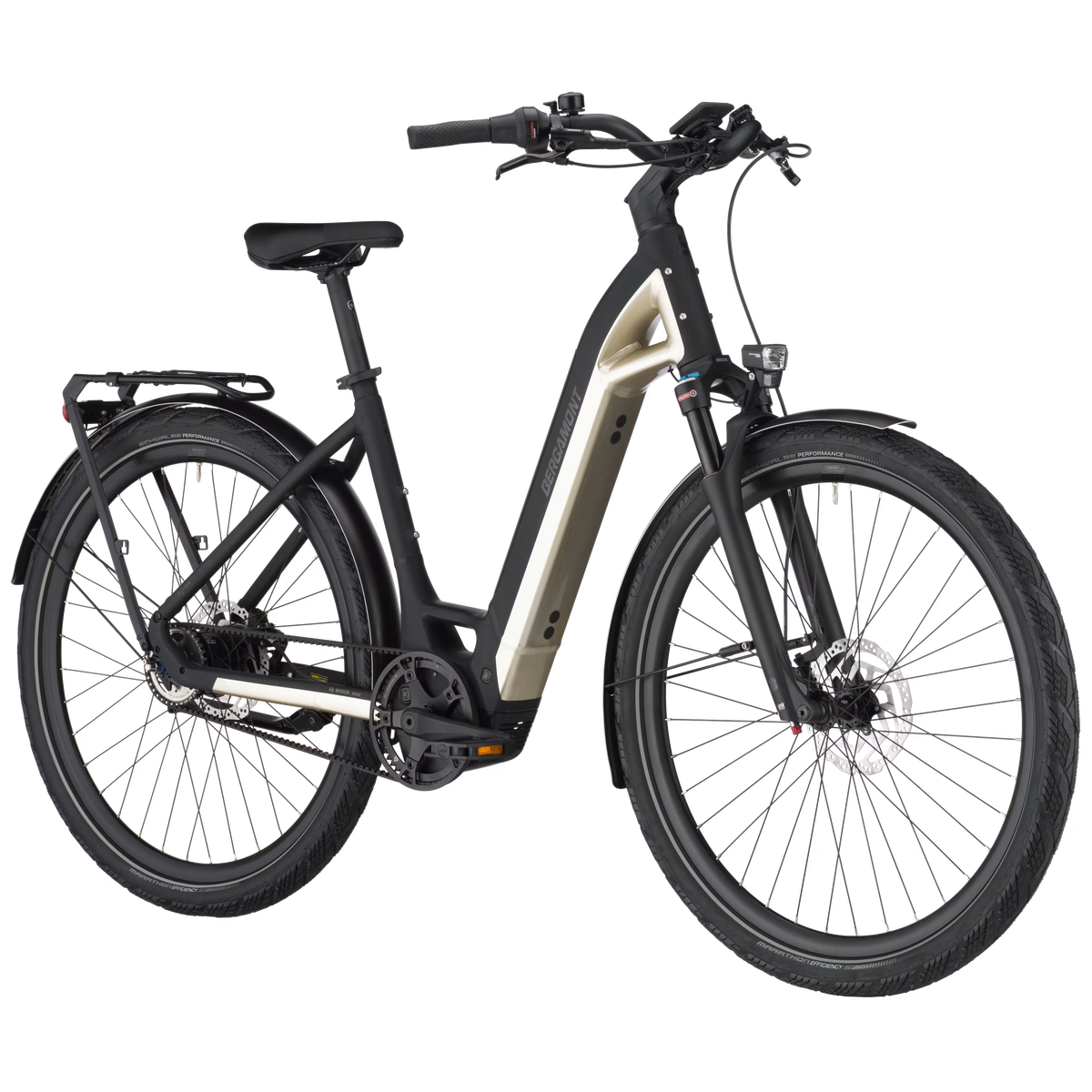

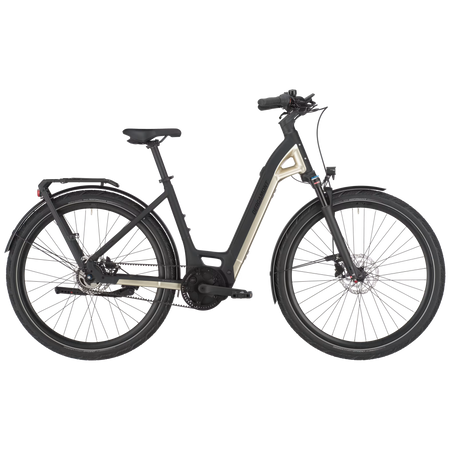

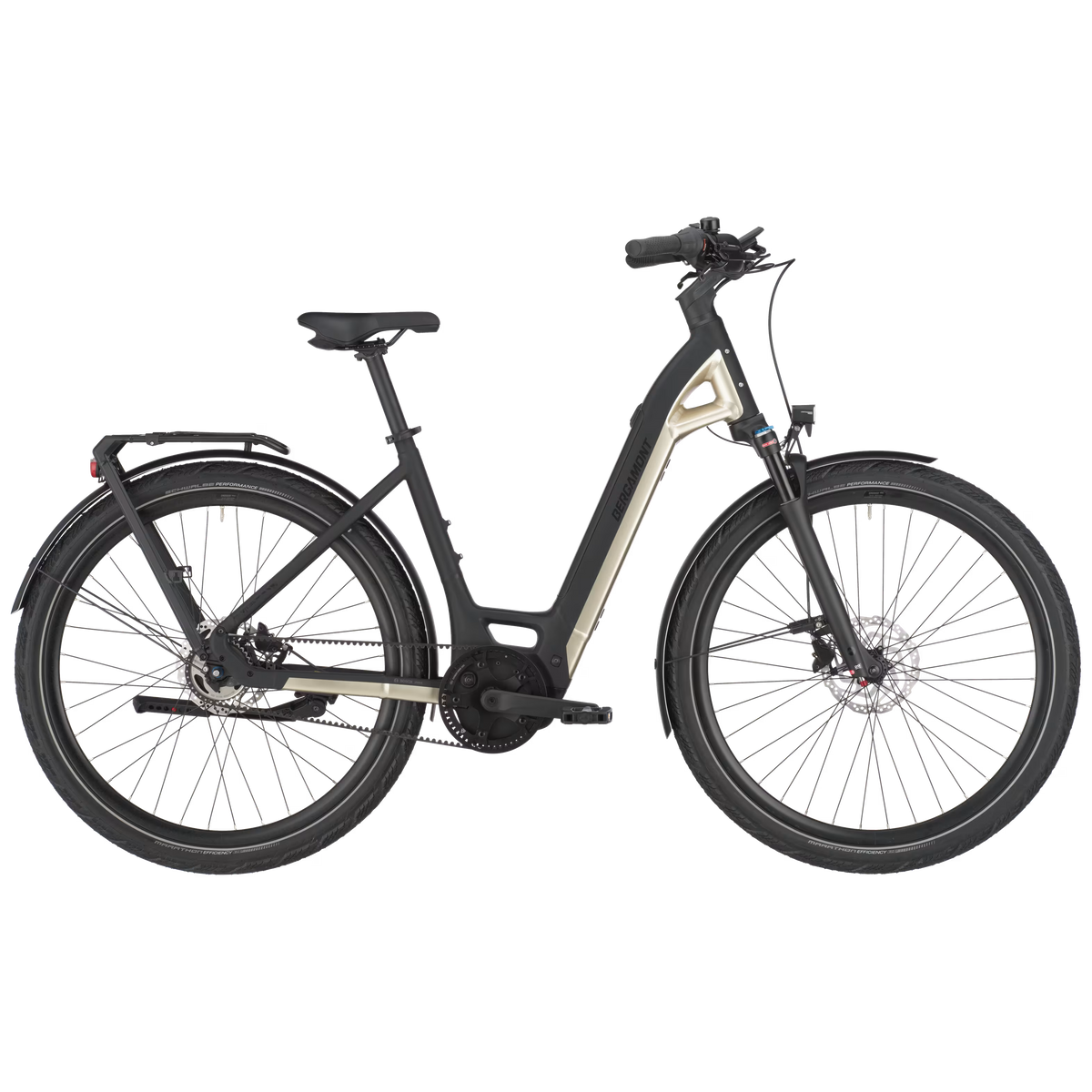

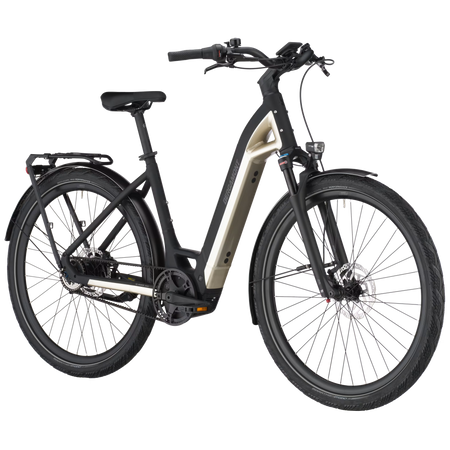

Bergamont E-Ville 20 Belt

The Bergamont E-Ville 20 Belt is an electric city bike with a lightweight frame and a low step-through design. It’s ideal for anyone who rides around town every day and wants a low-maintenance belt drive.

• Easy step-through frame with a low entry and lightweight aluminum; weighs approximately 24.2 kg
• Bosch Performance Line SX 250 W motor with a 400 Wh CompactTube battery
• Low maintenance: Gates Carbon Drive belt and 5-speed Shimano Nexus hub gear
• Reliable braking with Shimano hydraulic disc brakes and 180 mm rotors
• Choose from sizes S, M, L, and XL; beige Stardust color

Technical specifications

• Frame: 28", aluminum AL-6061, CompactTube battery
• Fork: Suntour NRX32-E-Air LOR DS, 75 mm
• Motor: Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h

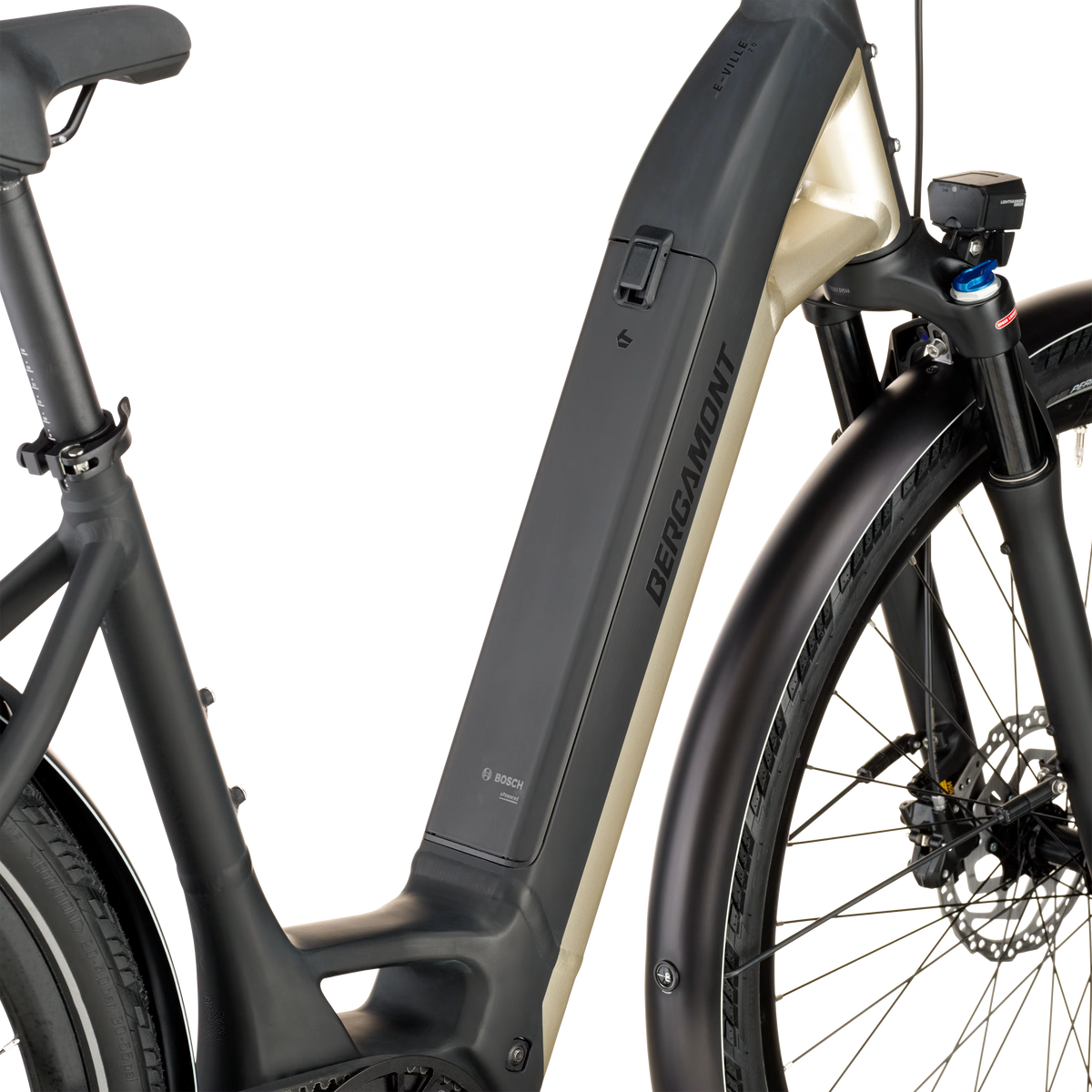

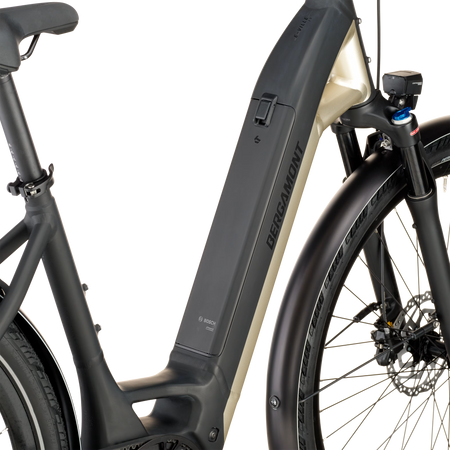

• Battery: Bosch CompactTube, 36 V Li-Ion, 400 Wh
• Display: Bosch Intuvia 100 with LED remote
• Gears: Shimano Nexus SG-C7000-5, 5-speed
• Drivetrain: Gates CDC Carbon Drive Belt, Center-Track
• Brakes: Shimano BR-MT200 hydraulic disc brakes, 180 mm rotors
• Tires: Schwalbe Marathon Efficiency, 55-622
• Weight: approximately 24.2 kg

Easy step-through frame with a low entry and lightweight aluminum; weighs approximately 24.2 kg | Bosch Performance Line SX 250 W motor with a 400 Wh CompactTube battery | Low maintenance: Gates Carbon Drive belt and 5-speed Shimano Nexus hub gear | Reliable braking with Shimano hydraulic disc brakes and 180 mm rotors | Choose from sizes S, M, L, and XL; beige Stardust color

Frame: 28", lightweight investment-cast construction, ultra-light AL-6061 tubes, CompactTube battery
Fork: Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
Headset: Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Shifters: Shimano Nexus, SL-C7000, 5-speed, Revo shifter
Brake levers: Shimano BL-MT200, hydraulic disc brake
Brakes: Shimano BR-MT200, hydraulic disc brake
Crankset: FSA CK-220, 170 mm, belt, 52t
Bottom bracket: Bosch, Isis
Handlebar: BGM Pro, riser handlebar, backsweep: 40°, rise: 40 mm
Stem: Satori Rana, 20°
Pedals: Marwi SP-827, sandblock
Seatpost: BGM Pro
Saddle: Syncros Capilano City
Front hub: Shimano HB-TC500, Center Lock, disc, 15x100 mm axle
Rear hub: Shimano Nexus, SG-C7000-5, freewheel body, Center Lock, disc
Belt: Gates CDC Carbon Drive Belt, Center-Track
Sprocket: Gates CDC, 34t
Spokes: stainless steel, black
Rim: BGM Pro X15, disc, eyelets
Lights: Front: Trelock LS830, 80 Lux, LED; rear: Axa Juno, LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 24.2
Motor: Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
Battery: Bosch CompactTube, 36 V Li-Ion, 400 Wh
Display: Bosch Intuvia 100 with LED remote
Charger: Bosch Compact charger, 2A
Brake rotor: Shimano SM-RT10, 180 mm
Grips: Syncros Urban, Ergo, dual density, lock-on
Front tire: Schwalbe Marathon Efficiency, Performance, RaceGuard, reflective stripe, 55-622, inner tube: Schwalbe SV19B Light
Rear tire: Schwalbe Marathon Efficiency, Performance, RaceGuard, reflective stripe, 55-622, inner tube: Schwalbe SV19B Light
Rack: Racktime / BGM E-Ville rack, Snapit 2.0 System
Fenders: Curana C-Lite, with stainless steel stays
Maximum weight: 130.0 kg. The total weight includes the bike, rider, equipment, and any additional luggage.
