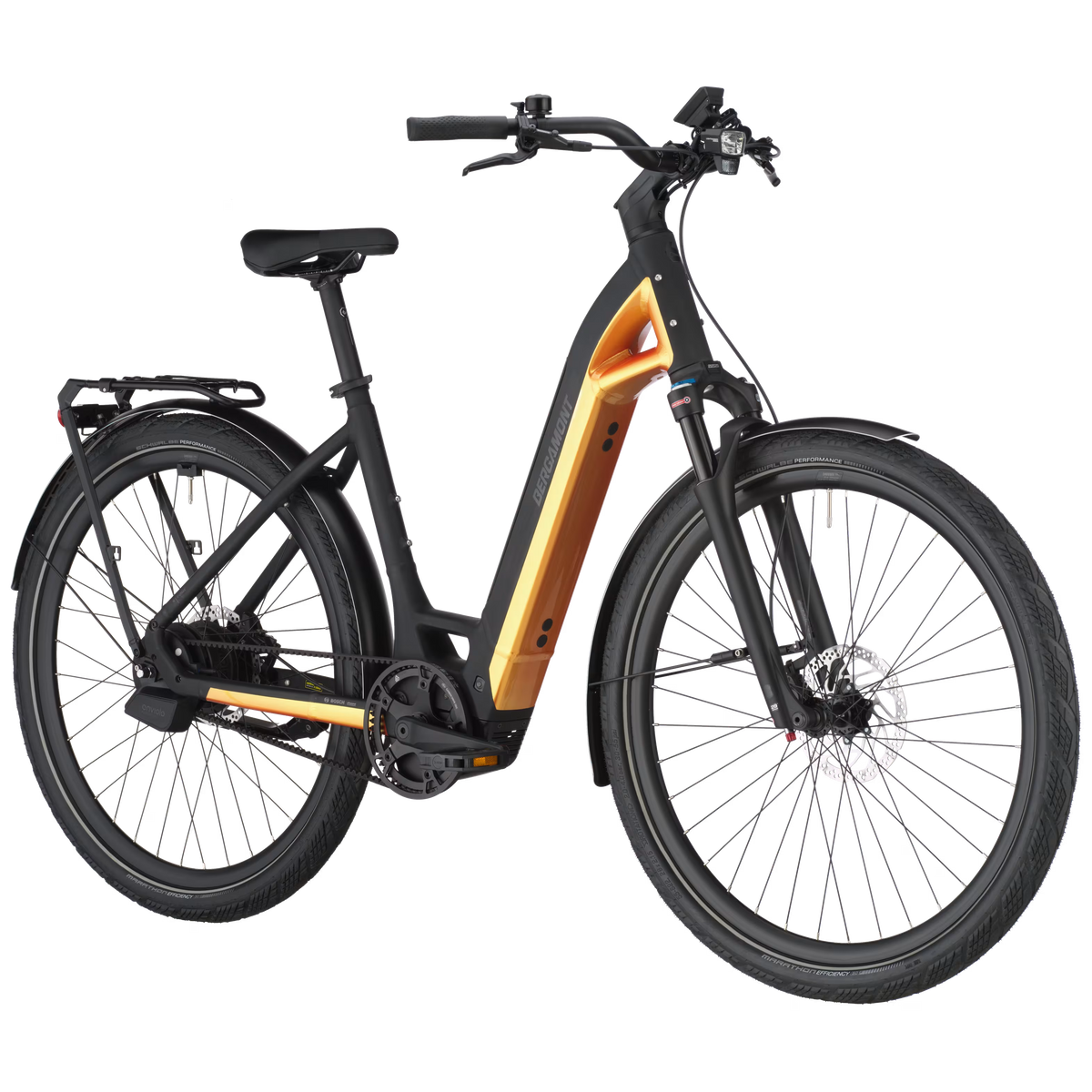

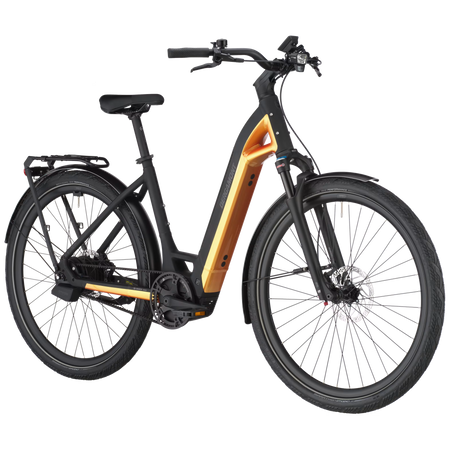

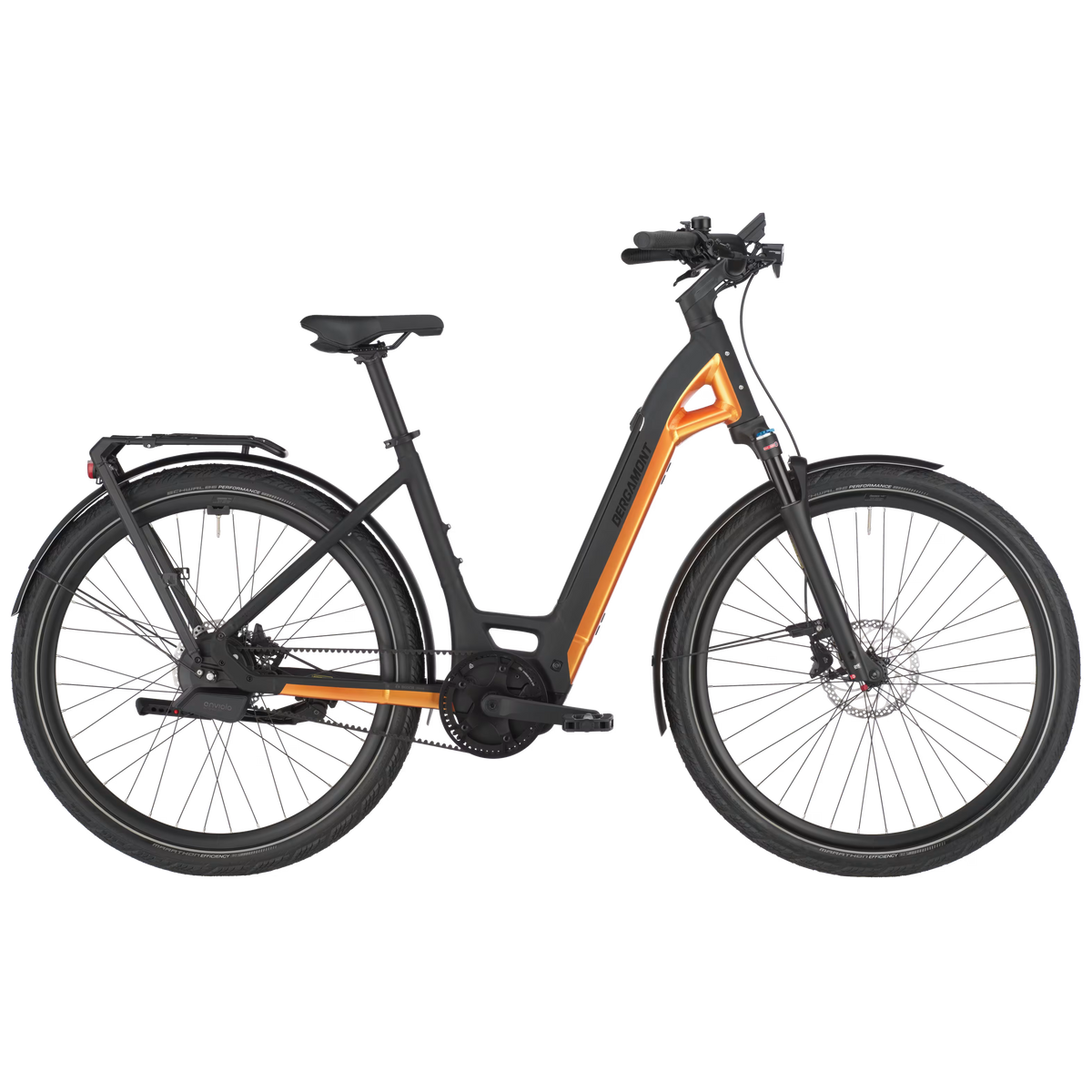

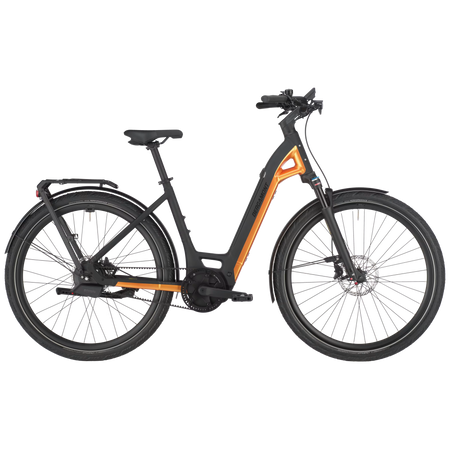

Bergamont E-Ville 10 Belt

The Bergamont E-Ville 10 Belt urban e-bike is designed for everyday city riding, with a lightweight frame that’s easy to step through. It features a Bosch Performance Line SX motor, an Enviolo automatic gear hub, and a belt drive.

• Lightweight aluminum frame with a low step-through design makes getting on and off effortless
• 250 W Bosch Performance Line SX motor and integrated 400 Wh battery
• Enviolo automatic gear hub and Gates belt drive: no chain to oil, minimal maintenance
• Shimano hydraulic disc brakes and LED lights with a rear brake light
• Available in sizes S, M, L, and XL, in sunrise yellow

Technical specifications

• Frame: 28", aluminum AL-6061, die-cast, CompactTube battery
• Motor: Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
• Battery: Bosch CompactTube, 36 V Li-Ion, 400 Wh
• Display: Bosch Kiox 300 with LED remote
• Fork: Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
• Gearing: Enviolo City, automatic
• Drivetrain: Gates CDC Carbon Drive Belt, Center-Track, 52t chainring
• Brakes: Shimano BR-MT410, hydraulic disc brake, 180 mm rotor
• Tires: Schwalbe Marathon Efficiency, 55-622, RaceGuard, reflective strip
• Weight: approx. 24.9 kg

Lightweight aluminum frame with a low step-through design makes getting on and off effortless | 250 W Bosch Performance Line SX motor and integrated 400 Wh battery | Enviolo automatic gear hub and Gates belt drive: no chain to oil, minimal maintenance | Shimano hydraulic disc brakes and LED lights with a rear brake light | Available in sizes S, M, L, and XL, in sunrise yellow

Frame: 28", lightweight die-cast, ultra-light AL-6061 tubes, CompactTube battery
Fork: Suntour NRX32-E-Air LOR DS, 75 mm, 15x100 mm axle
Headset: Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Shift levers: Enviolo, automatic
Brake levers: Shimano BL-MT402, hydraulic disc brake
Brakes: Shimano BR-MT410, hydraulic disc brake
Crankset: FSA CK-220, 170 mm, belt drive, 52t
Bottom bracket: Bosch, Isis
Handlebar: BGM Pro, raised handlebar, backsweep: 40°, rise: 40 mm
Stem: Satori Rana, 20°
Pedals: Marwi SP-827, sandblock
Seatpost: BGM Pro
Saddle: Syncros Capilano City
Front hub: Shimano HB-TC500, Center Lock, disc, 15x100 mm axle
Rear hub: Enviolo City, 6-bolt, disc
Chain: Gates CDC Carbon Drive Belt, Center-Track
Cassette: Gates CDC, 26t
Spokes: stainless steel, black
Rim: BGM Pro X15, disc, eyelets
Lights: Front: 100 Lux, LED; rear: Axa Juno, LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 24.9
Motor: Bosch Performance Line SX, 250 W, 36 V, max. 25 km/h
Battery: Bosch CompactTube, 36 V Li-Ion, 400 Wh
Display: Bosch Kiox 300 with LED remote
Charger: Bosch Compact charger, 2A
Brake rotor: Shimano SM-RT30, 180 mm
Grips: Syncros Urban, Ergo, double density, lock-on
Front tire: Schwalbe Marathon Efficiency, Performance, RaceGuard, reflective strip, 55-622, inner tube: Schwalbe SV19B Light
Rear tire: Schwalbe Marathon Efficiency, Performance, RaceGuard, reflective strip, 55-622, inner tube: Schwalbe SV19B Light
Carrier: Racktime / BGM E-Ville carrier, Snapit 2.0 System
Fenders: Curana C-Lite, with stainless steel stays
Maximum total weight: 130.0 kg. The total weight includes the bicycle, rider, equipment, and any additional luggage.
