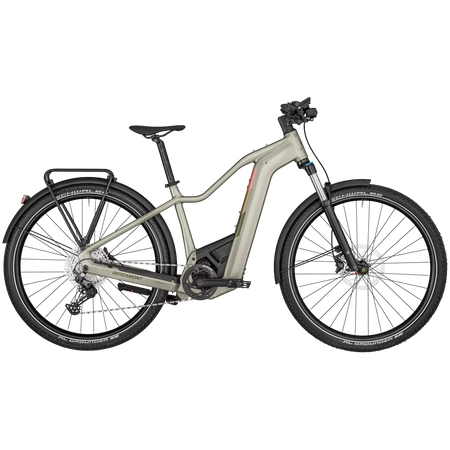

Bergamont E-Revox Pro FMN EQ

This Bergamont E-Revox Pro FMN EQ electric bike has 29-inch wheels, a Bosch Performance Line CX motor, and a 625 Wh battery. It’s designed for riding on roads and trails in all seasons, with lights, a rack, and mudguards.

• 250 W Bosch Performance Line CX motor, assistance up to 25 km/h
• 625 Wh Bosch PowerTube battery for long rides
• Suntour fork with 120 mm of travel to absorb bumps and rough terrain
• Ready to ride: LED lights, rack, and mudguards already installed
• Available size: S. Maximum permitted weight of 135 kg, including the bike, rider, and luggage.

Technical specifications

• Motor: Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
• Battery: Bosch PowerTube, 36 V Li-Ion, 625 Wh
• Frame material: Aluminum
• Fork: Suntour XCR34 LOR, 120 mm, adjustable rebound, 15x110 mm axle
• Gears: Shimano Deore RD-M5100, 11-speed, 11-51-tooth cassette
• Brakes: Shimano BR-MT410 hydraulic disc brakes; 203 mm front rotors, 180 mm rear rotors
• Tires: Schwalbe Al Grounder, 29x2.35"
• Weight: approx. 27.2 kg
• Maximum permitted weight: 135.0 kg, including the bike, rider, equipment, and luggage
• Size: S

250 W Bosch Performance Line CX motor, assistance up to 25 km/h | 625 Wh Bosch PowerTube battery for long rides | Suntour fork with 120 mm of travel to absorb bumps and rough terrain | Ready to ride: LED lights, rack, and mudguards already installed | Available size: S. Maximum permitted weight of 135 kg, including the bike, rider, and luggage.

Frame: 29", superlight AL-6061 tubing, BES III, PowerTube battery
Fork: Suntour XCR34 LOR, 120 mm, rebound adjustment, 15x110 mm axle
Headset: Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with lock
Rear derailleur: Shimano Deore, RD-M5100, Shadow Plus
Shifters: Shimano Deore, SL-M5100, 1x11-speed, Rapidfire Plus shifter
Brake levers: Shimano BL-M4100, hydraulic disc brake
Brakes: Shimano BR-MT410, hydraulic disc brake
Crankset: FSA CK-320, 34t, 170 mm
Bottom bracket: Bosch, Isis
Handlebar: Syncros Hixon 2.0, mini riser handlebar, rise: 15 mm, width: 740 mm
Stem: Satori Viper, 0°
Pedals: Aluminum MTB
Seatpost: Syncros M3.0
Saddle: Syncros Savona 2.5
Front hub: Shimano HB-MT400-B, Center Lock, disc, 15x110 mm axle
Rear hub: Shimano FH-MT400-B, Center Lock, disc, 12x148 mm axle
Chain: KMC e11S
Cassette: Shimano Deore, CS-M5100, 11-51t
Spokes: stainless steel, black
Rim: Cross X18, disc, eyelets, width: 30 mm
Lights: Front: Litemove SE, 110 Lux, LED; rear: Herrmans H-Trace Mini, LED
Accessories: Kickstand: Syncros
Weight in kg (approx.): 27.2
Motor: Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery: Bosch PowerTube, 36 V Li-Ion, 625 Wh
Display: Bosch LED remote with Kiox 300 display
Charger: Bosch standard charger, 4A
Brake rotor: Front: Shimano SM-RT30, 203 mm; rear: Shimano SM-RT30, 180 mm
Grips: Syncros E-MTB
Front tire: Schwalbe Al Grounder, 29x2.35", inner tube: Schwalbe SV19FB Light
Rear tire: Schwalbe Al Grounder, 29x2.35", inner tube: Schwalbe SV19FB Light
Rack: Racktime / BGM E-revox rack, SnapIt 2.0 system
Mudguard: Curana Apollo, with stainless steel stays
Color: glossy cream silver
Frame size: S/M/L
Total weight: 135.0 kg. The total weight includes the bike, rider, equipment, and any additional luggage.
