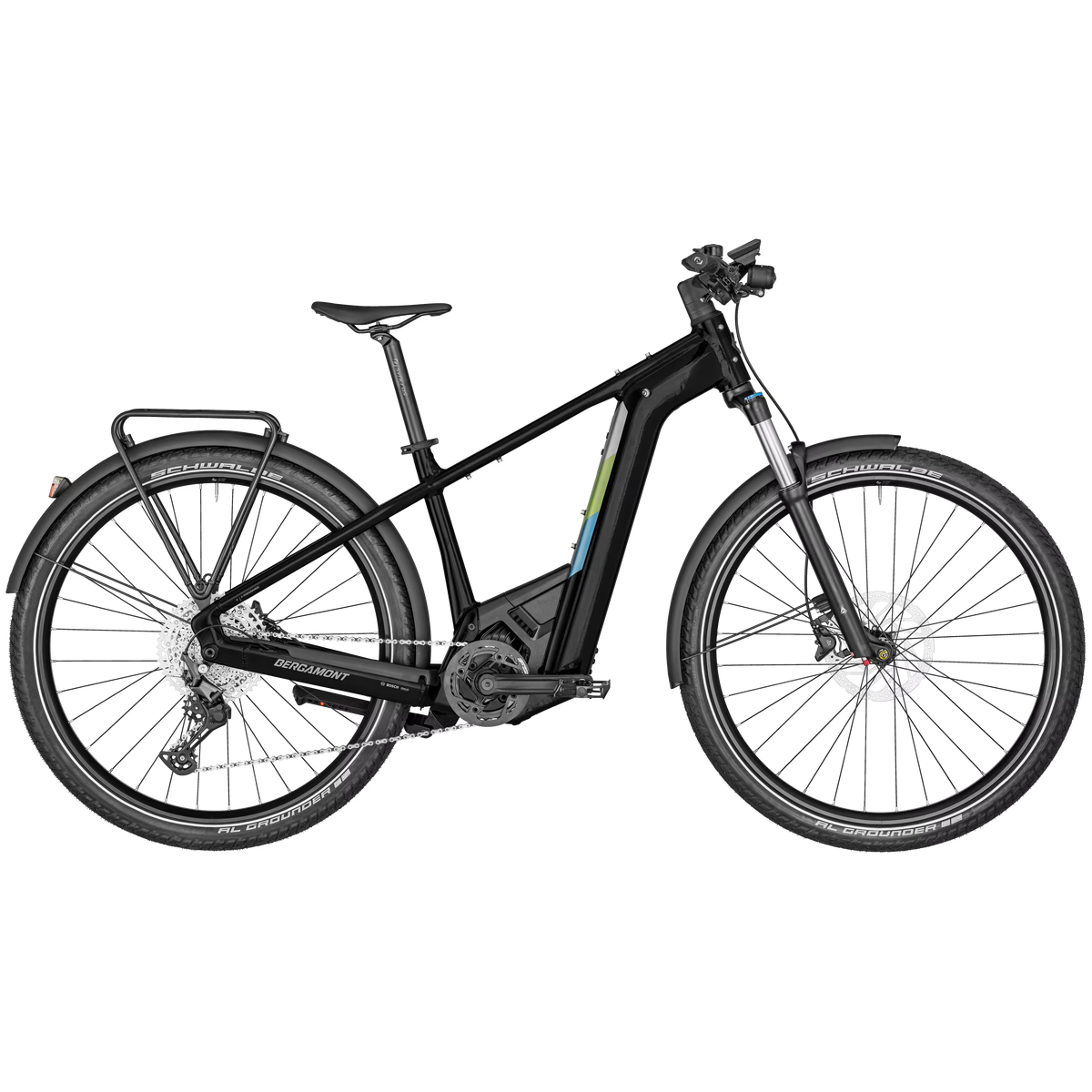

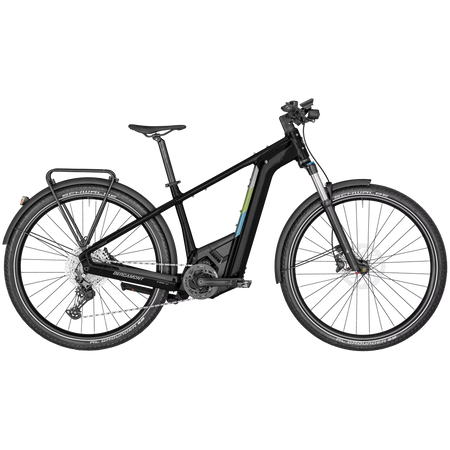

Bergamont E-Revox Pro EQ

The Bergamont E-Revox Pro EQ e-bike is an electric mountain bike with 29-inch wheels, for riding on tarmac and off-road in every season. It has a Bosch Performance Line CX motor, lights, a mudguard and a rack.

• Bosch Performance Line CX motor with 250 W, assistance up to 25 km/h
• Bosch PowerTube battery with 625 Wh for longer rides
• Shimano Deore 1x11 rear derailleur with a 11-51-tooth cassette, useful on steep climbs
• Shimano hydraulic disc brakes, with 203 mm front and 180 mm rear rotors
• Available in sizes S and M: choose according to your height

Technical specifications

• Motor: Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
• Battery: Bosch PowerTube, 36 V Li-Ion, 625 Wh
• Frame material: Aluminium
• Fork: Suntour XCR34 LOR, 120 mm, 15x110 mm axle
• Rear derailleur: Shimano Deore RD-M5100, 1x11-speed
• Cassette: Shimano Deore CS-M5100, 11-51t
• Brakes: Shimano BR-MT410, hydraulic disc brake
• Brake rotors: Front 203 mm, rear 180 mm
• Tyres: Schwalbe Al Grounder, 29x2.35"
• Sizes: S, M

Bosch Performance Line CX motor with 250 W, assistance up to 25 km/h | Bosch PowerTube battery with 625 Wh for longer rides | Shimano Deore 1x11 rear derailleur with a 11-51-tooth cassette, useful on steep climbs | Shimano hydraulic disc brakes, with 203 mm front and 180 mm rear rotors | Available in sizes S and M: choose according to your height

Frame: 29", superlight AL-6061 tubing, BES III, PowerTube battery
Fork: Suntour XCR34 LOR, 120 mm, rebound adjustment, 15x110 mm axle
Headset: Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing, with lock
Rear derailleur: Shimano Deore, RD-M5100, Shadow Plus
Shifters: Shimano Deore, SL-M5100, 1x11-speed, rapidfire plus-shifter
Brake levers: Shimano BL-M4100, hydraulic disc brake
Brakes: Shimano BR-MT410, hydraulic disc brake
Crankset: FSA CK-320, 34t, 170 mm
Bottom bracket: Bosch, Isis
Handlebar: Syncros Hixon 2.0, mini riser handlebar, rise: 15 mm, width: 740 mm
Stem: Satori Viper, 0°
Pedals: MTB aluminium
Seatpost: Syncros M3.0
Saddle: Syncros Tofino 2.5
Front hub: Shimano HB-MT400-B, centerlock, disc, 15x110 mm axle
Rear hub: Shimano FH-MT400-B, centerlock, disc, 12x148 mm axle
Chain: KMC e11S
Cassette: Shimano Deore, CS-M5100, 11-51t
Spokes: stainless steel, black
Rim: Cross X18, disc, eyelets, width: 30 mm
Lights: Front: Litemove SE, 110 Lux, LED, Rear: Herrmans H-Trace Mini, LED
Accessories: Kickstand: Syncros
Weight in kg (approx.): 27,2
Motor: Bosch Performance Line CX, Gen. 4, BES3, 250 W, 36 V, max. 25 km/h
Battery: Bosch PowerTube, 36 V Li Ion, 625 Wh
Display: LED Bosch remote with Kiox 300 display
Charger: Bosch standard charger, 4A
Brake rotor: Front: Shimano SM-RT30, 203 mm, Rear: Shimano SM-RT30, 180 mm
Grips: Syncros E-MTB
Front tyre: Schwalbe Al Grounder, 29x2.35", Inner tube: Schwalbe SV19FB Light
Rear tyre: Schwalbe Al Grounder, 29x2.35", Inner tube: Schwalbe SV19FB Light
Rack: Racktime / BGM E-revox rack, SnapIt 2.0 system
Mudguard: Curana Apollo, with stainless steel stays
Colour: gloss black
Frame size: S/M/L/XL
Total weight: 135.0 kg. The total weight includes the bike, rider, equipment and any additional luggage.
