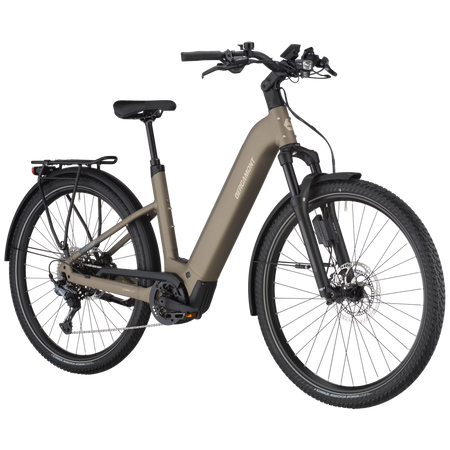

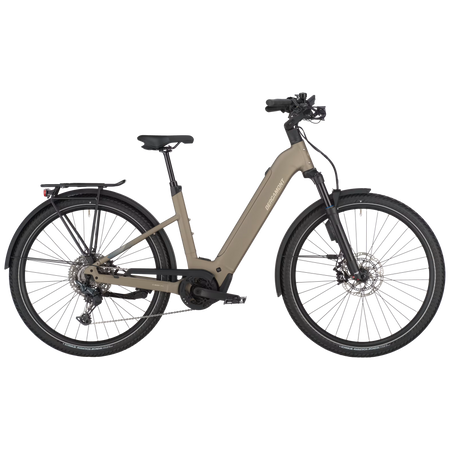

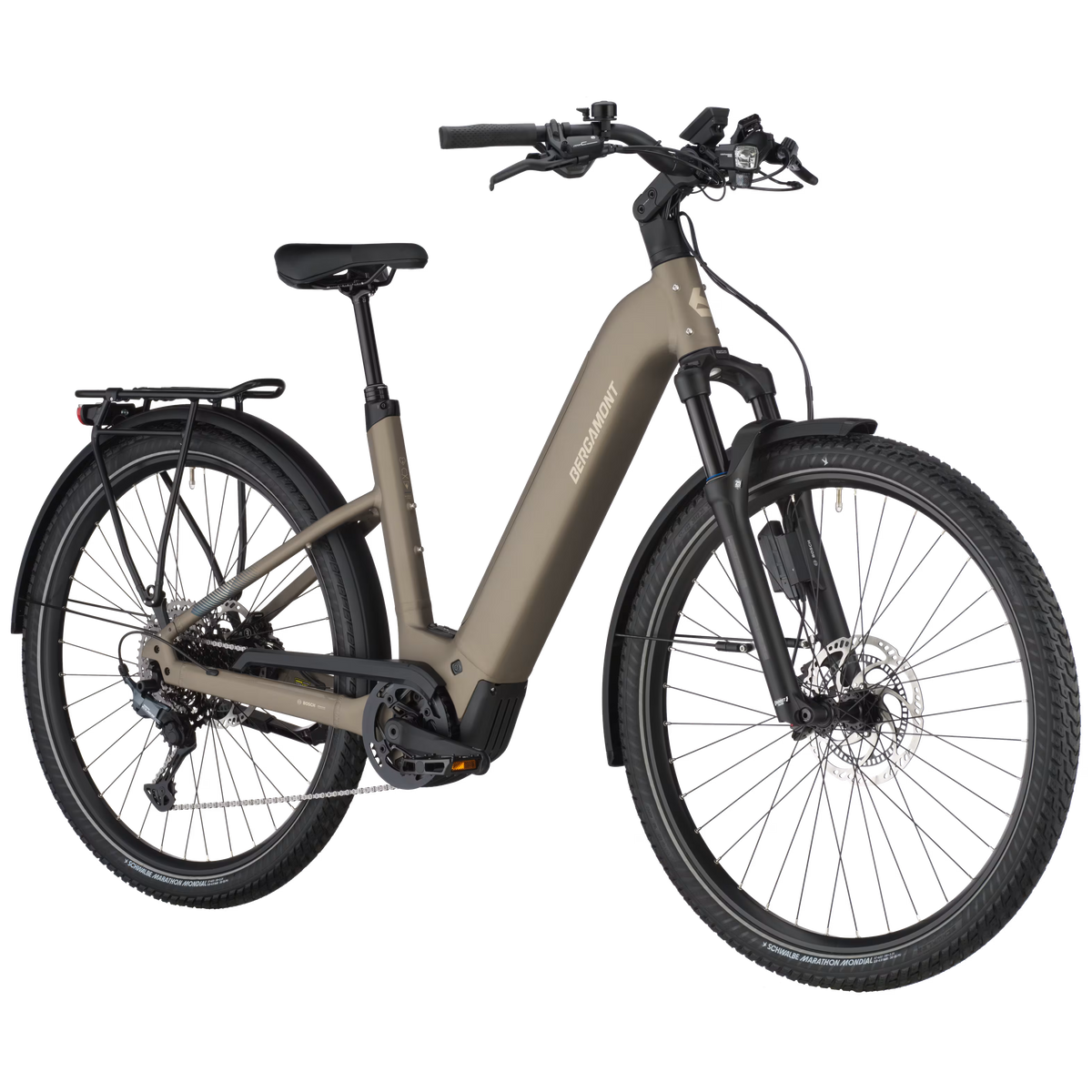

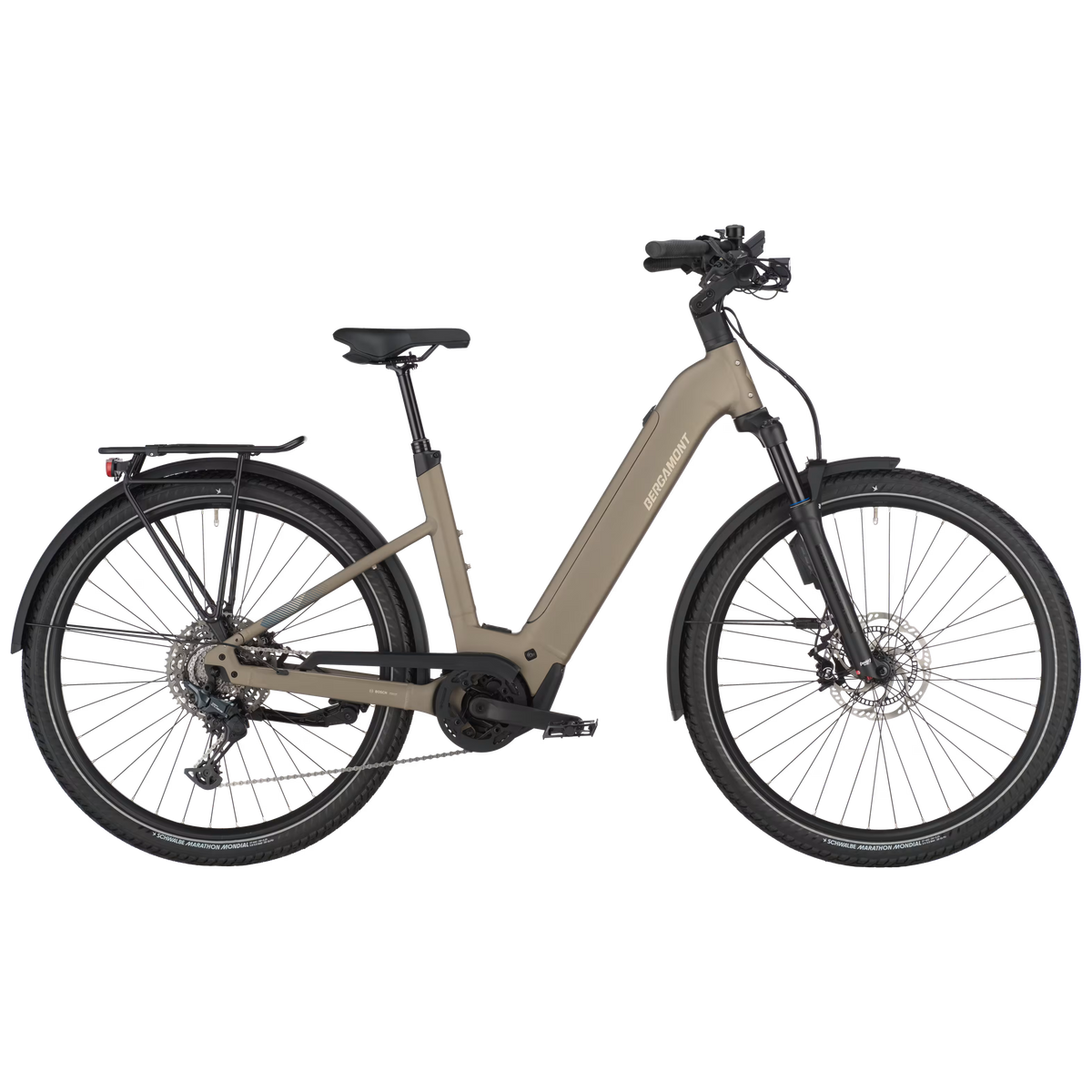

Bergamont E-Horizon SUV 10 Wave

The Bergamont E-Horizon SUV 10 Wave is an electric trekking bike with an aluminium frame, designed for everyday city riding, commuting and touring. It has a Bosch Performance Line CX motor and 800 Wh battery.

• Bosch PowerTube 800 Wh battery, suitable for commuting and long rides
• Bosch Performance Line CX 250 W motor, assistance up to 25 km/h
• Magura hydraulic disc brakes with ABS, for safe braking
• 100 mm air fork and Schwalbe Marathon Mondial 57-622 tyres for comfortable touring
• Size S or M. Maximum system weight 160 kg including rider and luggage.

Technical specifications

• Motor: Bosch Performance Line CX (BDU384Y), 250 W, 36 V, assistance up to 25 km/h
• Battery: Bosch PowerTube, 36 V Li-Ion, 800 Wh
• Display: Bosch Kiox 300 with LED remote
• Rear derailleur: 11-speed, Shimano Cues RD-U8000, CS-LG700-11 cassette (11-50 teeth)
• Fork: Suntour Mobie 34 DS RLR, air, ABS, 100 mm, 15x110 mm axle
• Brakes: Magura MT-C, hydraulic disc, 4 pistons, front and rear, with ABS
• Brake rotors: Magura MDR-C CL, 203 mm
• Tyres: Schwalbe Marathon Mondial Performance, RaceGuard, 57-622 (28"), reflective
• Weight: 28.7 kg
• Maximum system weight: 160 kg

Bosch PowerTube 800 Wh battery, suitable for commuting and long rides | Bosch Performance Line CX 250 W motor, assistance up to 25 km/h | Magura hydraulic disc brakes with ABS, for safe braking | 100 mm air fork and Schwalbe Marathon Mondial 57-622 tyres for comfortable touring | Size S or M. Maximum system weight 160 kg including rider and luggage.

Frame: 28", superlight AL-6061 tubing, PowerTube battery
Fork: Suntour Mobie 34 DS RLR, air, ABS, 100 mm, 15x110 mm axle
Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Rear derailleur: Shimano Cues, RD-U8000, Shadow Plus
Shifters: Shimano Cues, SL-U8000, 1x11-velocità, rapidfire plus-shifter
Brake levers: Magura MT-C, hydraulic disc brake
Brakes: Front: Magura MT-C, hydraulic disc brake, 4-pistoni, ABS, Rear: Magura MT-C, hydraulic disc brake
Crankset: FSA CK-745, 170 mm, 38t
Bottom bracket: Bosch, Isis
Handlebar: Satori Seagull, riser handlebar, backsweep: 40°, rise: 40 mm
Stem: Satori Python, adjustable
Pedals: Aluminium trekking, platform
Seatpost: Syncros Duncan, dropper seatpost
Saddle: Syncros Capilano City
Front hub: Shimano HB-TC500-B, centerlock, disc, 15x110 mm axle
Rear hub: Shimano FH-QC400, centerlock, disc, quick release
Chain: Shimano Linkglide, CN-LG500
Cassette: Shimano Cues, CS-LG700-11, 11-50t
Spokes: stainless steel, black
Rim: Cross X18, disc, eyelets, width: 30 mm
Lights: Front: 100 Lux, LED, Rear: Axa Juno, LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 28,7
Motor: Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, maximum 25 km/h
Battery: Bosch PowerTube, 36 V Li Ion, 800 Wh
Display: Bosch Kiox 300 with LED remote
Charger: Bosch standard battery charger, 4A
Brake rotor: Magura MDR-C CL, 203 mm
Grips: Syncros Urban, Ergo, dual density, lock-on
Front tyre: Schwalbe Marathon Mondial, Performance, RaceGuard, reflective strip, 57-622, Inner tube: Schwalbe AV19B Light
Rear tyre: Schwalbe Marathon Mondial, Performance, RaceGuard, reflective strip, 57-622, Inner tube: Schwalbe AV19B Light
Pannier rack: Racktime / BGM Trekking Pro, Snapit 2.0 System
Mudguard: Curana Orbit, with stainless steel stays
Chainguard: Integrated into the motor cover
Total weight: 160.0 kg. The total weight includes the bike, rider, equipment and any additional luggage.

Bergamont traces its origins to 1993, in a small workshop in Hamburg, and is associated with founder Stefan Berkes. Today it is based in the St. Pauli district and offers gravel bikes, urban and trekking e-bikes, and electric cargo bikes. Its story begins beside the Schlachthof, the city’s historic slaughterhouse.
