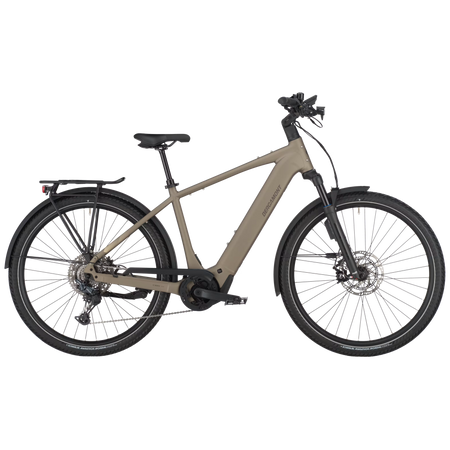

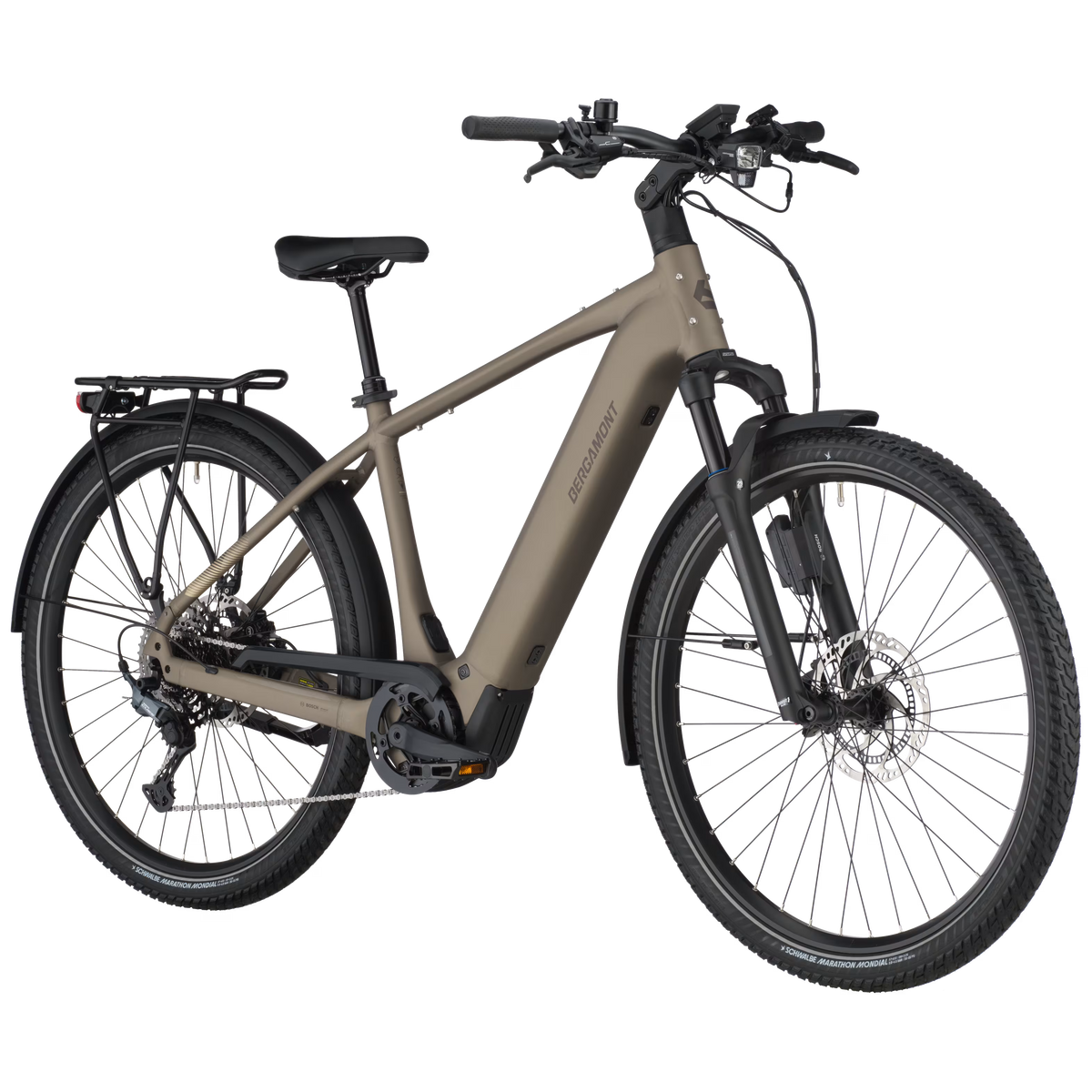

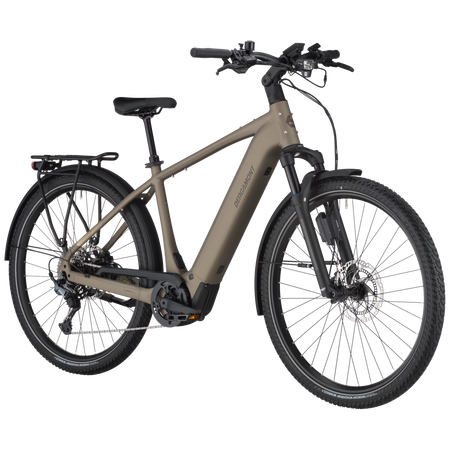

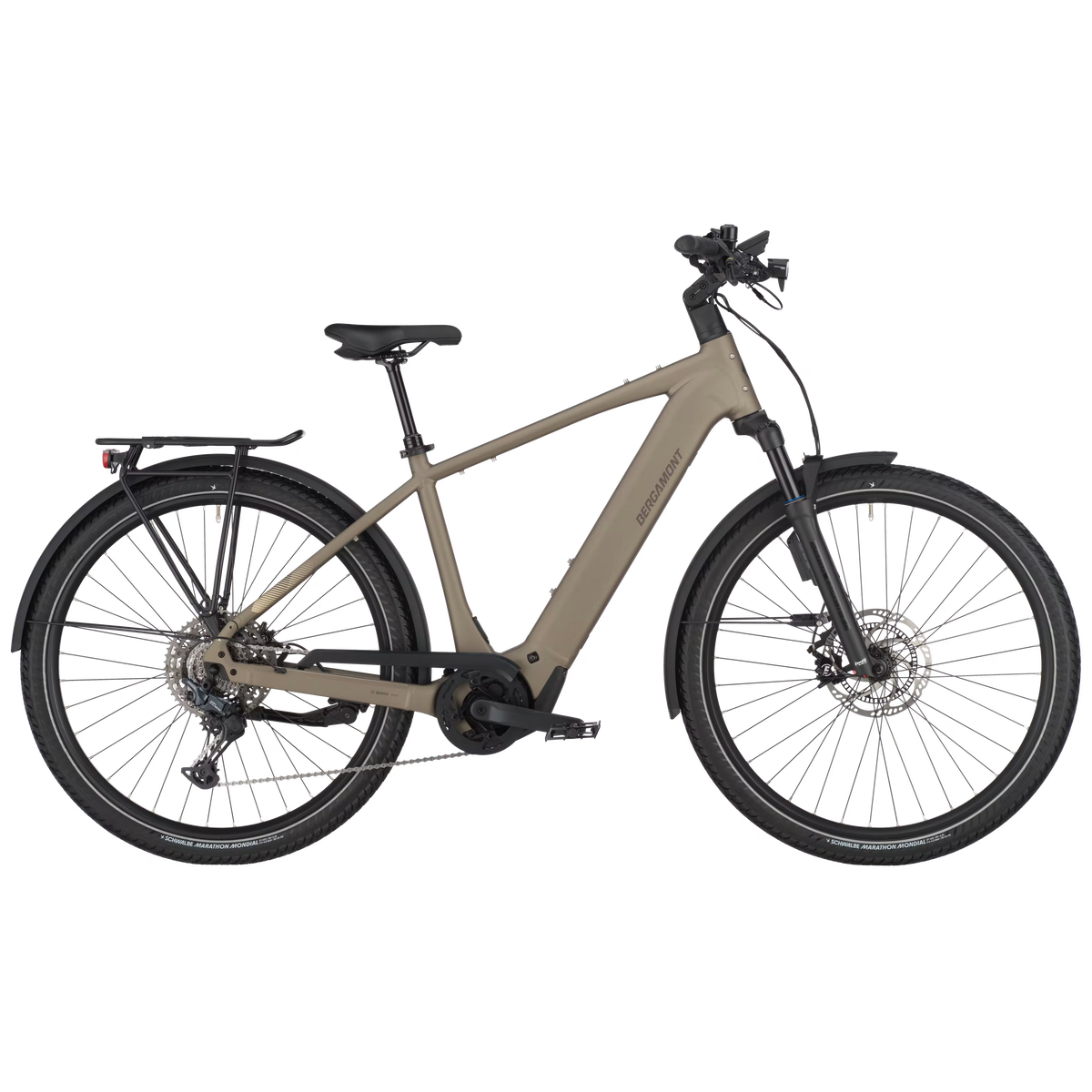

Bergamont E-Horizon SUV 10

The Bergamont E-Horizon SUV 10 is an electric trekking bike for commuting, weekend rides and longer trips around the area. It has a Bosch Performance Line CX motor, 28-inch wheels and a luggage rack suitable for a child seat.

• 800 Wh Bosch PowerTube battery for greater range on a single charge
• 250 W Bosch Performance Line CX motor, assistance up to 25 km/h
• 4-piston Magura hydraulic brakes with ABS for more controlled braking
• Luggage rack suitable for a child seat, maximum total weight 160 kg
• Choose from sizes S, M, L, XL, all with 28-inch wheels

Technical specifications

• Motor: Bosch Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
• Battery: Bosch PowerTube, 36 V, Li-Ion, 800 Wh
• Display: Bosch Kiox 300 with LED Remote
• Frame material: Aluminum
• Fork: Suntour Mobie 34 DS RLR, air, ABS, 100 mm travel, 15x110 mm axle
• Gearing: Shimano Cues RD-U8000, 11-speed; Shimano Cues CS-LG700-11 cassette, 11-50 teeth
• Brakes: Magura MT-C, 4-piston, front ABS; Magura MDR-C CL discs, 203 mm (front and rear)
• Tires: Schwalbe Marathon Mondial, 57-622
• Weight: 28.2 kg
• Maximum load: 160 kg (maximum total weight)

800 Wh Bosch PowerTube battery for greater range on a single charge | 250 W Bosch Performance Line CX motor, assistance up to 25 km/h | 4-piston Magura hydraulic brakes with ABS for more controlled braking | Luggage rack suitable for a child seat, maximum total weight 160 kg | Choose from sizes S, M, L, XL, all with 28-inch wheels

Frame: 28", super-light AL-6061 tubing, PowerTube battery
Fork: Suntour Mobie 34 DS RLR, air, ABS, 100 mm, 15x110 mm axle
Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Rear derailleur: Shimano Cues, RD-U8000, Shadow Plus
Shifters: Shimano Cues, SL-U8000, 1x11-speed, Rapidfire Plus shifter
Brake levers: Magura MT-C, hydraulic disc brake
Brakes: Front: Magura MT-C, hydraulic disc brake, 4-piston, ABS; Rear: Magura MT-C, hydraulic disc brake
Crankset: FSA CK-745, 170 mm, 38t
Bottom bracket: Bosch, Isis
Handlebar: Syncros 3.0, riser bar, backsweep: 15°, rise: 12 mm
Stem: Satori Python, adjustable
Pedals: Aluminum trekking, platform
Seatpost: Syncros Duncan, dropper seatpost
Saddle: Syncros Capilano Trekking
Front hub: Shimano HB-TC500-B, Centerlock, disc, 15x110 mm axle
Rear hub: Shimano FH-QC400, Centerlock, disc, quick release
Chain: Shimano Linkglide, CN-LG500
Cassette: Shimano Cues, CS-LG700-11, 11-50t
Spokes: Stainless steel, black
Rim: Cross X18, disc, eyelets, width: 30 mm
Lights: Front: 100 Lux, LED; Rear: Axa Juno, LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 28.2
Motor: Bosch Smart System, Performance Line CX (BDU384Y), 250 W, 36 V, max. 25 km/h
Battery: Bosch PowerTube, 36 V Li-Ion, 800 Wh
Display: Bosch Kiox 300 with LED Remote
Charger: Standard Bosch charger, 4A
Brake disc: Magura MDR-C CL, 203 mm
Grips: Syncros Urban, Ergo, dual density, lock-on
Front tire: Schwalbe Marathon Mondial, Performance, RaceGuard, reflective stripe, 57-622, inner tube: Schwalbe AV19B Light
Rear tire: Schwalbe Marathon Mondial, Performance, RaceGuard, reflective stripe, 57-622, inner tube: Schwalbe AV19B Light
Luggage rack: Racktime / BGM Trekking Pro, Snapit 2.0 System
Mudguard: Curana Orbit, with stainless steel stays
Chain guard: Integrated into the motor cover
Total weight: 160.0 kg. The total weight includes the bike, rider, equipment and any additional luggage.
