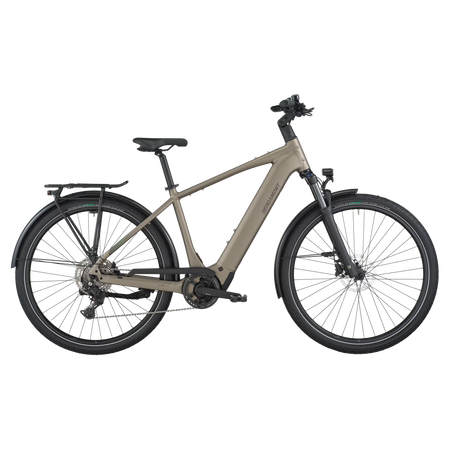

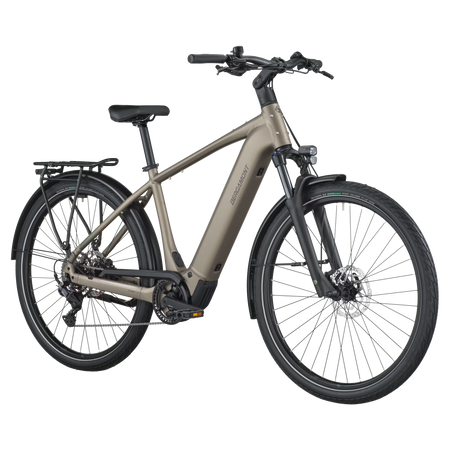

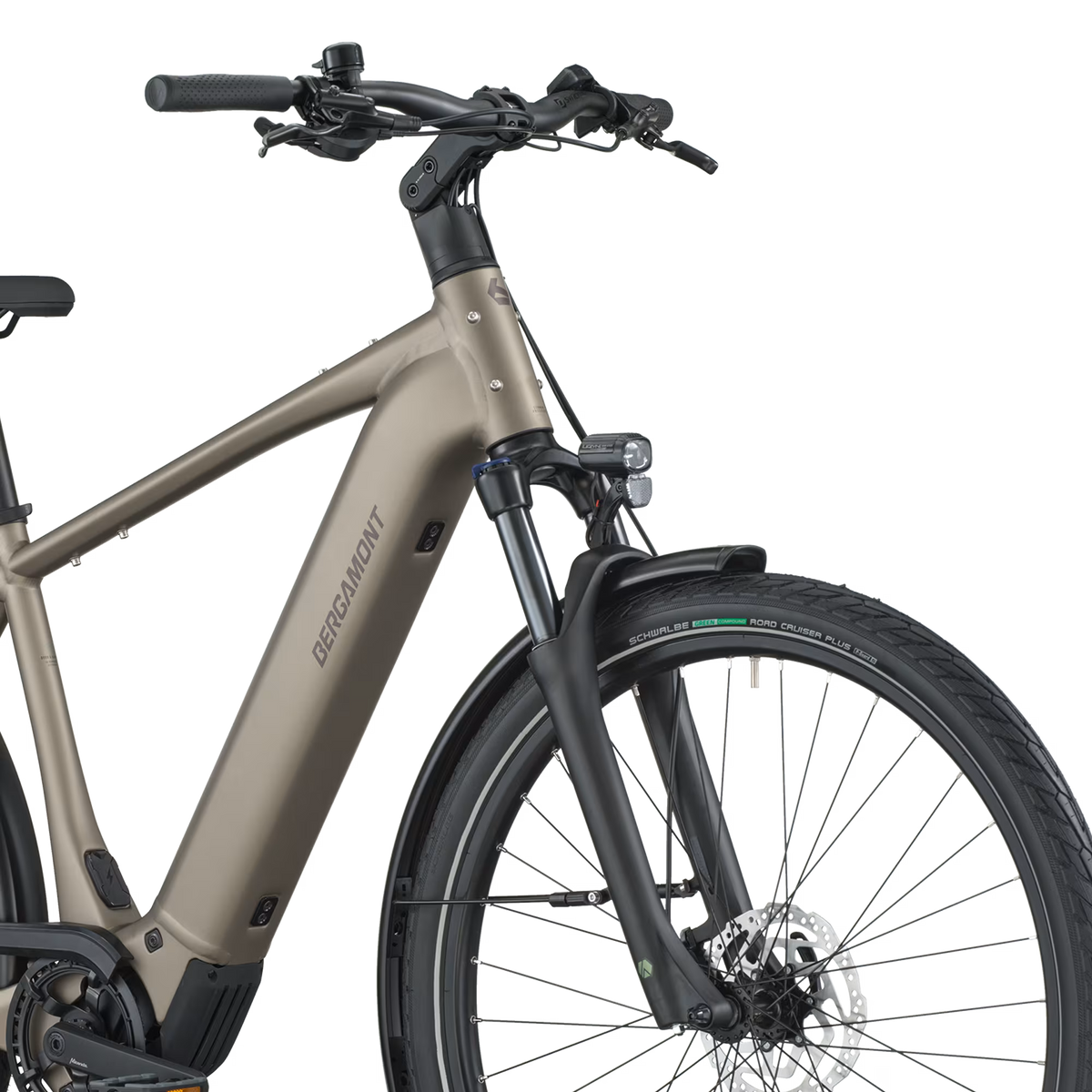

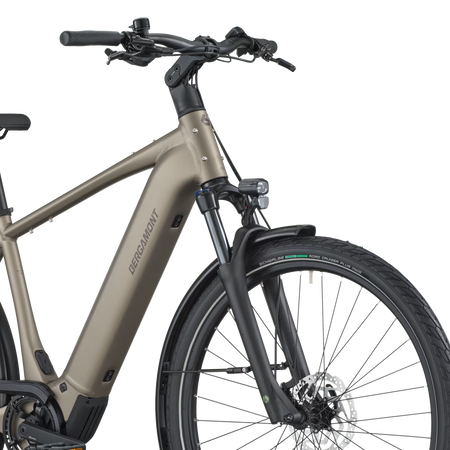

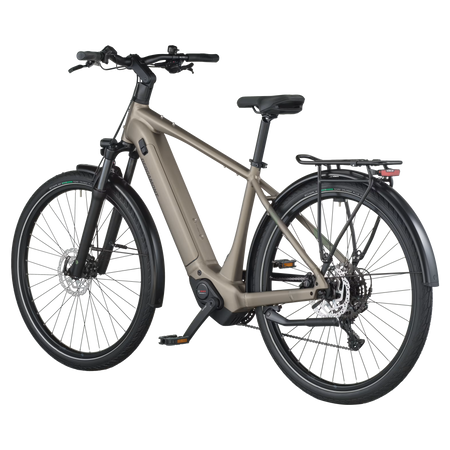

Bergamont E-Horizon Sport 30

The Bergamont E-Horizon Sport 30 is a trekking e-bike with 28" wheels, a Bosch motor, and a rear rack approved for a child seat. It's suitable for commuting and day trips.

• Assistance up to 25 km/h with a 250 W Bosch Performance Line motor
• 540 Wh Bosch PowerTube battery, removable for charging at home
• Shimano hydraulic disc brakes with 180 mm rotors
• Racktime rear rack rated for 27 kg, compatible with the Thule Yepp Nexxt 2 Maxi child seat
• Choose by height: S 157-167 cm, M 165-177, L 174-186, XL 183-195

Technical specifications

• Frame: Super Lite AL-6061 aluminum, integrated PowerTube battery
• Motor: Bosch Performance Line Smart System, 250 W, 36 V, assistance up to 25 km/h
• Battery: Bosch PowerTube 540 Wh, removable
• Display: Bosch Purion 200

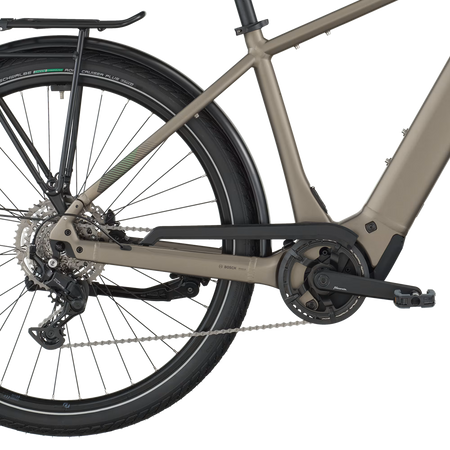

• Gearing: Shimano Cues 1x9; CS-LG400-9 cassette, 11-46T; RD-U4000 Shadow rear derailleur
• Brakes: Shimano BR-MT200 hydraulic disc brakes, SM-RT10 rotors, 180 mm
• Fork: Suntour NVX32 NLO DS, 100 mm travel
• Tires: Schwalbe Road Cruiser Plus 55-622, reflective sidewalls
• Rear rack: Racktime BGM Trekking Pro Snapit 2.0, 27 kg capacity
• Maximum system weight: 130 kg

Assistance up to 25 km/h with a 250 W Bosch Performance Line motor | 540 Wh Bosch PowerTube battery, removable for charging at home | Shimano hydraulic disc brakes with 180 mm rotors | Racktime rear rack rated for 27 kg, compatible with the Thule Yepp Nexxt 2 Maxi child seat | Choose by height: S 157-167 cm, M 165-177, L 174-186, XL 183-195

Frame: 28", super-light AL-6061 tubing, PowerTube battery
Fork: Suntour NVX32 NLO DS, 100 mm
Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing
Rear derailleur: Shimano Cues, RD-U4000, Shadow
Shifters: Shimano Cues, SL-U4000, 1x9-speed, Rapidfire Plus shifter
Brake levers: Shimano BL-MT200, hydraulic disc brake
Brakes: Shimano BR-MT200, hydraulic disc brake
Crankset: Miranda Virage, 170 mm, 38t
Bottom bracket: Bosch, Isis

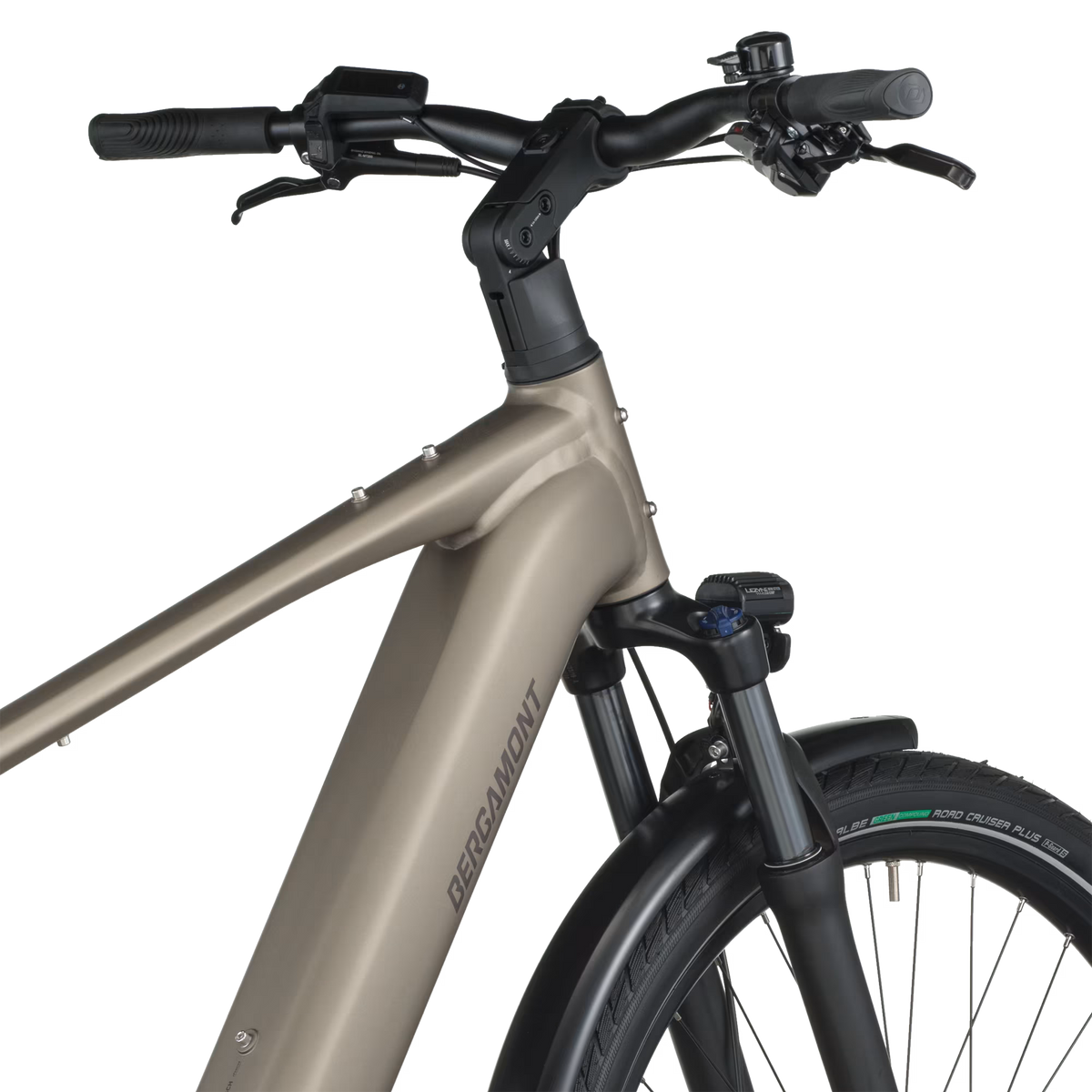

Handlebar: Syncros 3.0, raised handlebar, backsweep: 15°, rise: 12 mm
Stem: Syncros, with SP Connect mount, adjustable
Pedals: Aluminum trekking
Seatpost: Syncros

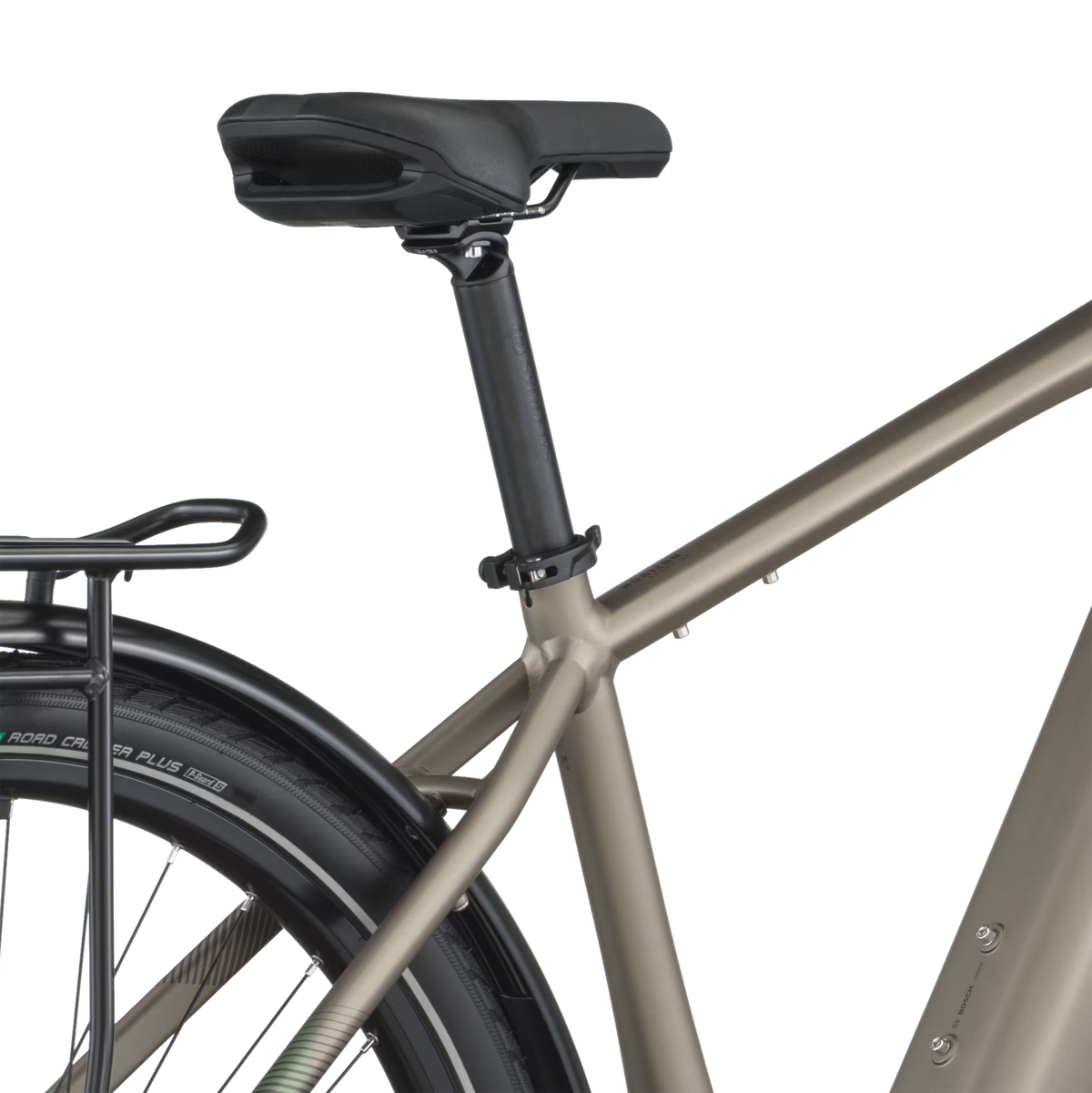

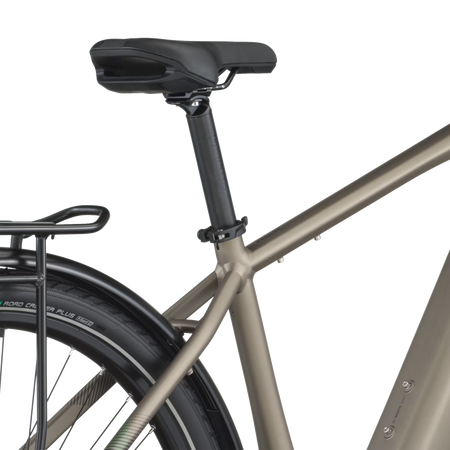

Saddle: Syncros Capilano Trekking
Front hub: Shimano HB-QC400, Center Lock, disc, quick release
Rear hub: Shimano FH-QC300, Center Lock, disc, quick release
Chain: Shimano CN-LG500
Cassette: Shimano Cues, CS-LG400-9, 11-46t
Spokes: steel, black
Rim: Syncros X17, disc, eyelets
Lights: Front: Lezyne Mini E300, 100 Lux, LED; rear: LED, with brake light function
Accessories: Kickstand: Syncros U-mount
Weight in kg (approx.): 28.8

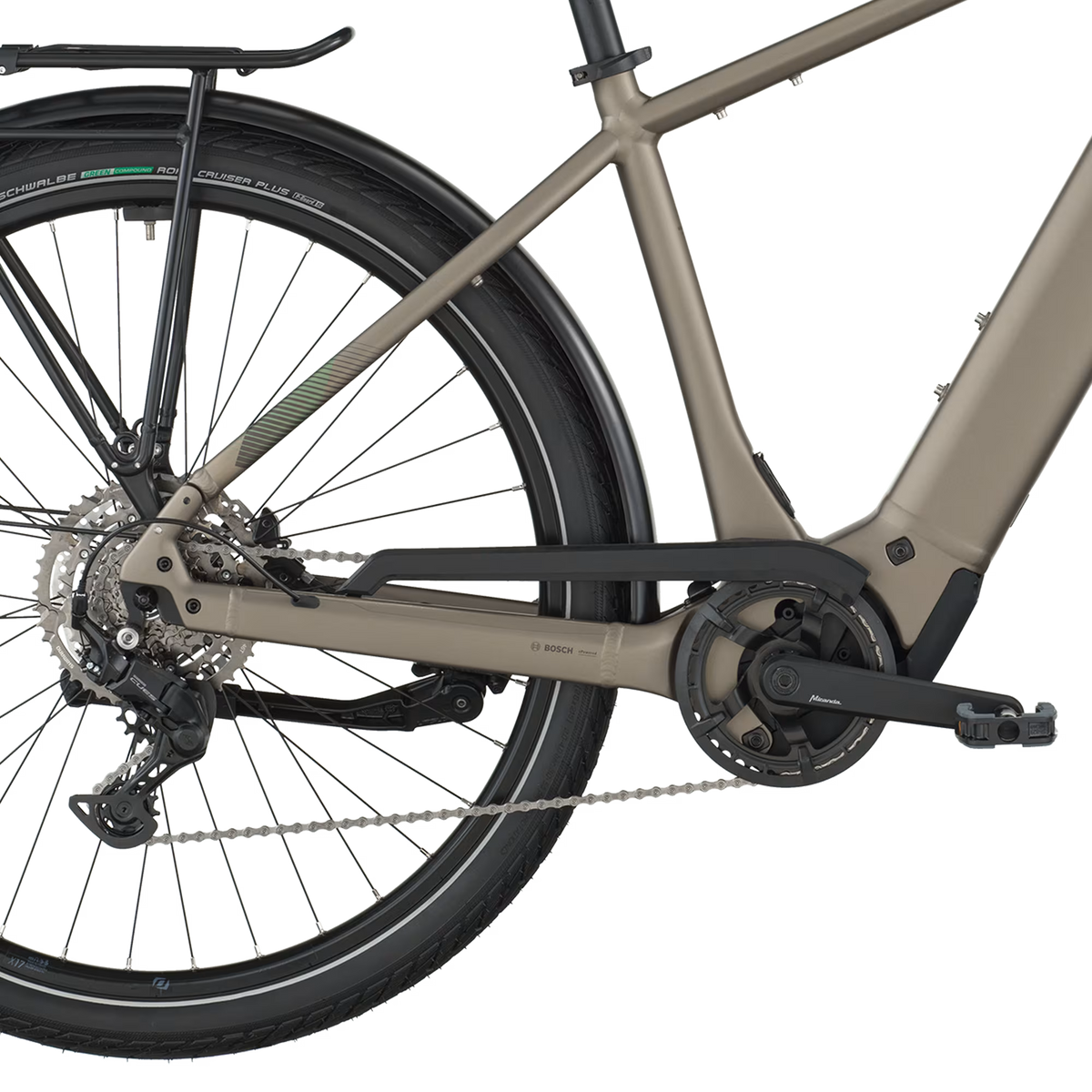

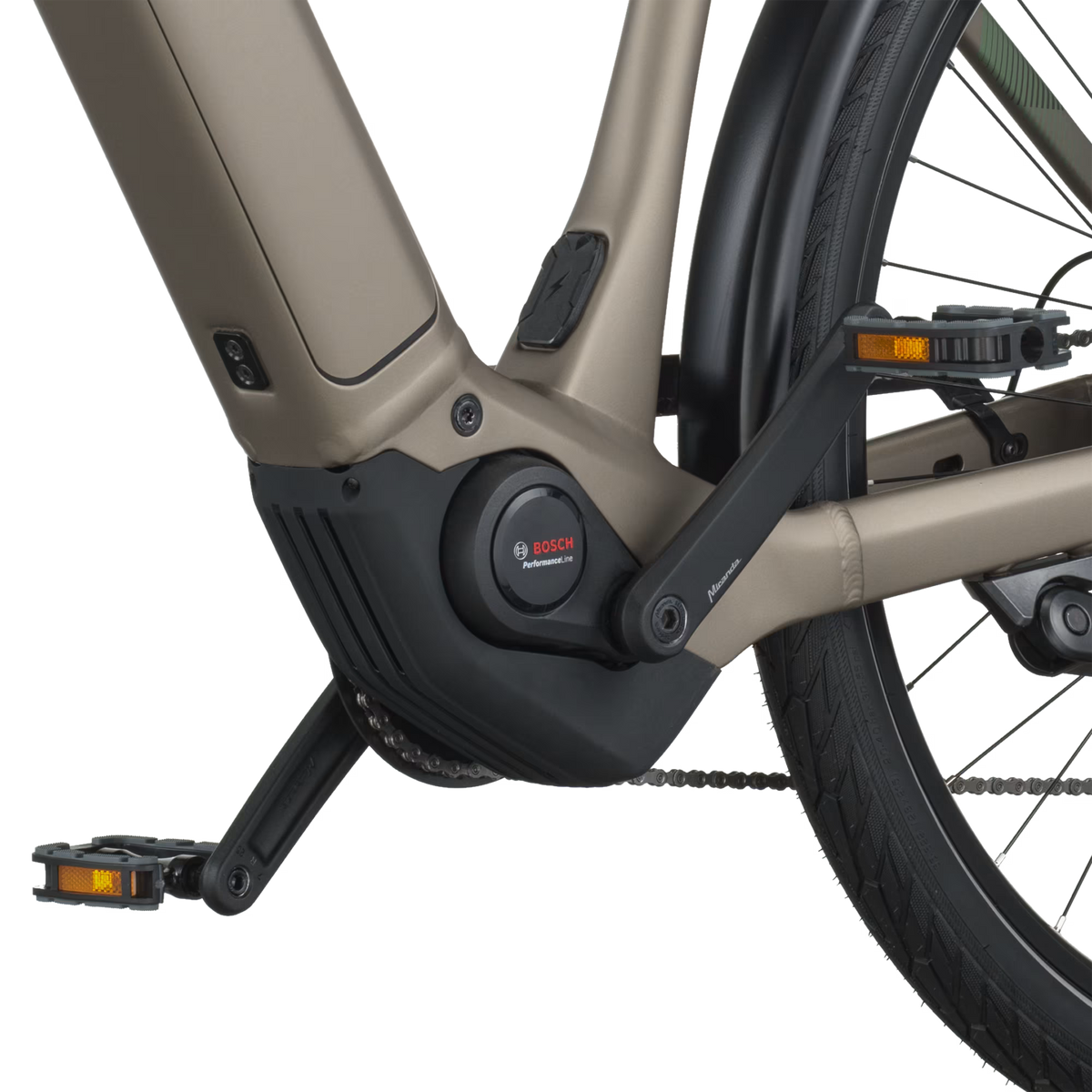

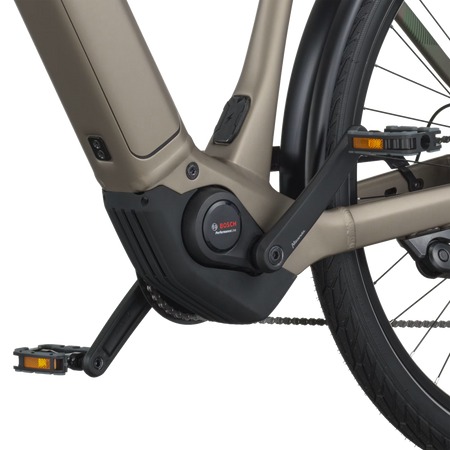

Motor: Bosch Smart System, Performance Line (BDU346Y), 250 W, 36 V, max. 25 km/h
Battery: Bosch PowerTube, 36 V Li-ion, 540 Wh
Display: Bosch Purion 200
Charger: Bosch Smart System, 2 A
Brake rotor: Shimano SM-RT10, 180 mm
Grips: Syncros Urban, Ergo, dual-density, lock-on
Front tire: Schwalbe Road Cruiser Plus, reflective strip, 55-622, inner tube: Schwalbe AV19B Light
Rear tire: Schwalbe Road Cruiser Plus, reflective strip, 55-622, inner tube: Schwalbe AV19B Light
Rear rack: Racktime / BGM Trekking Pro, Snapit 2.0 System
Mudguard: Curana Apollo, with stainless steel stays
Total weight: 130.0 kg. The total weight includes the bicycle, rider, equipment, and any additional luggage.
