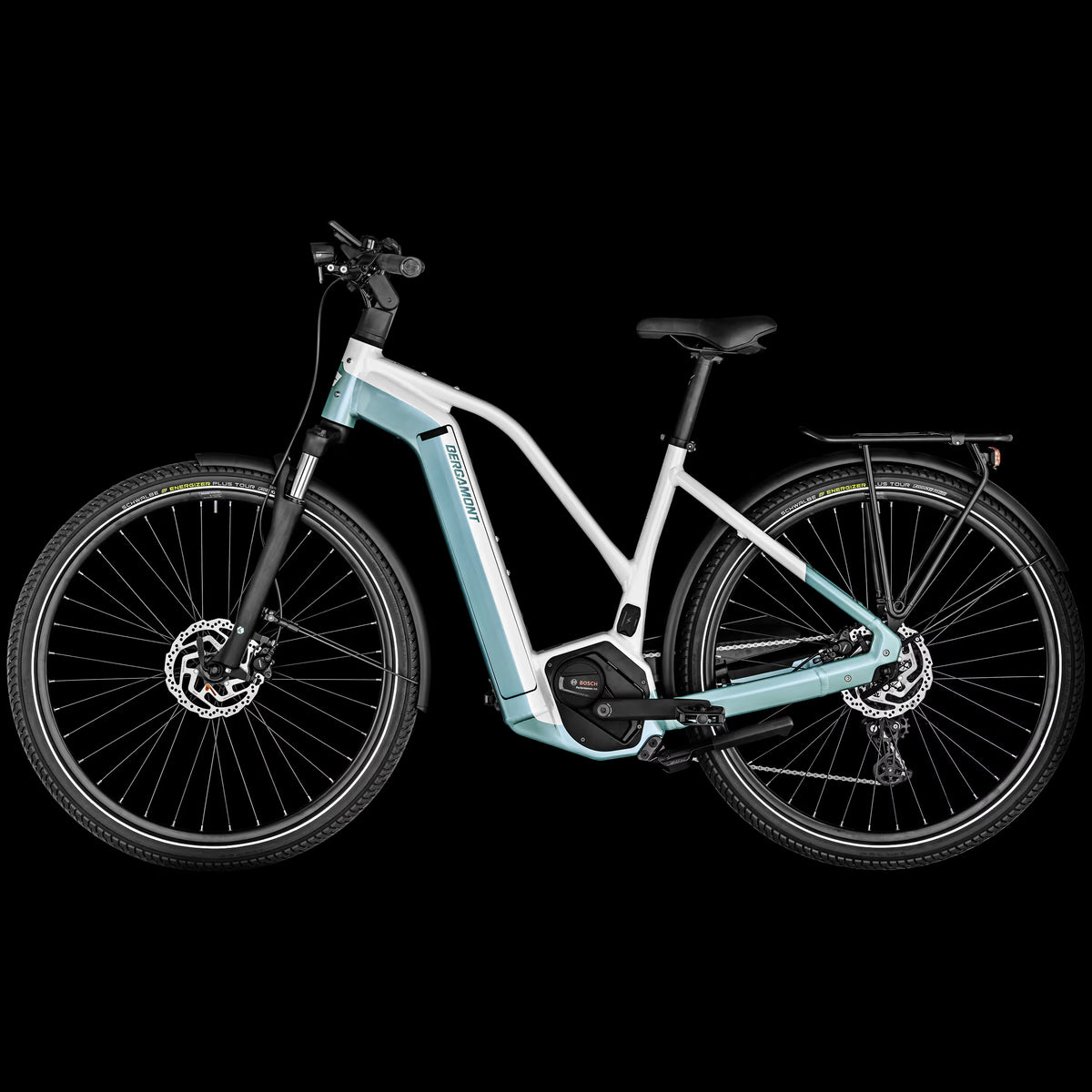

Bergamont E-Horizon Edition LTD Lady

The Bergamont E-Horizon Edition LTD Lady electric bike is a trekking e-bike with a 28" aluminum Trapez frame, designed for everyday use and touring. It features a Bosch Performance Line motor and a 750 Wh PowerTube battery.

• 750 Wh PowerTube battery integrated into the frame for worry-free long rides
• 250 W Bosch Performance Line motor, with assistance up to 25 km/h
• Shimano hydraulic disc brakes with 180 mm rotors for safe, controlled braking
• B&M LED lights, mudguards, and a Racktime rear rack fitted for everyday use
• Frame available in sizes 56 and 60 cm: choose according to your height

Technical specifications

• Frame: Aluminum, 28", Trapez frame
• Motor: Bosch Performance Line Gen. 3 (BES3), 250 W, 36 V, assistance up to 25 km/h
• Battery: Bosch PowerTube, 36 V, 750 Wh
• Gearing: Shimano Deore Linkglide, 1x10-speed, 11-43T cassette
• Brakes: Shimano BR-MT200, hydraulic disc brakes, 180 mm rotors
• Fork: Suntour NVX30, 75 mm travel
• Tires: Schwalbe Energizer Plus Tour 55-622, with reflective strips
• Weight: 29.4 kg
• Maximum total weight: 130.0 kg, including bike, rider, equipment, and any luggage
• Sizes: 56, 60

750 Wh PowerTube battery integrated into the frame for worry-free long rides | 250 W Bosch Performance Line motor, with assistance up to 25 km/h | Shimano hydraulic disc brakes with 180 mm rotors for safe, controlled braking | B&M LED lights, mudguards, and a Racktime rear rack fitted for everyday use | Frame available in sizes 56 and 60 cm: choose according to your height

Frame: 28", superlight AL-6061 tubing, BES III, PowerTube battery
Fork: Suntour NVX30 DS, 75 mm
Headset: Acros, A-Headset, semi-integrated, 1.5", with integrated cable routing
Rear derailleur: Shimano Deore Linkglide, RD-M5130, Shadow Plus
Shift levers: Shimano Deore Linkglide, SL-M5130, 1x10-speed, Rapidfire Plus shifter
Brake levers: Shimano BL-MT200, hydraulic disc brake
Brakes: Shimano BR-MT200, hydraulic disc brake
Crankset: FSA CK-200, 38t
Bottom bracket: Bosch, Isis
Handlebar: BGM Pro, riser handlebar, backsweep: 15°, rise: 5 mm
Stem: Satori Python, adjustable
Pedals: Marwi SP-890 matte Sandblock
Seatpost: BGM Pro
Saddle: Syncros Capilano Trekking, memory foam
Front hub: Shimano, Center Lock, disc, quick release
Rear hub: Shimano, Center Lock, disc, quick release
Chain: Shimano Linkglide, CN-LG500
Cassette: Shimano Linkglide, CS-LG600-10, 11-43t
Spokes: Sapim Leader
Rim: Ryde Rival 23 disc, eyelets
Lights: Front: B&M Dopp, 35 Lux, LED; rear: B&M Toplight 2 C, LED
Accessories: Kickstand: Syncros
Weight in kg (approx.): 29.4
Motor: Bosch Performance Line, Gen. 3, BES3, 250 W, 36 V, max. 25 km/h
Battery: Bosch PowerTube, 36 V Li-Ion, 750 Wh
Display: Bosch LED remote with Intuvia 100 display
Charger: Bosch standard charger, 4A
Brake rotor: Shimano SM-RT10, 180 mm
Grips: BGM Comfort, Ergo, dual density, clamp-on version
Front tire: Schwalbe Energizer Plus Tour, GreenGuard, reflective strip, 55-622, inner tube: Schwalbe AV19
Rear tire: Schwalbe Energizer Plus Tour, GreenGuard, reflective strip, 55-622, inner tube: Schwalbe AV19
Rear rack: Racktime / BGM Trekking Pro, Snapit 2.0 system, integrated mudguard mount
Mudguard: Curana Apollo, with stainless steel stays
Color: Gloss white/light blue
Frame size: 44/48/52/56/60 cm
Total weight: 130.0 kg, The total weight includes the bike, rider, equipment, and any additional luggage.
