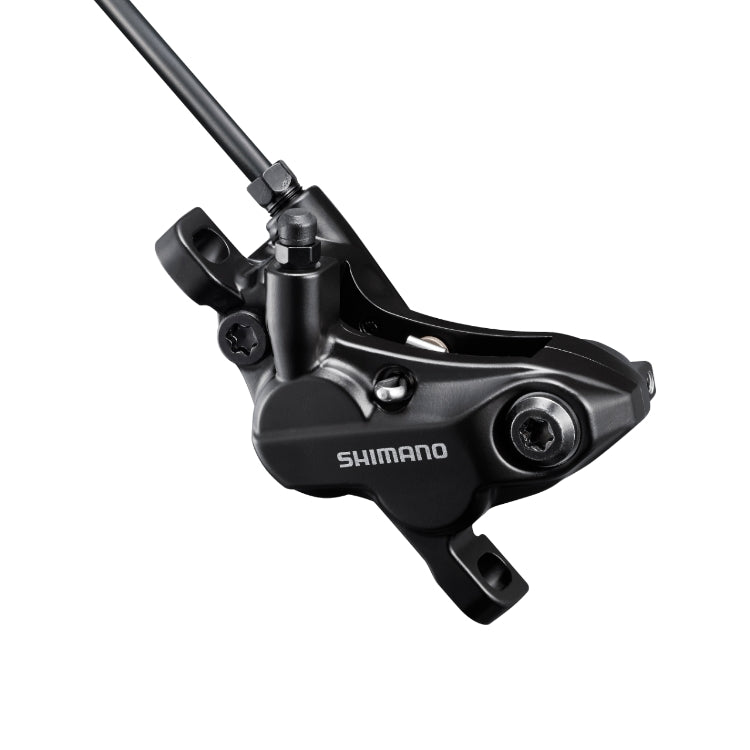

Pliers with 4 pistons br-mt520 pistons brake with hydraulic disc

Pliers with 4 pistons br-mt520 pistons brake with hydraulic disc

Worn out

€51,21 EUR
€75,95 EUR €51,21 EUR
On offer Worn out
Taxes included. Shipping costs Calculate the check-out.

With a robust 4 -piston design, the Shimano MT520 hydraulic disc brake increases the cyclist's fun and his trust in the middle.

CHARACTERISTICS

  • The high brake performance increase the cyclist's trust and favor fun
  • Largest contact area of ​​the double -diameter opposite piston design
  • Four -piston caliper
  • Highly reactive braking force for greater control
  • Rapid initial contact of the pads and controllable modulation of the braking force
  • Servowave
  • Stable braking and longer duration
  • Tapered and durable design of the main cylinder
  • Piston and piston with thermal insulation

    •

    Product specifications

    N. Model Br-mt520
    SERIES Shimano
    Color Black
    Brake type Hydraulic disc brake
    Brake tube (kit) SM-BH90-SS
    Tube junction Straight
    Brake tube color (kit) | 1 Black
    Spec. J-Kit (for OEM) ✔
    Pastilla | Standard 1 D03S-RX Resin (Without Fleet)
    Recommended brake lever BL-MT501
    Recommended disc brake rotor SM-RT70
    Dim. Compatible rotor | 140 mm (SS) ✔
    Dim. Compatible rotor | 160 mm (S) ✔
    Dim. Compatible rotor | 180 mm (M) ✔
    Dim. Compatible rotor | 203 mm (L) ✔
    Dim. Compatible rotor | 220 mm (LL) ✔
    One Way Bleeding ✔
    Assembly type Post Mount type
    Piston 4
    Brake caliper fixing screw | Dim. tool 5 mm
    Brake caliper fixing screw | Anti -challenging method Snap ring
    Pastilla assembly Cup
