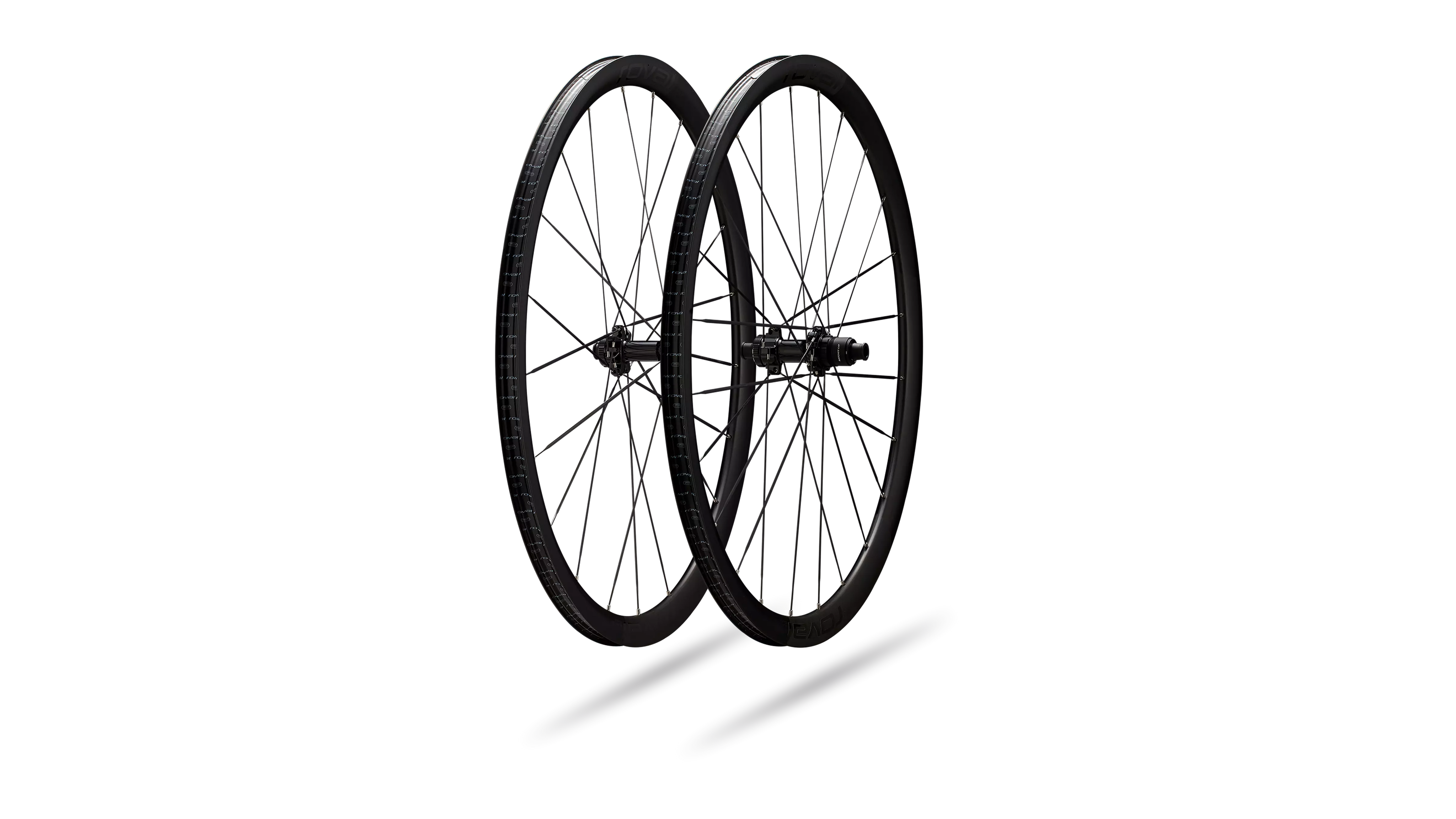

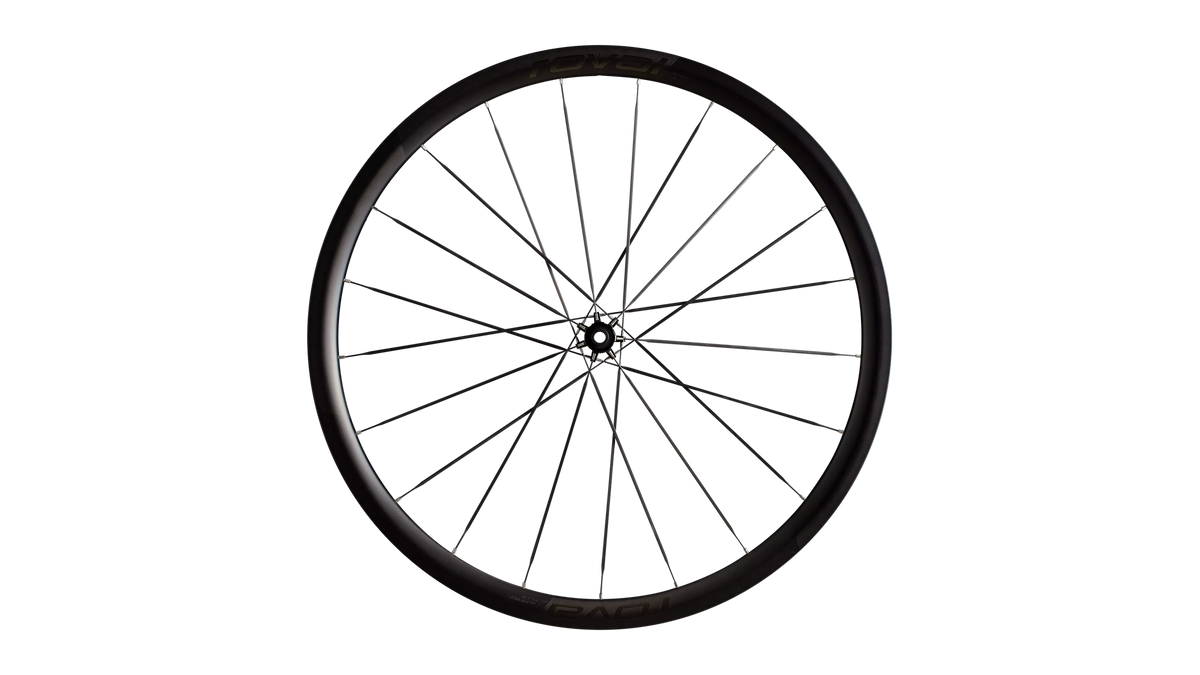

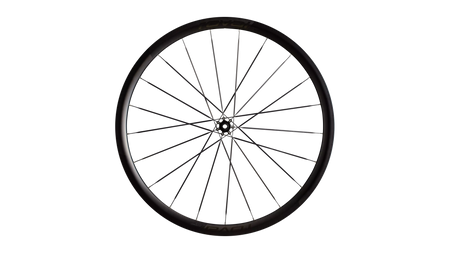

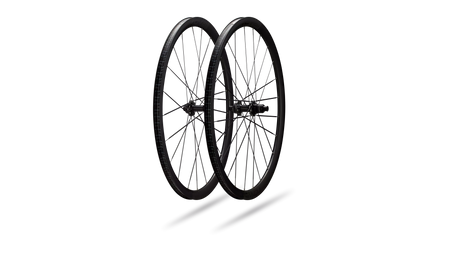

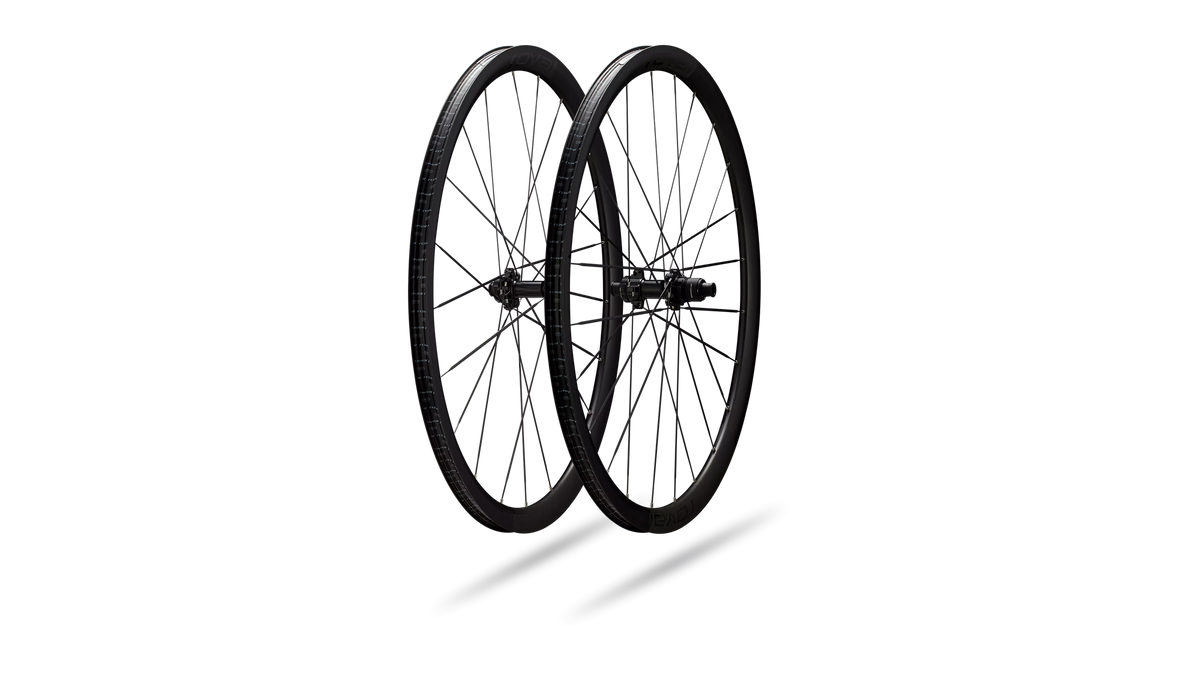

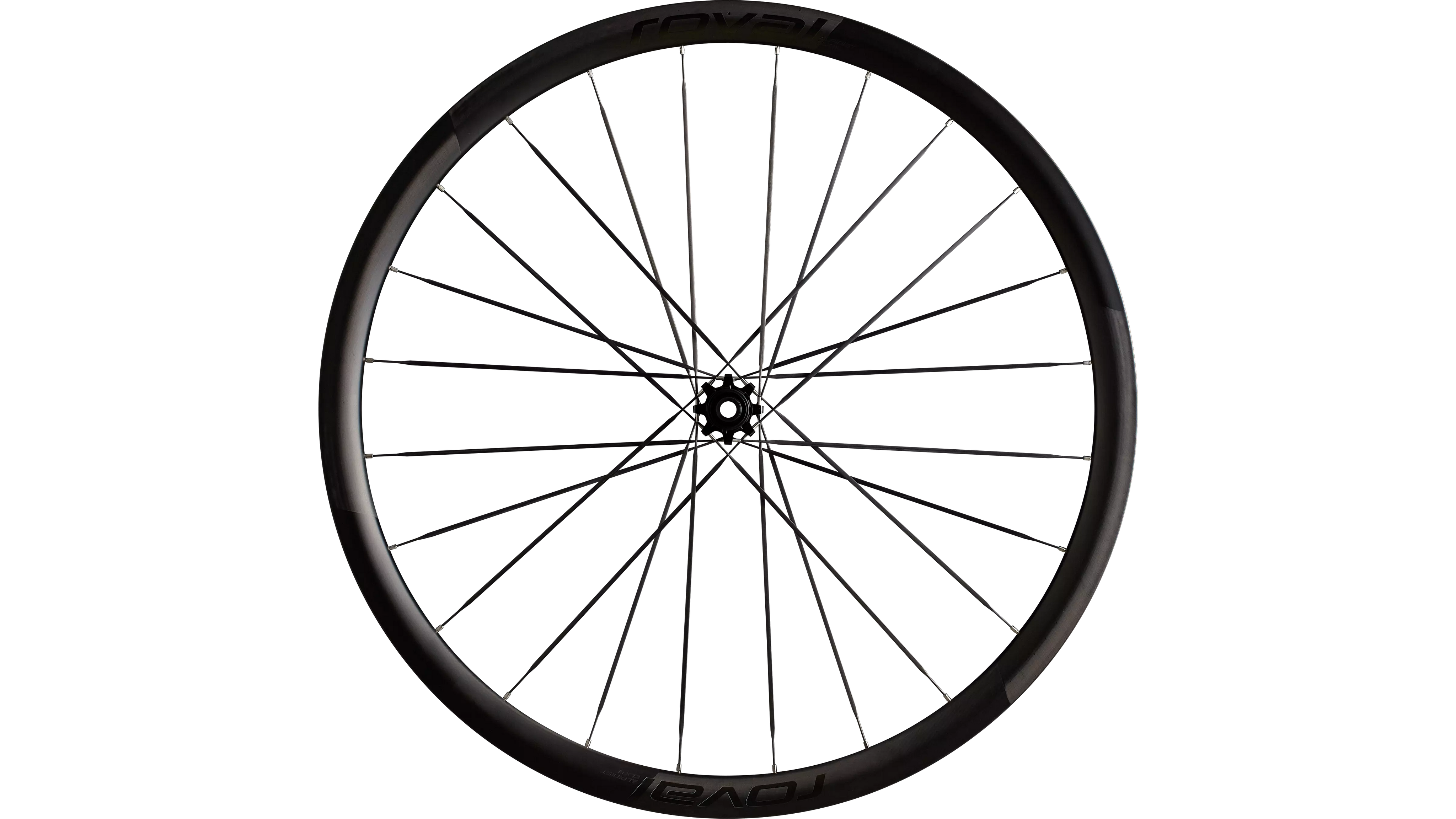

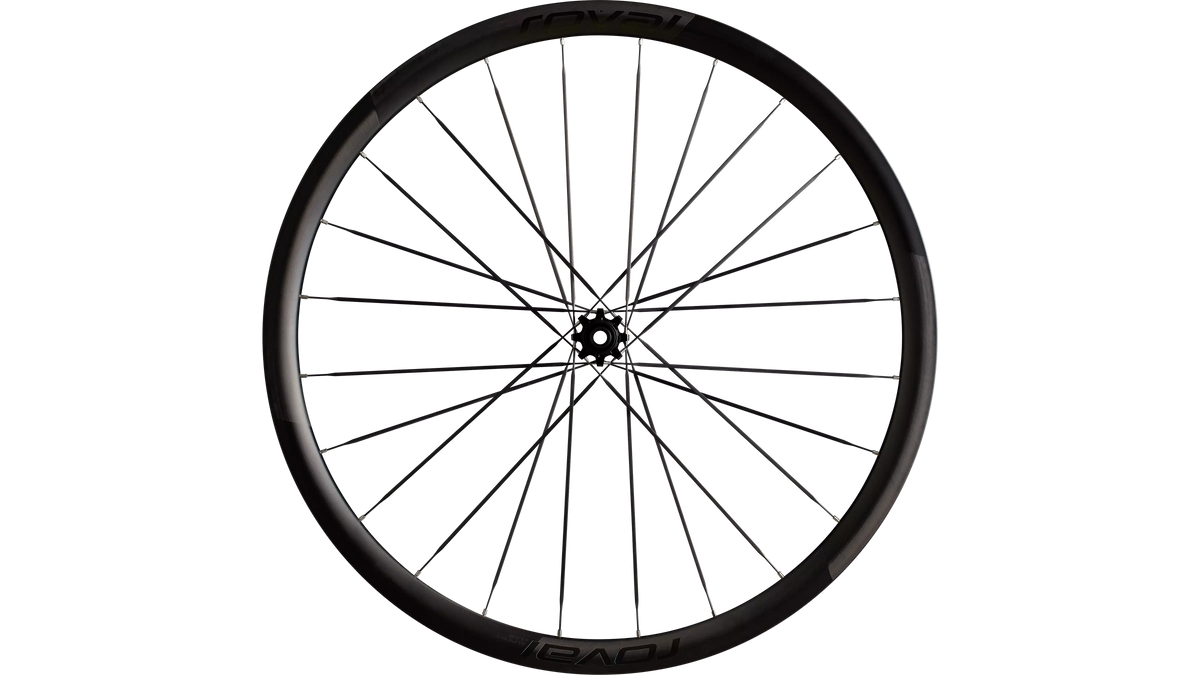

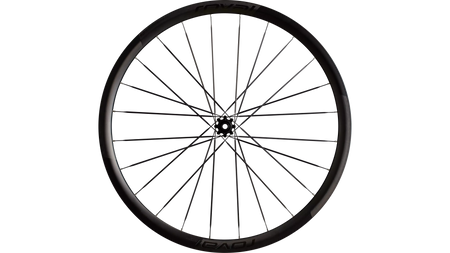

Roval Alpinist CLX III

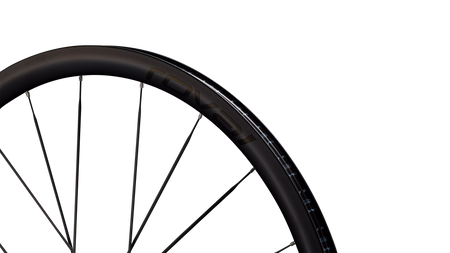

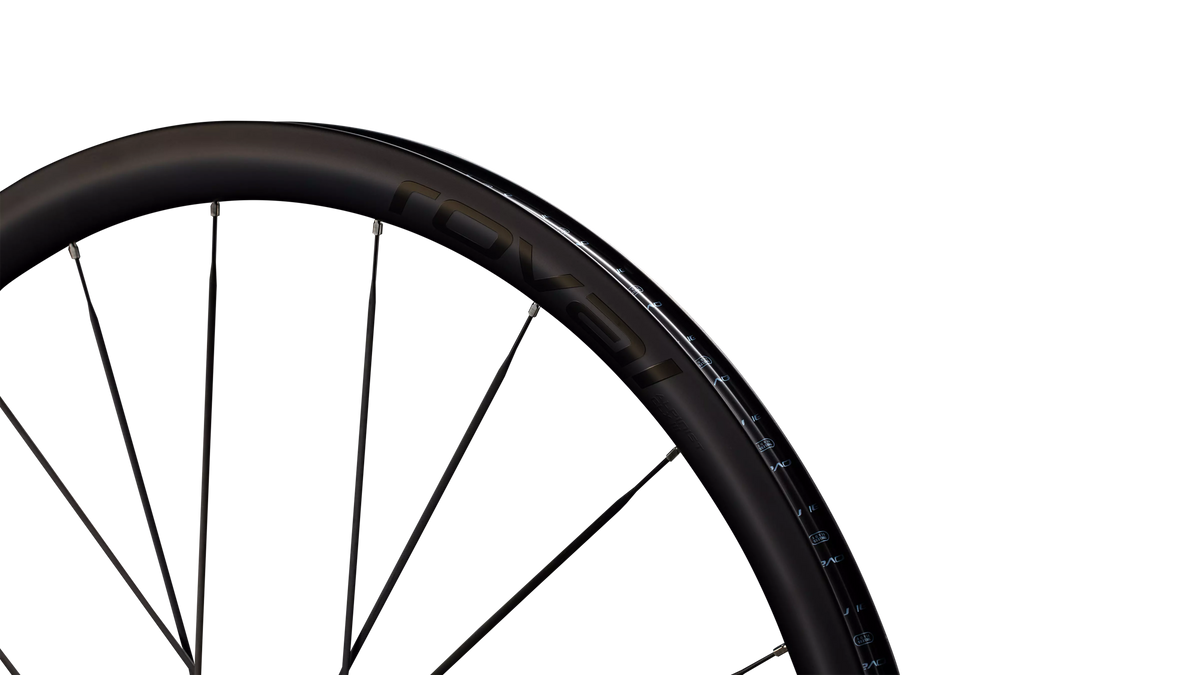

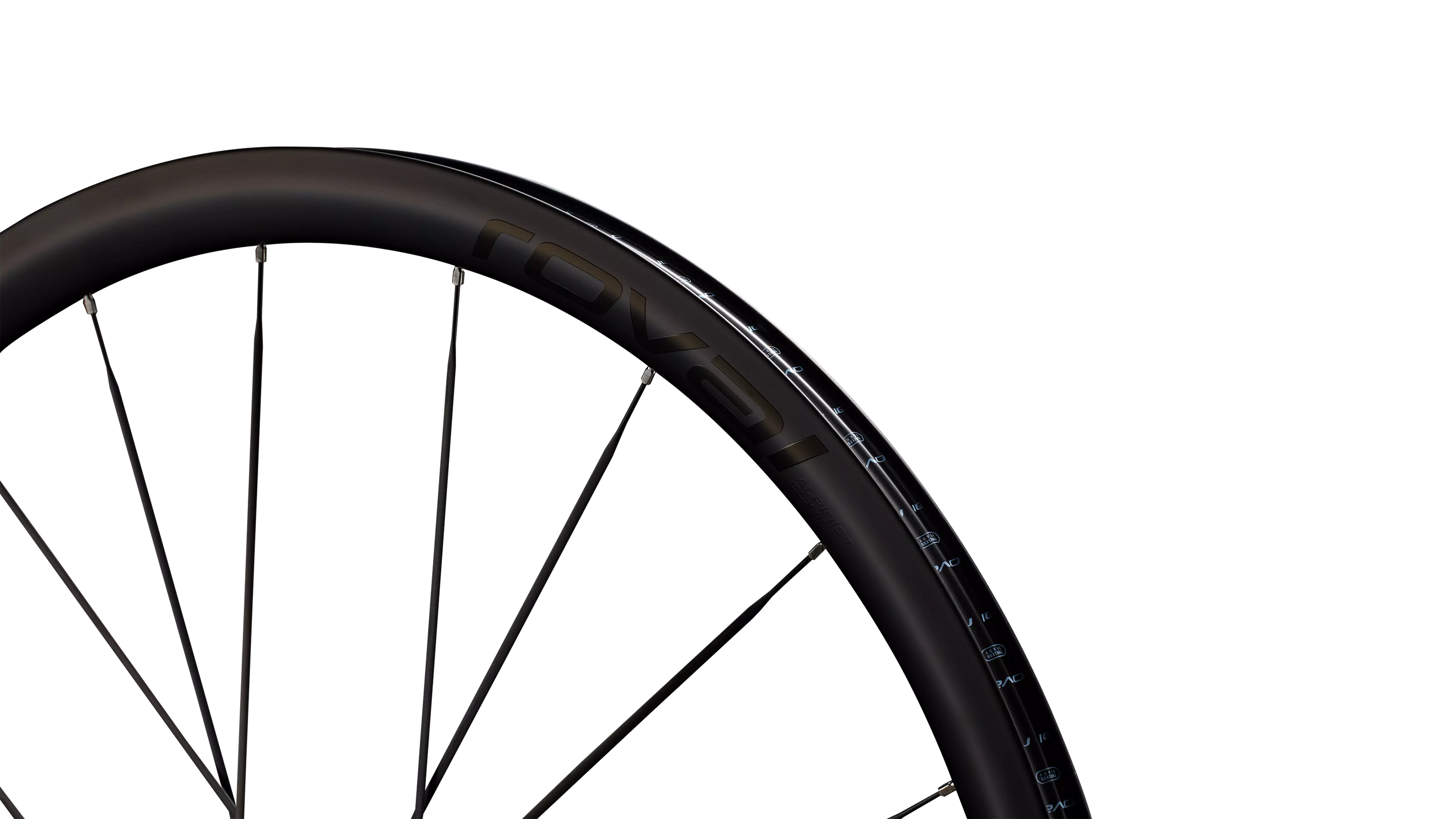

Front rim

Alpinist CLX III Carbon Clincher, 700c (CR2474)

Front rim size

Depth: 33 mm, External width (at widest point): 26.5 mm, Internal width: 21 mm, Bead hook width: 2.75 mm

Rear rim

Alpinist CLX III Carbon Clincher, 700c (CR2475)

Rear rim size

Depth: 33 mm, External width (at widest point): 26.5 mm, Internal width: 21 mm, Bead hook width: 2.75 mm

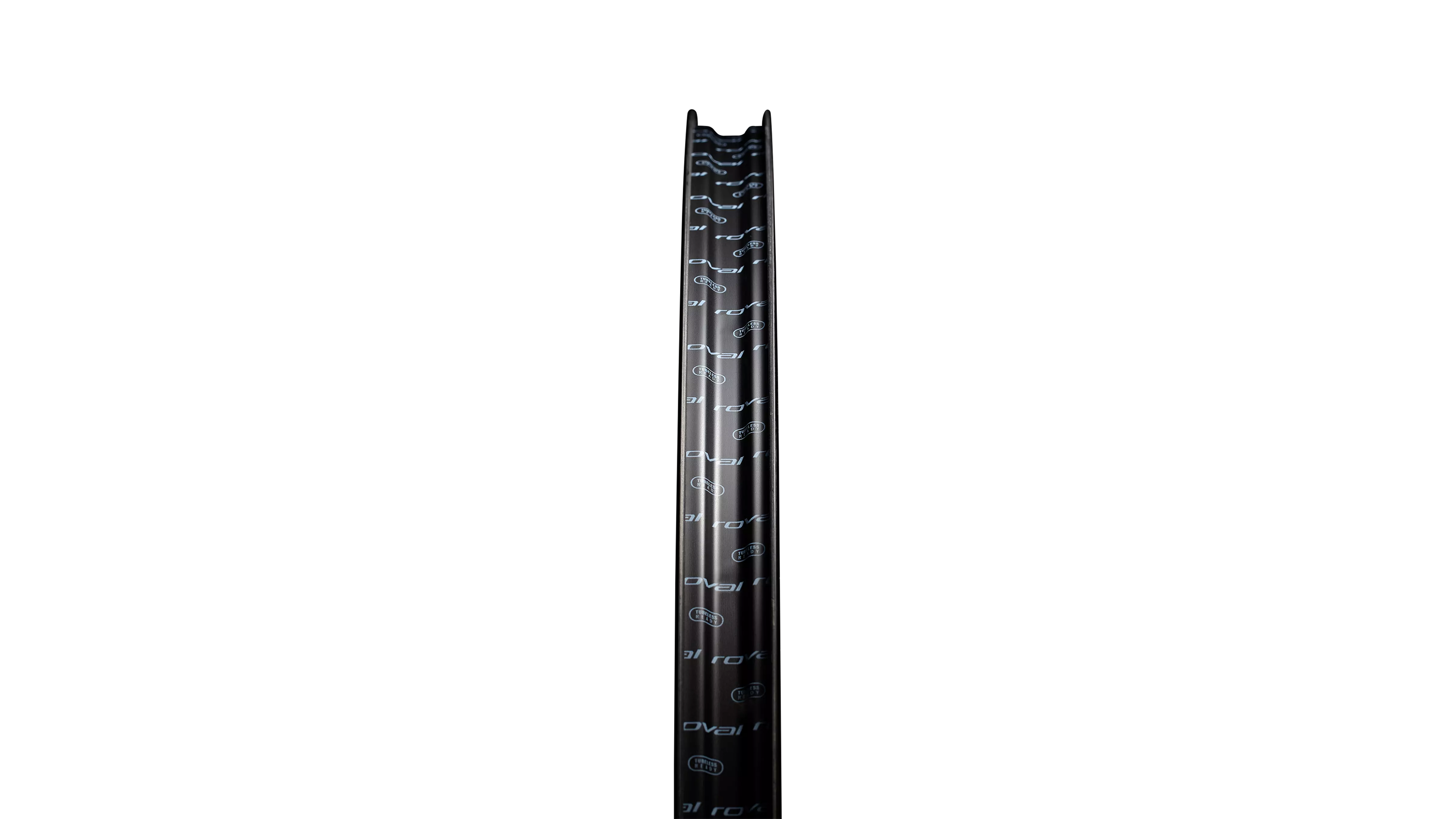

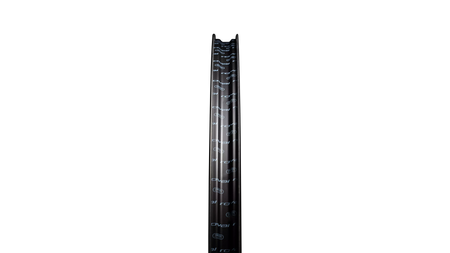

Rim construction

Carbon Clincher Hooked

Wheel size / ETRTO

622 × 21 (700c)

Number of holes

Front: 21H, Rear: 24H

Tubeless compatibility

YES

Insert compatibility

YES

Brake compatibility

Disc (with center lock)

Valve length

Roval tubeless valve, 50 mm alloy

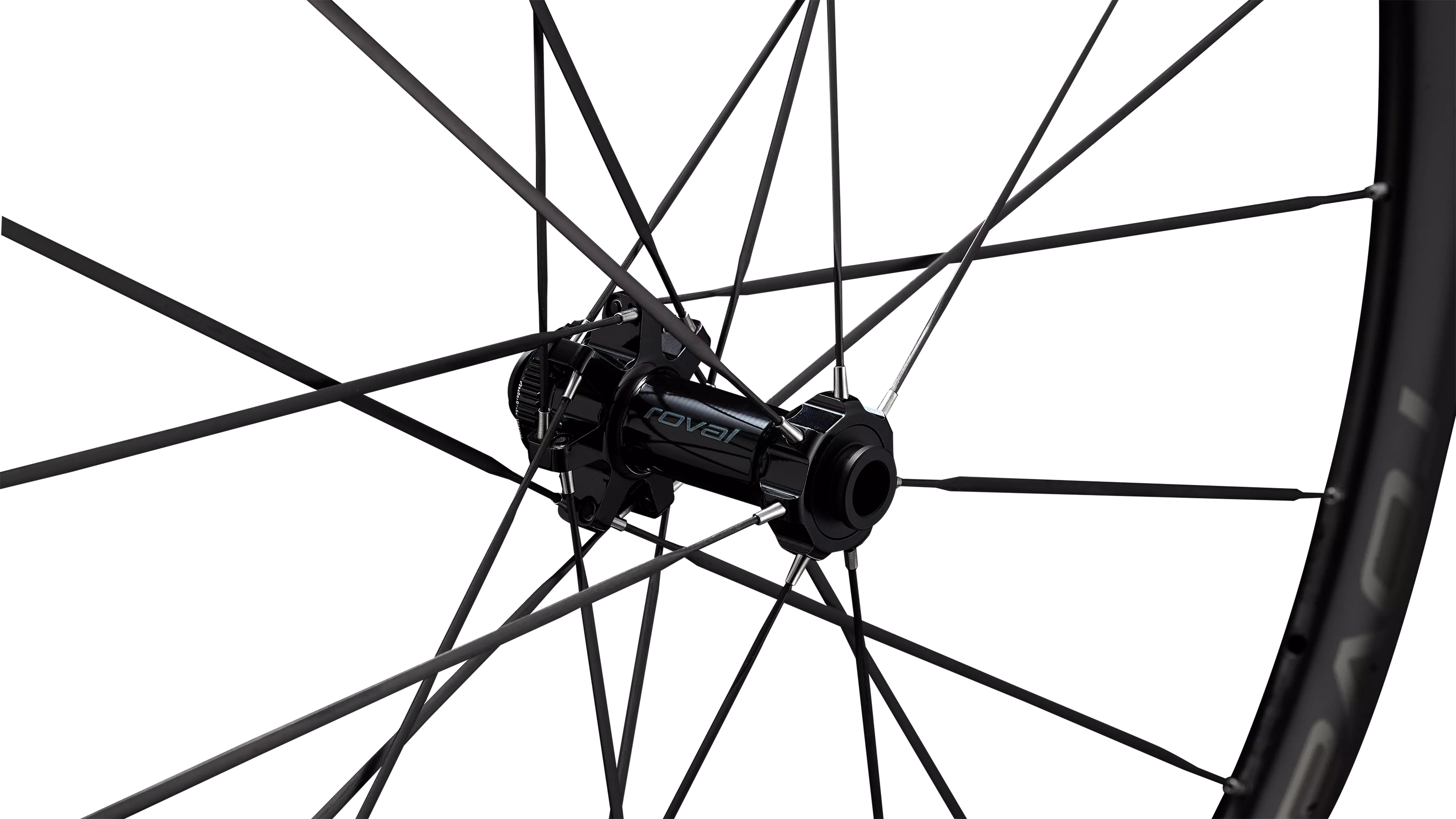

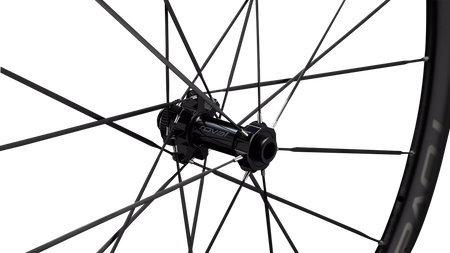

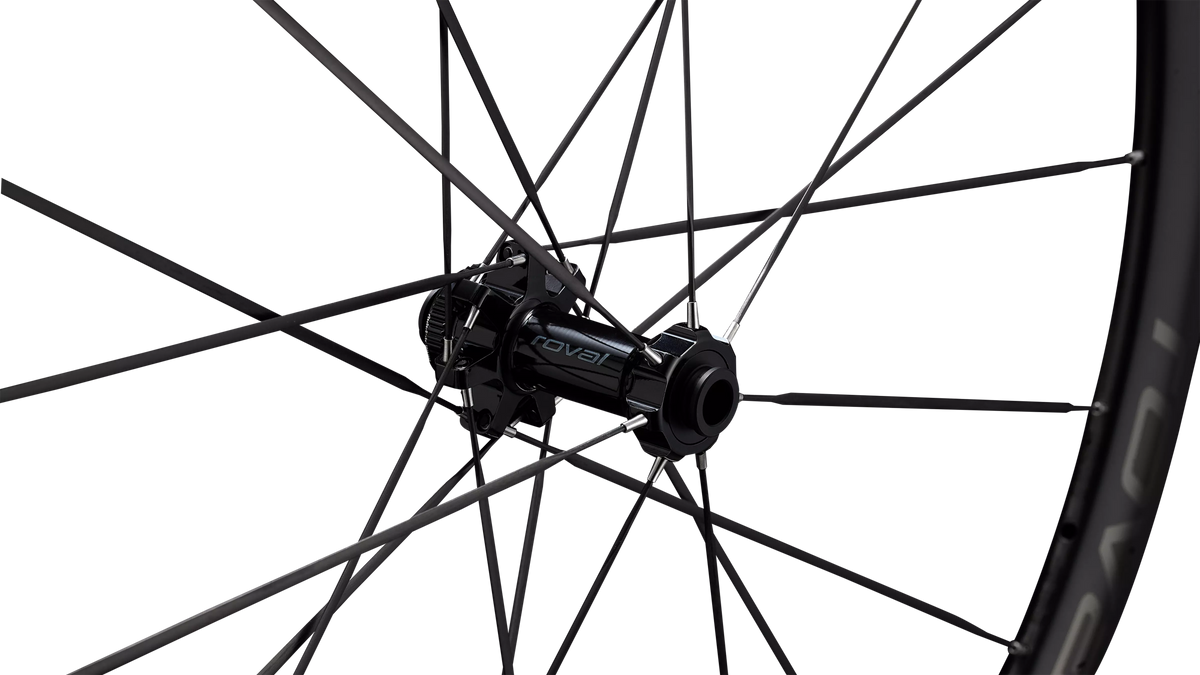

Front hub

Roval low flange road hub, Center Lock, 12x100 mm, 19 mm diameter end caps installed (LF21-F)

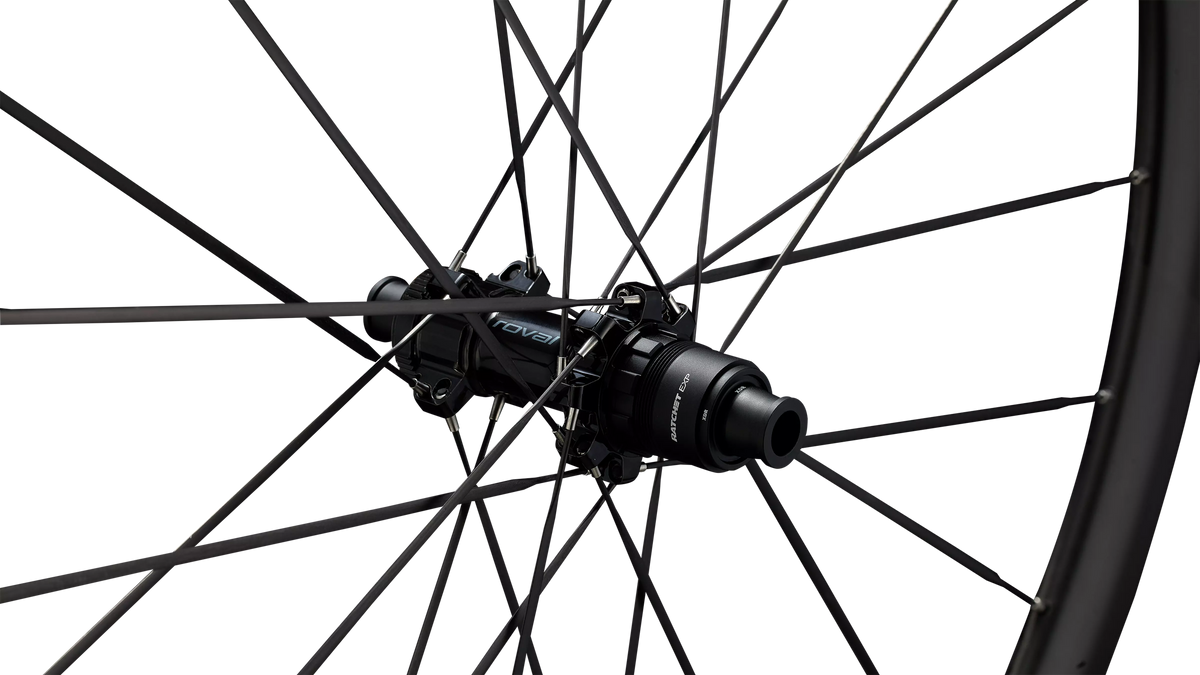

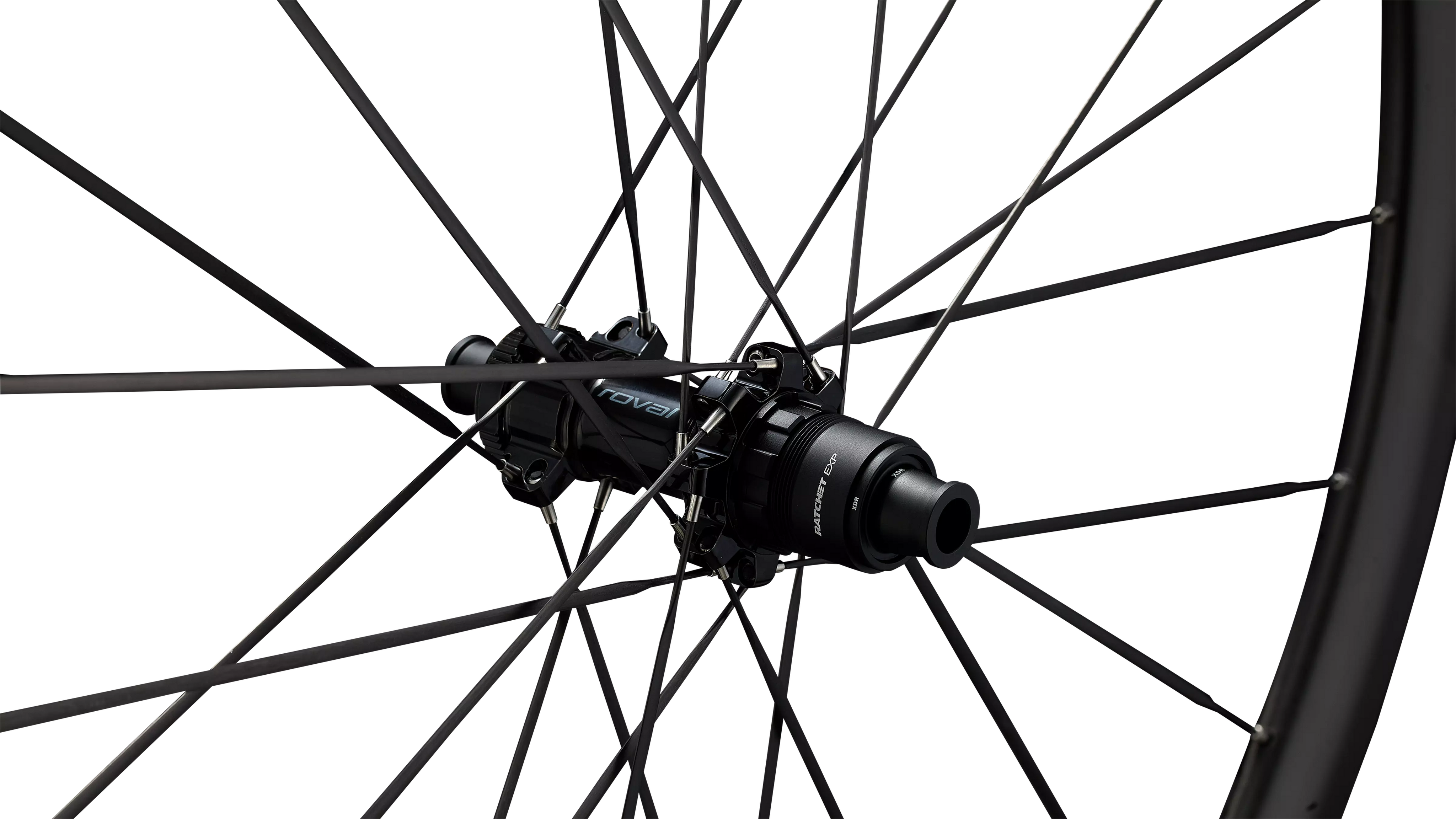

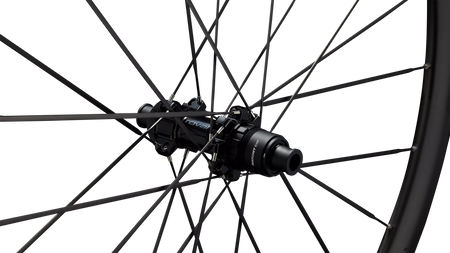

Rear hub

Roval low flange road hub, Center Lock, 12x142mm, (LF19-R)

Front hub bearing

DT Swiss ceramic bearings - DS: 6802 (15 x 24 x 5 mm), NDS: 6802 (15 x 24 x 5 mm)

Rear hub bearing

DT Swiss ceramic bearings - DS:1526 (15 x 26 x 7 mm), NDS: 6802 (15 x 24 x 5 mm)

Rear freehub body

DT Swiss Ratchet EXP (36T): Sram XD-R

Front spokes

Roval by Arris, composite aerodynamic spokes with titanium nipples: T-head, 21 pieces, (DS: 281 mm, NDS: 294 mm)

Rear spokes

Roval by Arris, composite aerodynamic spokes with titanium nipples: T-head, 24 pieces, (DS: 292 mm, NDS: 288 mm)

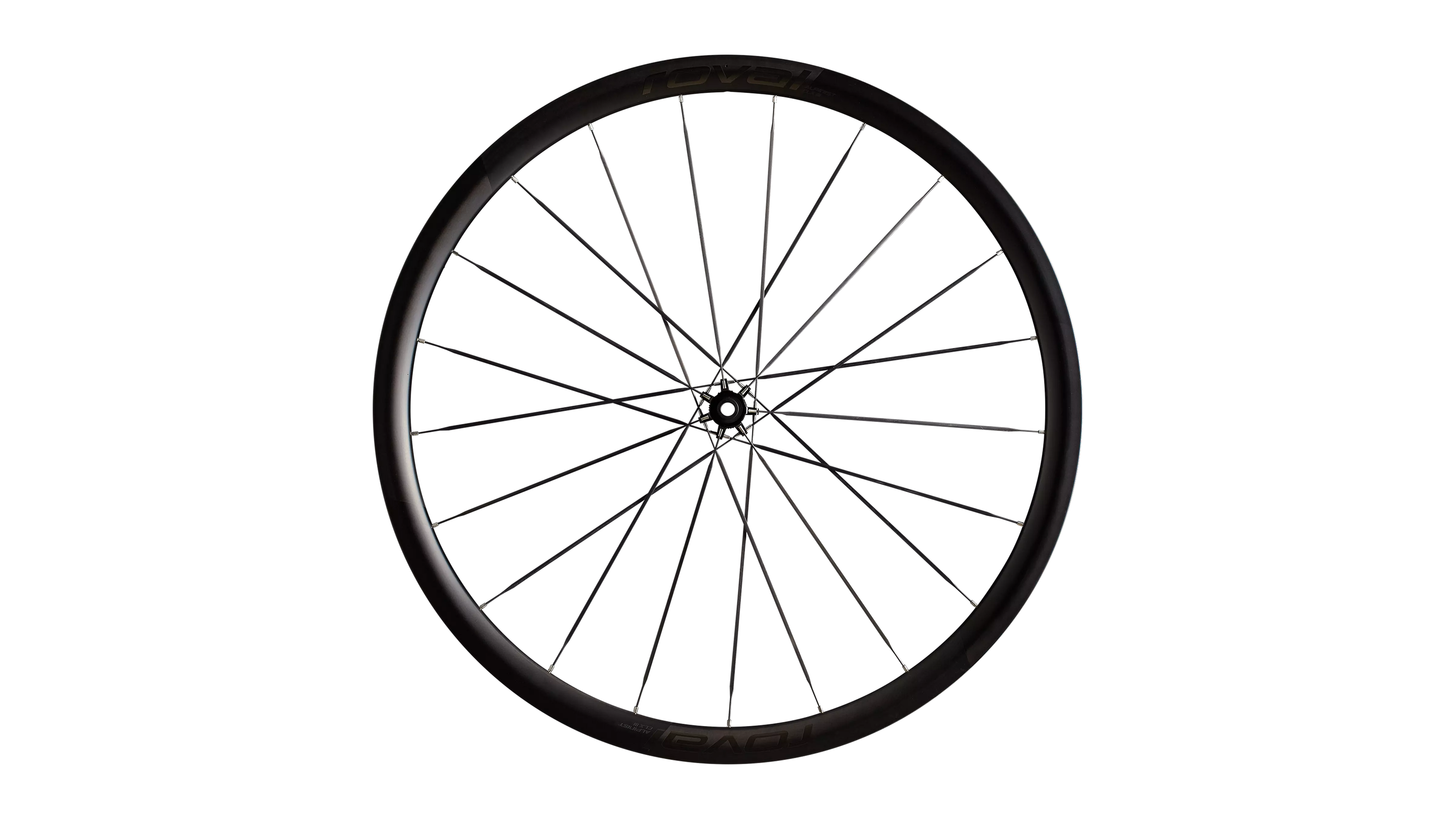

Front lacing pattern

Double cross / Radial (2:1), not folded

Rear lacing pattern

Single cross / Triple cross (2:1), not folded

Nipples

Arris MK4 alloy spoke nipple, 6 mm

Approved tire widths

24 mm-38 mm

Maximum pressure

Tubeless (110 psi) With inner tube (130 psi), 36 mm-38 mm: Tubeless (60 psi) With inner tube (60 psi)

Tire type

Tubeless Tire and Tire with Inner Tube

Tubeless tape width

25 mm

Tire design

RapidAir TLR, 28 mm

Front weight

518 g (with valves and tape)

Rear weight

613 g (with valves and tape)

Wheelset weight

1,131 g (with valves and tape)

Extra

4 extra spokes and nipples, Roval wheel bag, Shimano HG 11/12-speed freehub body for road bikes and end caps (rear wheel only)

Approved electric bikes

NO

Certifications

ISO 5775-2 certification, UCI approved

Weight limit

275 pounds / 125 kg

Assembly method

Handmade

Warranty

Limited lifetime warranty
