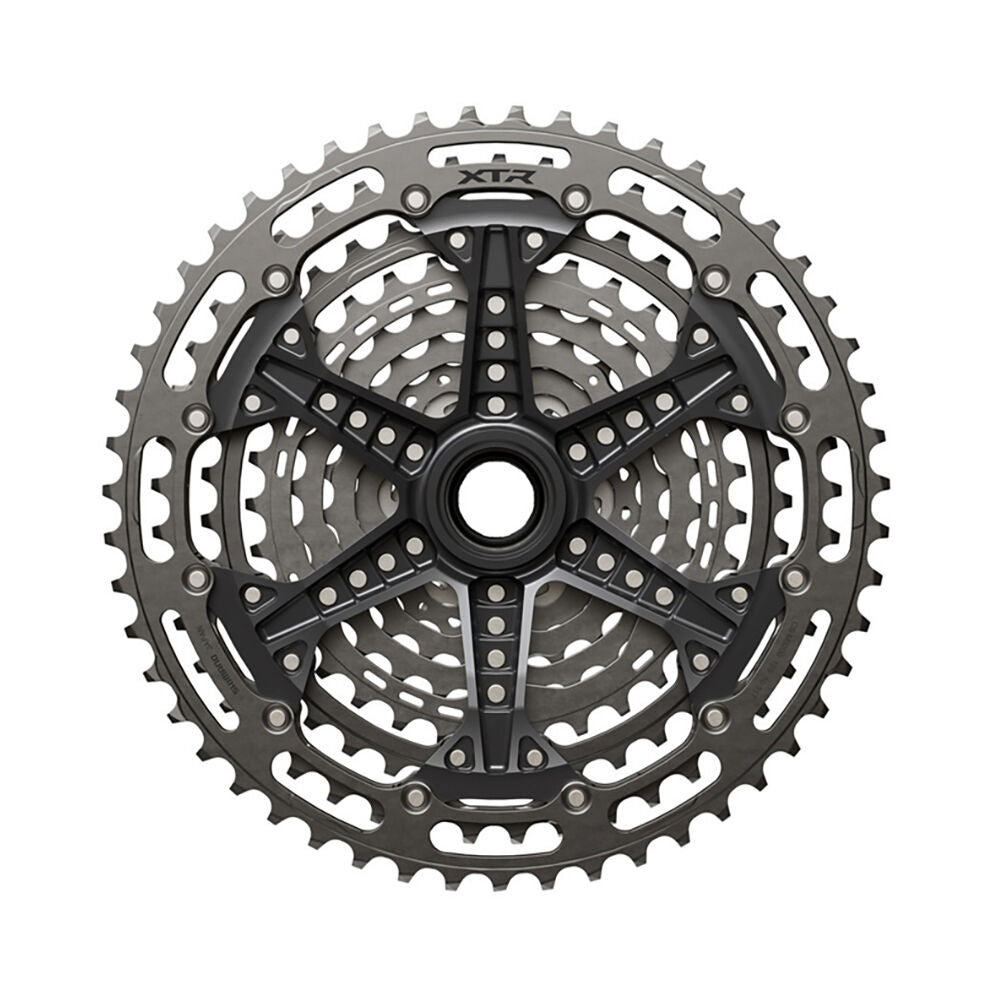

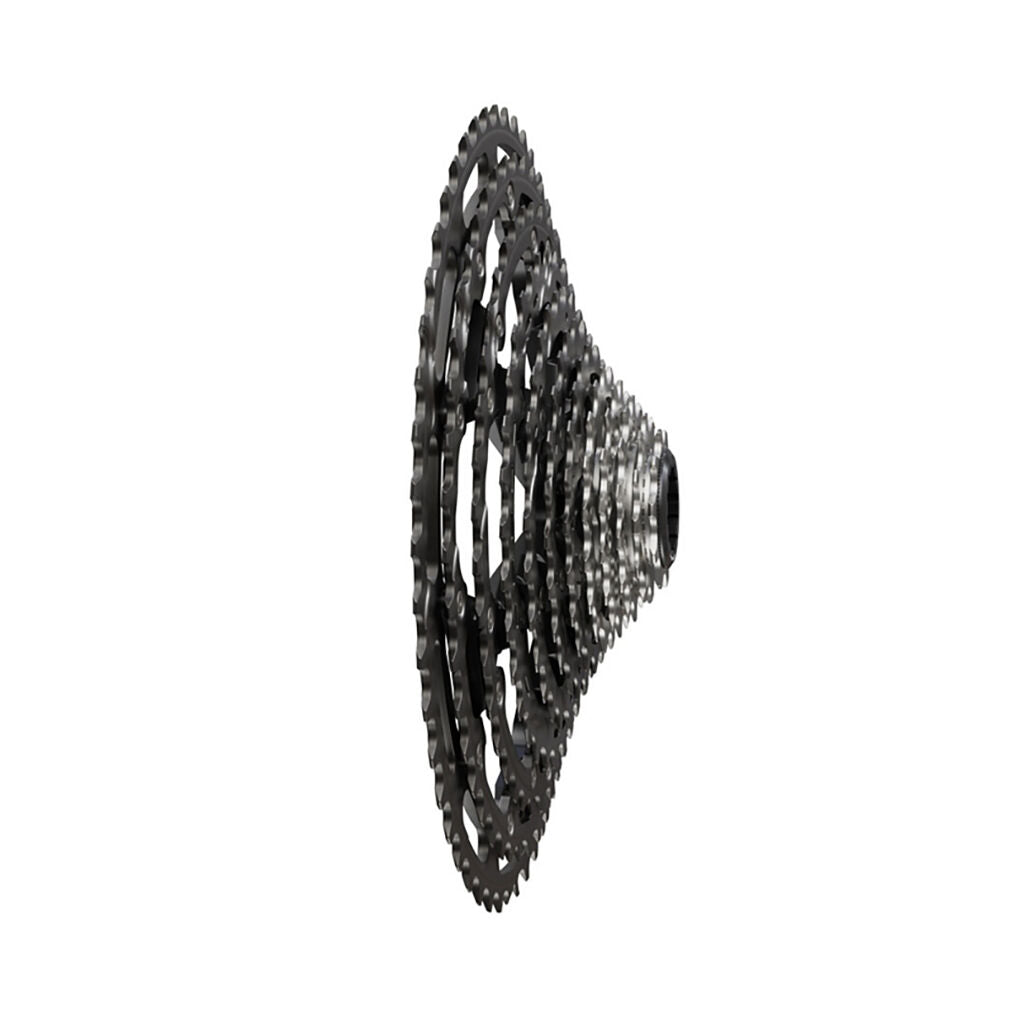

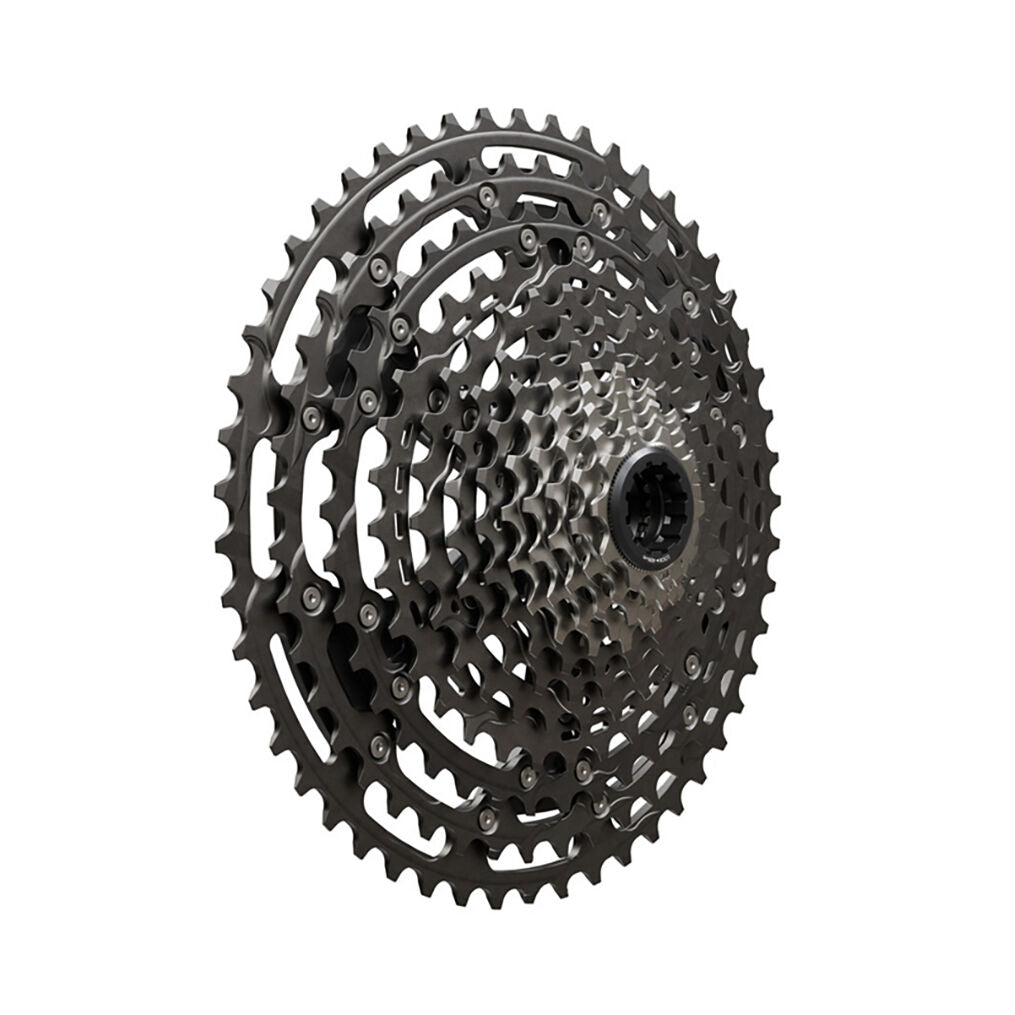

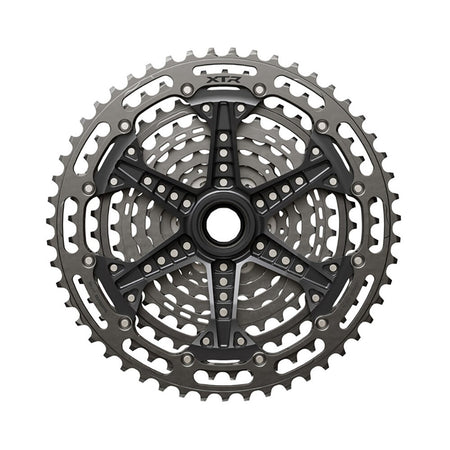

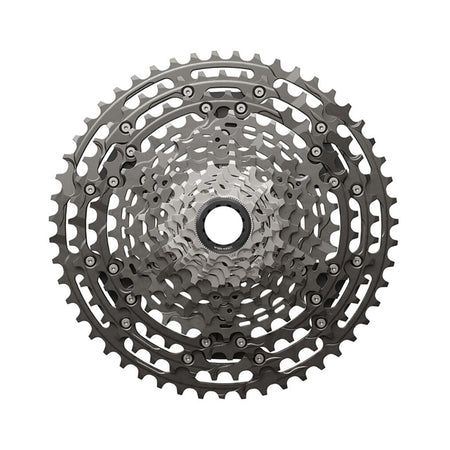

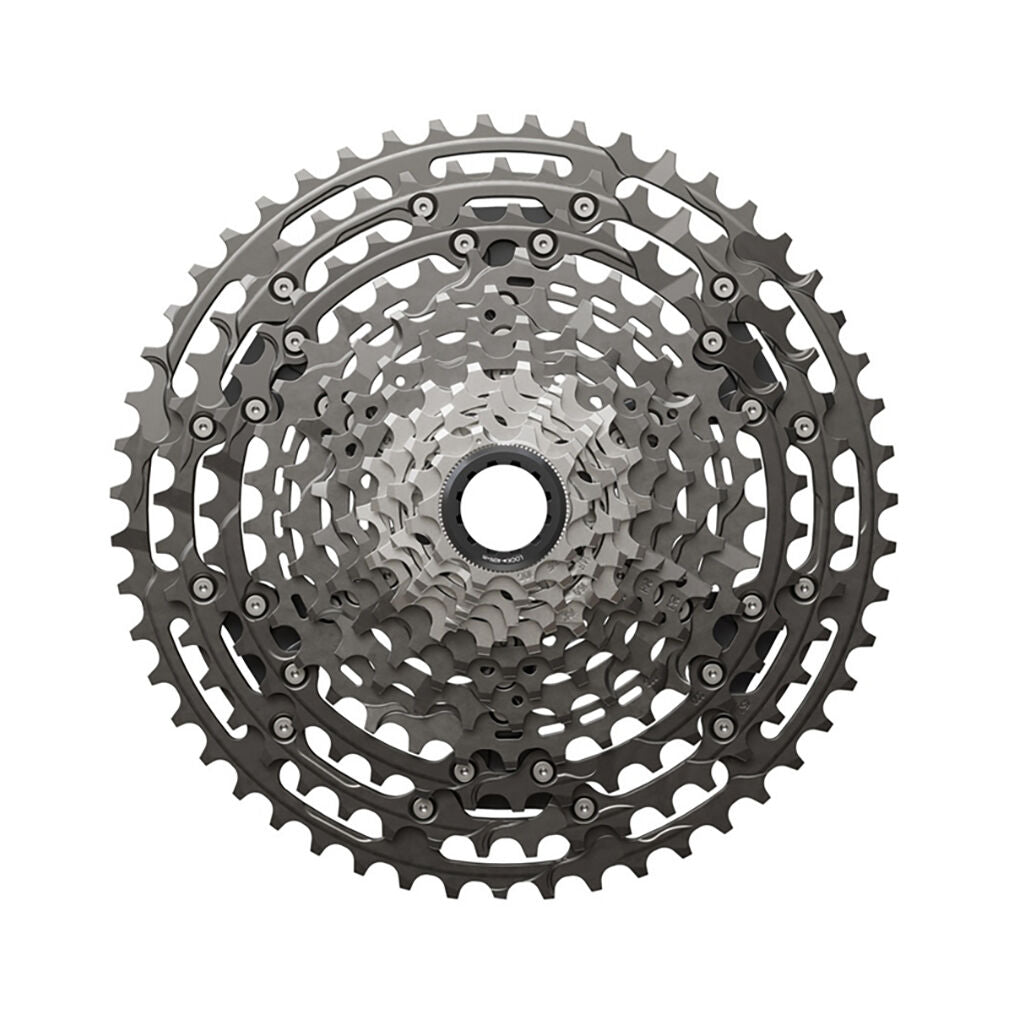

Pignoni Shimano XTR CS-M9200-12 12-speed cassette pack

The CS-M9200 cassette represents the evolution of the HYPERGLIDE+ shifting system. The new tooth profile of the cassette improves shifting under load, ensuring smoothness, speed, and durability. It is also compatible with MICRO SPLINE and is built with steel, titanium, and alloy teeth to optimize weight and durability.

Features

• 10-51T 510% Range: Wide gear range and broad compatibility with frames for all XTR cassette options.
• Compact 9-45T Transmission: When paired with smaller chainrings and the XTR medium cage rear derailleur, the 9-45T XTR cassette offers a lightweight, hassle-free option with a 500% range without sacrificing performance.
• Freehub Compatibility: The CS-M9200 is compatible with the MICRO SPLINE freehub body. The 9-45T can be installed using a special lock ring tool, the TL-LR021.
• Materials: Strategic use of steel, titanium, and alloy ensures the CS-M9200 cassette is lightweight and robust enough to give riders confidence.

Technical Specifications

• Series: XTR
• Type: HYPERGLIDE+
• Cogs: 12
• Compatible Chain: 12-speed HG
• Tooth Counts: 9-45T, 10-51T
• Gear Combinations: 9-11-13-15-17-19-21-24-28-33-39-45T / 10-12-14-16-18-21-24-28-33-39-45-51T
• Compatible Freehub Type: MICRO SPLINE
• Aluminum Spider Arm: 1
• Titanium Cogs: 5 (9-45T), 4 (10-51T)
• Aluminum Cogs: 2 (9-45T), 3 (10-51T)
• Steel Cogs: 5
