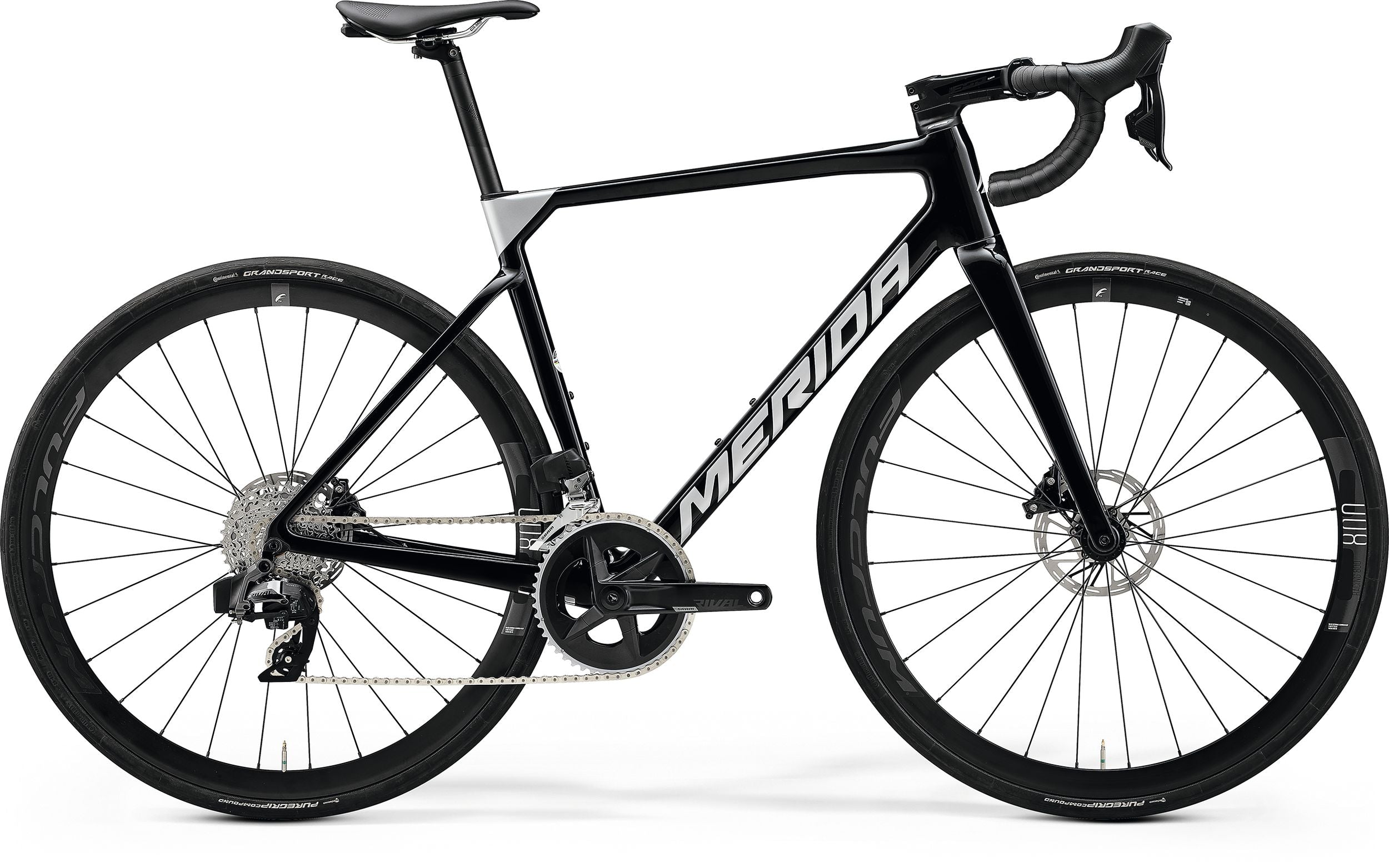

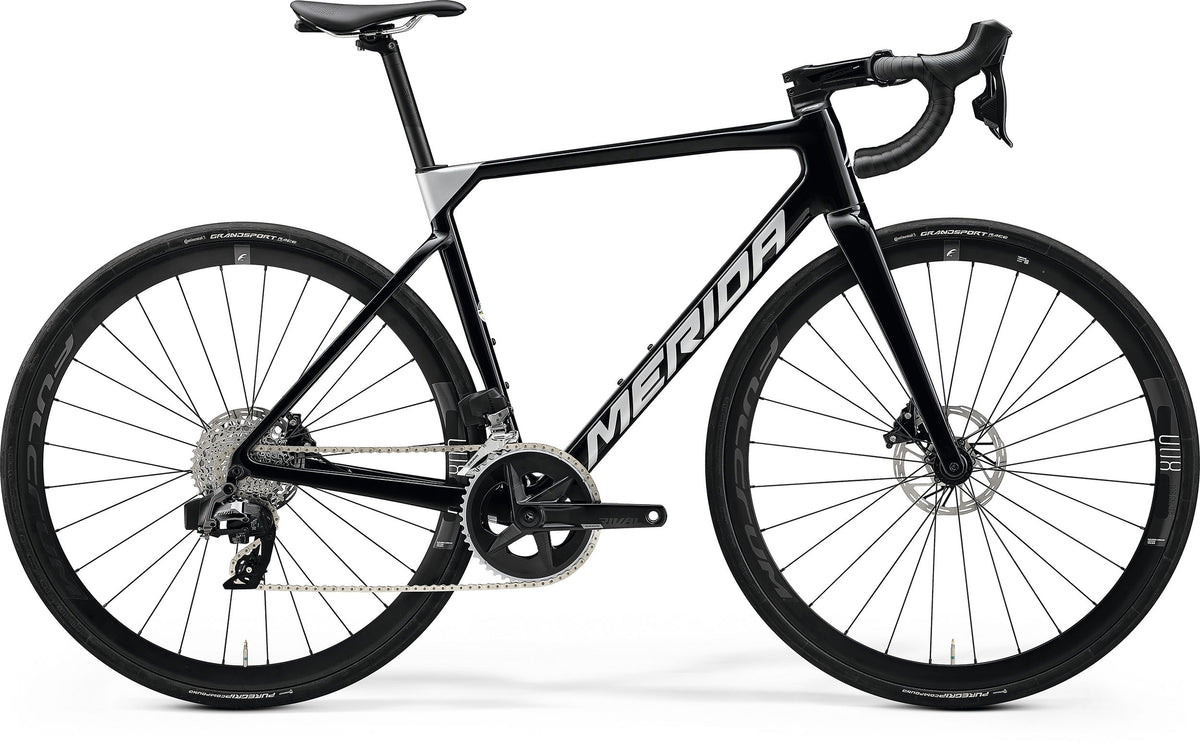

Merida Scultura Rival Edition

The new Merida Scultura Rival Edition brings reduced weight and top-class comfort to the table, while the wireless setup shows not even the slightest cable stretch near the two derailleurs.

Improved aerodynamics combined with impressive handling and outstanding comfort make the RIVAL EDITION a true all-rounder.

We are excited to present the 5th generation of our lightweight road bike. While incorporating aerodynamic details selected from our testing and the award-winning aerodynamic REACTO bike, the new SCULTURA is the most aerodynamic ever.

However, it remains true to its focus on lightness, agility, and rider comfort; in fact, it takes these factors to the next level.

The new SCULTURA demonstrates exceptional compliance, providing the rider with top-class riding comfort that will help keep the body fresh for the final sprint or climb.

The new CF5 and CF3 carbon versions share their geometry with our REACTO, given the race-proven handling of the Team Bahrain Victorious.

Specifications

Color

METALLIC BLACK(SILVER)

Measurements

L(53), M(51), S(49), XL(56), XXS(39)

Frame

SCULTURA CF3 V; MAT carbon; 700x30C max. Tire Width; 100x12/142x12 Axle Standards; Pressfit 86.5

Fork

SCULTURA CF3 disc; MAT carbon; 700x30C max. Tire Width

Brake Levers

Sram ED Rival eTap AXS

Front Brake

Sram ED Rival eTap AXS; Hydraulic disc

Rear Brake

Sram ED Rival eTap AXS; Hydraulic disc

Chain

SRAM Rival 12s

Crankset

Sram Rival eTap AXS; 48-35 ATC

Rear Derailleur

Sram Rival eTap AXS; SS

Cassette

CS XG 1250 D1; 10-36 ATC; 12 Speed

Handlebar Bend

MERIDA EXPERT SL; MAT aluminium; 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)

Handlebar Stem

FSA SMR ACR; MAT aluminium; -6 ASD

Headset Series

FSA ACR

Rims

Fulcrum Racing 800 DB; 100x12 Front Hub; 142x12 Rear Hub; 19 IWR; 34 HRI; Centerlock

Saddle

MERIDA EXPERT SL; V-mount; incl. MERIDA minitool

Seatpost

MERIDA Team SL; 27.2 DSP; 15 SSB; Carbon; S-Flex

Right Shifter

Sram Rival eTAP AXS HRD

Left Shifter

Sram Rival eTAP AXS HRD

Tires

Continental Grand Sport Race; 700x28C; foldable

Crankset

165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL

Bottom Bracket Series

Sram Pressfit Dub, Pressfit 86.5

Bell

YWS-Alloy

Seat Clamp

MERIDA Expert

Handlebar Grips

Merida Road Expert

Front Derailleur

Sram Rival eTap AXS

Geometry
