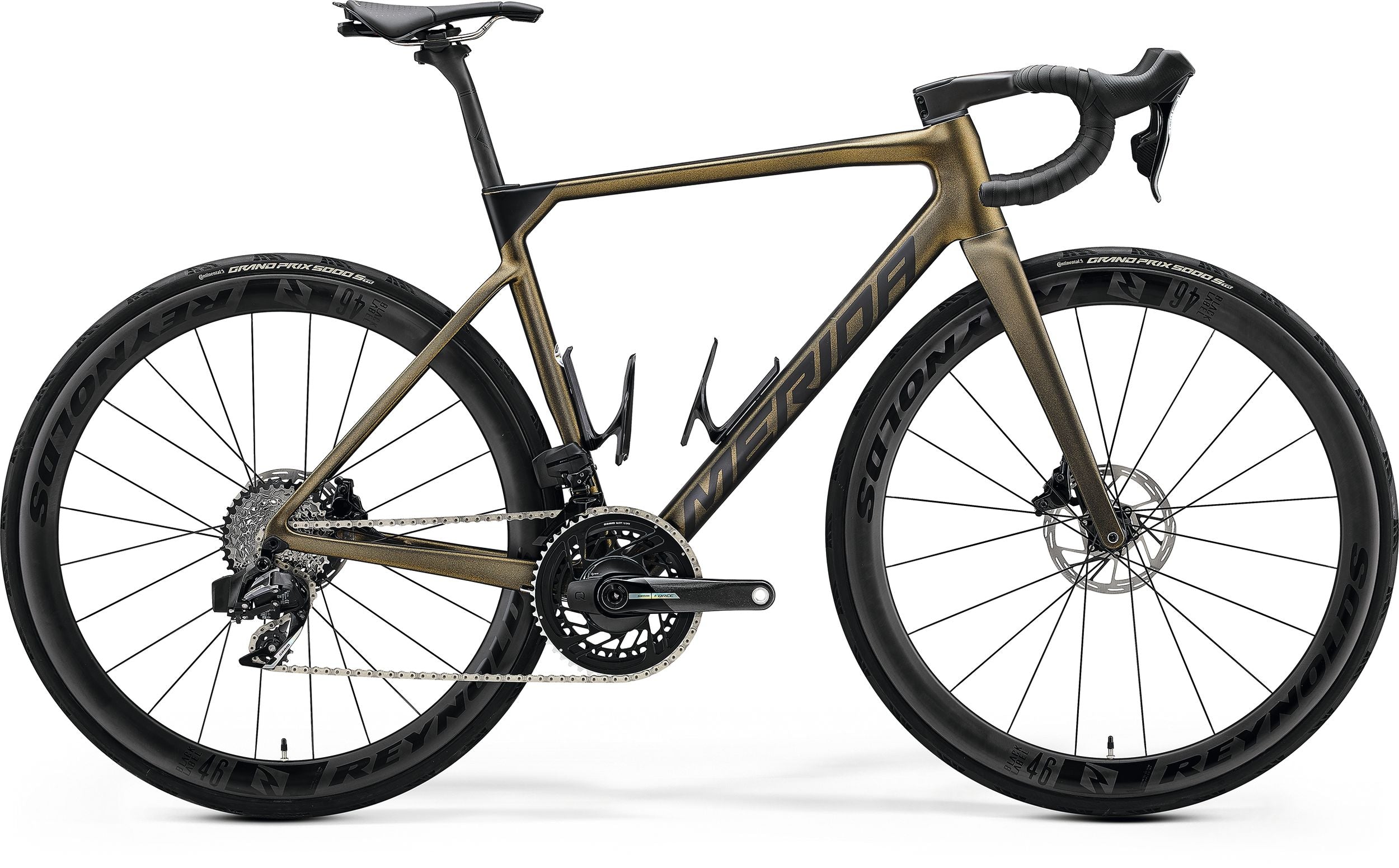

Merida Scultura 9000 Force AXS
Couldn't load pickup availability
High-end components pair with our optimized-weight SCULTURA CF5 frame. Beyond a lightweight frame, this bike has adapted a long list of aerodynamic features from the REACTO and combined them with precise handling and category-leading race compliance.
Specifications
- material: carbon
- 700x30C max. wheel size
- 100x12/ 142x12 mm axle standard
- Pressfit 86.5
- material: carbon
- 700x30C max. wheel size
- Hydraulic disc
- 160 mm
- VP-MRBHB (OP-203 neck)
- 50-37 teeth
- Power Meter
- 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M, 175 mm-L/XL
- 27.2 mm diameter
- 15 mm setback
- Carbon
- S-Flex
- V-mount adapter
- incl. MERIDA minitool
- 10-36 teeth
- 12 speed
- Pressfit 86.5 mm
- including removable lever
- 6/4 mm allen key
- 100x12 mm front hub width
- 142x12 mm rear hub width
- 21 mm inner width
- 46 mm height
- Centerlock
- material: carbon
- Tubeless ready (tubeless tape and valves included)
- 700x28C
- fold
- tubeless ready
- Total weight of bike, rider and luggage
*The manufacturer reserves the right to change website information without notice, including specifications, models, colors, and materials.
*Images are for illustrative purposes only and may not correspond to the product description.
Size chart
| FRAME SIZE | XXS | XS | S | M | L | XL |
| TIRE SIZE | 28" | 28" | 28" | 28" | 28" | 28" |
| ST SEATPOST MM | 435 | 458 | 481 | 501 | 521 | 550 |
| TT TOP TUBE MM | 520 | 535 | 545 | 560 | 575 | 590 |
| CS REAR CHAINSTAY MM | 408 | 408 | 408 | 408 | 408 | 408 |
| HTA HEAD TUBE ANGLE DEGREES | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| STA SEAT TUBE ANGLE DEGREES | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| BD BOTTOM BRACKET DROP MM | 70 | 70 | 66 | 66 | 66 | 66 |
| HT HEAD TUBE HEIGHT MM | 105 | 112 | 128 | 140 | 155 | 176 |
| FI FORK LENGTH MM | 385 | 385 | 385 | 385 | 385 | 385 |
| R REACHS MM | 377 | 383 | 390 | 395 | 400 | 409 |
| S STACKS MM | 517 | 529 | 542 | 557 | 571 | 593 |
| WB WHEELBASE MM | 985 | 982 | 989 | 990 | 1000 | 1010 |
| SH STAND OVER HEIGHT MM | 721 | 745 | 765 | 782 | 800 | 823 |
