Home » Merida Reacto Team
Merida

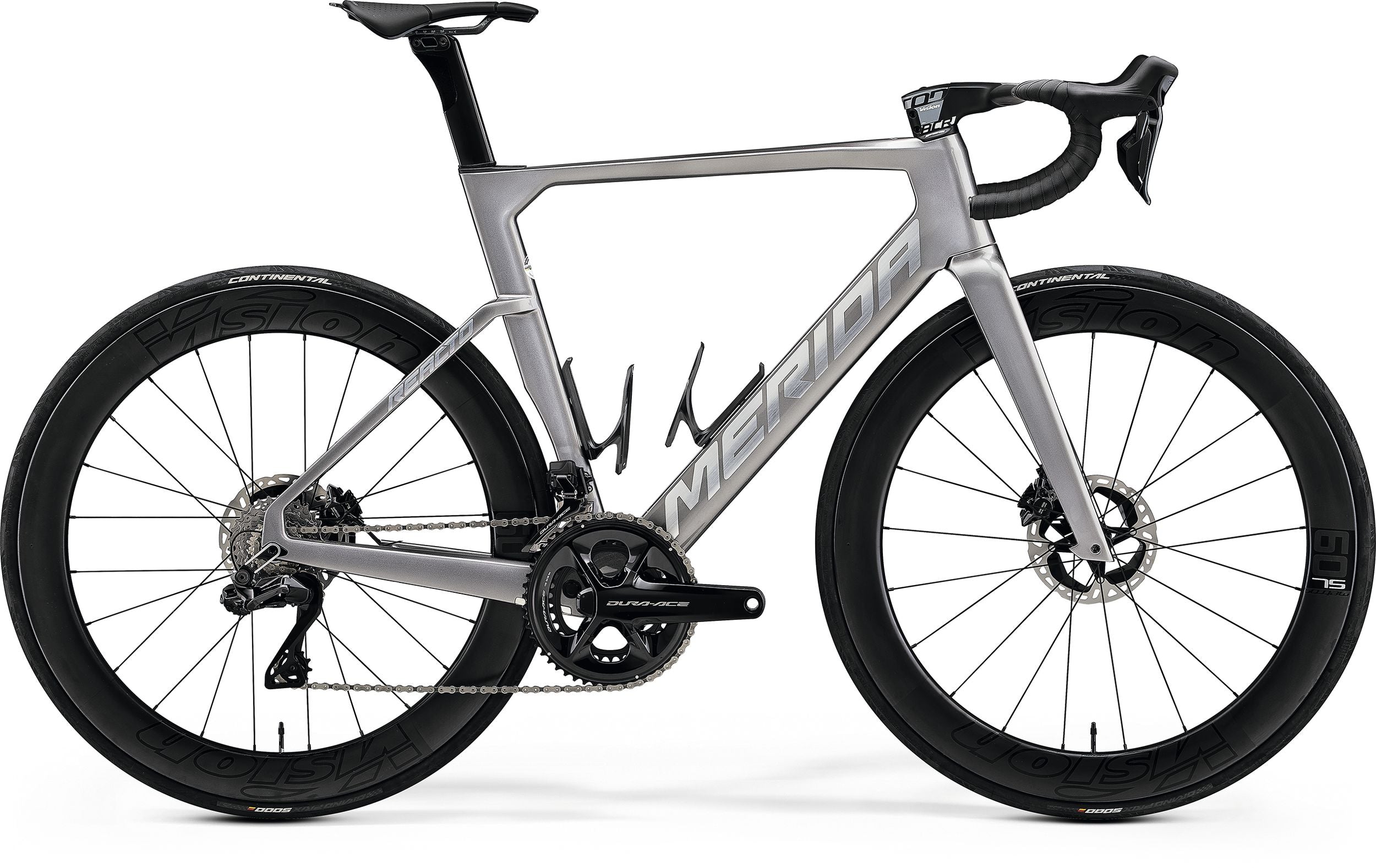

Merida Reacto Team

Only 1 left
SKU: A62411A00074 Barcode: 4711256469355
Size
ā‚¬6.186,89 incl. VAT
-40% ā‚¬10.318,03 ā‚¬6.186,89 incl. VAT

High-level aerodynamic REACTO bike and reference for Team Bahrain Victorious. Being one of the most winning and awarded bikes in recent history, the REACTO TEAM combines low weight, exceptional aerodynamics, perfect cable integration, and impressive aerodynamic comfort. Equipped with high-end gear from Shimano, Vision, FSA, and Continental, this bike is equally at ease in top-level races as well as challenging amateur rides.

Specifications

FRAMEĀ REACTO CF5 IV
  • material: carbon
  • 700x30C max. wheel size
  • 100x12/ 142x12 mm axle standard
  • BB86.5 bottom bracket standard
COLORĀ GUNMETAL GREY (FLASH BCP)
FRAME SIZEĀ XXS, XS, S, M, L
FORKĀ REACTO CF5 IV disc
  • material: carbon
  • 700x30C max. wheel size
BRAKESĀ Shimano Ultegra
  • Hydraulic disc
DISCSĀ ShimanoĀ
  • 160 mm
STEERING SETĀ FSA ACR
HANDLEBAR DROPĀ MERIDA TEAM SL 1P INTEGRATED
  • material: carbon
  • 400 mm (XXS-XS)
  • 420 mm (S-M-L)
  • 440 mm (XL)
HANDLEBAR STEMĀ MERIDA TEAM ONE-PIECE INTEGRATED
  • material: carbon
  • 90mm (XXS-XS)
  • 100 mm (S)
  • 110 mm M
  • 120 mm (L-XL)
GRIPSĀ Prologo One-Touch
FRONT DERAILLEURĀ Shimano Ultegra Di2
DERAILLEURĀ Shimano Ultegra Di2
CONTROLSĀ Shimano Ultegra disc Di2
CRANKSETĀ 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
SEATPOSTĀ MERIDA TEAM CW
  • Aero shape
  • 15 mm setback
  • material: Carbon
SEATPOST CLAMPĀ MERIDA REACTO Aero
SADDLEĀ Prologo Scratch M5
CHAINĀ Shimano 12
CRANKSETĀ Shimano Ultegra
  • 52-36 teeth
  • Power Meter
CASSETTEĀ ShimanoĀ
  • 11-30 teeth
  • 12 speed
BOTTOM BRACKET SETĀ Shimano SM-BB92-41B
  • Pressfit 86.5 mm
AXLESĀ MERIDA EXPERT SL
  • including removable lever
  • 6/4 mm allen key
WHEELSĀ Vision Metron 60 SL Clincher TL Disc
  • 100x12 mm width front hub
  • 142x12 mm width rear hub
  • 21 mm inner width
  • 60 mm height
  • Centerlock
  • material: carbon
  • Tubeless ready (tubeless tape and valves not included)
TIRESĀ Continental Grand Prix 5000S TR
  • 700x25C
  • fold
  • tubeless ready
MOTORĀ Disc cooler F/R
MAXIMUM ALLOWED WEIGHTĀ 120 kg
  • Total weight of bike, rider and luggage

*The manufacturer reserves the right to change website information without notice, including specifications, models, colors, and materials.

*Images are for illustrative purposes only and may not correspond to the product description.

Geometry

Frame geometry image

FRAME SIZE XXS XS S M L XL
TIRE SIZE 28" 28" 28" 28" 28" 28"
ST SEATPOST MM. 470 500 520 540 560 590
TT TOP TUBE MM. 520 536 545 560 575 590
CS REAR CHAINSTAY MM 408 408 408 408 408 408
HTA HEAD TUBE ANGLE DEGREES 70.5 72 72.5 73.5 73.5 74
STA SEAT TUBE ANGLE DEGREES 74.5 74 74 73.5 73 73
BD BOTTOM BRACKET DROP MM. 70 70 66 66 66 66
HT HEAD TUBE HEIGHT MM. 105 112 128 140 155 176
FI FORK LENGTH MM. 385 385 385 385 385 385
R REACHS MM 377 384 390 395 400 409
S STACKS MM 517 529 542 557 571 593
WB WHEELBASE MM 985 983 990 990 999 1010
SH STAND OVER HEIGHT MM 746 771 792 810 826 853
