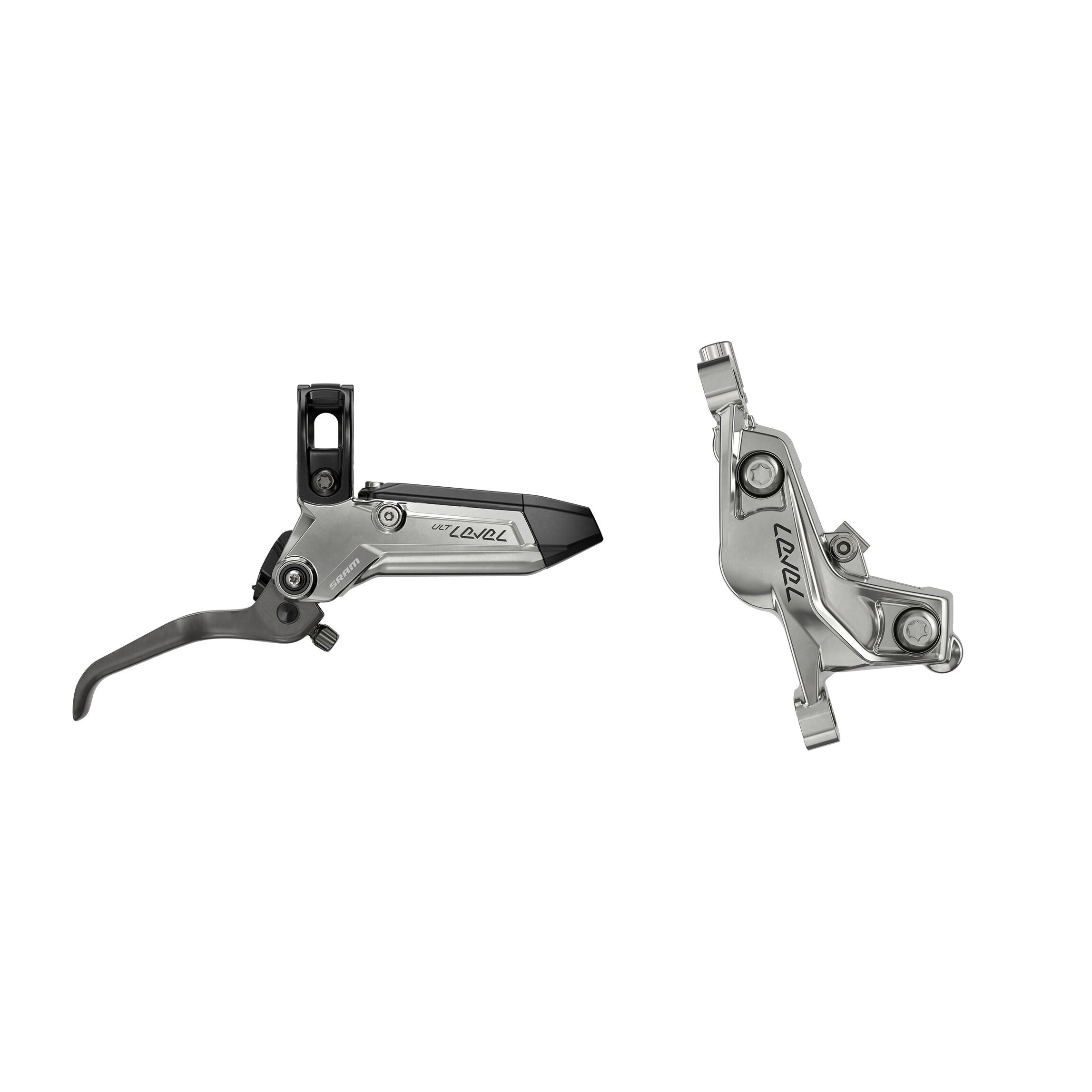

Sram Level Ultimate Stealth 4-Piston Disc Brake

The Level Ultimate Stealth 4-piston brake combines high-level Level Ultimate technology with the new Stealth body to offer you one of the lightest and most elegant brakes on the market. The power-to-weight ratio is what you expect from Level, with a new lever design aimed at creating a clean and fast cockpit.

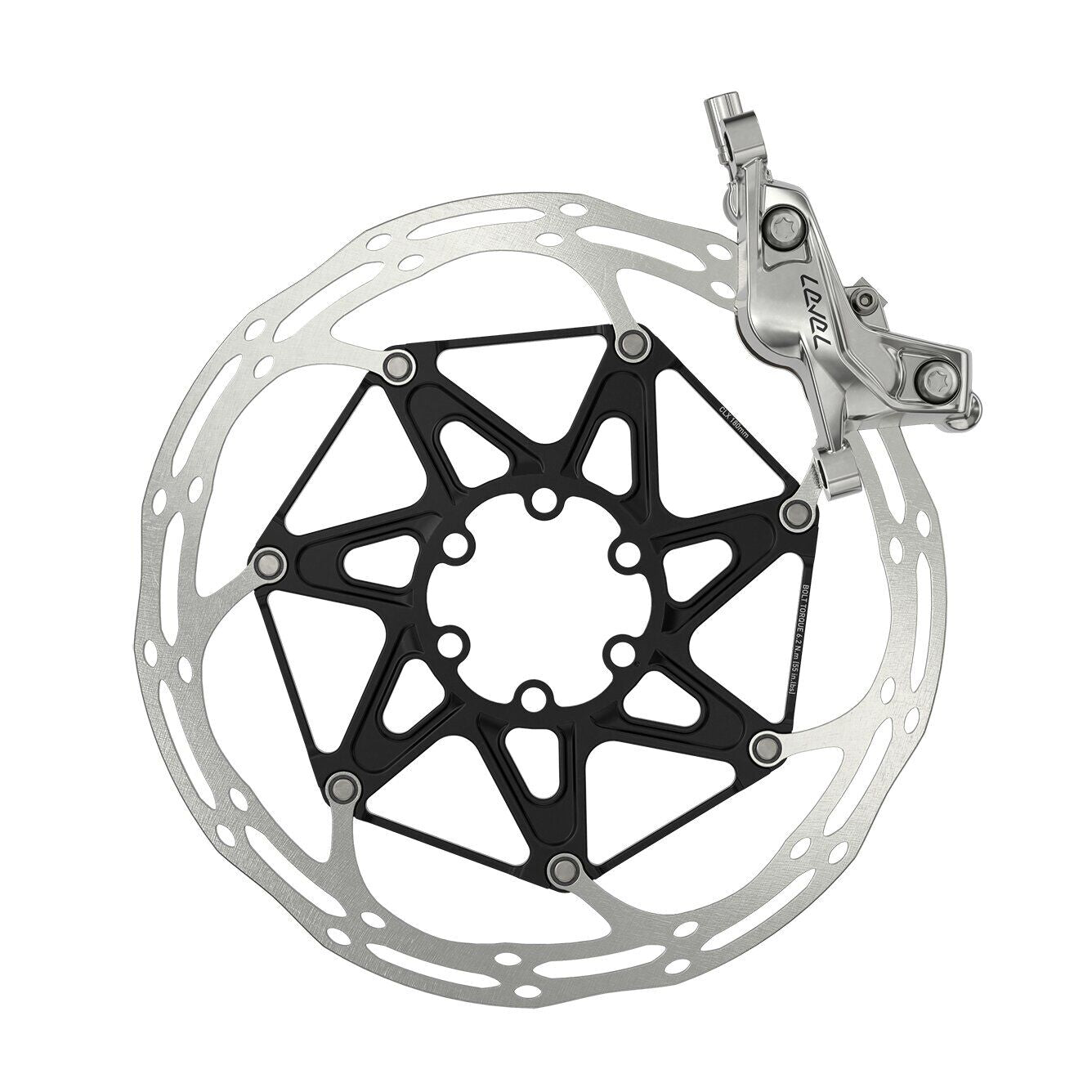

Complete brake kit already assembled with hoses, oil, and pads. Brake rotors and adapters not included.

Features

• Aerodynamic body designed to integrate with AXS cockpits.
• Modern XC power for today's most demanding races.
• Tool-free reach adjustment for easy customization.

Included

• 1x SRAM Level Silver stealth 4-piston disc brake.
• 2x bolts to mount the caliper
• 1x MatchMaker clamp
• 1x olive and hose insert
• 1x brake pad spacer
• 1x Torx wrench

Technical specifications

• Application (db): MTB.
• Brake type: Hydraulic.
• Lever material: Carbon.
• Orientation: Front, rear.
• Pad type (rotor): Organic with steel backing.
• Bracket (disc brake): direct mount DIR, Intl Std (140 mm rear, 160 mm front rotor) 0IS, Intl Std (160 mm rear, 180 mm front rotor) 20I, Intl Std (180 mm rear, 200 mm front rotor) 40I, Intl Std (200 mm rear rotor) 60I, Post mount (20 mm bracket) 20P, Post mount (20 mm spacer) 20S, Post mount (40 mm bracket) 40P.
• Reach adjustment: Tool-free.
• Contact adjustment: No.
• Hydraulic fluid: DOT 5.1.
• Lever pivot: Bearing.

Technology

Bleeding Edge

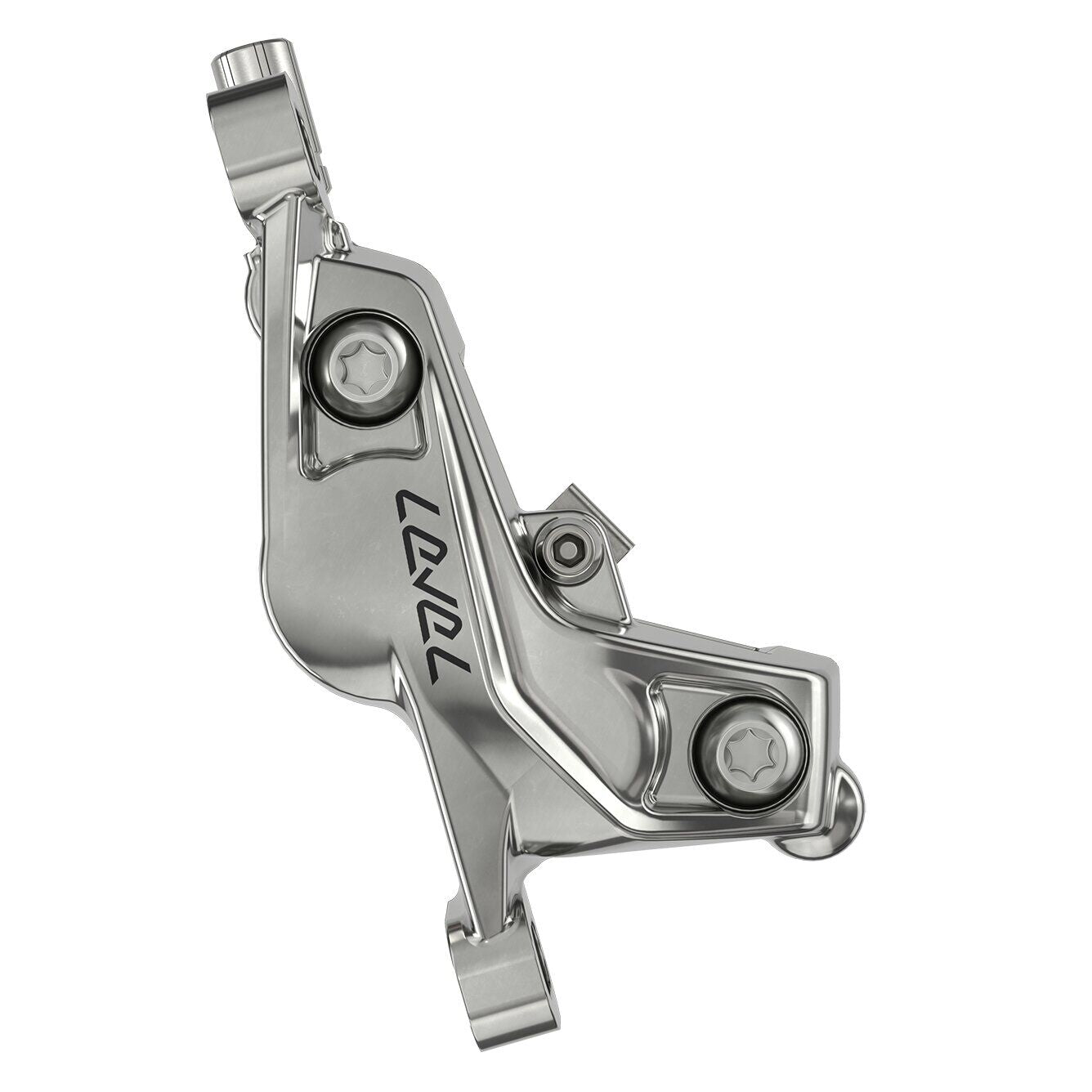

With this new caliper fluid circuit, the bleed port has been moved to the bottom of the caliper and all four piston chambers can communicate. This way, during bleeding, the fluid naturally fills the caliper, making bleeding easier and more consistent.

DirectLink

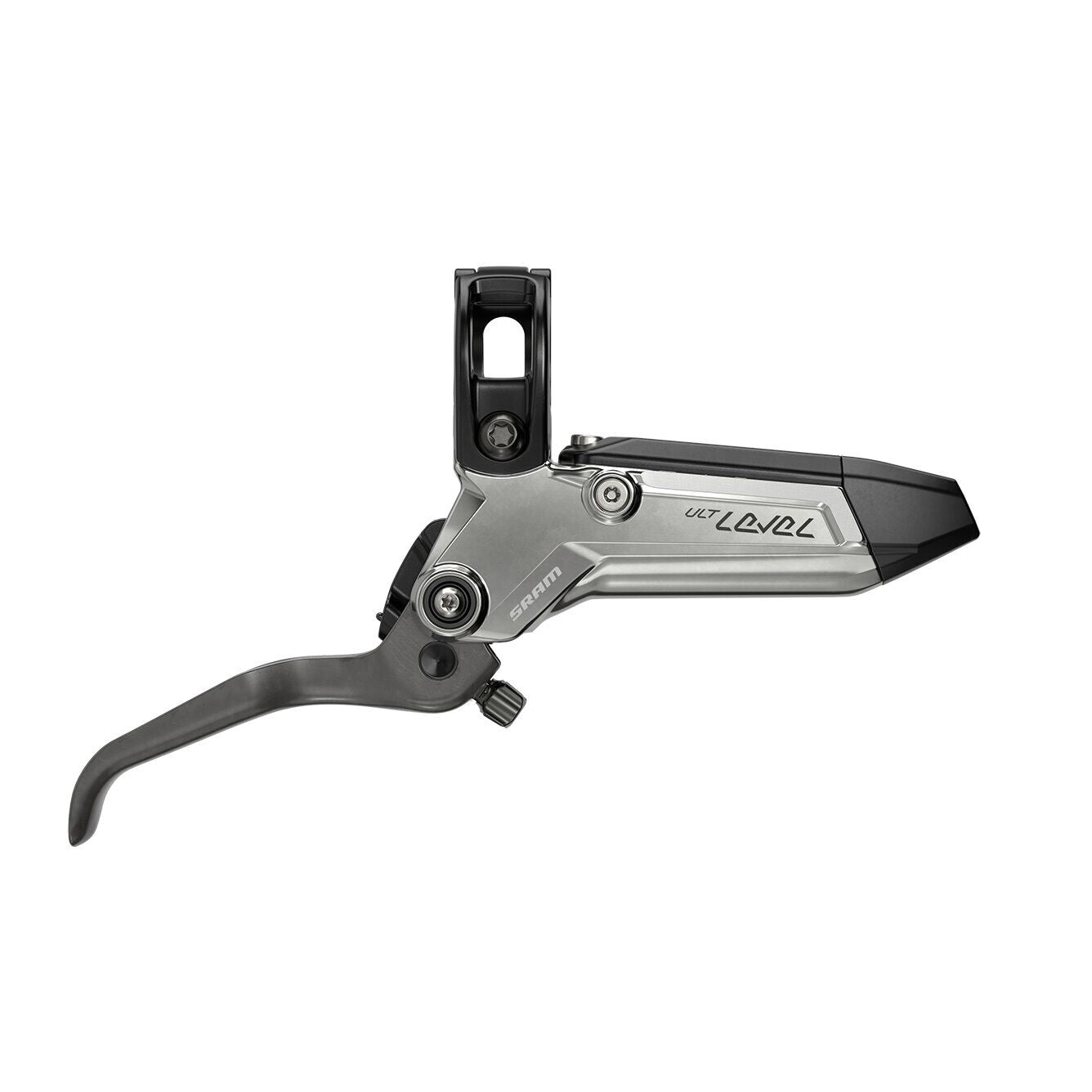

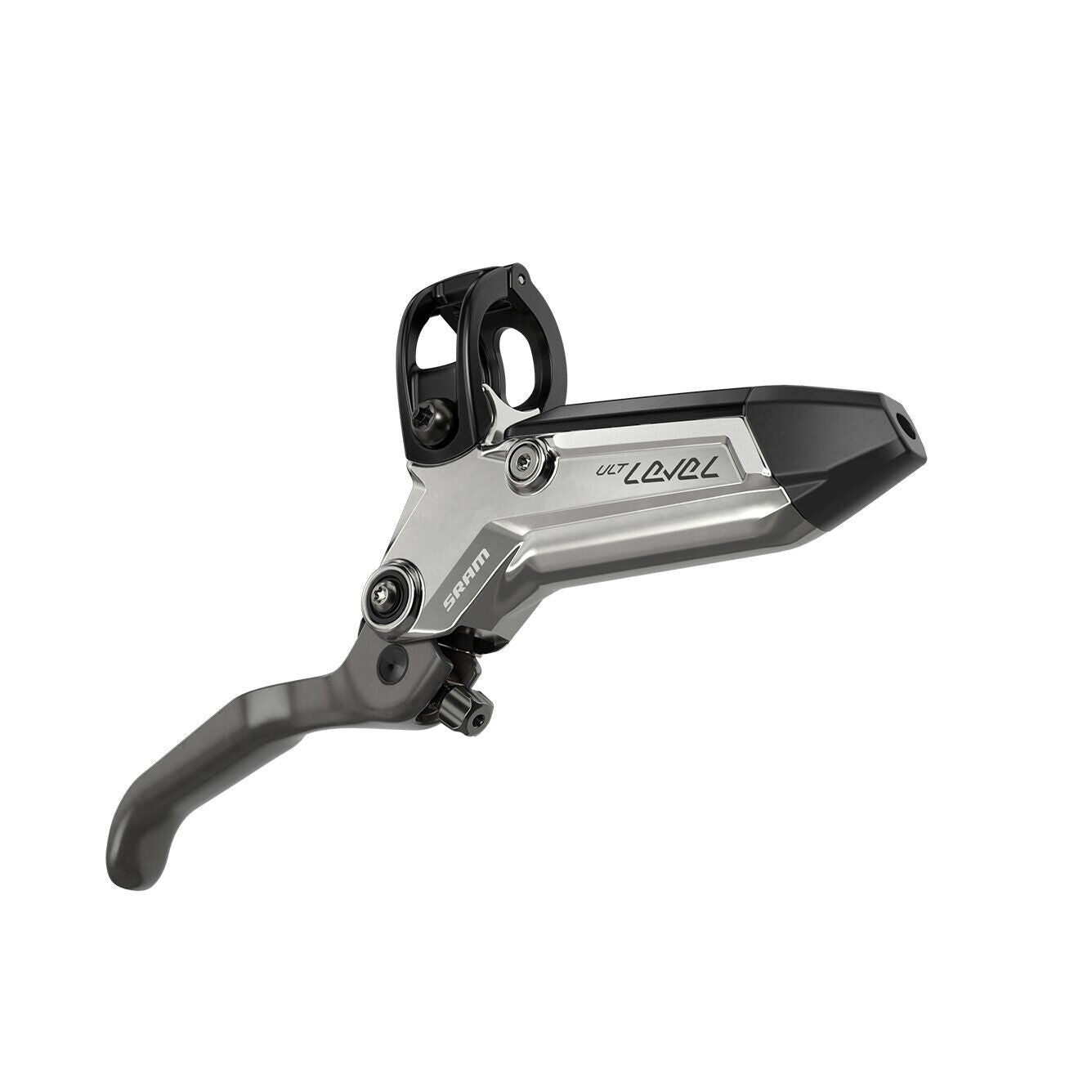

SRAM's DirectLink lever design produces a solid and positive feel the moment you squeeze the lever to engage the brake. It offers a no-nonsense solution for precise control.

Lever Pivot Bearings
Precision sealed bearings on the lever pivot improve the smoothness and crispness of lever actuation and the one-finger light feel.

Timing Port Closure
The timing port of a hydraulic brake is the connection between the reservoir and the lever cylinder bore. When the lever is pressed, a cup seal passes through this area and closes the port, pressurizing the system. SRAM's timing port closure system features durable seals and an ultra-smooth cylinder bore finish that produces reliable and consistent braking power.

Expandable Bladder
SRAM's new brake lever design includes a reshaped bladder that helps regulate and reduce air bubbles. The bladder has a specific shape to evacuate air from the lever and push fluid exactly where needed. The result is better backpressure relief, producing reliable braking power and consistency.
