Home » Focus Whistler 3.9
Focus

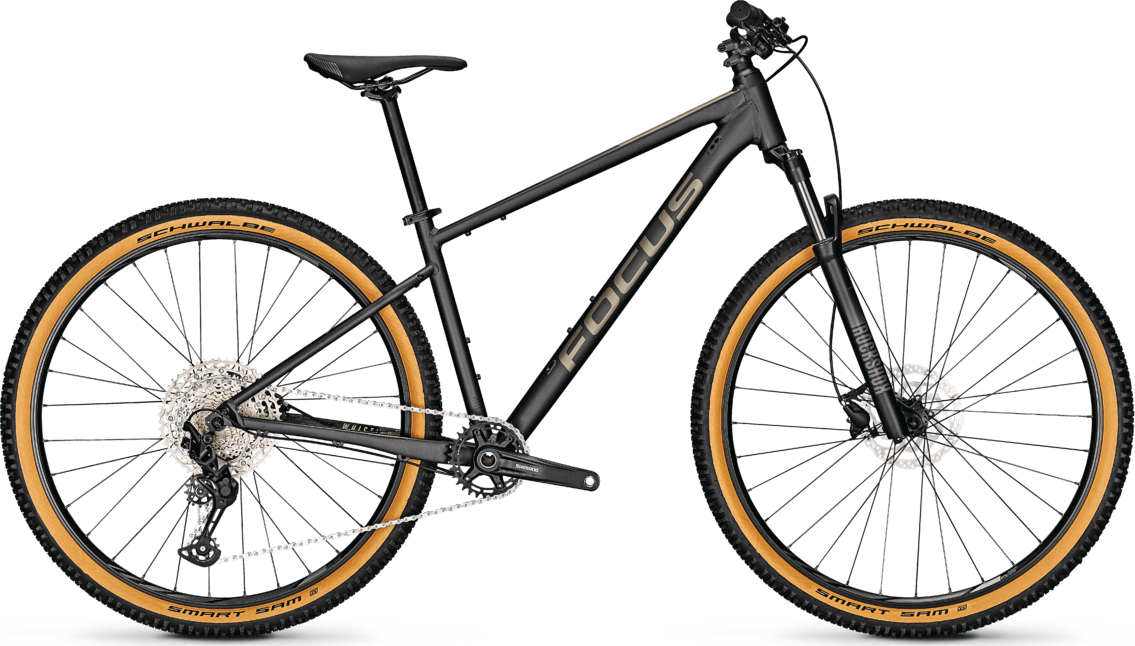

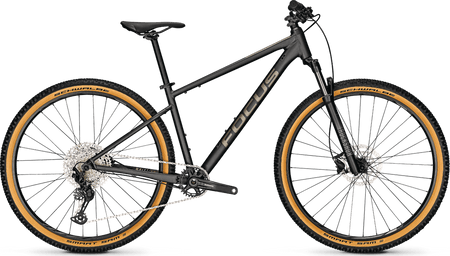

Focus Whistler 3.9

Out of stock
SKU: 644019301 Barcode: 4000990415802
Size
€392,46 incl. VAT
-65% €1.130,16 €392,46 incl. VAT

  • A wheel size that fits your height

    With WHISTLER you get the ideal wheel size to match your height and needs: WHISTLER in sizes XL to M comes with 29" wheels. Sizes S and XS have 27.5" wheels.

  • Reliable braking power and integrated design

    When facing risky situations, you need a partner you can rely on. That’s why we equipped our WHISTLER with disc brakes to ensure consistent braking performance and optimal braking behavior in all weather conditions. We route all cables through the frame’s down tube for better protection and durability and a clean look.

  • Ready for your riding requirements

    To let you fully customize your bike to your needs, you have the option to mount a rack, a fender, a light, and a kickstand.

WHISTLER 3.9 Features

Rock Shox Judy TK Air fork

Shimano SLX/Deore 1x12

Capability to mount racks & fenders

Specifications


Frame
6061 aluminium, 3D forging, disc, internal cable routing, post mount 160 mm

Fork
Rock Shox Judy TK Air, 5x100 mm QR, 51mm rake, 100 mm

Fork travel
80mm (XS-S) / 100mm (M-XL)

Gearshift
Shimano Deore M6100, 12-speed

Rear derailleur
Shimano SLX M7100, 12-speed

Cassette
Shimano Deore M6100, 12-speed

Chain
Shimano Deore CN-M6100, 12-speed

Crankset
Shimano Deore FC-M6100, 12-speed

Drivetrain
front: 32, rear: 10-51

Bottom bracket
BSA

Handlebar
Riser, Aluminum, 720mm

Grips
Velo VLG108

Handlebar stem
Aluminum, 31.8 mm, 6°

Headset
VP Components 1-1/8", ZS44/28.6-ZS44/30 Ahead

Saddle
Focus saddle

Seatpost
Alloy, 27.2 mm

Front / rear brakes
Shimano MT200 / Shimano MT200

Front brake disc
180 mm

Rear brake disc
160 mm

Rims
Aluminum 29"

Front hub
Shimano HB-TX505, QR, 5x100 mm

Rear hub
Shimano TC500 MS, QR, 5x100 mm

Spokes
Zink, black

Front / rear tires
Schwalbe Smart Sam 2.25, 57-622 / Schwalbe Smart Sam 2.25, 57-622

Step (Kg)
13.4 kg ()

Allowed system weight
110 kg

*The manufacturer reserves the right to change website information without notice, including specifications, models, colors, and materials.

*Images are for illustrative purposes only and may not correspond to the product description.

Size chart

Segment Section XS S M L XL
Size in mm 340 360 420 460 500
Handlebar width 720 720 720 720 720
Handlebar stem length 60 60 60 60 60
Crank length 170 170 170 170 170
Seatpost length 420 500 420 460 500
A Seat tube length 340 360 420 460 500
B Top tube length 549 574 606 636 666
C Steering angle (°) 68 68 68 68 68
D Seat tube angle (°) 74 74 74 74 74
E Horizontal chainstay length 440 400 450 450 450
F Bottom bracket drop 48 48 60 60 60
G Head tube length 120 120 120 140 160
H Fork length 497 497 515 515 515
I Fork offset 42 42 51 51 51
J Wheelbase 1079 1104 1155 1187 1220
K Stack 605 605 630 649 667
L Reach 375 400 425 450 475
