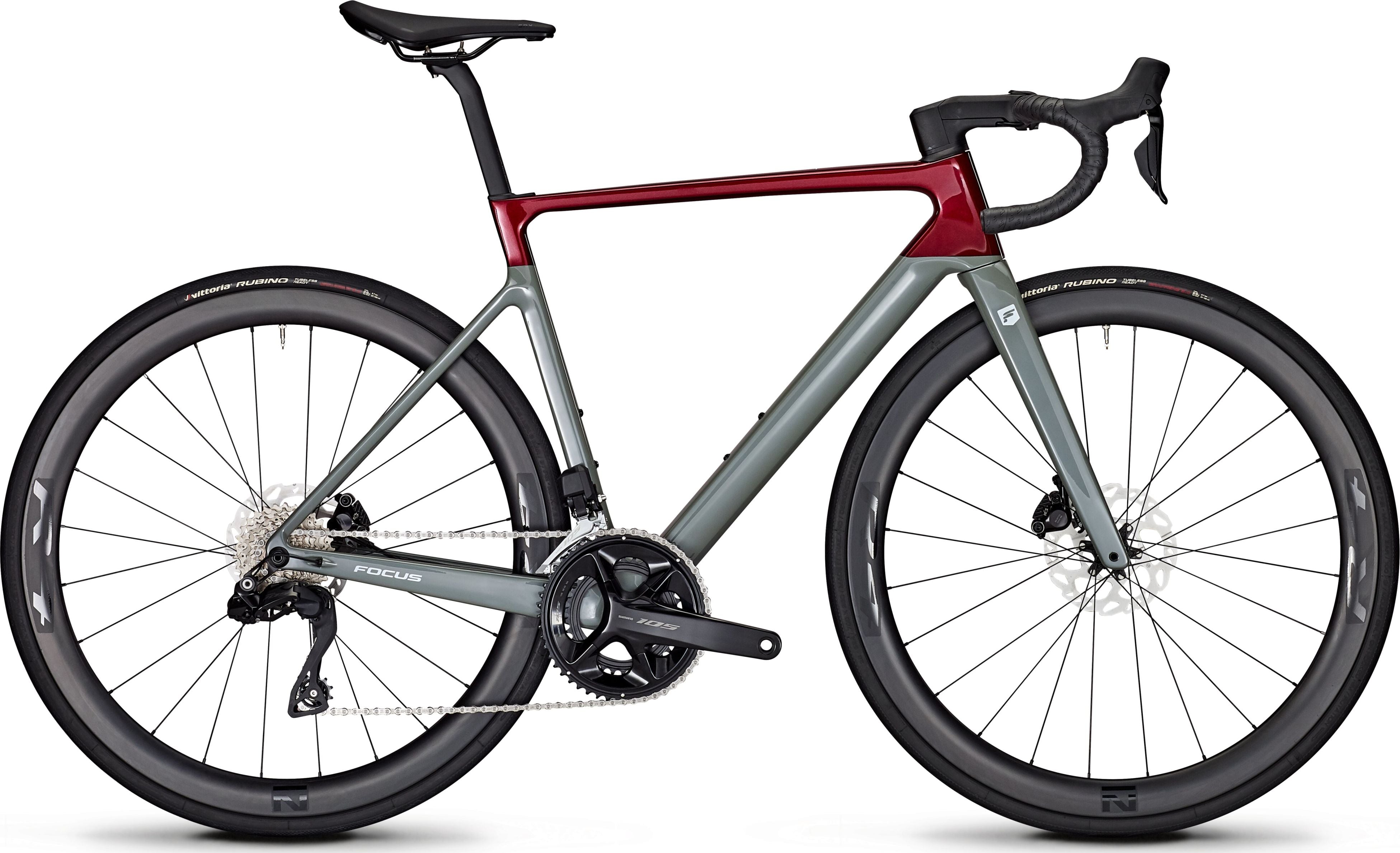

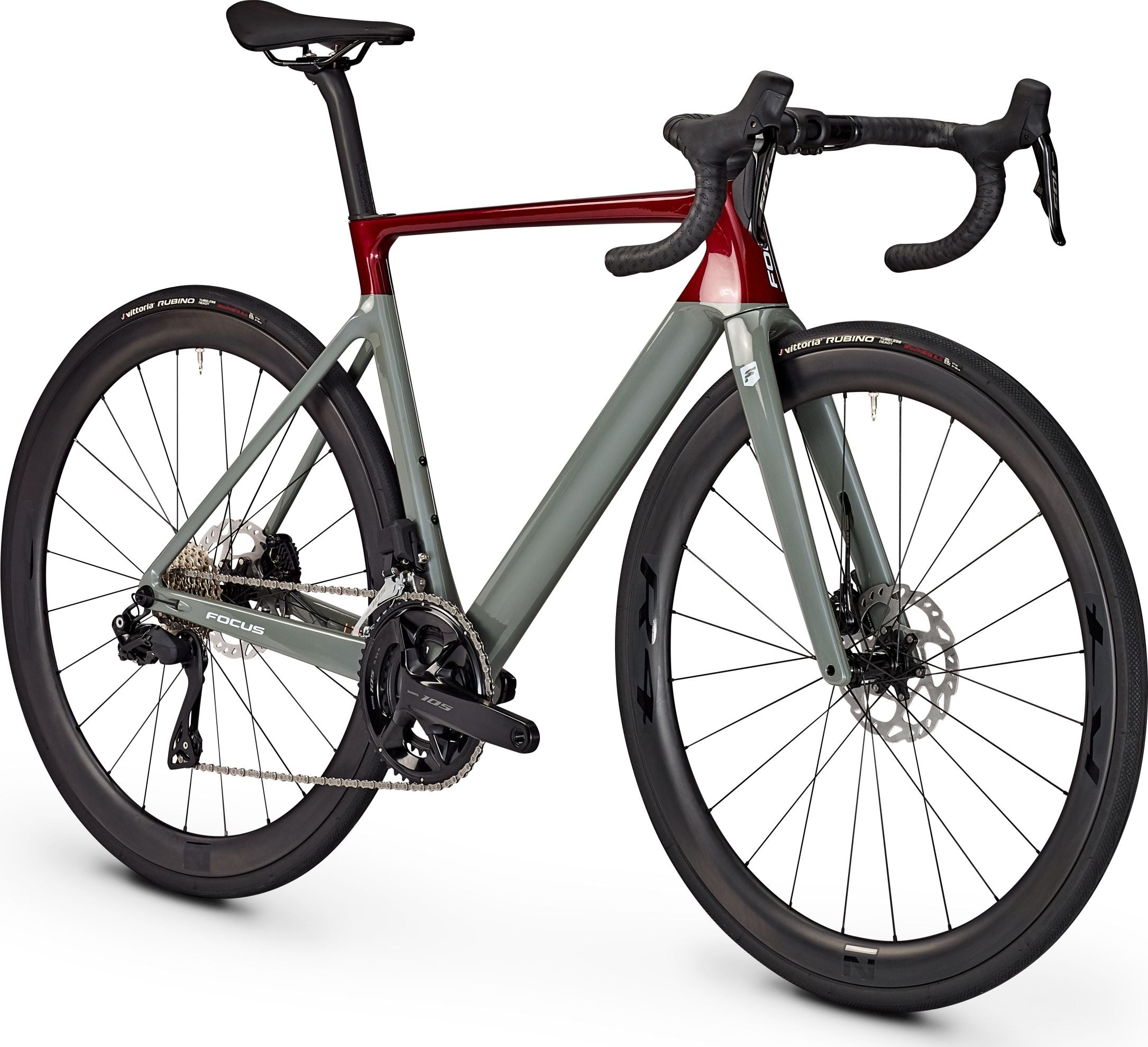

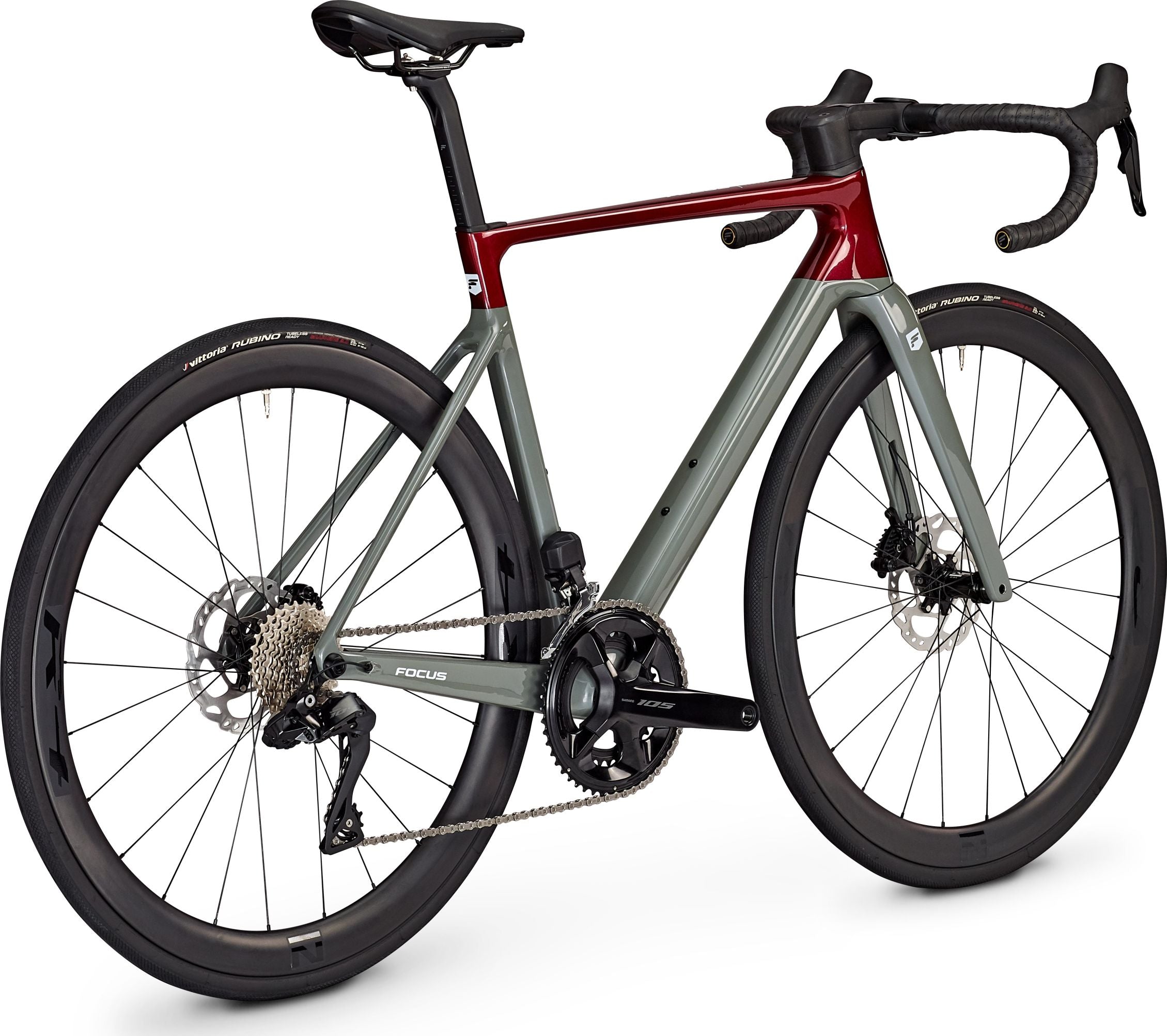

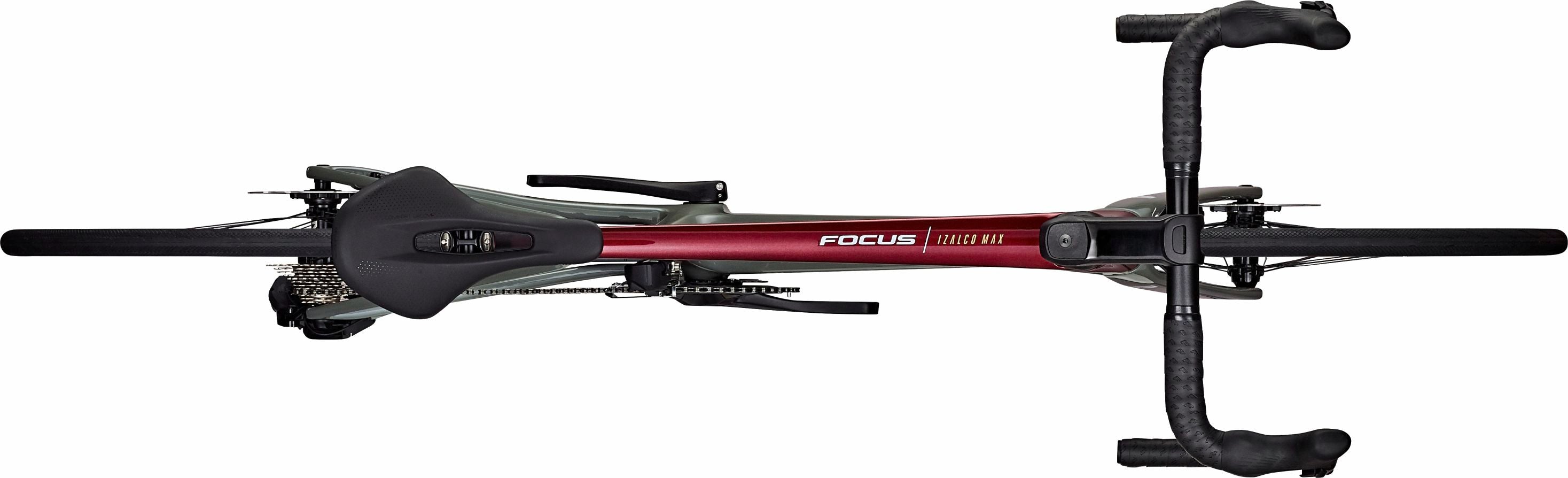

Focus Izalco Max 8.9

Out of stock
SKU: 663012041 Barcode: 4000990445650
Size
€2.949,84 incl. VAT
-38% €4.720,33 €2.949,84 incl. VAT

MAKES YOU FASTER

We asked ourselves: what is the very essence of a road bike? Speed! Is this what IZALCO MAX represents? Absolutely yes! Our goal is for you to be fast on IZALCO MAX. Therefore, everything about IZALCO MAX is fast, without compromise.

Where details matter, we created our fastest road bike ever! It’s the perfect mix of aerodynamics, stiffness, and weight for those who don’t compromise on speed in any situation. With IZALCO MAX, there are no slow races. It truly is the essence of speed.

Main features

  • AERO CARBON FRAME (1,050 G)
  • SHIMANO ELECTRONIC 105 DI2 2X12
  • NOVATEC R4 CARBON WHEELS

Specifications

FRAME
Carbon technology frame, disc, BB86, 142x12 mm thru axle, flat mount 160/140 mm, internal cable routing

FORK
MAX technology carbon, integrated cable routing, disc, 100x12 mm, flat mount

GEARSET
SHIMANO 105 R7150 Di2, 12-speed

FRONT DERAILLEUR
Shimano R7150, Di2

REAR DERAILLEUR
Shimano R7150 Di2, 12-speed

CASSETTE
Shimano 105 R7100, 12-speed

CHAIN
Shimano Deore CN-M6100, 12-speed

CRANKSET
Shimano 105 R7100

DRIVETRAIN
front: 50/34, rear: 11-30

BOTTOM BRACKET
Shimano Pressfit Road BB86

HANDLEBAR
BBB Basic, aluminium, drop: 125 mm, reach: 70 mm,BBB Basic, aluminium, drop: 125 mm, reach: 70 mm

STEM
FOCUS C.I.S. 2.0 integrated, 31.8 mm, aluminium, with Garmin / Wahoo-Mount

HEADSET
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.

SADDLE
Selle Royal Groove SRX

SEATPOST
FOCUS Aero Carbon, D-shape, 350 mm, set-back: 15 mm

BRAKES
Shimano 105 R7170, Di2

BRAKE LEVER DESCRIPTION
Shimano 105 R7170, Di2

BRAKES
Disc

WHEELS
Novatec R4, carbon, 21-622, front: 12x100 mm, rear: 12x142 mm, height: 45 mm

TIRES
Vittoria Rubino TLR, 700 x 28C, Folding

GEARSET
22
-

* Subject to technical changes without notice. Errors and omissions excepted.

** Weight in size M, standard specifications and without pedals.

GEOMETRY

XXS XS S M L XL XXL
DIMENSION (MM) 47 50 52 54 56 58 61
SIZE 470 500 520 540 560 580 610
HANDLEBAR WIDTH (MM) 400 400 400 420 420 420 440
STEM LENGTH 80 90 100 110 110 120 120
CRANK LENGTH (MM) 165 165 170 172.5 172.5 175 175
VERTICAL TUBE LENGTH 360 360 360 360 360 360 360
A SEAT TUBE LENGTH 455 475 495 515 535 555 585
B TOP TUBE LENGTH 505 517 530 543 568 582 607
C STEERING ANGLE (MM) 70 71 72 72.5 72.5 73 73
D SEAT TUBE ANGLE (MM) 75 74.5 74 73.5 73.5 73 73
E REAR STAY LENGTH 410 410 410 410 410 410 410
F BOTTOM BRACKET HEIGHT 72 72 72 72 72 72 72
G STEERING TUBE LENGTH 90 100 115 135 155 175 195
H FORK HEIGHT 371.5 371.5 371.5 371.5 371.5 371.5 371.5
I FORK PRELOAD 46 46 46 46 46 46 46
J STEP 975 976 975 979 1004 1008 1033
K STACK 500 513 531 552 571 592 611
L REACH 370 375 378 380 399 401 420
