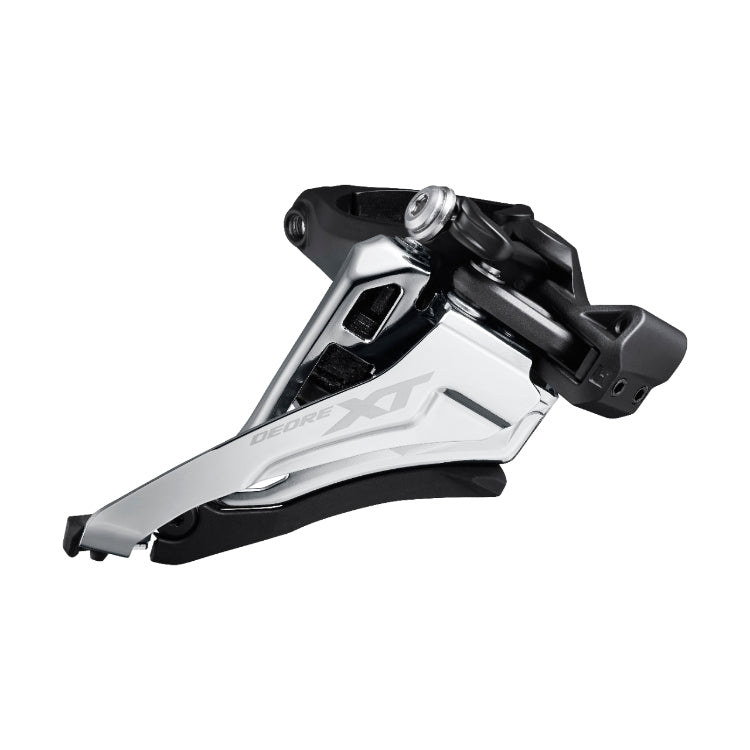

Shimano Deore XT FD-M8100-M Front Derailleur (Clamp Mount) 2x12-speed
Couldn't load pickup availability
Regular price
€38,27
incl. VAT
Regular price
-39%
€62,94
Sale price
€38,27
incl. VAT
SHIMANO DEORE XT - Derailleur - SIDE SWING - Clamp mount - MTB 2x12-speed
SHIMANO DEORE XT M8000 series derailleurs provide low-effort action and secure, reliable shifting for aggressive trail riding. They also offer an extra-wide gear range with a 36-26D chainring combination.
FEATURES
The exclusive design helps ensure reliable shifting Wider gear range for bikes with long-travel suspension, without chain interference SIDE SWING derailleur Wide-range extra gear range with 36-26D double chainring Wide frame compatibility for mounting Available with D, E, and M* type mounting* M type mounting requires adapter (ø34.9 mm)
Greater tire clearance Compatible with 2.3-inch tires on wider rims Unique greater compatibility for 48.8 mm and 51.8 mm chainline
PRODUCT SPECIFICATIONS
| MODEL NO. | FD-M8100-M |
|---|---|
| SERIES | DEORE XT M8100 Series |
| Color | Series color |
| Average weight | 114 |
| Notes | * Size S adapter is only available in the OTC Chainline 48.8 mm package, compatible with 51.8 mmx |
|---|---|
| Chainrings | 2 |
| Cogs | 12 |
| Compatible chain | 12-speed HG |
| Action|SIDE SWING | ✔ |
| Mounting|Clamp (mm)|28.6 | - * |
| Mounting|Clamp (mm)|31.8 | X (with M adapter) |
| Mounting|Clamp (mm)|34.9 | ✔ |
| Cable routing type|Front-pull | ✔ |
| Chainline (mm) | 48.8 (142 mm O.L.D.), 51.8 (148 mm O.L.D.) |
| Low seat tube angle (degrees) | 66-69 |
| Maximum chainring teeth | 36-38D |
| Total capacity | 10D |
| Angle adjustment screw for travel | ✔ |
| Angled clamp design | ✔ |
| Bushings | 6 |
×
![]()
×
![]()
