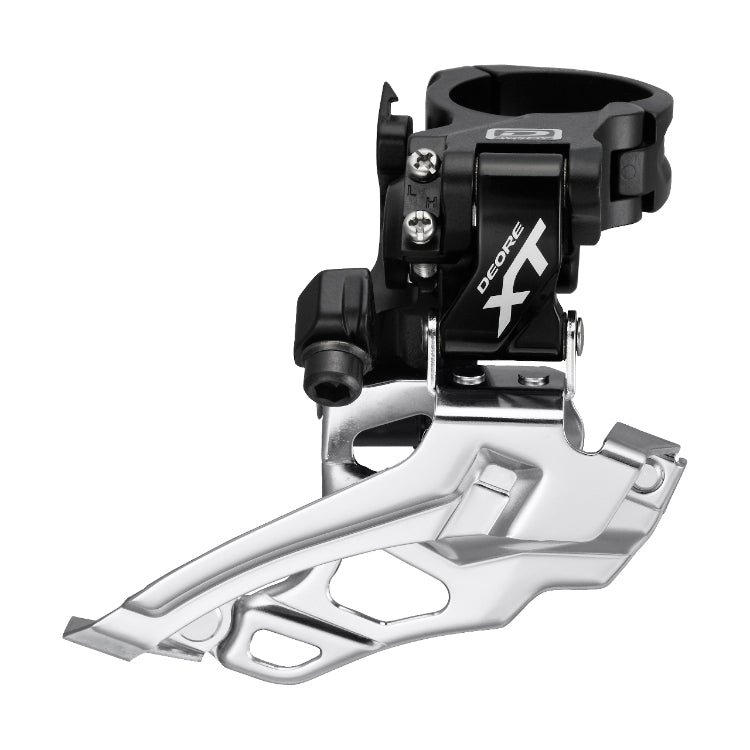

Shimano Deore Xt FD-M786 Front Derailleur
Couldn't load pickup availability
Regular price
€24,49
incl. VAT
Regular price
-29%
€34,42
Sale price
€24,49
incl. VAT
PRODUCT SPECIFICATIONS
| MODEL NO. | FD-M786 |
|---|---|
| SERIES | DEORE XT M780 Series |
| Color | Black | Silver |
| Average weight | 155 |
| Chainrings | 2 |
|---|---|
| Cogs | 10 |
| Compatible chain | HG-X 10-speed |
| Action|Down swing | ✔ |
| Mount|Clamp (mm)|28.6 | X (with S adapter) |
| Mount|Clamp (mm)|31.8 | X (with M adapter) |
| Mount|Clamp (mm)|34.9 | ✔ |
| Cable routing type|Dual Pull | ✔ |
| Cable routing type|Exclusive top-pull option | ✔ |
| Chainline (mm) | 48,8 |
| Low seat tube angle (degrees) | 66-69 |
| Maximum chainring teeth | 38-44D |
| Total capacity | 14D |
| Angle adjustment screw for travel | ✔ |
| Angled clamp design | ✔ |
| Bushings | 8 |
×
![]()
×
![]()
