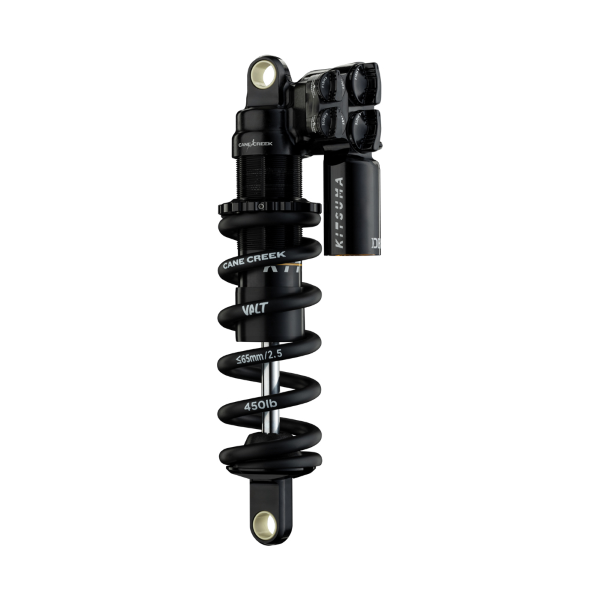

Cane Creek - DB KITSUMA COIL G2 METRIC coil shock absorber

Every Bike Can Be a Downhill Bike

Kitsuma is built for downhill. It copies the terrain on the roughest and steepest trails, offering you maximum grip, the feeling of being glued to the ground, and allows you to go faster thanks to the ability to customize its setup.
It is the only shock absorber adjustable in 4 ways by hand, making it easier and faster to find the perfect setup and get back to riding.

KITSUMA G2 Updates
? Single-turn dials on all adjustments, position markers with laser engraving for easier and more intuitive tuning.
? The easy-to-turn dials feature machined grooves for precise adjustment.
? Higher Max HSR damping: greater control on big hits, compressions, jumps, and hard landings.
? Lower minimum HSC damping: smoother on sharp impacts and rough trails.
? Updated valve seats and suspension body material for higher quality and reliability.
? Modern and updated graphics matching the rest of the Cane Creek collection.
? 2 color options: Black/Gold, Silver (limited quantity at launch)

SPECIFICATIONS

- WEIGHT: +/- 585 g (air version) +/- 417 g (coil version, without spring) *varies by size
- DAMPING: Twin-Tube, independent high and low-speed compression and rebound circuits. Motorex 4wt shock oil. Has the largest oil volume in the Cane Creek shock line.
- ADJUSTMENTS: High-speed compression, low-speed compression, high-speed rebound, low-speed rebound - Air shocks use a simple, tool-free volume reduction to increase progressiveness.
- CLIMB SWITCH: 3-position CS lever: open, climb, LOCKED
- SHAFT DIAMETER: 9.5 mm, steel
- PRODUCTION: Hand-built and individually bench-tested in Fletcher, NC, USA
- WARRANTY: 2 years

Suspension elastic element: Spring
Shock mounting type: Standard
Shock eye-to-eye length: 210 mm
Shock stroke: 55 mm
Lockout system: On the shock,
