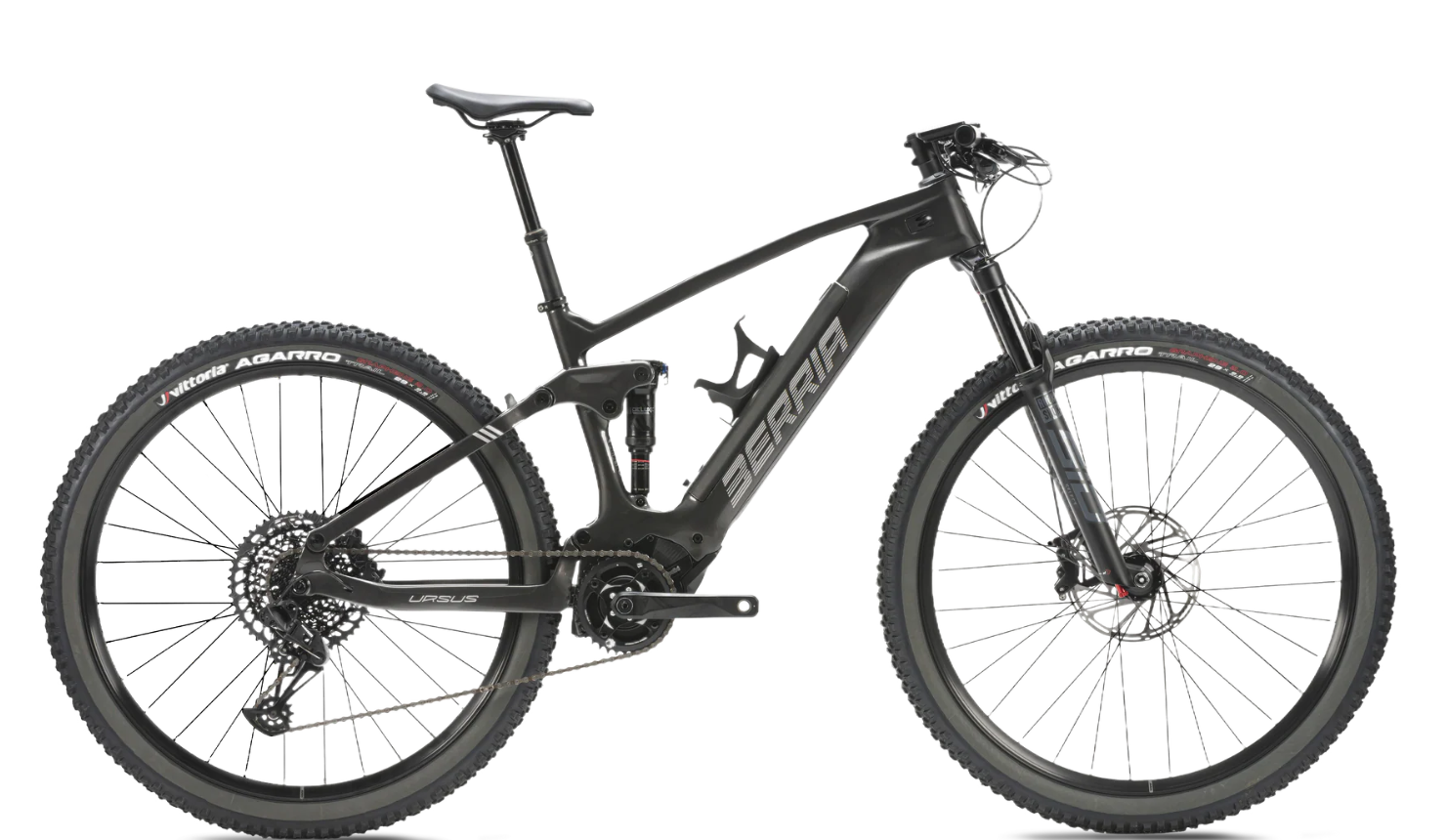

Berria Ursus

Specifications

• Frame

  Ursus 120, Racing Geometry BGC, Kinematic Trail E-MTB 120mm, Full carbon HM2X, Monocoque, MACH-R Nanotech, Full internal cable system ICS2, Integrated Headset OH2S 1-1/2" - 1-1/2", Post mount 180mm, 29x2.60" maximum tire, Thru axle Boost 12x148mm, weight: 2600g

• Fork

  RockShox SID Select RL, Damper Type Charger RL, Remote Lockout 2 Position, 15x110mm Maxle Stealth, Rake 44mm, Tapered steerer, 35 mm tapered wall aluminum, Diffusion Black, 120mm travel, weight: 1671g

• Material

  Full carbon fiber HM2X

• Handlebar

  Avanforce AF3, Aluminum 6061, Ø31.8mm, width 740mm, weight 330g

• Seatpost

  Crank Brothers HIGHLINE 3 Dropper post, Aluminum 7075-T6, 0 offset, Ø30.9, 125mm travel, weight: 609g

• Saddle

  Essax Era, Steel rails, length: 250mm, width: 145mm, weight: 280g

• Derailleur hanger

  Universal Derailleur Hanger

• Shock absorber

  RockShox Deluxe Berria Ursus XCO Custom Tuning, Solo Air, Trunnion 185x50, 120mm travel

• Wheels

  Mavic E-Crossride 29", 15x110, Boost 12x148mm, TLR, MS12 Rear Hub, 6 Bolts, internal width: 30mm, weight: 2225g

• Tires

  Vittoria Agarro 29x2.60", Tubeless ready, Graphene 2.0, 120 TPI, weight: 970g / Vittoria Barzo 29x2.60", Tubeless ready, Graphene 2.0, 120 TPI, weight: 820g

• Shifter

  SRAM GX Eagle Trigger 12V, X-actuation, weight 133g

• Rear derailleur

  SRAM GX Eagle Lunar, Aluminum cage, 12 Speed

• Front derailleur

  SRAM GX Eagle Lunar, Aluminum cage, 12 Speed

• Crankset

  FSA CK-220/IS Wider MTB Alloy Cranks, 170mm

• Chain

  SRAM SX Eagle A1, 122 links

• Cassette

  SRAM XG 1275 Eagle, 11-52T, weight 452g

• Brake

  SRAM DB8 Black 4 Piston

• Motor

  POLINI EP3+ Tuning BR HYBRID Engine Control Unit, Shift Control Unit, Nominal power 250W - 75Nm, Peak power 500W, Q Factor 144mm, weight 2950g

• Battery

  POLINI EVO 500Wh 36V 13.8Ah, 2620g

• Display

  POLINI Color display TFT 3" High-contrast LCD, APP 3 Engine Maps TOURING - DYNAMIC - RACE, 10 features, USB port, Bluetooth communication, ANT+ communication, MTB handlebar mount

• Charger

  Polini EP3 EVO Charger EU 220-240V 3A

  *The manufacturer reserves the right to change website information without notice, including specifications, models, colors, and materials.

  *Images are for illustrative purposes only and may not correspond to the product description.

  Geometry



  	S	M	L
  	155-175 cm	175-185 cm	185-192 cm
  1 Seat tube	400 mm	445 mm	490 mm
  2 Top tube	583 mm	620 mm	658 mm
  3 Head angle	68,2°	68,2°	68,2°
  4 Seat tube angle	74°	73,6°	73,2°
  5 Wheelbase	1114,4 mm	1148,1 mm	1181,7 mm
  6 Seat tube	435 mm	435 mm	435 mm
  7 Head tube	95 mm	105 mm	115 mm
  8 Bottom bracket dropout	42 mm	42 mm	42 mm
  9 Trail	103,8 mm	103,8 mm	103,8 mm
  10 Fork offset	44 mm	44 mm	44 mm
  11 Fork length	531 mm	531 mm	531 mm
  12 Reach	410 mm	440 mm	470 mm
  13 Stack	602 mm	611 mm	621 mm
