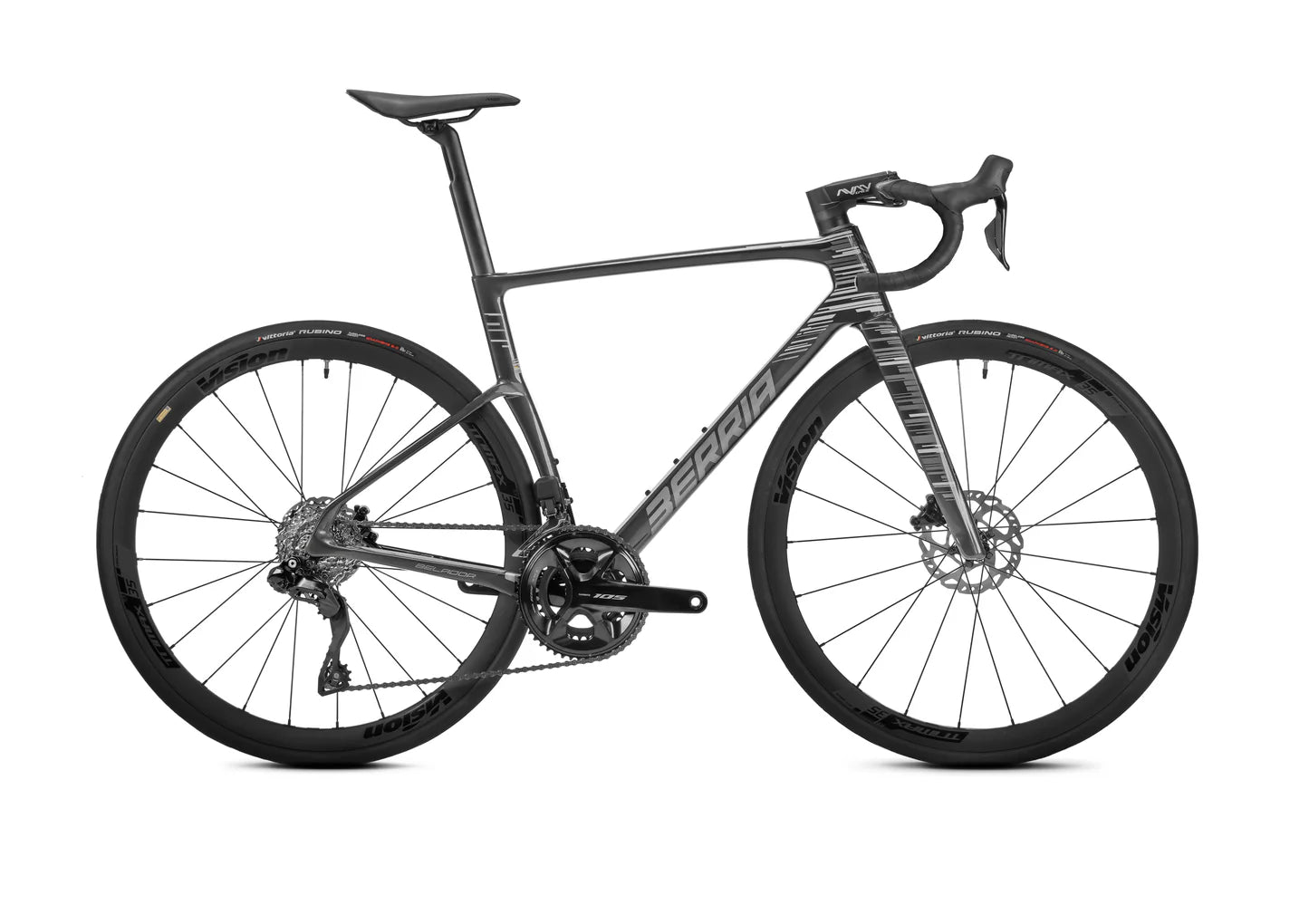

Berria Belador Pro 105 Di2

Components

• Frame

  Belador 6 DISC, Racing Geometry BGC Aero Shape Efficiency (ASE), Full carbon HM2X, Triple monocoque, T47 Bottom Bracket, Full internal cable system ICS2, Headset semi integrated OH2S 1-1/2"- 1-1/2", Flat Mount System brake, 700x34c maximum tire, Thru axle 12x142mm, weight 970gr

• Fork

  Belador Blade 6 full carbon fork, internal cable system ICS2, 1-1/8" - 1-1/2" Tapered head tube compatible, Flat Mount System brake, 700x34c maximum tire, Thru axle 12x100mm, weight 450g

• Material

  Full carbon fiber HM2X

• Handlebar

  Avanforce AF1, UD Carbon, Ø31.8, Drop 130mm, Reach 80mm, width: 400, 420, 440mm, weight: 295gr

• Seatpost

  Belador 6 SP, UD Carbon, 0/20 mm offset, ISP technology, weight 90gr

• Saddle

  Fizik Vento Argo X5, Steel rails 7x7mm, length 265 mm, width: 140 mm, weight: 240gr

• Derailleur hanger

  BR06 Direct Attachment

• Wheels

  Vision Trimax 35, Aluminum rim, TLR, inner width 19mm, rim height 35mm, Center Lock, weight: 1680gr.

• Tires

  Vittoria Rubino, IV 28-622 Tubeless Ready, full black, Graphene 2.0

• Shift lever

  SHIMANO 105 DISC BRAKE, ST-R7120 DUAL CONTROL, 12 SPEED

• Rear derailleur

  SHIMANO 105 Di2, RD-R7150, 12s

• Front derailleur

  SHIMANO 105 Di2, FD-R7150, 12s

• Crankset

  SHIMANO 105, FC-R7100 Crankset 50x34T, 170-172.5-175

• Chain

  CN-M6100, 118LINKS FOR HG 12-SPEED

• Cassette

  SHIMANO 105, CS-R7100, 12-SPEED, 11-34T, weight 245g

• Bottom bracket

  T47 Shimano Bottom Bracket

• Brake

  SHIMANO BR-R7170 Hydraulic Disc

*We reserve the right to change without notice the information and components of the products appearing on this website, specifications, models, colors, and materials.

	51	53	55	57	59
	155-165 cm	165-175 cm	175-185 cm	185-192 cm	>192 cm
1 Seat tube	445 mm	475 mm	500 mm	530 mm	565 mm
2 Top tube	510 mm	530 mm	550 mm	570 mm	590 mm
3 Head angle	70.5°	71.3°	72°	72.5°	73°
4 Seat tube angle	74.9°	74.6°	74.3°	74°	73.7°
5 Wheelbase	970 mm	982 mm	993 mm	1006 mm	1018 mm
6 Dropout	405 mm	405 mm	405 mm	405 mm	405 mm
7 Head tube	110 mm	125 mm	140 mm	160 mm	180 mm
8 Bottom bracket dropout	74 mm	72 mm	72 mm	72 mm	72 mm
9 Trail	83 mm	73 mm	68 mm	65 mm	62 mm
10 Fork offset	42 mm	42 mm	42 mm	42 mm	42 mm
11 Fork length	375 mm	375 mm	375 mm	375 mm	375 mm
12 Reach	369 mm	383 mm	396 mm	406 mm	418 mm
13 Stack	518 mm	533 mm	550 mm	570 mm	590 mm
